Programming &

Installation Manual

January 2006

PLµS®PS-5000 Series

Programmable Limit Switch

13647 Metric Rd • Roscoe, IL 61073 USA • 815/389-2620 • FAX 815/389-3304 • 800-228-5487 (U.S.A. and Canada)

Neither this document nor any part may be reproduced or transmitted in

any form or by any means without permission in writing from the publisher.

®,PLµS®,SLIMLINE®, and PLµSNET®are all registered trademarks of

PS-5000 Quick Start Guide

These five basic programming settings are required

for operation of the Electro Cam Corp. PS-5000 controller

1) Scale Factor

The default value is 360 increments per revolution. To increase or decrease this number press FCN

key, the “0” key, then ENT. Press CHN key until SF is displayed above CHN key. Enter new scale

factor and press ENT. Press POS/RPM key to exit this function.

2) Direction of Increasing Rotation

Turn the resolver or encoder, making sure controller position increases. If not, change the direction

of rotation. Press FCN key, the “0” key, then ENT. Press CHN key until “dr” is displayed above CHN

key. Press PULSE key to toggle between CL (clockwise) and CCL (counterclockwise). Press POS/

RPM key to exit this function.

3) Setting Displayed Position to Match Actual Machine Position “FCN2: OFFSET”

With your machine set at zero or a known position, make sure the displayed controller position is

correct. If not, press FCN key, the “2” key, then ENT. Enter the current machine position and press

ENT key. Press POS/RPM key to exit this function.

4) Setting On/Off Setpoints for Each Output

Press the CHN key, then select the channel you wish to program by pressing the number keys. Press

ENT key. Press ON key, enter the position at which you want the output to turn on, then press ENT

key. Press OFF key, enter the position at which you want the output to turn off, then press ENT key.

Press POS/RPM key to exit this function.

Note: Repeat step 4 until you have entered all the setpoints in the channels you wish to program.

You can enter multiple on/off setpoints in a channel, but they cannot overlap.

5) To View or Check On/Off Setpoints Entered for an Output

Press CHN key, then select the output you wish to view by pressing the number keys. Press ENT key.

Press the right VIEW key; the on setpoint will be displayed and the LED above the ON key will be on.

Press VIEW key again; the off setpoint will be displayed and the LED above the OFF key will be on.

If you have multiple setpoints in the same channel, keep pressing the VIEW key and the display will

cycle through the other on/off setpoints. Press POS/RPM key to exit this function.

You are now ready to run the controller with your outputs turning on and off at the specified positions.

If you wish to apply additional conditions to enable your outputs, such as speed compensation, timed

outputs, or motion detection, refer to the appropriate section of this manual for details. Depending on

your model, it may be possible to enable your outputs based on an input from another device.

Table of Contents

Section—Introduction

Basic Cam Switch Operation . . . . . . . . . . . . . . . . . . . . . 1-1

Standard Features . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1

Optional Features . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2

Model Summary . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3

Section 2—Dimensions & Component Locations

Controllers with External I/O Module Rack

5001, 5101, 5004, 5104, 5034, 5134 . . . . . . . . . . . . 2-1

Controllers with I/O Modules on Controller Back

5021, 5121, 5024, 5124 . . . . . . . . . . . . . . . . . . . . . . 2-2

Controllers with Built-In Transistor I/O Chips

5011, 5111 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3

Section 3—Wiring

Logic Terminal Strip Wiring . . . . . . . . . . . . . . . . . . . . . . 3-1

External I/O Racks (5001, 5101, 5004, 5104)

16 Module I/O Rack—Standard . . . . . . . . . . . . . . . . 3-2

16 Module I/O Rack—Analog . . . . . . . . . . . . . . . . . . 3-2

16 Module I/O Rack—M16 Slimline . . . . . . . . . . . . . 3-2

24 & 48 I/O Rack . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-3

I/O Modules on Controller (5021, 5121, 5024, 5124) . . 3-4

Module Wiring, Outputs . . . . . . . . . . . . . . . . . . . . . . . . . 3-4

Sinking/Sourcing Defined . . . . . . . . . . . . . . . . . . . . . . . 3-5

Module Wiring, Inputs . . . . . . . . . . . . . . . . . . . . . . . . . . 3-5

Input Wiring, 3-Wire Sensors . . . . . . . . . . . . . . . . . . . . . 3-5

Built-In Transistor I/O Chips (5011, 5111)

Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-6

Output Wiring, Sourcing . . . . . . . . . . . . . . . . . . . . . . 3-7

Output Wiring, Sinking . . . . . . . . . . . . . . . . . . . . . . . 3-8

Output Wiring to PLC . . . . . . . . . . . . . . . . . . . . . . . . 3-9

PS-5X34 Controller & 32 DC Output Rack . . . . . . . 3-10

PS-5X34 Output Rack Layout . . . . . . . . . . . . . . . . 3-11

PS-5X34 Wiring to PLC's . . . . . . . . . . . . . . . . . . . . 3-12

PS-5X34 Output Rack Transistor Array Chips . . . . 3-13

Resolver Wiring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-14

Cable for Stainless Steel Resolver . . . . . . . . . . . . . . . 3-15

Encoder Cable Installation . . . . . . . . . . . . . . . . . . . . . . 3-16

Section 4—Programming, Standard Features

Access Levels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-1

Keyboard Description . . . . . . . . . . . . . . . . . . . . . . . . . . 4-2

Output Setpoint Programming . . . . . . . . . . . . . . . . . . . . 4-3

Master Level Programming

FCN 0 Programming Enable . . . . . . . . . . . . . . . 4-4

dr Direction of Rotation . . . . . . . . . . . . . . . . 4-4

SF Scale Factor . . . . . . . . . . . . . . . . . . . . . . 4-4

P1 & P2 Keyboard Enable . . . . . . . . . . . . . . . . . . 4-4

tb Time Base for Output Timing . . . . . . . . . 4-5

Enhanced Position/RPM Display Logic . . . . . . . . . . 4-5

dd Display Default . . . . . . . . . . . . . . . . . . . . 4-5

tr Toggle RPM . . . . . . . . . . . . . . . . . . . . . . 4-5

rU rPM Display Update Frequency . . . . . . . 4-6

ct, cS, cA Communications Parameters . . . . . . . . . . 4-6

FCN 6 Output Channel Access . . . . . . . . . . . . . 4-7

FCN 7 Motion ANDing . . . . . . . . . . . . . . . . . . . . 4-8

FCN 8 Subdividing Outputs . . . . . . . . . . . . . . . . 4-9

FCN 9 Enable Inputs and Modes . . . . . . . . . . . 4-9

Setup Level Programming

FCN 1 Motion Setpoints . . . . . . . . . . . . . . . . . . 4-10

FCN 2 Offset . . . . . . . . . . . . . . . . . . . . . . . . . . 4-10

FCN 3 Program Number . . . . . . . . . . . . . . . . . 4-10

FCN 4 Speed Compensation, Standard . . . . . 4-12

Speed Compensation, Negative . . . . . 4-12

FCN 5 Timed Outputs . . . . . . . . . . . . . . . . . . . 4-13

Section 5—Programming, Optional Features

Leading Trailing Speed Comp (“-L”)

FCN 0 Speed Comp Type . . . . . . . . . . . . . . . . . 5-1

FCN 4 Leading/Trailing Speed Comp . . . . . . . . 5-1

Analog Output (“-A”)

FCN 1 Analog Offset & High RPM . . . . . . . . . . . 5-2

Outputs Based on Direction of Rotation (“-D”)

Direction ANDing . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-2

Direction Hysteresis . . . . . . . . . . . . . . . . . . . . . . . . . 5-2

Gray Code Output (“-G”)

Gray Code Conversion Ladder . . . . . . . . . . . . . . . . . 5-3

FCN 4 Gray Code Speed Comp . . . . . . . . . . . . 5-3

Extra Program Storage (“-F”)

Pulses/Programs Available . . . . . . . . . . . . . . . . . . . 5-4

Program Number Displays . . . . . . . . . . . . . . . . . . . . 5-4

FCN 3 Program Number Changes . . . . . . . . . . 5-5

Viewing/Editing Program . . . . . . . . . . . . . . . . . . . . . 5-6

Phase Mark Registration (“-P”)

Examples and Adjustment Methods . . . . . . . . . . . . . 5-7

Input Information . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-8

CHN 80 Auto-Center Registration . . . . . . . . . . . . 5-9

CHN 81 Adjust Registration Center . . . . . . . . . . . 5-9

Reversal of Centering Logic . . . . . . . . . . . . . . . . . . 5-10

“OFF” Logic Examples . . . . . . . . . . . . . . . . . . . . . . 5-10

Appendix

Output Grouping & Modes

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-1

Configuration Examples . . . . . . . . . . . . . . . . . . . . . . A-2

Mode 0 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-3

Mode 1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-4

Mode 2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-6

Mode 3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-8

Mode 4 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-10

Error Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-12

Communication Port Wiring . . . . . . . . . . . . . . . . . . . . . A-14

Encoder Position vs. Degrees . . . . . . . . . . . . . . . . . . . A-15

60 Pulse Disc—Position vs. Degrees . . . . . . . . . . . . . A-15

Alternate Functions . . . . . . . . . . . . . . . . . . . . . . . . . . A-16

Alt Fcn 1 Transducer Position

Alt Fcn 2 Logic Input Status

Alt Fcn 3 Offset Value

Alt Fcn 4 60 Pulse Disc

Alt Fcn 1002 Keyboard Test

Alt Fcn 1003 LED Display Test

Alt Fcn 1004 Watchdog Timer Test

Alt Fcn 1005 Control Model Info

Alt Fcn 1006 Options & Rev. #

Alt Fcn 7000 Restore Defaults

Alt Fcn 7001 Clear Setpoints

Alt Fcn 7999 EEPROM Test

Remote Display Installation . . . . . . . . . . . . . . . . . . . . . A-17

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . A-18

Index

WARRANTY

1. Electro Cam Corp. warrants that for a period of twelve (12) months from the date of shipment to

the original purchaser, its new product to be free from defects in material and workmanship and

that the product conforms to applicable drawings and specifications approved by the Manufac-

turer. This warranty period will be extended on Distributor or OEM orders to a maximum of

eighteen months to take into consideration Distributor or OEM shelf time.

2. The remedy obligations of Electro Cam Corp. under this warranty are exclusive and are limited to

the repair, or at its option, the replacement or refund of the original purchase price of any new

apparatus which proves defective or not in conformity with the drawings and specifications. Ship-

ment of the claimed defective product to Electro Cam Corp. shall be at the cost of the consumer.

Shipment of the repaired or replacement product to the consumer shall be at the cost of Electro

Cam Corp. All claims must be made in writing to Electro Cam Corp., 13647 Metric Road, Roscoe,

IL 61073 USA.

3. In no event, and under no circumstances, shall Electro Cam Corp. be liable for:

a. Any product damaged or lost in shipment. Inspection for damage should be made before

acceptance or signing any delivery documents releasing responsibility of the delivering car-

rier.

b. Product failure or damages due to misuse abuse, improper installation or abnormal condi-

tions of temperature, dirt or other contaminants as determined at the sole discretion of Electro

Cam Corp.

c. Product failures due to operation, intentional or otherwise, above rated capacities as deter-

mined at the sole discretion of Electro Cam Corp.

d. Non-authorized expenses for removal, inspection, transportation, repair or rework. Nor shall

the manufacturer ever be liable for consequential and incidental damages, or in any amount

greater than the purchase price of the equipment.

4. There are no warranties which extend beyond the description on the face hereof. This warranty is

in LIEU OF ALL OTHER WARRANTIES, EXPRESSED OR IMPLIED INCLUDING (BUT NOT

LIMITED TO) ANY IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PAR-

TICULAR PURPOSE, ALL OF WHICH ARE EXPRESSLY DISCLAIMED. Any legal proceeding

arising out of the sale or use of this apparatus must be commenced within (18) months of the date

of shipment from the manufacturer.

Basic Cam Switch Operation

A PLμScontrol’smain purpose isto operate outputsin a

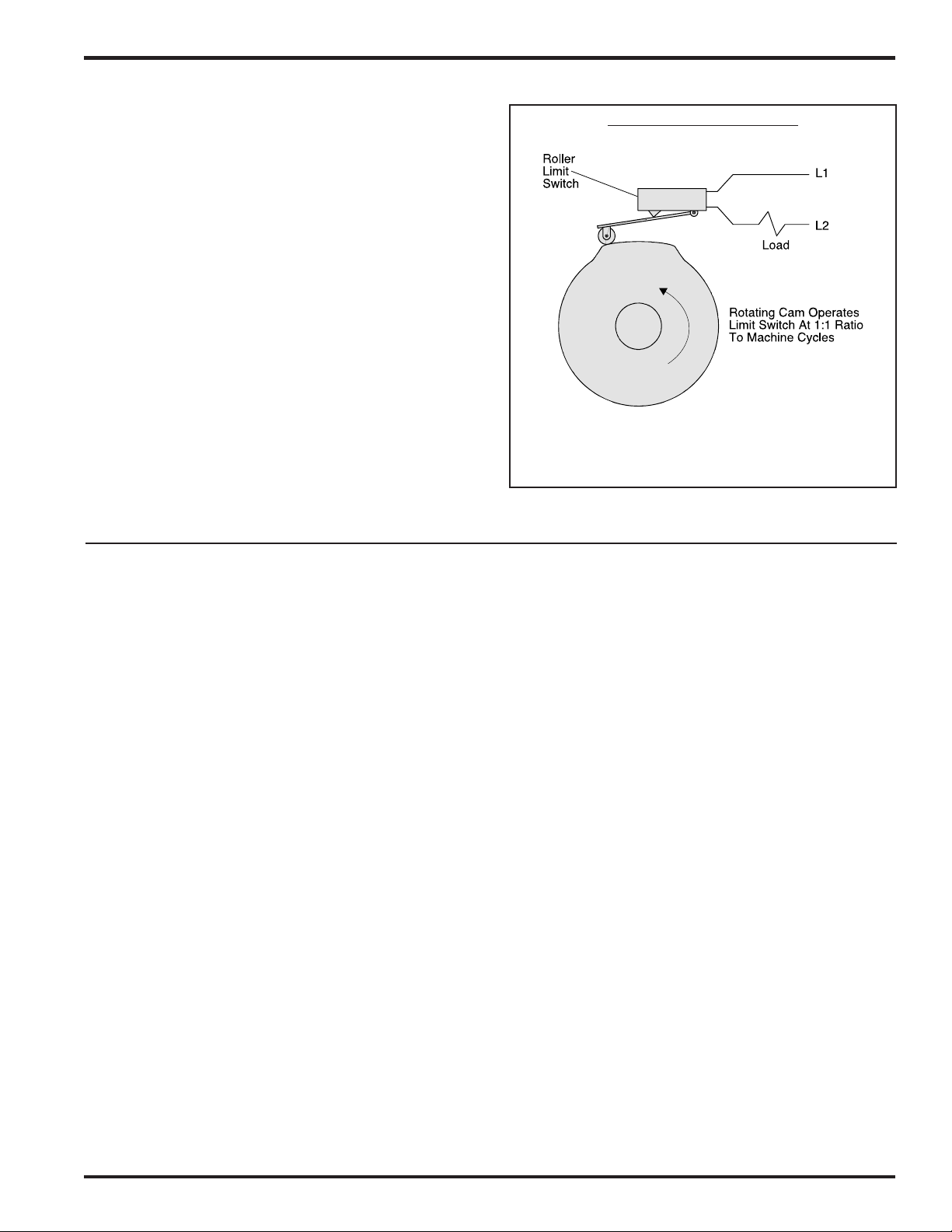

manner that simulatescam switches. The drawing to the

right illustratesthe operation of acam switch. Itsfunction is

to switch the load on and off at the same rotary positionsof

the cam shaft during each revolution of that cam shaft. The

rotating cam shaft isdriven by amachine at a1:1 ratio, so

that the on / off positionsof the cam switch alwaysmatch

specific positionsin the machine cycle. However, cam limit

switcheshave the following disadvantages: unreliable

(wear), hard to adjust (machine must be stopped during

adjustment), and they cannot run at high speedsbecause

of contact bounce and excessive mechanical wear.

PLμScontrolsovercome these basic cam switch problems.

They have no moving wear parts, they are easy to adjust

from the keyboard with the machine running or stopped,

and they can operate at speedsup to 3000 RPM. They also

add many capabilitiesfar beyond simple cam switch logic. The limit switch will turn on and off at

the same cam degree positionsevery

cam revolution (every machine cycle)

Standard Product Features

Keyboard/Controller

The keyboard controller isthe main component of the PLμS

system. The front keypad and displaysprovide acomplete

user interface from which every aspect of the control’s

operation can be monitored and programmed. When

properly mounted with the gasket provided, the keyboard

meetsNEMA 4 standards. A clear silicon rubber boot

assembly isavailable to provide NEMA 4X protection for

installationswhere harsh washdown chemicalsare used.

Ease of Setup

All output position setpoint valuesare simply entered

through the numeric keypad. These setpointscan be

adjusted while the machine isrunning or stopped by using

the increment, decrement, or numeric keys. The keyboard

isalso used to synchronize the control’sposition to the

machine, eliminating the need to mechanically adjust the

resolver’sshaft position.

Multiple Programs

Depending on the model ordered, up to 64 different

programs, or Òjo brecipes” can be stored in the control’s

memory. Thisminimizesdown time for jobchange over

because simply changing program numbersmakesall of

the output setting changesrequired. Program numbersc an

be changed by mechanical switches; PLC’s(using the

hardware program select inputs); the keypad; or serial

communication messages.

Output Speed Compensation

Speed compensation allowsoutputsto compensate for the

response time of the controlled devicesby turning on earlier

as machine speedsincrease. Thiseliminatesthe need to

adjust output settingswhenever machine speedsare

changed. Using speed compensation often allowshigher

production speedsand eliminatesthe need for output

adjustments.

Motion ANDing

A speed range can be programmed into the controller, and

outputscan then be ANDed with the speed range so that

they will be disabled unless the machine speed iswithin the

range. Thiscan be used to turn off outputsif the machine

stops; disable outputsuntil the machine reachesaminimum

speed; or disable outputsif the machine goesabove a

specified maximum speed. A common use for thisfeature

isdisabling outputsto glue valvesso the flow of glue turns

off if the machine stops.

Timed Outputs

Outputscan be programmed to turn on at the programmed

“on”position and turn off when the specified time elapses,

rather than staying on until an “off”position isreached. The

result isaconstant output duration, regardless of machine

speed. The output will turn off when the “off”position is

reached if it hasn’t already timed out. Timed outputsare

used to drive deviceswhich require afixed time to perform

atask, regardless of machine speed.

1-1 Introduction

Introduction

1-2 Introduction

Selectable Scale Factor (resolversonly)

The number of incrementsper revolution (Scale Factor) is

programmed by the user. Standard controlshave a

maximum of 1024 incrementsper revolution and “-H”option

(high resolution) controlshave amaximum of 4096

incrementsper revolution. To make the control operate and

program in degrees, aScale Factor of 360 isused. In some

applicationsit isdesirable to use aScale Factor that defines

each increment as aspecific distance in engineering units

(ex: 1 inc = .1" of travel).

Output Groupingand Modesof Operation

Outputscan be subdivided into groupsand each group

can be associated with an input device. There are five

different modesof operation that can be selected for each

group. For example, some modesallow the group to activate

only when the corresponding input has signaled that product

ispresent. Glue control isatypical place where outputs

are disabled until product issensed as being present. For

details, see page A-1.

Standard Product Features(continued)

Optional Product Features

AnalogOutput, Ò-A ”

Unitswith thisoption can output an analog signal that is

linearly proportional to RPM. The analog signal level at

zero RPM can be programmed through the keyboard, as

well as the RPM that correspondsto maximum signal. No

measuring equipment isrequired for initial setup, and

calibration isnot needed. Typical usesare control of glue

pressure as machine speed changes, and speed matching

of other equipment to the machine being controlled.

OutputsBased On Rotation Direction, “-D”

In standard PLμScontrollers, outputswill turn ON/OFF

based on resolver position, regardless of which way the

resolver isturning. With the "-D" option, outputscan be

based on resolver rotation direction.

Large Program Memory, “-F”

Depending on the number of outputsordered, standard

controlscan store up to 64 programsconsisting of not more

than 1258output pulsestotal. Controlswith the “-F”option

increase thiscapacity by storing up to 256 programs

consisting of not more than 4589 output pulsestotal.

Gray Code Position Output, “-G”

The “-G”option provideseight bitsof position information

on the last eight outputs. This“gray code”output can be

connected to aPLC or other electronic control device,

eliminating the need for expensive accessory cards. The

PLC can then make control decisionsthat do not demand

afast response, while other PLμSoutputsdirectly control

devicesthat must operate quickly and consistently.

High Resolution, “-H”(resolversonly)

Controlswith thisoption can divide the resolver shaft

Serial Communication

Serial communication providesan RS-232 and an RS-485

communication port. Using PLμSNET software for IBM

compatible computers, available from Electro Cam Corp.,

the control’sentire program can be saved from the control

to adisk file or loaded from adisk file to the control. The

program can be printed or edited using the computer. It is

also possible to send individual communication commands

to the control, while running, to change settingsin the

program. The user must write appropriate software to

communicate at the individual command level.

Expanded Operator Access

Thisfeature givesthe operator access to motion detection

settings, offset, active program number, and speed

compensation.

NOTE: Serial Communication and Expanded Operator

Access were "-C" and "-E" optionsprior to date code

9740.

rotation into as many as 4096 increments. Standard

controlshave amaximum of 1024 increments.

Leading/TrailingEdge Speed Comp, “-L”

Thisoption allowsthe “on”and “off”edgesof output pulses

to be speed compensated by different amounts. High speed

gluing isacommon application where the “on”and “off”

edgesof the output signal have to be compensated by

different amounts.

Phase Mark Registration, “-P”

Phase mark registration allowsthe PLμScontrol to

determine if aproduct appearsbefore or after a

programmed timing window. If mis-registration occurs, the

product’stiming can be adjusted manually, or by aPLC or

similar controller interfaced to the PLuS control.

Caustic Washdown Boot, “-W”

The face of the keyboard israted NEMA 4X (meetsNEMA

1, 4, 4X, and 12). For additional protection against caustic

washdown, grease, oil, dirt, and normal wear, aclear

silicone rubber boot isavailable that fitsover and around

the keyboard. The back of the boot providesagood seal

between the back of the keyboard and the control panel.

The boot istransparent and pliable, allowing the keyboard

to be viewed and operated through it. Controlsordered

with the “-W”option are shipped with the boot fitted over

the keyboard. Bootsmay also be ordered separately and

installed in the field (#PS-4904-99-001).

Remote Display

A remote display which connectsto the RS-485 port is

available for unitsordered with both the “-C”and “-E”

options. Thisallowsposition and RPM information to be

displayed up to 1000 feet away from the controller.

1-3Introduction

PS-5000 SeriesModel Summary

PS-5021

PS-5121

PS-5024

PS-5124

These Models

Have I/O Modules

On Controller Back

PS-5001

PS-5101

PS-5004

PS-5104

PS-5034

PS-5134

These Models

Use External

I/O Module Racks

These Models

Use Built-In

I/O Transistor Chips

PS-5011

PS-5111

# of # of Output

Model Output Type Transducer OutputsProgramsModes? Options

PS-5001-10-016 Module Rack Encoder 16 64 no A, F, G, L, P, V, W, 20, 24

PS-5101-10-016 Module Rack Resolver 16 64 no A, F, G, H, L, P, V, W, 20, 24

PS-5001-10-024 Module Rack Encoder 24 48no F, G, L, V, W, 20, 24

PS-5101-10-024 Module Rack Resolver 24 48no F, G, H, L, V, W, 20, 24

PS-5001-10-048Module Rack Encoder 4824 no F, G, L, V, W, 20, 24

PS-5101-10-048Module Rack Resolver 4824 no F, G, H, L, V, W, 20, 24

PS-5004-10-016 Module Rack Encoder 16 64 yesA, F, G, L, P, V, W, 20, 24

PS-5104-10-016 Module Rack Resolver 16 64 yesA, F, G, H, L, P, V, W, 20, 24

PS-5004-10-024 Module Rack Encoder 24 48yesF, G, L, V, W, 20, 24

PS-5104-10-024 Module Rack Resolver 24 48yesF, G, H, L, V, W, 20, 24

PS-5004-10-048Module Rack Encoder 4824 yesF, G, L, V, W, 20, 24

PS-5104-10-048Module Rack Resolver 4824 yesF, G, H, L, V, W, 20, 24

PS-5011-10-N08Transistor, Sinking Encoder 864 no F, L, V, W, 20, 24

PS-5111-10-N08Transistor, Sinking Resolver 864 no F, H, L, V, W, 20, 24

PS-5011-10-N16 Transistor, Sinking Encoder 16 64 no F, G, L, P, V, W, 20, 24

PS-5111-10-N16 Transistor, Sinking Resolver 16 64 no F, G, H, L, P, V, W, 20, 24

PS-5011-10-P08Transistor, Sourcing Encoder 864 no F, L, V, W, 20, 24

PS-5111-10-P08Transistor, Sourcing Resolver 864 no F, H, L, V, W, 20, 24

PS-5011-10-P16 Transistor, Sourcing Encoder 16 64 no F, G, L, P, V, W, 20, 24

PS-5111-10-P16 Transistor, Sourcing Resolver 16 64 no F, G, H, L, P, V, W, 20, 24

PS-5034-10-032Transistor, Ext. Rack Encoder 3232yesF, G, L, V, W, 20, 24

PS-5134-10-032Transistor, Ext. Rack Resolver 3232yesF, G, H, L, U, V, W, 24

PS-5034-10-064 Transistor, Ext. Rack Encoder 64 16 yesF, G, L, V, W, 20, 24

PS-5134-10-064 Transistor, Ext. Rack Resolver 64 16 yesF, G, H, L, U, V, W, 24

PS-5021-10-M09 Moduleson Back Encoder 9 64 no A, F, L, V, W, 20, 24

PS-5121-10-M09 Moduleson Back Resolver 9 64 no A, F, H, L, P, U, V, W, 20, 24

PS-5024-10-M09 Moduleson Back Encoder 9 64 yesA, F, L, V, W, 20, 24

PS-5124-10-M09 Moduleson Back Resolver 9 64 yesA, F, H, L, P, U, V, W, 20, 24

Key To Option Selection

20-240 VAC: Change “-10-”to “-20-”.

24-24 VDC: Change “-10-”to “-24-”.

AAnalog output proportional to speed

FAdditional setpoint/program storage

GGray code position output

HHigh resolution, resolver only

LIndividual leading/trailing edge speed compensation

PRegister mark phasing

UCE mark - requires24VDC input

VVibration protective coating

WWashdown Boot

Controllersw/ External I/O Module Rack

2-1 Dimensions& Component Locations

PS-5001

PS-5101

PS-5004

PS-5104

PS-5034

PS-5134

Detailed View of

24 VDC Version

See Page 2-4

for Controller

Dimensions

2-2 Dimensions & Component Locations

PS-5021

PS-5121

PS-5024

PS-5124

Controllers w/ I/O Modules on Controller Back

LED HOLD

DOWN

SCREW

FUSE

Slimline Modules

TOP

Detailed View of

24 VDC Version

See Page 2-4

for Controller

Dimensions

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Electro Cam Schalten Handbücher

Electro Cam

Electro Cam Plus PS-6144 Series Bedienungsanleitung

Electro Cam

Electro Cam PLUS PS-6244 Series Bedienungsanleitung

Beliebte Schalten Handbücher anderer Marken

URC

URC Total Control MFS-8 Bedienungsanleitung

Azbil

Azbil HPQ-D11 Bedienungsanleitung

Sony

Sony DFS-900M Bedienungsanleitung

SICK

SICK i17S Bedienungsanleitung

F&F

F&F SZR-277 Bedienungsanleitung

Shure

Shure UAMS/BK Bedienungsanleitung

Dräger

Dräger X-zone Switch Off Bedienungsanleitung

Asco

Asco Joucomatic 349 Series Bedienungsanleitung

BT Mini Hub Bedienungsanleitung

D-Link

D-Link DES-1226G Bedienungsanleitung

Johnson Controls

Johnson Controls FS80-C Bedienungsanleitung

Alcatel-Lucent

Alcatel-Lucent 7450 ESS-12 Bedienungsanleitung

MicroNet

MicroNet SP1200A Bedienungsanleitung

Ruijie

Ruijie RG-PF2920 Series Installations- und Betriebsanleitung

Altinex

Altinex DA1914SX Bedienungsanleitung

MiLAN

MiLAN MIL-SM2401M Bedienungsanleitung

RJM

RJM MASTERMIND PBC/6X Bedienungsanleitung

Atlas

Atlas MMK-KVM8 Bedienungsanleitung
