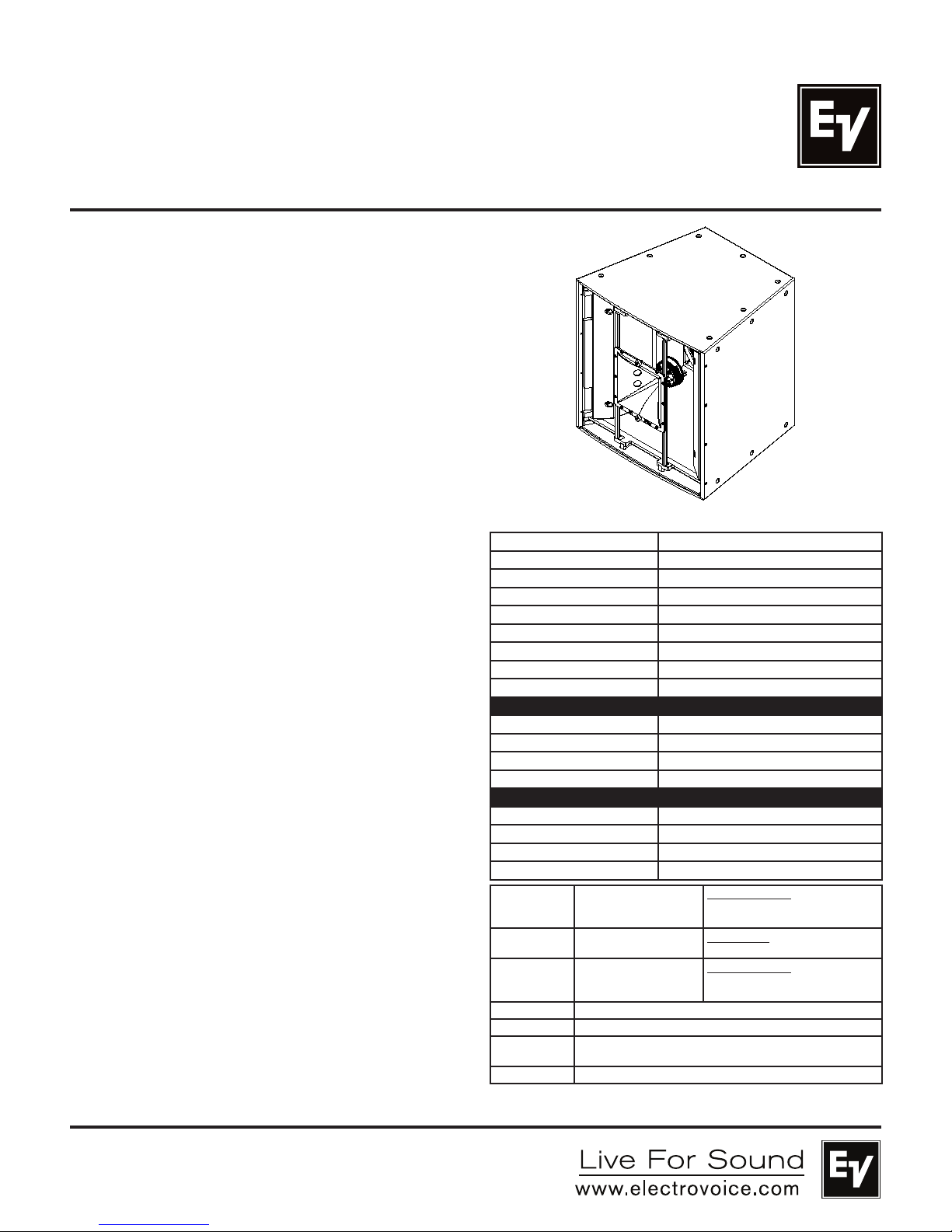

EVH-1152D/43

Single 15” Two-Way Coaxial

40° x 30° Full-Range

High-Efﬁciency

Loudspeaker System

General Description:

Technical Speciﬁcations:

Key Features:

DH7N 3” (76 mm) diaphragm, 1.4” (36 mm) exit•

pure titanium compression driver

SMX2151 15” (381 mm) LF transducer with fully•

symmetric drive

Advanced fourth-order crossover network with•

HF protection

Coverage pattern: 40° x 30° Constant•

DirectivityTM 12” rotatable waveguide

106 dB sensitivity, 139 dB maximum SPL•

System rating: 500 W continuous, 2000 W peak•

Active rating: LF 400 W/HF 75 W continuous•

(1600 W/300 W peak)

(28) M10 threaded suspension points•

PI and FG versions available with gland nut and•

stainless-steel grille

The Electro-Voice EVH-1152D/43 is a high-power, two-way horn-loaded

coaxial loudspeaker system that can be used in a variety of applica-

tions where excellent sound reinforcement, wide bandwidth directivity

control, and high efﬁciency is required in a compact package.

The EVH-1152D/43 utilizes the DH7N, a high-output 3” titanium com-

pression driver, coupled to a Constant Directivity™ 40° x 30° waveguide.

The SMX2151 15” woofer was developed using FEA optimization for

motor, suspension, and electrical design to ensure very low distortion,

high efﬁciency, and maximum intelligibility at high SPL. The crossover

uses steep, 24-dB-per-octave slopes with equalization for very smooth

response in the vocal range, linear off-axis response, and a protection

circuit for long-term reliability. This combination of technologies results

in a smooth response to 20 kHz and excellent pattern control down to

500 Hz.

The EVH-1152D/43’s features make it ideal for many ﬁxed-install appli-

cations. The trapezoidal enclosure is constructed of weather-resistant

birch, and coated with EVCoatTM for protection from the elements. For

maximum protection against extreme outdoor elements, a fully-weath-

erized ﬁberglass version is available. The unique acoustic and rigging

design allows for vertical and horizontal clusters to be built using any

combination of loudspeakers from the entire EVF and EVH series. With

seven horn patterns to choose from, along with an assortment of low-

frequency and subwoofer loudspeakers, you have the tools to maxi-

mize ﬂexibility of system design, no matter what the application and

budget. The innovative input panel provides a choice of Phoenix-style

connector (included in all standard models) or the ability to add a dual

NL4-type connector cover plate or gland-nut cover plate (for weather-

izing applications). An externally accessible jumper selects passive or

active operation. An available 70.7/100-V transformer kit may be easily

mounted to the input panel for use in distributed systems. All these

features give you the ﬂexibility to address a large range of venues,

quickly and precisely supporting customer requirements with fewer

items in inventory.

1Half-space measurement.

2EIA RS-426A, tested for eight hours.

Freq. Response1(-3 dB): 60 Hz - 17 kHz

Freq. Range1(-10 dB): 50 Hz - 20 kHz

Rotatable Coverage: 40° x 30°

Rec. High-Pass Frequency: 60 Hz

Passive Crossover Freq.: 1300 Hz

Axial Sensitivity1: 106 dB (1 W/1 m)

Max. Calculated SPL1: 139 dB

Passive Power Handling2: 500 W continuous, 2000 W peak

Impedance: 8 ohms (nominal), 6.0 ohms (min.)

LF Transducer - SMX2151, 15” (381 mm) driver

LF Axial Sensitivity4: 107 dB (1 W/1 m)

LF Max. Calculated SPL: 139 dB

LF Power Handling3: 400 W continuous, 1600 W peak

LF Impedance: 8 ohms (nominal), 6.1 ohms (min.)

HF Transducer - DH7N, 3” (76 mm) diaphragm compression driver

HF Axial Sensitivity4: 114 dB (1 W/1 m)

HF Max. Calculated SPL: 139 dB

HF Power Handling3: 75 W continuous, 300 W peak

HF Impedance: 8 ohms (nominal), 6.0 ohms (min.)

Connectors: Dual four-pin 10 AWG

Phoenix/Euro Block

screw-terminals

PI/FG Versions - CDG dual-gland-

nut input panel cover included

Enclosure: 13-ply weather-resistant

birch with EVCoatTM

FG Version - 13-ply weather-resis-

tant birch with ﬁberglass ﬁnish

Grille: 16 GA powder-coated

galvanneal with

rotatable logo

PI/FG Versions -

Stainless steel with

hydrophobic cloth

Environmental: IEC 60529 IP55 for PI and FG versions

Suspension: (28) M10 threaded suspension points

Dimensions

(H x W x D):

30.26” x 30.26” x 26.77”

(768.6 mm x 768.6 mm x 680.1 mm)

Weight: 145.5 lb (66.1 kg) net, 160.5 lb (72.9 kg) shipping

3AES 2-1984, tested for eight hours.

4Arithmetic averages, 300 - 1,300 Hz (LF) and

1,300 - 5,000 Hz (HF).

20000

10000

1000

100

316

100

3.16

100

110

Frequency (Hz)

SPL (dB) 1W/1m

Impedance (Ohms)

Passive Mode, Half Space

Impedance, Passive Mode

100

1000

10000

20000

100

110

Frequency (Hz)

SPL (dB) 1W/1m

On Axis 10° Horizontal

20° Horizontal 30° Horizontal

100

1000

10000

20000

100

110

Frequency (Hz)

SPL (dB) 1W/1m

On Axis 5° Vertical

10° Vertical 15° Vertical

20° Vertical

100

1000

10000

20000

360

100

3.6

Horizontal

Vertical

Frequency (Hz)

-6dB Beamwidth (degrees)

20000

10000

1000

100

1000

Frequency (Hz)

Directivity Index (DI), dB

Directivity

Factor (Q)

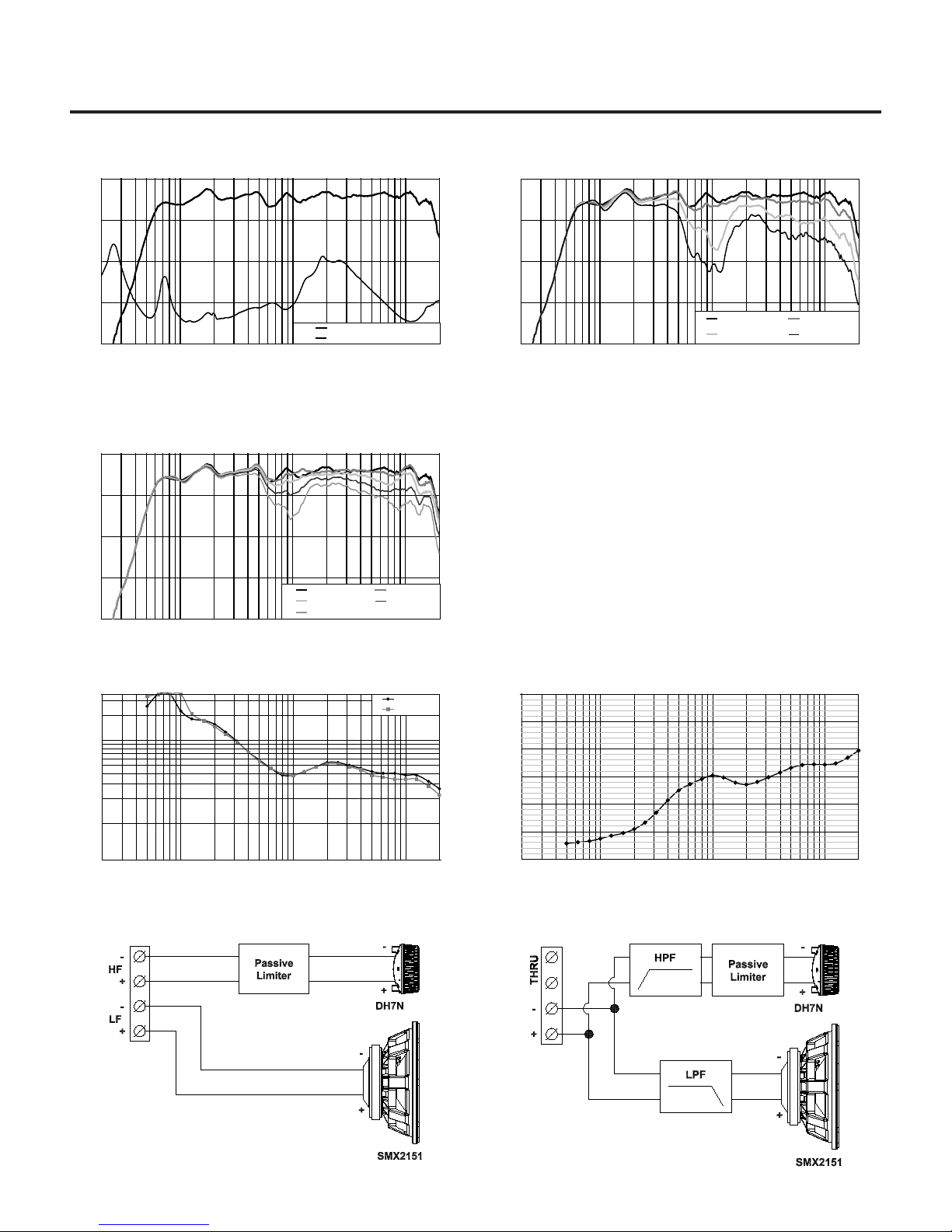

Frequency Response &

Impedance:

Beamwidth: Directivity:

Block Diagram (biamp):

EVH-1152D/43 Loudspeaker System

Horizontal Off-Axis Frequency

Response:

Vertical Off-Axis Frequency

Response:

Block Diagram (passive):

400 Hz

500 Hz

630 Hz

800 Hz

1 k Hz

1.25 kHz

1.6 kHz

2 k Hz

2.5 kHz

3.15 kHz

4 k Hz

5 k Hz

6.3 kHz

8 k Hz

10 kHz

12.5 kHz

16 kHz

20 kHz

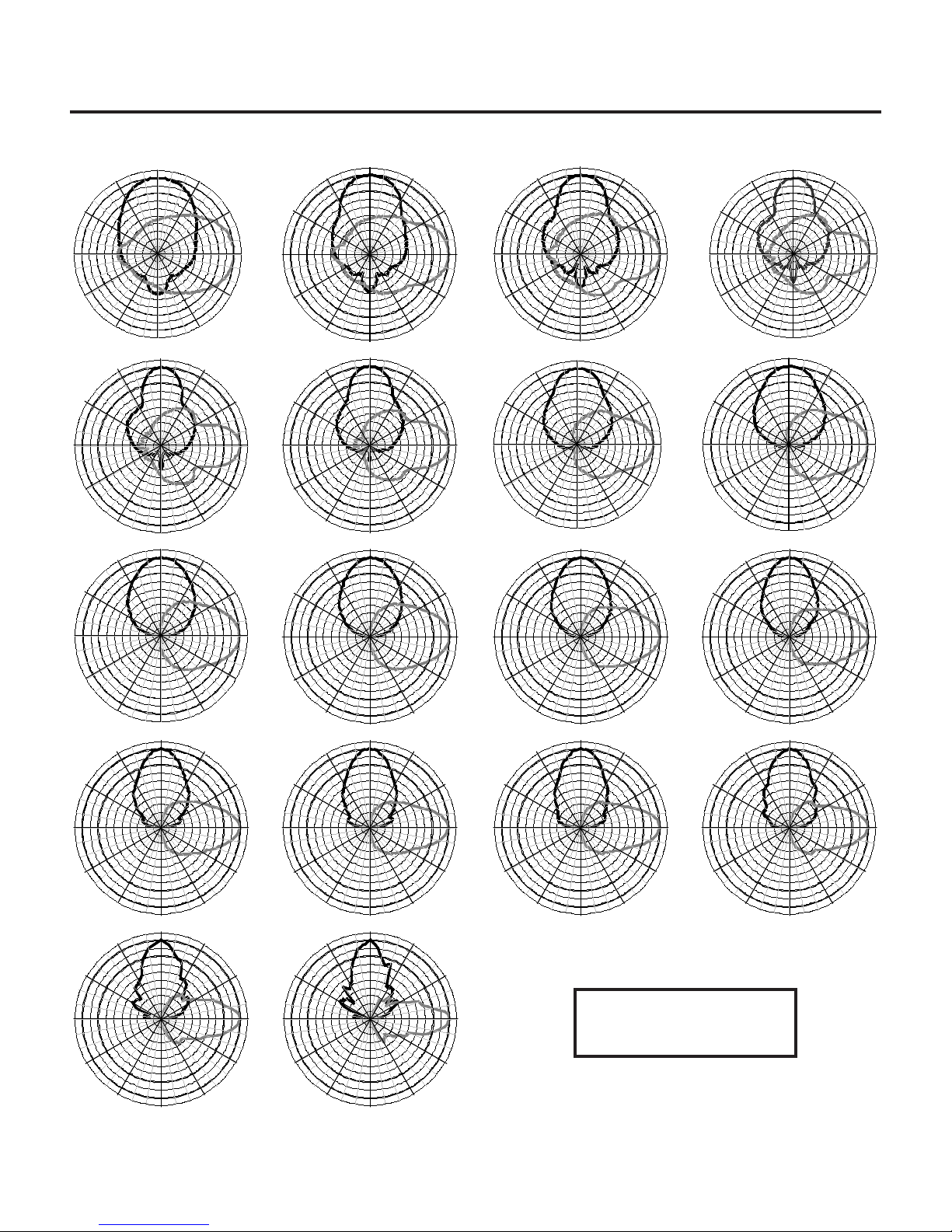

Polar Plots (1/3 Octave):

Engineering Data Sheet

Horizontal = Black

Vertical = Grey

12000 Portland Avenue South, Burnsville, MN 55337

Phone: 952/884-4051, Fax: 952/884-0043

www.electrovoice.com

Part Number LIT000467043 Rev A

U.S.A. and Canada only. For customer orders, contact Customer Service at:

800/392-3497 Fax: 800/955-6831

Europe, Africa, and Middle East only. For customer orders, contact Customer Service at:

+ 49 9421-706 0 Fax: + 49 9421-706 265

Other Internatonal locations. For customer orders, Contact Customer Service at:

+ 1 952 884-4051 Fax: + 1 952 887-9212

For warranty repair or service information, contact the Service Repair department at:

800/685-2606

For technical assistance, contact Technical Support at: 866/78AUDIO

Speciﬁcations subject to change without notice.

Electro-Voice

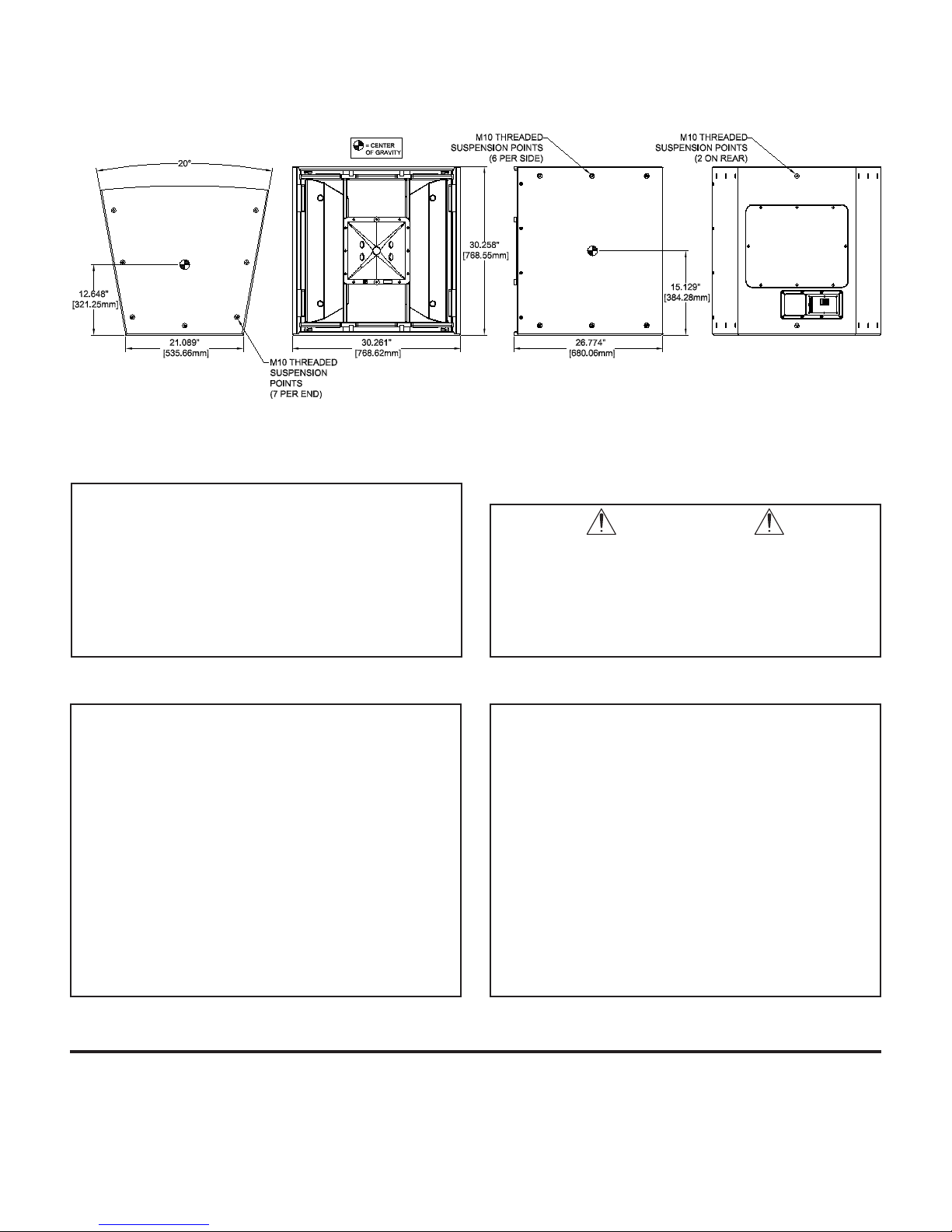

Dimension Drawings:

Front ViewEnd View Rear ViewSide View

CAUTION

This EVH loudspeaker should be suspended overhead only

in accordance with the procedures and limitations

speciﬁed in the EVF/EVH User Manual and possible

manual update notices. This system should be suspended

with certiﬁed rigging hardware by an authorized rigging

professional and in compliance with local, state, and

federal overhead suspension ordinances.

Accessories

ACC000084-000 CDNL4, cover plate, dual NL4•

ACC000085-000 CSG, cover plate, single gland nut•

ACC000086-000 CDG, cover plate, dual gland nut•

ACC000087-000 TK-150, 70V transformer, 150W•

ACC000089-001 HRK-1B, horiz. rigging kit, EVF, black•

ACC000089-002 HRK-1W, horiz. rigging kit, EVF, white•

ACC000090-001 HRK-2B, horiz. rigging kit, EVF-SUB, black•

ACC000090-002 HRK-2W, horiz. rigging kit, EVF-SUB, white•

ACC000091-001 HRK-3B, horiz. rigging kit, EVH, black•

ACC000091-002 HRK-3W, horiz. rigging kit, EVH, white•

ACC000092-001 VRK-1B, vert. rigging kit, EVF, black•

ACC000092-002 VRK-1W, vert. rigging kit, EVF, white•

ACC000093-001 VRK-2B, vert. rigging kit, EVF-SUB, black•

ACC000093-002 VRK-2W, vert. rigging kit, EVF-SUB, white•

ACC000094-001 VRK-3B, vert. rigging kit, EVH, black•

ACC000094-002 VRK-3W, vert. rigging kit, EVH, white•

EVH-1152D/43 Part Numbers

PRD000303-001 EVH-1152D/43-BLK, 40° x 30°, black ﬁnish•

PRD000303-002 EVH-1152D/43-WHT, 40° x 30°, white ﬁnish•

PRD000303-003 EVH-1152D/43-PIB, 40° x 30°, black ﬁnish,•

weather resistant

PRD000303-004 EVH-1152D/43-PIW, 40° x 30°, white ﬁnish,•

weather resistant

PRD000303-005 EVH-1152D/43-FGB, 40° x 30°, black ﬁnish,•

weather resistant ﬁberglass

PRD000303-006 EVH-1152D/43-FGW, 40° x 30°, white ﬁnish,•

weather resistant ﬁberglass

Performance Match

PRD000304 EVH-1152D/64, 60° x 40° coverage•

PRD000305 EVH-1152D/66, 60° x 60° coverage•

PRD000306 EVH-1152D/94, 90° x 40° coverage•

PRD000307 EVH-1152D/96, 90° x 60° coverage•

PRD000308 EVH-1152D/99, 90° x 90° coverage•

PRD000300 EVF-2121S, dual 12” bass element•

PRD000302 EVF-2151D, dual 15” bass element•

CPS2.9 120V CPS2.9, 120V power ampliﬁer, 2 x 900W•

CPS2.12 120V CPS2.12, 120V power ampliﬁer, 2 x 1200W•

D170469 CPS4.5, 120V power ampliﬁer, 4 x 500W•

D170466 CPS4.10, 120V power ampliﬁer, 4 x 1000W•
