Installation and Operation Manual

EVID™

Ceiling

Speaker

Systems

ii EVID™ Ceiling Series Installation and Operation Manual

Table of Contents . . . . . . . . . . . . . . . . . . . ii

Welcome . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Important Features . . . . . . . . . . . . . . . . . . 1

Model Summary . . . . . . . . . . . . . . . . . . . . 2

Packing List. . . . . . . . . . . . . . . . . . . . . . . . 2

Product Feature Identification. . . . . . . . . . 3

Installation and Wiring . . . . . . . . . . . . . . . 4

Step 1 — Cut the Hole . . . . . . . . . . . . . . 5

Step 2 — Install C-Ring

and/or Tile Rails . . . . . . . . . . . . . . . . 5

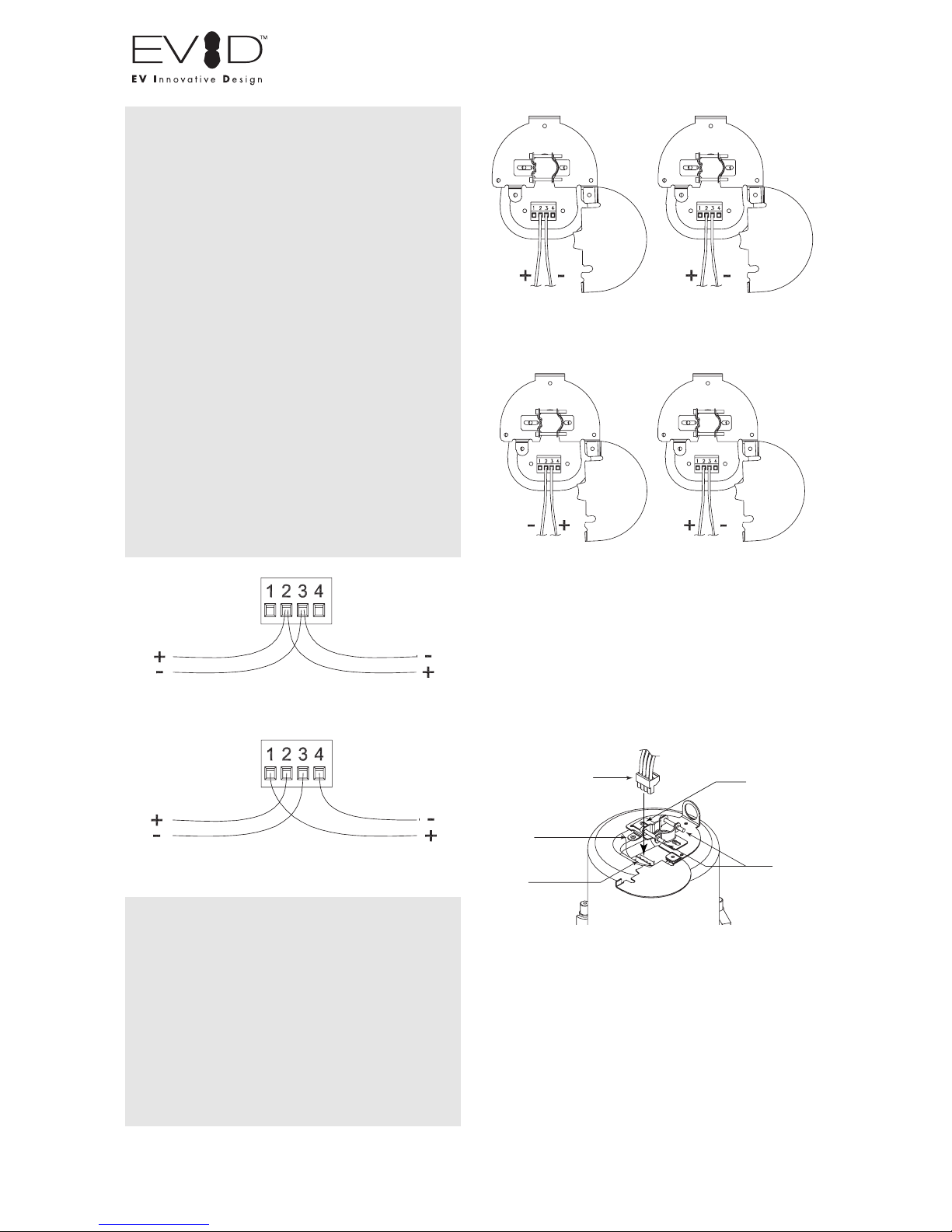

Step 3 — Attach Wiring to the

Terminal Connector . . . . . . . . . . . . . 5

Step 4 — Secure the Cable to the

Speaker . . . . . . . . . . . . . . . . . . . . . . . 6

Step 5 — Mount the Speaker into the

Ceiling. . . . . . . . . . . . . . . . . . . . . . . . 7

Step 6 — Connect an Auxiliary

Support Line . . . . . . . . . . . . . . . . . . . 8

Step 7 — Adjust Tap Selector . . . . . . . . . 8

Step 8 — Insert the Grille. . . . . . . . . . . . 8

Appendix A — Painting the Speaker. . . . . . 9

Appendix B — System Design Guide . . . . 10

Selecting and Positioning Ceiling

Loudspeakers. . . . . . . . . . . . . . . . . . 10

Ceiling Systems: Size vs. Coverage. . . . 10

Use of Subwoofers. . . . . . . . . . . . . . . . 11

Appendix C — Troubleshooting Table . . . 12

Appendix D — Warranty . . . . . . . . . . . . . 13

Exclusions and Limitations . . . . . . . . . 13

Appendix E — Product Specifications . . . 14

Table of Contents

Welcome

Thank you for purchasing EVID™ Ceiling

Series loudspeakers. Read through this man-

ual to familiarize yourself with features,

applications, and precautions before you use

these products.

EVID Ceiling Series loudspeakers use

innovative design and materials to provide

premium-level performance in a f lush-mount

ceiling format. Four models comprise the

EVID Ceiling Series: the C4.2 with a 4-inch

LF driver and a .75-inch, titanium-coated

tweeter with waveguide; the C8.2 with an

8-inch LF driver and a 1-inch titanium-coated

tweeter with waveguide; the C8.2HC with a

fully waveguide-loaded 8-inch LF driver and

a 1-inch titanium coated tweeter; and the

EVID 10.1, a true ceiling-mounted subwoofer

designed to augment and extend the full-

range model’s low-frequency response.

Important Features

• Matches acoustically to the EVID surface-

mount speaker line

• Model for model, has superior perform-

ance to competing brands

• Comes with both 70V/100V or 8-ohm

operation standard on every model

• Includes all installation accessories

commonly needed for most jobs

1EVID™ Ceiling Series Installation and Operation Manual

Welcome/Important Features

EVID™ C4.2

Perfect for conventional rooms. It has excel-

lent bandwidth in an esthetically very unob-

trusive installation profile. Its compact

design fits in tight areas. Its 4-inch woofer

and waveguide-coupled, titanium-coated

dome tweeter give smooth, wide frequency

response. The enclosure is ported and tuned

to provide surprising bass response in such

a compact package. Features an easy 3-point

mounting system for quick installations.

EVID C8.2

The C8.2 has a specially tuned enclosure and 8-

inch woofer to provide amazing bass response.

The 1-inch waveguide-coupled tweeter give

smooth controlled coverage out to 20 kHz.

Perfect for installations where a flush-mount

design is desired but demand for high-quality

audio exists. Features a 4-point mounting sys-

tem to make installations fast and easy.

EVID™ C8.2LP

The C8.2LP is the same as the C8.2 but in a

low-profile installation package. Ideal for

tight ceiling spaces.

EVID™ C8.2HC

The EVID C8.2HC is ideal for high ceilings and

reverberant “problem” rooms. Its exclusive

ported, waveguide-coupled, 8-inch driver pro-

vides excellent intelligibility and definition.

The 8.2HC’s patent-pending design provides

great coverage control throughout the voice

range and above. No other ceiling speaker sys-

tem provides the combination of excellent pat-

tern control, wide bandwidth, high power han-

dling, and compact design like the C8.2HC.

EVID™ C10.1

The C10.1 packs a 10-inch subwoofer in a

tuned high performance enclosure to give

amazing low frequency performance down

to 45Hz! It is one of the few quick-mount

ceiling TRUE subwoofers available. Flexible

installation and powerful low-end perform-

ance make it the ideal mate to any EVID ceil-

ing model.

Packing List (Figure 1)

Figure Quantity Part

A2 Speaker system

B4 Tile rails

C2 C-ring support

D2 Grille

E1 Owner’s manual

F4 Support ring screws

G2 Terminal connector

H1 Service center card

I1 Cutout template

J2 Paint Shield

2 EVID™ Ceiling Series Installation and Operation Manual

Model Summary/Packing List

A (x2)

G (x2)

C (x2)

D (x2)

F (x4)

B (x4)

J (x2)

Figure 1: EVID packing list

EVID™ Ceiling Series Systems (sold in pairs)

Model Part No. Description

C4.2 301258000 4" coaxial speaker with horn-loaded, Ti-coated tweeter

C8.2 301261000 8" coaxial speaker with horn-loaded, Ti-coated tweeter

C8.2LP 301318000 Same as C8.2 above except with low-profile backcan

C8.2HC 301262000 8" waveguide-coupled* coaxial speaker with horn-loaded, Ti-coated tweeter

C10.1 301263000 10" High performance subwoofer

Patent pending

EVID Series Ceiling Mount Speaker Accessories

Model Part No. Description

RR-42 301305000 Rough-in plate for new construction involving the EVID C4.2

(package of 4)

RR-82 301306000 Rough-in plate for new construction involving the EVID C8.2

and C8.2LP (package of 4)

RR-810 301307000 Rough-in plate for new construction involving the EVID C8.2HC

and C10.1 (package of 4)

RPK-42 301308000 Rough-in package for new construction involving the C4.2 speaker

only (package of 2)

RPK-82 301309000 Rough-in package for new construction involving the C8.2

and C8.2LP speaker only (package of 2)

RPK-810 301310000 Rough-in package for new construction involving the C8.2HC

and C10.1 speaker only (package of 2)

Product Feature Identification

3EVID™ Ceiling Series Installation and Operation Manual

Product Feature Identification

Grille safety tether

Grille

Strain relief fitting

Seismic tab

(auxiliary support ring)

Removable input terminal connector

Rotating mounting tabs

Terminal cover plate

Figure 3: Top of speaker

Steel

backcan

Mounting

screws

Tap

selector

Grille safety

tether hole

Figure 2: Bottom of speaker

The EVID™ mounting system has been

designed so that, if necessary, the installation

can be done from beneath the ceiling. In

some cases with a suspended ceiling grid,

however, it may be easier to access from both

the top and bottom of the ceiling tile during

the installation process. Typical installation

hardware needed for either suspended ceil-

ings or sheetrock ceilings is included. The

ceiling speaker assembly is held in place by

mounting tabs that securely grip the ceiling

material. Input wiring is attached to a remov-

able terminal block connector that can be

pre-wired if necessary before speaker installa-

tion to speed up the installation process.

INSTALLATION NOTE: USE OF OPTIONAL

ROUGH-IN ACCESSORIES

For most installations, no additional hard-

ware is needed. However, a two-step installa-

tion procedure that is sometimes used for

installation into sheetrock ceilings can be

made easier by the use of the optional RR

and RPK series of rough-in accessories

before the ceiling material is installed. The

rough-in accessories provide a cutout guide

when many holes are to be made in a pro-

duction-line style installation and to ensure

the speakers are positioned correctly as the

holes are cut in the sheetrock. Depending on

the requirements, two types of rough-in

accessories are available.

RR Series Mounting Plates

RR series plates are made of flat sheet metal

with holes to attach to the joists or trusses of a

building structure. The holes are drilled for

nails or screws at 16 inches (406 mm), 20

inches (508 mm) and 24 inches (610 mm) on-

center. The installer can drill other holes as

needed up to a maximum of 24-3/4 inches

(630 mm) apart. The sheetrock installs over

the plate, and the plate provides a template for

a blind cutout of the hole in the sheet rock.

The ceiling material is generally cut with a

router-type cutting tool, using the plate ring as

a cutout guide. The mounting plate is illustrat-

ed in Figure 4.

RPK Series Kits

The RPK series rough-in kit contains a RR

series plate with a standard 2 gang electrical

box mounted on the top with an attached

short length of flexible conduit which con-

nects to the ceiling speaker conduit clamp on

the speaker’s rear terminal cover. This accesso-

ry allows for rigid conduit to be run to the box

on the rough-in plate before the speaker or

any sheetrock is installed. After the sheetrock

is installed the speaker can be wired up and

mounted all from below the ceiling. The RPK

mount system is shown in Figure 5.

INSTALLATION NOTE: CONTROLLING

VIBRATION

Because of their high performance, EVID

ceiling loudspeakers can generate substantial

vibration, which can cause buzzing in loose

sections of the ceiling structure. Depending

on the character of the ceiling tile and relat-

ed components, dampening material may

need to be used under the tile rails or the

edges of the tiles to eliminate rattles.

4 EVID™ Ceiling Series Installation and Operation Manual

Installation and Wiring

Figure 4: Speaker mounting plate

Figure 5: RPK mounting system

Step 1: Cut the Hole (Figure 6)

For suspended tile or sheetrock ceilings, cut

out the hole either by tracing the cardboard

template or with a circular cutter set to the

appropriate cutout size. If the wire has been

pre-installed, pull the wiring through the

cutout hole.

Step 2: Install C-Ring and/or Tile

Rails (Figure 7)

All EVID speakers come packaged with two

types of backing hardware: a C-ring and two

tile rails.

For suspended ceiling installations, insert

the C-ring through the hole cut in the ceiling

tile. Place the C-ring around the hole with

the tabs located as shown in Figure 7. Insert

the tile rails through the cut hole in the ceil-

ing tile. Snap the two rails into the two tabs

in the C-ring and align the rails so that the

ends extend OVER the T-channel grid on the

side of the tile. Secure the rails onto the C-

ring tabs by inserting a screw though each

tab into the rail, as shown in Figure 7.

INSTALLATION NOTE: TILE RAILS AND

C-RING

Each speaker comes with two tile rails which

are designed to fit either standard 24-inch-

wide or 600-mm-wide tiles. It is important to

note that the tile rail pieces do not actually

attach to the T-grid struts. The ends of the

rails sit OVER the T-grid strut. Normally, the

tile supports the rails. The tile rails are pre-

punched at regular intervals with holes along

their length. This allows the C-ring to be posi-

tioned at any point along the rail. If the tile

comes out or falls apart, the ends of the sup-

port rails fall onto the T-grid, which prevents

the speaker assembly from falling.

Always use all included support hardware

when installing into suspended ceiling tiles

to make sure the installation is secure.

For sheetrock ceiling installations, the C-

ring should be used by itself to reinforce the

ceiling material and to spread out the pres-

sure from the speaker hold-down tabs.

Guide the C-ring through the cut hole in the

ceiling, and place it on the back side of the

hole before inserting the speaker.

Step 3: Attach Wiring to the

Terminal Connector (Figure 8)

Insert the bare end of wire into the appro-

priate connector terminals as described

below and screw down the hold-down

screw until tight, using a small screwdriver.

5EVID™ Ceiling Series Installation and Operation Manual

Installation and Wiring

Figure 6: Cut ceiling hole

Figure 7: Secure rails to C-Ring

Screwdriver

Figure 8: Tighten with screwdriver

INSTALLATION NOTE: CONNECTOR

WIRING GUIDELINES

The input connector’s 4 terminals are num-

bered and marked on the connector. Pins 1 and

2 are positive (+); pins 3 and 4 are negative (–).

(Pin 1 is connected to Pin 2 and Pin 3 is con-

nected to Pin 4 inside the speaker.) Pins 1 and

4 are used as daisy-chain connections to other

loudspeakers. Two possible layouts for wiring a

group of speakers are described below.

1. Wiring in parallel. Connect the wire

pair of the subsequent speaker to pins 2 and

3. When one input connector is removed,

subsequent speakers will remain connected.

See Figure 9.

2. Daisy-chaining. Connect the wire pair

of the subsequent speaker to pins 1 and 4.

When one input connector is removed, sub-

sequent speakers will also be disconnected.

See Figure 10.

INSTALLATION NOTE: SUBWOOFER

POLARITY

When adding a subwoofer, be sure to observe

the correct polarity. The C10.1 subwoofer has

been designed for optimum performance

when used with the C4.2. In order to maxi-

mize the low frequency output when used

with the C8.2, C8.2LP or C8.2HC, the polarity

of the C10.1 subwoofer should be reversed.

See Figures 11 and 12.

When all wiring has been completed to the

connector, plug the connector into the socket

in the speaker’s terminal cup. See Figure 13.

Tighten all screws to eliminate vibration.

Step 4: Secure the Cable to the

Speaker (Figure 14)

Fully loosen the horizontal screw shown in

Figure 13, then the strain relief screws. Run

the wires through the opening in the fitting

and plug the input connector into the speak-

er’s terminal block. Then tighten the strain

relief fitting as follows:

6 EVID™ Ceiling Series Installation and Operation Manual

Installation and Wiring

From amplifier or

previous speaker

To next speaker

Figure 10: Daisy-chain wiring

From amplifier or

previous speaker

To next speaker

Figure 9: Parallel wiring

Hold-down

screw

Input connector

Terminal

block

Strain

relief

screws

Horizontal

screw

Figure 13: Plug connector into socket

C10.1 Subwoofer C4.2 Loudspeaker

Figure 11: Subwoofer polarity with C4.2

C10.1 Subwoofer C8.2/C8.2HC/C8.2LP

Loudspeaker

Figure 12: Subwoofer polarity with

C8.2/C8.2HC/C8.2LP

1. If plenum cable is used, slide the wiring

through the strain relief fitting on the termi-

nal cover plate (Figure 14). Hold the strain

relief fittings tight around the cable. Tighten

the strain relief screws first, then the hori-

zontal screw. In the cases of insulated

speaker wire and plenum cable, it is often

possible to provide acceptable strain relief

force by simply tightening the strain relief

screws onto the terminal cover plate.

2. If the installation used f lexible (BX) or rigid

(EMT) conduit, an alternate conduit fitting

can be used. See Installation Note and

Figure 15 below.

INSTALLATION NOTE: ALTERNATE

CONDUIT FITTINGS

Some cases require alternate fittings, many of

which are available through most electrical

suppliers. Simply remove the existing fitting

by unscrewing the two hold-down screws,

exposing a 7/8-inch (22 mm) knockout hole.

Then install the alternate fitting. Make sure to

always use a listed fitting in accordance with

your area’s building codes and regulations.

INSTALLATION NOTE: CEILING TILE

CAUTION

When mounting the units into 2'×2' or 2'×4'

suspended ceiling tiles, DO NOT install them

in lightweight fibreglass-type tiles without

full secondary support for the speaker as

noted in Step 6. Such tiles are not designed

to support any substantial weight. Speaker

installation without secondary support will

cause the tile to sag and distort, even with

the tile bridge installed. The secondary sup-

port line at the rear of the speaker MUST be

strung taut in these situations and MUST

remove most of the force of the speaker on

the tile to ensure that the speaker does not

deform the tile.

Step 5: Mount the Speaker Into

the Ceiling (Figure 16)

Push the speaker into

the ceiling hole until

the front baffle rim is

flush with the ceiling.

Tighten the mounting

tabs by turning the

screw clockwise until

the speaker is secure.

Please note that the

first clockwise quar-

ter-turn rotates the

attachment tabs out-

ward. The remaining

turns tighten the tabs

down onto the back

of the ceiling surface

(see Figure 17).

7EVID™ Ceiling Series Installation and Operation Manual

Installation and Wiring

Figure 14: Secure cable through fitting

Figure 15: Alternate conduit fitting

Figure 16: Mount

speaker into ceiling

Figure 17: Tighten mounting tabs

INSTALLATION NOTE: MOUNTING TABS

For each attachment screw, first turn one

half-turn counterclockwise to release the

mounting tab from its guide.

Step 6: Connect an Auxiliary

Support Line (Figure 18)

Note the support ring on the back of the

speaker. The ring allows for connection to a

independent and secure anchor point.

Construction codes often require the use of

this secondary support point.

Step 7: Adjust Tap Selector

(Figure 19)

The tap selector switch is located on the

front baff le. Adjust the speaker to the appro-

priate tap setting before installing the grille.

In some 70V/100V constant voltage installa-

tions it is advisable to leave the grilles off if

final speaker audio level balance adjust-

ments are to be made later. After the levels

are adjusted the grilles can then be installed.

EVID™ C4.2, C8.2 and C8.2LP

In addition to the 8-ohm setting, the power taps

are 30 W, 15 W, 7.5 W, and 3.7 W at both 70.7V

and 100V, with a 1.8 W tap for 70.7V only.

EVID™ C8.2HC and C10.1

In addition to the 8-ohm setting, the power

taps are 60 W, 30 W, and 15 W at both 70.7V

and 100V, with a 7.5 W tap for 70.7V only.

Step 8: Attach the Grille (Figure 20)

INSTALLATION NOTE:

GRILLE SAFETY FEATURE

EVID grilles features a unique safety tether

to prevent the grille from falling if the grille

is removed or comes loose after installation.

First, install the grille’s safety tether by

pushing the grille fastener into the hole in

the front of the baffle (see Figure 20).

Second, press the grille into place until the

front of the grille is flush with the rim of

the baffle. Make sure the grille is securely

seated to prevent it from vibrating loose.

If you need to remove the grille, the easiest

way is to insert two bent paper clips or other

pointed objects into holes in the grille, then

apply slow even pressure to pull down on the

grille until that section of the grille comes out

slightly. Continue the same procedure around

the perimeter of the grille, loosening a por-

tion at a time until the grille is removed.

8 EVID™ Ceiling Series Installation and Operation Manual

Installation and Wiring

Figure 18: Attach auxiliary support line

Figure 19: Adjust tap selector (left:

C4.2/C8.2/C8.2LP; right: C10.1/C8.2HC)

Figure 20: Attach the grille

Andere Handbücher für EVID Series

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Electro-Voice Lautsprechersystem Handbücher

Electro-Voice

Electro-Voice TL806AX Bedienungsanleitung

Electro-Voice

Electro-Voice EVR-200 Bedienungsanleitung

Electro-Voice

Electro-Voice SX Series SX600 Bedienungsanleitung

Electro-Voice

Electro-Voice XLC Kurzanleitung

Electro-Voice

Electro-Voice PIM-122 Bedienungsanleitung

Electro-Voice

Electro-Voice DeltaMax DMS-1181 Series Bedienungsanleitung

Electro-Voice

Electro-Voice T251i Bedienungsanleitung

Electro-Voice

Electro-Voice EVA-2082S/906 Bedienungsanleitung

Electro-Voice

Electro-Voice EVR-180 Bedienungsanleitung

Electro-Voice

Electro-Voice EVID MA-3 Bedienungsanleitung

Electro-Voice

Electro-Voice Supercaster Supercaster High Power Speaker... Dimensionsleitfaden

Electro-Voice

Electro-Voice Manifold Technology MTH 2.5/42BT Bedienungsanleitung

Electro-Voice

Electro-Voice FR15-2 Bedienungsanleitung

Electro-Voice

Electro-Voice QRx 218S Bedienungsanleitung

Electro-Voice

Electro-Voice B-1150M Bedienungsanleitung

Electro-Voice

Electro-Voice DeltaMax DMS-1122/85 Series Bedienungsanleitung

Electro-Voice

Electro-Voice EVID FM6.2 Bedienungsanleitung

Electro-Voice

Electro-Voice CD Series type 35 Bedienungsanleitung

Electro-Voice

Electro-Voice S-1503 Bedienungsanleitung

Electro-Voice

Electro-Voice FM12-2 Bedienungsanleitung

Electro-Voice

Electro-Voice Phoenix PX2152 Bedienungsanleitung

Electro-Voice

Electro-Voice FRX+181 Bedienungsanleitung

Electro-Voice

Electro-Voice Xlvc Series XLE-181 Bedienungsanleitung

Electro-Voice

Electro-Voice X-Array Install Xi-2123/106 Bedienungsanleitung

Beliebte Lautsprechersystem Handbücher anderer Marken

JVC

JVC CA-MXK5R Bedienungsanleitung

LG NB4532B Bedienungsanleitung

JVC

JVC CA-FSH100 Bedienungsanleitung

5Core

5Core Pro Series Bedienungsanleitung

EAW

EAW MQV1394e Bedienungsanleitung

Lynx

Lynx GXR-LA10A Bedienungsanleitung

iLive

iLive ITB066B Bedienungsanleitung

RDX

RDX QuickStation 4 Bedienungsanleitung

Sven

Sven SPS-619 GOLD Bedienungsanleitung

Pioneer

Pioneer CS-7070 Bedienungsanleitung

EAW

EAW UB82e Bedienungsanleitung

Sondpex

Sondpex Active Speaker System and Digital Music... Bedienungsanleitung

JVC

JVC NX-PN7 Bedienungsanleitung

Marshall Amplification

Marshall Amplification AR-DM61-BT Bedienungsanleitung

Yamaha

Yamaha NX-A01 - Speaker Sys Bedienungsanleitung

SE Audiotechnik

SE Audiotechnik I-LINE Bedienungsanleitung

Gemini

Gemini WRX-843 Series Bedienungsanleitung

TCL

TCL 6100 Series Bedienungsanleitung
