Technical Specifications:

The Electro-Voice®ZxA5 is the new standard of no compromise

audioperformanceandversatilityinasimpletouse,compactpackage.

At its heart are the transducers. First is the DVX3150 high

performance low frequency transducer. EV used advanced

computer aided design techniques to create forced air, directional

voice coil cooling for high power and efficiency. Finite element

analysiswas usedto optimizethe suspensionand magneticstructure

for long, linear travel to provide low distortion and greater LF

extension. These features and details, such as forged magnetic

components and special materials, provide reliability in a lightweight

transducer. Next is the ND2, a 2-inch voice coil compression driver

based on neodymium motor structure to allow for maximum output

while reducing size and weight to a minimum. Its precision phasing

plug and titanium diaphragm provide better HF performance, while

the integral heatsink provides cooling for high power output.

The high tech enclosure uses injection-molded high-impact

polypropylene structural foam to make the ZxA5 incredibly durable.

The enclosure geometry elements have been carefully designed to

provide maximum rigidity and bass response. By design the ZxA5 is

also a perfect solution for stage monitors by allowing two angles

(45° or 55°) without any additional accessories.

The ZxA5 has an integrated high output, lightweight digital amplifier

that produces 1000W LF and 250W HF. The very low noise design

includes a 24 dB/octave 100 Hz high pass filter for use with a sub,

the perfect match being the Plasma P2 18” Powered Subwoofer.

The ZxA5 is equipped with three anchor plates for rigging with

single stud-fittings, along with two more possible anchor plate

attachment points on the bottom. For permanent suspension or

attaching brackets, the ZxA5 also has two M8 inserts on the top and

bottom, two under the handle, and four on the back of the enclosure,

for a total of 10. All versions are available in black or white.

General Description:

ZxA5-90

15-InchTwo-Way

Powered90°x 50°

Loudspeaker System

Key Features:

• Integrated Amplifier with 1000W LF,250W HF

• Selectable 100 Hz High Pass

• DVX3150 15”LFTransducer with Forced Air

Cooling

• ND2 2”Voice Coil, 1”Exit Neodymium

Compression Driver

• 90° x 50° Coverage Pattern

• High Sensitivity,133 dB Maximum SPL

• Adjustable Monitor Angle (45° or 55°)

• 3 Anchor Plates for Single Stud Fittings and

10 Integral Suspension Points

• Full Line of Accessories

• PowerCon Connector with SlaveThrough

esnopseR.qerF

:)Bd3-(zHk81-zH85

egnaR.qerF

:)Bd01-(zHk02-zH05

:LPSdetaluclaCxaMBd331

:egarevoClatnoziroH°09

:egarevoClacitreV°05

:rewoPreifilpmAFLW0001

:rewoPreifilpmAFHW052

:recudsnarTFLrevirD)mm003(ni51,0513XVD

:recudsnarTFHmuimydoeNtixe)mm4.52(.ni1,61-2DN revirDnoisserpmoC

:ycneuqerFrevossorCzHk5.1

:rotcennoCtupnInoitanibmoCSRT"4/1dnaRLX

:rotcennoCtuptuORLX

:tnemeruqeRrewoP-022ro,zH06-05,CAV031-011 zH06-05,CAV042

:lairetaMerusolcnEmaoFlarutcurtSenelyporpyloP

:noisnepsuS-elgniS5rofsnoitacolsaherusolcnE degroF01dnasetalPtnemhctattAdutS ,mottoBno2,poTno2-stlobeyEleetS erusolcnEforaeRno4dna,ediSno2

:ellirGAG61,detaoCredwoPretseyloP leetSdezinavlaG

:)DxWxH(miD"61.61x"75.71x"62.72 )mm114xmm644xmm296(

:thgieWteN)gk9.22(sbl5.05

:thgieWgnippihS)gk7.62(sbl9.85

1 Half Space measurement.

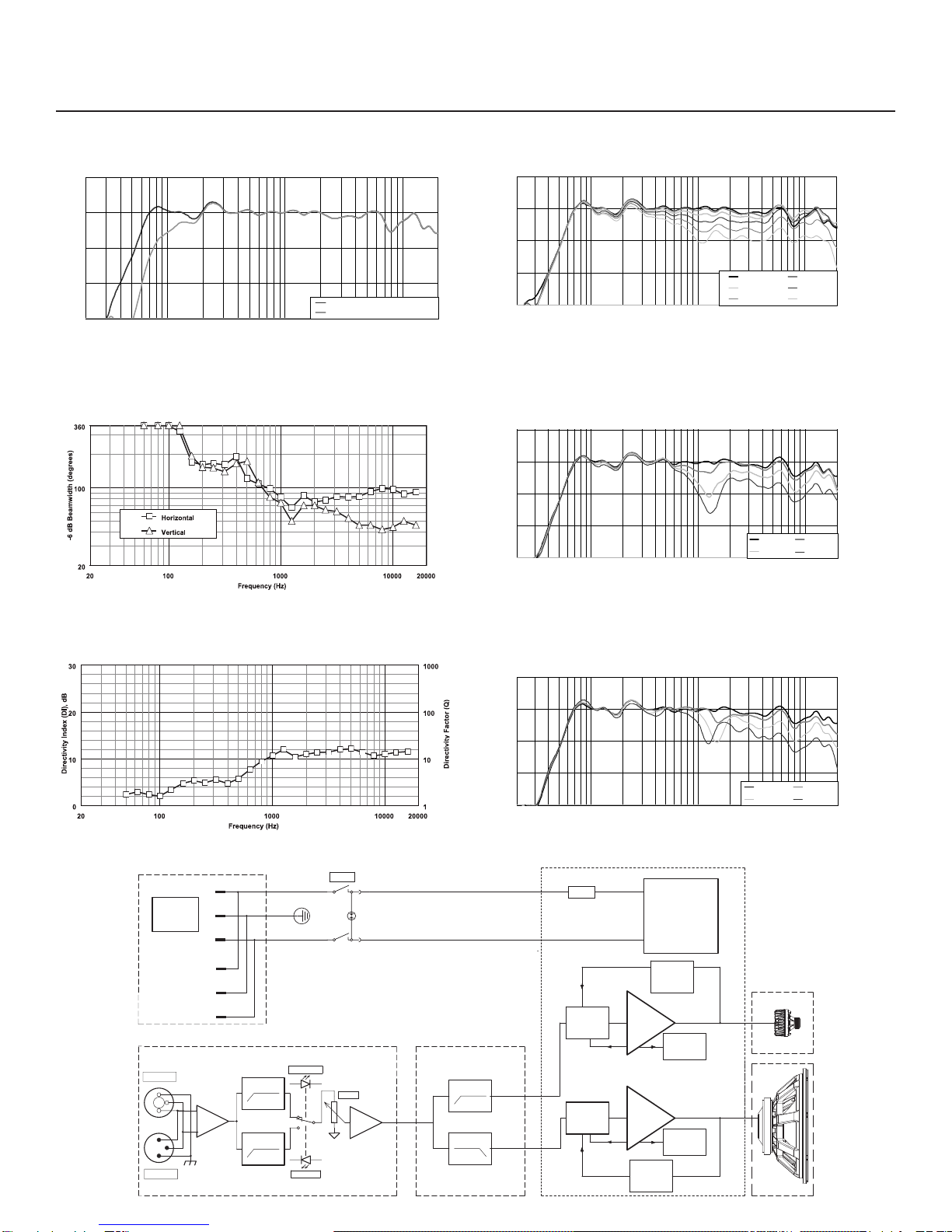

Frequency Response:

Beamwidth:

Directivity:

Block Diagram:

ZxA5-90 Full Range Loudspeaker

Horizontal Off Axis Frequency Response:

Vertical Off Axis Frequency Response

(Up):

Vertical Off Axis Frequency Response

(Down):

MAINS

110V - 130V

220V - 240V

50Hz-60Hz

MAINS-L

MAINS-E

MAINS-N

MOUT-L

MOUT-E

MOUT-N

POWER

INPUT

OUTPUT

FULLRANGE

LEVEL

MID/HIGH

100Hz, 24dB, LR

HPF

40Hz, 24dB, LR

HPF

1.5kHz, 24dB, LR

LPF and PEQ

1.5kHz, 24dB, LR

HPF and PEQ

T10A @ 230V

T6.3A @ 120V POWER SUPPLY

TURN ON DELAY

THERMAL

PROTECTION

LIMITER HI AMP

PROTECTION

THERMAL

PROTECTION

LIMITER LO AMP

Class D Amp Module

PROTECTION

20 50 100 1000 10000 20000

100

110

Frequency (Hz)

Sensitivity (dB)

Full Range Mode, Full Space

High Pass Mode, Full Space 200001000010001005020

100

110

Frequency (Hz)

Sensitivity (dB)

On Axis 10°

20° 30°

40° 50°

20 50 100 1000 10000 20000

100

110

Frequency (Hz)

Sensitivity (dB)

On Axis 10°

20° 30°

20 50 100 1000 10000 20000

100

110

Frequency (Hz)

Sensitivity (dB)

On Axis 10°

20° 30°

Horizontal 1/3 Octave Polars:

Engineering Data Sheet

Vertical 1/3 Octave Polars:

U.S.A. and Canada only. For customer orders, contact Customer Service at:

800/392-3497 Fax: 800/955-6831

Europe, Africa, and Middle East only. For customer orders, contact Customer Service at:

+ 49 9421-706 0 Fax: + 49 9421-706 265

Other International locations. For customer orders, contact Customer Service at:

+ 1 952 884-4051 Fax: + 1 952 736-4212

For warranty repair or service information, contact the Service Repair department at:

800/685-2606

For technical assistance, contact Technical Support at: 866/78AUDIO

Specifications subject to change without notice.

12000 Portland Avenue South, Burnsville, MN 55337

Phone:952/884-4051,Fax:952/884-0043

www.electrovoice.com

Part Number 38110-442 Rev. 3

Dimension Drawings:

This ZxA5 Loudspeaker should be suspended overhead only in accordance with the procedures and limitations specified in the

ZxA5 Users

Manual

and possible manual update notices. This system should be suspended with certified rigging hardware by an authorized rigging profes-

sional and in compliance with local, state, and federal overhead suspension ordinances.

CAUTION

Front View

Top View

Right View Rear ViewLeft View

Bottom View

ZxA5PartNumbers

• 301859-001 - ZxA5-90B, 90° x 50° Horn, Black Finish

• 301859-002 - ZxA5-90W, 90° x 50° Horn, White Finish

• 301859-003 - ZxA5-60B, 60° x 60° Horn, Black Finish

• 301859-004 - ZxA5-60W, 60° x 60° Horn, White Finish

PerformanceMatch

• 301506-001 Plasma P2, 120V 18” Powered Subwoofer, 800W

Accessories

• 301626-001 MB5-B, Wall/Ceiling Mounting Bracket (Black)

• 301626-002 MB5-W,Wall/CeilingMounting Bracket(White)

• 301625-001 CB5-B, Array Bracket Kit (Black)

• 301625-002 CB5-W, Array Bracket Kit (White)

• 301634-000 EBK-3, Forged M8 Eyebolt Kit (Set of Three)

• 301633-000 SSK-1, Single-Stud Rigging Kit (Set of Three)

• 301813-001 HDC-5, Heavy-Duty Stackable Cover, Black

• KIT000007-001 TMK-ZX, Truss Mount Kit, Includes VSA-1,

TCA-1, and HA-5
