Electro-Voice 12" Subwoofer System EVID 12.1. Bedienungsanleitung

KeyFeatures:

• 12-inch High-Excursion LF Transducer

• Trapezoidal Shape allows for flexible

placement

• Secure Reinforced Cabinet Construction

with Mounting Hardware included

• Extremely High Power Handling

• High Sensitivity

• Paintable Enclosure available in Black or

White Finishes

• Dual Voice Coil Design accommodates both

Stereo Channels

• Crossed-Over Pass-Thru Connections for

up to 4 Satellite Speakers

EVID 12.1 Subwoofer

12” Subwoofer

System

General Description:

The Electro-Voice ® EVID 12.1 is a subwoofer system designed

to complement the EVIDTM line of full-range loudspeakers. The

12.1 is ideal for supplementing the bass response of any EVIDTM

model in an indoor application. It is particularly useful in sports

bars, dance floors, retail environments, health clubs, restaraunts,

etc. The 12.1 adds the extra dimension of a powerful low end

where foreground music is desired.

The 12.1’s slot-loaded design allows for flexible mounting and

placement while delivering the smoothest bass response

possible. The 12-inch high-excursion woofer, with its dual voice-

coil design, enables both the L/R channels to feed into the

speaker while at the same time providing crossed-over outputs

for up to 4 satellite speakers. If desired, the 12.1 can be powered

separately for an even more powerful presence. The 12.1

features reinforced steel-fastener construction that allows for a

variety of mounting configurations.

The 12.1 is available in black or white, and can easily be painted

to match the decor. All mounting hardware is included.

Technical Specifications:

esnopseR.qerF

:)Bd01-(zH081-zH04

:gnildnaHrewoPlioCrePmargorP.tnoCW571

ytivitisneS

:)m1/W1LPS(Bd601

:ecnadepmIsmhO8

:LPSdetaluclaCxaMBd521

:recudsnarTFLlauDnoisrucxE-hgiH)mm003("21

lioC-ecioV

:slanimreTdedaoL-gnirpS

:lairetaMerusolcnEdecrofnieRrenetsaFleetS,FDM

:seirosseccAdedulcnIerawdraHdnatekcarBgnitnuoM

:)DxWxH(miD"0.21x"0.32x"52.61

)mm503xmm485xmm214(

:thgieWteN)gk1.81(sbl0.04

:thgieWgnippihS)gk0.02(sbl0.84

11/8 Space (Corner Mounting)

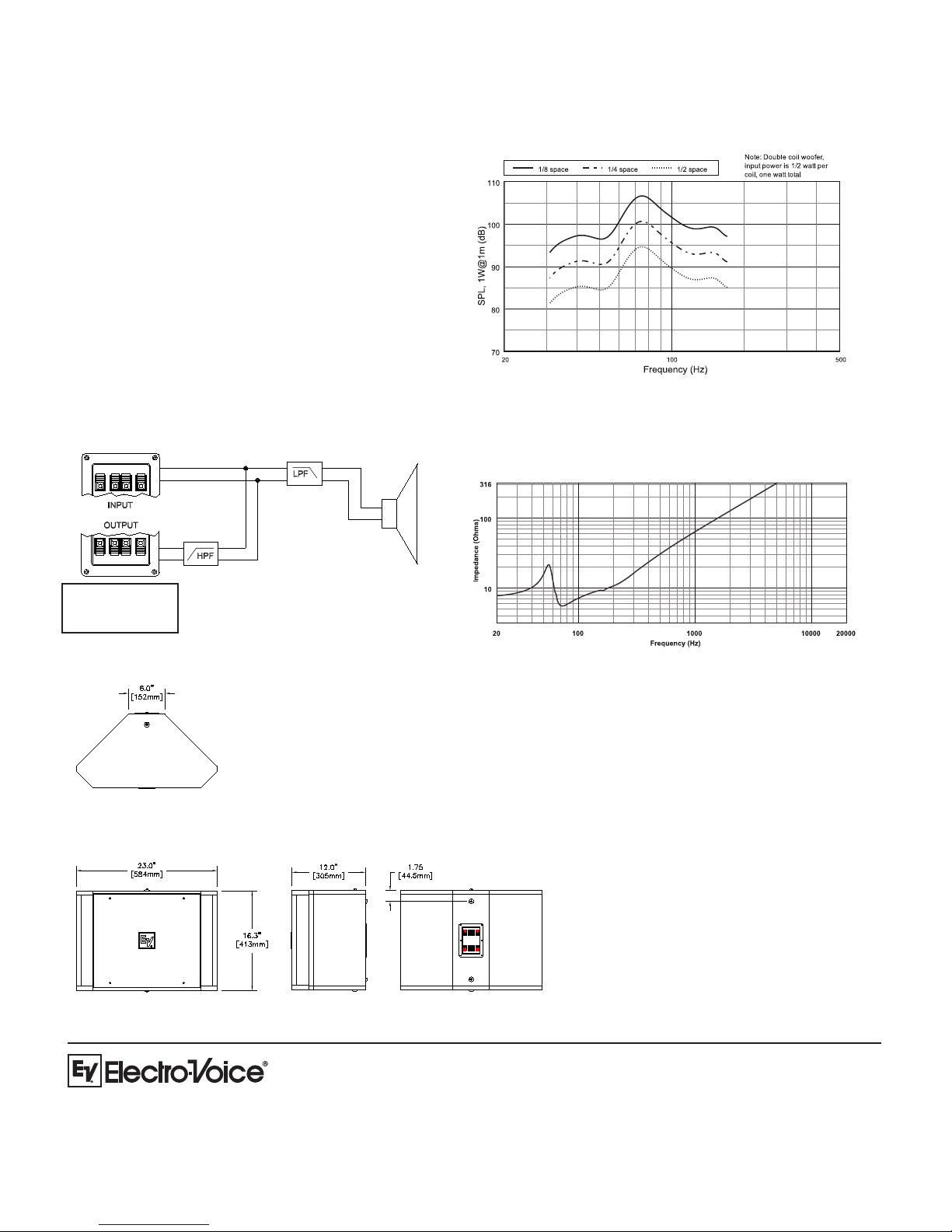

Architects’ & Engineers’ Specifications: Frequency Response:

Block Diagram:

Impedance:

PerformanceMatch:

• EVID 3.2(t) Surface Mount Speaker

• EVID 4.2(t) Surface Mount Speaker

• EVID 6.2(t) Surface Mount Speaker

• CPS-1 Power Amplifier

• CPS-2 Power Amplifier

• CPS-2T Power Amplifier

• MA-1206 Mixer Amplifier

• MA-1212 Mixer Amplifier

EVID 12.1 Part Number

• 301048-001

12000 Portland Avenue South, Burnsville, MN 55337

Phone:952/884-4051, Fax:952/884-0043

www.electrovoice.com

Part Number 38109-984 Rev B

U.S.A. and Canada only. For customer orders, contact Customer Service at:

800/392-3497 Fax: 800/955-6831

Europe, Africa, and Middle East only. For customer orders, contact Customer Service at:

+ 49 9421-706 0 Fax: + 49 9421-706 265

Other International locations. For customer orders, contact Customer Service at:

+ 1 952 884-4051 Fax: + 1 952 736-4212

For warranty repair or service information, contact the Service Repair department at:

800/685-2606

For technical assistance, contact Technical Support at: 866/78AUDIO

Specifications subject to change without notice.

Dimension Drawings:

The loudspeaker shall be a single driver system consisting of one

12-inch (300 mm) low-frequency and frequency-dividing network

installed in a vented, slot-loaded enclosure. The LF transducer

shall have dual voice coils to allow for stereo (L/R) inputs. The

network shall include crossed-over outputs for up to 4 satellite

speakers. The loudspeaker system shall meet the following

performance criteria: Power handling, 175 watts long-term program

per voice coil using EIA RS-426A pink noise (6 dB crest factor).

Frequency response, 40 Hz–140 Hz (-10 dB from rated sensitivity).

Pressure sensitivity, 106 dB at one watt, 100 Hz–10 kHz at one

meter. Impedance, 8 ohms nominal, 6 ohms minimum. The

enclosure shall be MDF and constructed with both glue and steel

fasteners. The enclosure shall be 16.5" (412 mm) high, 23" (584

mm) wide, 12" (305 mm) deep. The finish shall be a paintable

black or white. The grille shall be acoustically transparent foam.

The support bracket shall be low profile and integral with the

enclosure. The cabinet shall be designed for ceiling mounting with

additional accessory materials. All standard mounting hardware

shall be included for wall or corner placement. The loudspeaker

shall be the Electro-Voice ® EVID model 12.1.

Top View

Front View Side View Rear View

To Satellites

Max. 2 Per Channel

(4 Total)
