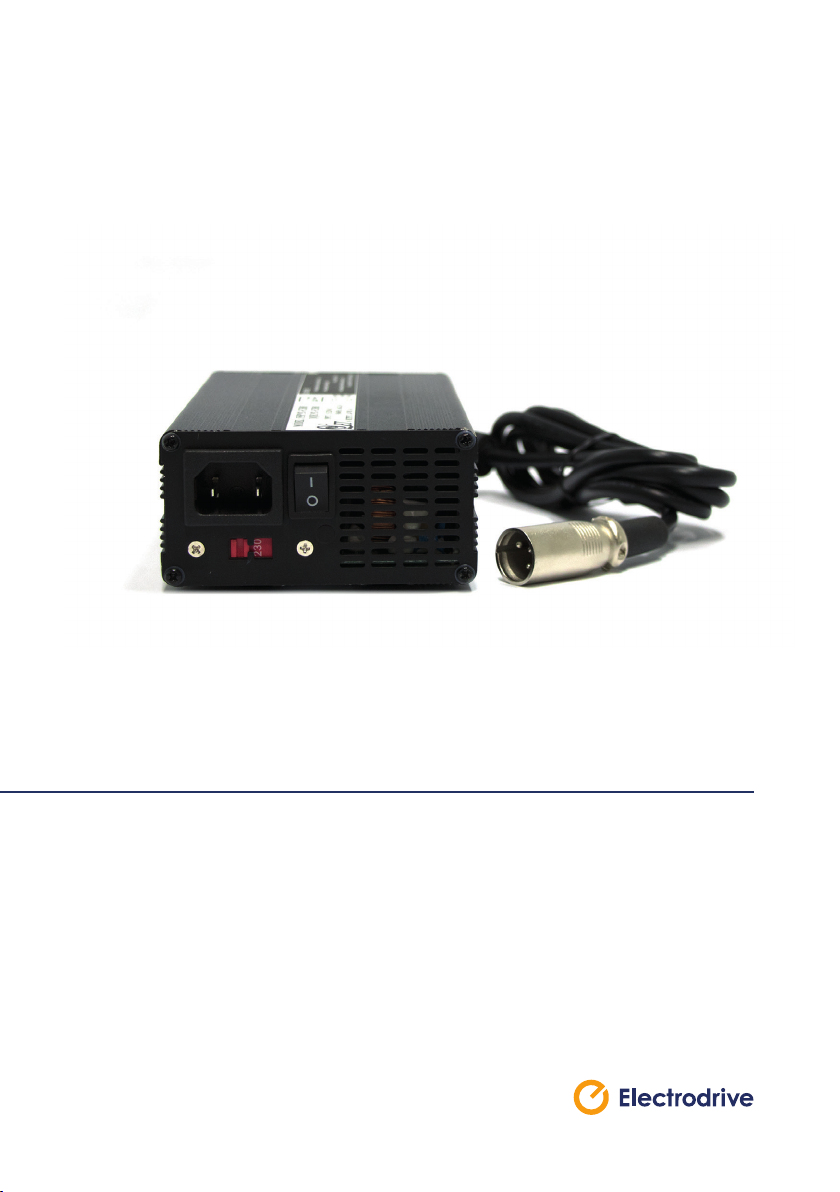

BA1105 Battery Charger
Operating Manual
BA1105 Battery Charger Operating Manual—OM0004E/4
This manual contains important safety, installation and operating instructions for this
unit. Read this manual thoroughly and completely, and retain for future reference. This
unit can cause serious injury to personnel or damage to property if used incorrectly,
therefore do not use this machine for any other purpose apart from its intended use.
Using this unit incorrectly may void warranty.
Any damage audible or visible to this unit should be addressed at the time of discovery.
Electrodrive Pty Ltd can provide parts and service support on request through its
service partner company:
Serviced Equipment Pty Ltd
p: 1300 934 471
Electrodrive Pty Ltd
2A Ayton Street, North Sunshine VIC Australia 3020
p: 1800 333 002 (within Australia)
p: +61 (03) 9300 8521 (International)
w: www.electrodrive.com.au
© Electrodrive
BA1105 Battery Charger—Operating Manual
3
Safety information
Making or breaking the connections to the unit while the charger is
connected to the mains power may cause electrical shock. Disconnect
the power supply before making or breaking the connections to the unit to
be charged.
Explosive gases may be produced during charging and cause explosion.
Prevent ames and sparks and provide adequate ventilation during
charging.
Water ingression may cause electrical shock. Do not expose the charger
to rain.
Current interrupting on output connector may cause electrical shock.
Charging other types of batteries may burst causing personal injury or
machine damage. Charge only 24V, 20–75Ah lead-acid or gel cell type
rechargeable batteries.
§Read the instructions before charging.
§This charger is for indoor use only.
§Never charge a damaged battery.
§Never charge a frozen battery.
§Do not operate if there a signs of damage to the charger.
§This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction concerning use of the appliance by a
person responsible for their safety.
§Children should be supervised to ensure they do not play with the appliance.
4

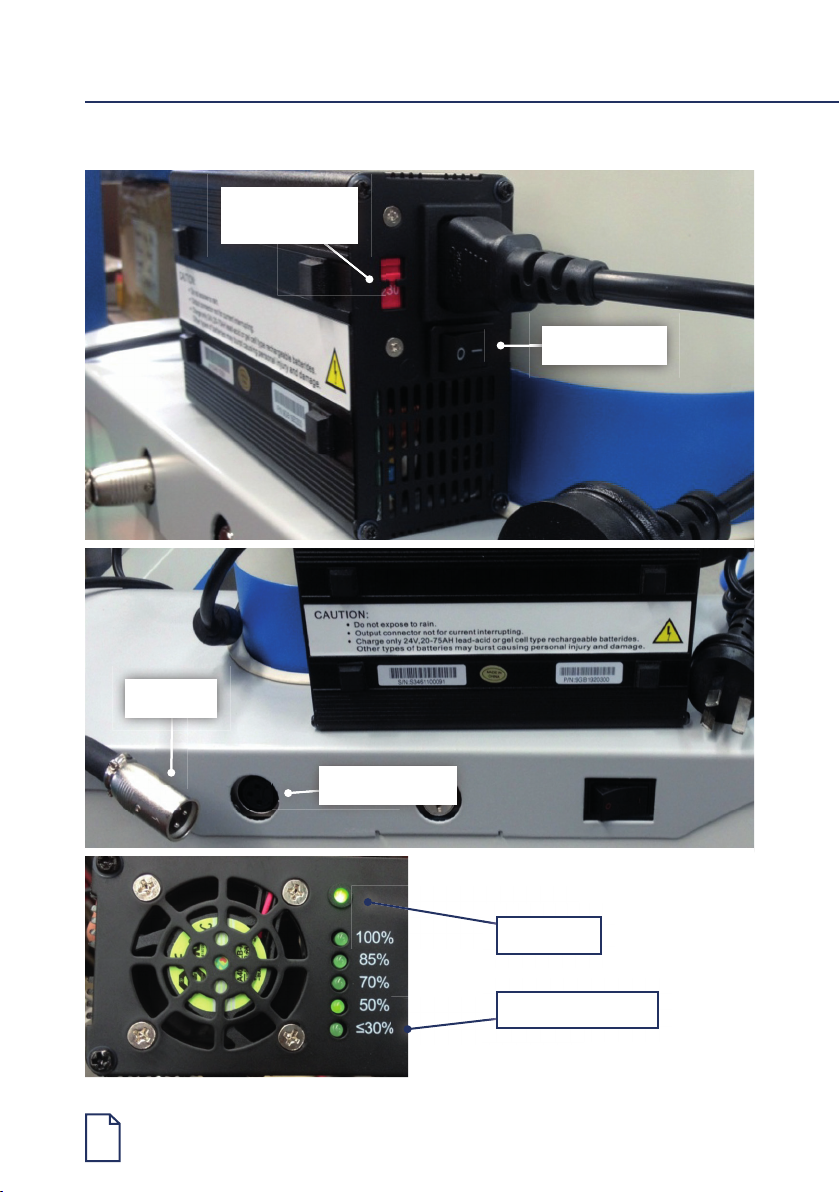

Power button
Input selector
switch
Charger socket
XLR plug
Status LED
LED level indicator
BA1105 Battery Charger—Operating Manual
5
Operating instructions
1. Ensure the input selector switch is in the correct voltage selection your local area
(i.e. 230V or 115V).
2. Ensure that the charger power button is switched o and connect the charger to the
mains power (wall socket).
3. Connect the XLR plug to the machine to be charged. Initially the status LED will
light up after a few seconds and will drop to ≤30% on the LED level indicator. This
will conrm that the charger has recognised the batteries and is ready to charge.
a. If this does not occur check wall socket is turned o and reconnect.
b. If still not occurring there may be a fault with machine or charger. Contact
Electrodrive immediately (see page 4).
4. Turn the power on at the wall socket. Turn the charger power button on.
5. The status LED will blink and the fan will be running while charging.
6. While charging, the LED level indicator will indicate the level of charge.
a. If the status LED does not blink, either the battery or the wiring is faulty. Contact
Electrodrive for a service enquiry immediately (see page 4).
7. When the battery is 100% charged, the charger will switch to a trickle cycle mode.
a. The fan may continue to run for a while after it switches to trickle cycle mode.
8. Turn the charger o and disconnect it from the machine.
6
Technical data
Model QQE192
Input voltage AC 115V AC or 230V AC selectable
Input frequency 47–63 Hz
Charging current (24V) 8A
Ambient temp 1–40°C
Type of charger Switch mode
Battery types Lead acid batteries (Gel Cell, AGM)
Rated capacity of battery 20–75Ah
No. of cells 12 (24V)
Noise level <50dB (Tested from 50 cm away)
Service enquiries
Should this unit need servicing, contact your Electrodrive service partner.
Serviced Equipment Pty Ltd
p: 1300 934 471
Innovative mobility solutions and products
www.electrodrive.com.au
