Electrolux ARCTIS 70258 GS Bedienungsanleitung

ARCTIS 70258 GS

Benutzerinformation

Notice d’utilisation

Gebruiksanwijzing

User manual

Gefrierschrank

Congélateur

Diepvrieskast

Freezer

Dear Customer

Thank you for choosing one of our high-quality products.

With this appliance you will experience the perfect combination of

functional design and cutting edge technology.

Convince yourself that our appliances are engineered to deliver the best

performance and control - indeed we are setting the highest standards of

excellence.

In addition to this you find environmental and energy saving aspects as an

integral part of our products.

To ensure optimal and regular performance of your appliance please read

this instruction manual carefully. It will enable you to navigate all processes

perfectly and most efficiently.

To refer to this manual any time you need to, we recommend you to keep

it in a safe place. And please pass it to any future owner of the appliance.

We wish you much joy with your new appliance.

The following symbols are used in this manual

Important information concerning your personal safety and information on

how to avoid damaging the appliance

General information and tips

Environmental information

Contents

Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .64

Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .66

Appliance Packaging Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .66

Disposal of old Appliances . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .66

Remove transport safeguard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .66

Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .67

Installation Location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .67

Your appliance needs air . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .67

Rear spacers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .68

Fitting the door handle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .68

Rehingeing the door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .68

Electrical Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .70

Prior to Initial Start–Up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .70

Operating and indicator panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . .70

Temperature setting buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .71

Freezing and storing frozen food . . . . . . . . . . . . . . . . . . . . . . . . . .74

Preparation of Ice Cubes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .75

Ice Pack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .75

Energy Saving Tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .75

Defrosting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .76

Cleaning and Care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .77

Switching off the appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .77

What to do if . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .78

Correcting Malfunctions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .78

Regulation, Standard and Guidesline . . . . . . . . . . . . . . . . . . . . . . . .79

Safety

The safety aspects of our refrigerators/freezers comply with accepted

technical standards and the German Appliance Safety Law. Nevertheless, we

consider it our obligation to make you aware of the following safety

information:

Intended use

• The refrigerator is intended for use in the home. It is suitable for the

freezing and storing of frozen food, as well as for making ice. If the

appliance is used for purposes other than those intended or used

incorrectly, no liability can be accepted by the manufacturer for any

damage that may be caused.

• Alterations or changes to the freezer are not permitted for reasons of

safety.

• If you use theappliance in a commercial application or forpurposes other

than the freezing or frozen storage of foods,please observe all valid legal

regulations for your application.

Prior to initial start–up

• Check the appliance for transport damage. Under no circumstance should

a damaged appliance be plugged in! In the event of damage, please contact

the vendor.

Refrigerant

The refrigerant isobutane (R600a) is contained within the refrigerant circuit

of the appliance, a natural gas with a high level of environmental

compatibility, which is nevertheless flammable.

• During transportation and installation of the appliance, be certain that

none of the components of the refrigerant circuit become damaged.

• If the refrigerant circuit should become damaged:

– avoid open flames and sources of ignition;

– thoroughly ventilate the room in which the appliance is situated.

Safety of children

• Packaging (e.g. wraps, polystyrene) can be dangerous for children. There is

a risk of suffocation! Keep packaging material away from children!

• Please make old appliances unusable prior to disposal. Pull out the mains

plug, cut off the mains cable, break or remove spring or boltcatches, if

fitted. By doing this you ensure that children cannot lock themselves in

the fridge when playing (there is risk of suffocation!)or get themselves

into other dangerous situations.

• Often children cannot recognise the hazards present in household

appliances. It is therefore important that you ensure adequate supervision

and never let children play with the appliance!

Daily Operation

• Containers with flammable gases or liquids can leak at low temperatures.

There is a risk of an explosion! Do not store any containers with flammable

materials such as, for example, spray cans, fire extinguisher refill

cartridges etc in the refrigerator/freezer.

• Bottles and cans must not be placed in the freezer compartment. They can

burst when the contents freeze, high carbonate content drinks can even

explode! Never store lemonade, juices, beer, wine, sparkling wine etc. in

the freezer compartment. Exception: high alcohol content spirits can be

stored in the freezer compartment.

• Do not put ice creams or ice cubes in the mouth immediately after

removal from the freezer compartment. Very cold ice can freeze to the lips

or tongue and cause injury.

• Do not touch frozen food with wet hands. Your hands could freeze to the

food.

• Do not operate any electrical appliances in the refrigerator/freezer (e.g.

electric ice cream makers, mixers etc.).

• Before cleaning the appliance, always switch off the appliance and unplug

it, or pull the house fuse or switch off the circuit breaker.

• When unplugging always pull the plug from the mains socket, do not pull

on the cable.

In case of malfunction

• If the a malfunction occurs on the appliance, please look first in the "What

to do if ..." section of these instructions. If the information given there

does not help, please do not perform any further repairs yourself.

• Refrigerators/freezers may only be repaired by qualified service engineers.

Improper repairs can give rise to significant hazards. If your appliance

needs repairing, please contact your specialist dealer or our Customer

Service.

Remove transport safeguard

The appliance and the interior fittings are protected for transport.

• Pull off the adhesive tape on the left and right side of the door.

• Remove all adhesive tape and packing pieces from the interior of the

appliance.

Disposal

Appliance Packaging Information

All materials are environmentally sound! They can be dumped or burned at

an incinerating plant without danger!

About the materials: The plastics can be recycled and are identified as

follows:

>PE< for polyethylene, e.g. the outer covering and the bags in the interior.

>PS< for polystyrene foam, e.g. the pads, which are all free of

chlorofluorocarbon.

The carton parts are made from recycled paper and should be disposed of

at a waste-paper recycling collection location.

Disposal of old Appliances

For environmental reasons, refrigeration appliances must be disposed of

properly. This applies to your old appliance, and - at the end of its service

life - for your new appliance as well.

Warning! Before disposing of old appliances make them inoperable.

Remove plug from mains, sever the power cable, remove or destroy any

snap or latch closures. This eliminates the danger that playing children lock

themselves into the appliance (danger of suffocation!) or place themselves

into other life-endangering situations.

Disposal:

• The appliance may not be disposed of with domestic waste or bulky refuse.

• The refrigerant circuit, especially the heat exchanger at the back of the

appliance, may not be damaged.

• The symbol on the product or on its packaging indicates that

this product may not be treated as household waste. Instead it shall

be handed over to the applicable collection point for the recycling

of electrical and electronic equipment. By ensuring this product is

disposed of correctly, you will help prevent potential negative

consequences for the environment and human health, which could

otherwise be caused by inappropriate waste handling of this

product. For more detailed information about recycling of this

product, please contact your local city office, your household waste

disposal service or the shop where you purchased the product.

If installation next to a source of heat is unavoidable, the following

minimum clearances must be maintained at the sides of the appliance:

– for electric cookers 3 cm;

– for oil and coal fired ranges 30 cm.

If these clearances cannot be maintained a heat insulating pad is required

between the cooker and the refrigeration appliance.

If the refrigeration appliance is installed next to another refrigerator or

freezer a clearance of 5 cm at the sides is required, in order to prevent the

formation of condensation on the outside of the appliance.

Installation

Installation Location

The appliance should be set up in a well ventilated, dry room.

Energy use is affected by the ambient temperature. The appliance should

therefore

– not be exposed to direct sunlight;

– not be installed next to radiators, cookers or other sources of heat;

– only be installed at a location whose ambient temperature corresponds to

the climate classification, for which the appliance is designed.

The climate classification can be found on the serial plate, which is located

at the left on the inside of the appliance.

The following table shows which ambient temperature is correct for each

climate classification: each climate classification:

Climate classification for an ambient temperature of

SN +10 bis +32 °C

N+16 bis +32 °C

ST +18 bis +38 °C

T+18 bis +43 °C

Your appliance needs air

For safety reasons, minimum

ventilationmust be as shown Fig.

Attention: keep ventilation

openings clear of obstruction;

100 mm10 mm

10 mm

NP007

Rehingeing the door

The side at which the door opens can be changed from the right side

(factory adjustment) to the left side, if the installation site requires.

Warning! When changing the side at which the door opens, the appliance

may not be connected to the mains. Remove plug from the mains

beforehand.

Procced as follows:

To carry out the following

operations, we suggest that this be

made with another person that will

keep a firm hold on the door of the

appliance during the operations.

Gently lay the appliance on its

back.

Rear spacers

In the bag with the documentation,

there are two spacers which must be

fitted.

Slacken the screws and insert the

spacer under the screw head, then

re-tighten the screws.

PR153

Fitting the Door Handle

1. Screw the top handle

bracket to the handle rod

(1). Fit the bottom handle

bracket on the lower left-

hand side of the door (2).

2. Fit the top handle bracket

on the top left-hand side

of the door (3) and screw

the handle rod to the

bottom handle bracket (4).

Attention!

Do not overtighten the

screws (max. 2 Nm) as you

may damage the door

handles.

1. Remove the ventilation grille.

2. Remove the bottom hinge (A) by

unscrewing the fixing screws.

3. Remove the door.

4. Unscrew the pin of the bottom

hinge (f) and refit it on the

opposite side.

5. Unscrew the pin of the upper hinge

(d) and refit it on the opposite side.

6. Insert the door in the upper hinge

and refit the upper hinges (A).

Pay attention that the border of the

doors are parallel to the top border,

otherwise adjust the position of

the lower hinge of the door (A).

7) Remove from the ventilation

grille the cover (e) and refit it on

the opposite side.

8) Refit ventilation grille.

9) Unscrew the top handle bracket

from the handle rod (1). Unscrew

the bottom handle bracket from

the door (2).

Unscrew the top handle

bracket from the door (3) and

screw onto the bottom right-

hand side of the door (4).

Turn the handle bracket with

the handle rod 180° and screw

them to the door (5) and the

fitted handle bracket (6).

Move the small plug from right

to left. Reposition, level the

appliance, wait for at least

one hour and then connect it

to the mains socket.

In any case you do not want to

carry out the above mentioned

operations, contact the nearest

After Sales Service Force. The

After Sales Service specialist

will carry out the reversibility

of the doors at your cost.

Electrical connection

Before initial start-up, refer to the appliance rating plate to ascertain if

supply voltage and current values correspond with those of the mains at the

installation location.

e.g.: AC 230 ... 240 V 50 Hz or

230 ... 240 V~ 50 Hz

(i.e. 230 to 240 volts alternating current, 50 Hertz)

The rating plate is inside the appliance on the left.

A correctly installed, earthed socket is required for the electrical supply. The

supply must have a fuse rating of at least 10 Amps. If the socket is not

accessible once the appliance is built in, the electrical installation must include

suitable means of isolating the appliance from the mains (e.g. fuse, cut-out,

current trip or similar with a minimum contact separation of 3 mm).

Attention: The mains connection cable may only be replaced by a skilled

electrician. Please contact your dealer or our customer service department

for repairs.

Prior to Initial Start–Up

• Please clean the appliance interior and all accessories prior to initial start-

up (see section: “Cleaning and Care”).

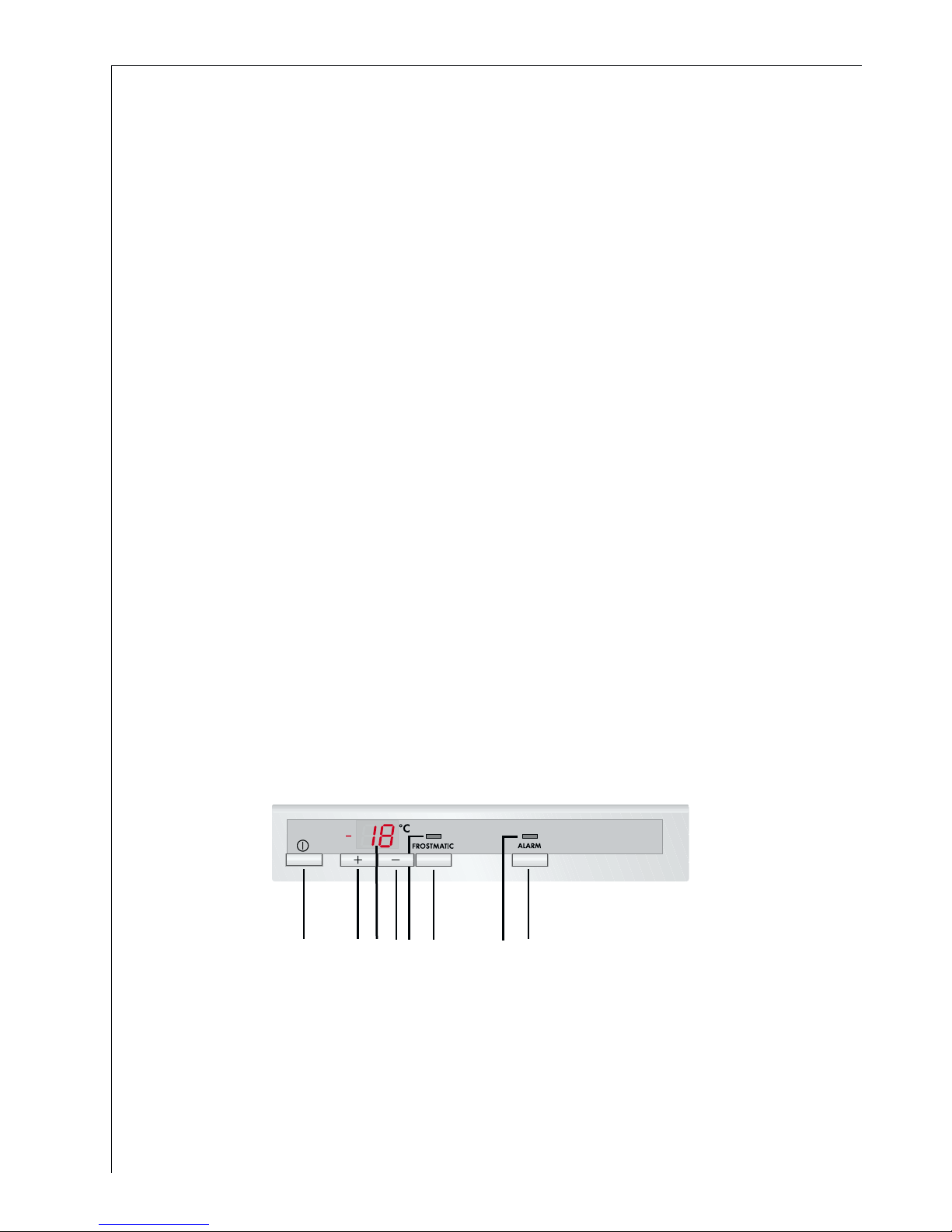

Operating and indicator panel

A. Freezer button ON/OFF

B. Temperature setting button (+)

C. Temperature display

D. Temperature setting button (-)

E. FROSTMATIC function "on" indicator (yellow)

F. FROSTMATIC button

G. Alarm light

H. ALARM OFF button

BCEG

AFH

Attention: After having reversed the opening direction of the doors check that all

the screws are properly tightened and that the magnetic seal adheres to the

cabinet. If the ambient temperature is cold (i.e. in Winter), the gasket may

not fit perfectly to the cabinet. in that case, wait for the natural fitting of

the gasket or accelerate this process by heating up the part involved with a

normal hairdrier.

Inhaltsverzeichnis

Andere Electrolux Gefrierschrank Handbücher

Electrolux

Electrolux EU 1070T Bedienungsanleitung

Electrolux

Electrolux EUC3112S Bedienungsanleitung

Electrolux

Electrolux TC125 Bedienungsanleitung

Electrolux

Electrolux EC4201AOW Bedienungsanleitung

Electrolux

Electrolux Concept Counters 728304 Bedienungsanleitung

Electrolux

Electrolux Air-O-Chill 726964 (AOFP202RCU) Bedienungsanleitung

Electrolux

Electrolux ARTHUR MARTIN ACN3058 Technisches Datenblatt

Electrolux

Electrolux Air-O-Chill 726969 Bedienungsanleitung

Electrolux

Electrolux ENN2914COW Bedienungsanleitung

Electrolux

Electrolux TF1118D Bedienungsanleitung

Electrolux

Electrolux EU 1420 T Kurzanleitung

Electrolux

Electrolux EC 5109N Bedienungsanleitung

Electrolux

Electrolux LUB1AF19W Bedienungsanleitung

Electrolux

Electrolux SG254N12 Bedienungsanleitung

Electrolux

Electrolux LNT9MD36X3 Bedienungsanleitung

Electrolux

Electrolux EC4201AOW Bedienungsanleitung

Electrolux

Electrolux NOFROST UNDERCOUNTER FREEZERS Bedienungsanleitung

Electrolux

Electrolux Air-O-Chill 727153 Bedienungsanleitung

Electrolux

Electrolux U29251 EUFG2900 Bedienungsanleitung

Electrolux

Electrolux A75230-GA3 Bedienungsanleitung

Electrolux

Electrolux EU 6323 T Kurzanleitung

Electrolux

Electrolux LCB3LE31W0 Bedienungsanleitung

Electrolux

Electrolux ECP 21104 W Bedienungsanleitung

Electrolux

Electrolux EUC2609 Bedienungsanleitung

Beliebte Gefrierschrank Handbücher anderer Marken

Siemens

Siemens GU..D SERIES Bedienungsanleitung

Omcan

Omcan FR-CN-0155 Bedienungsanleitung

Beko

Beko FNE290E24W Bedienungsanleitung

Dometic

Dometic CoolFreeze CFX95DZ Bedienungsanleitung

Polar Electro

Polar Electro CT330 Bedienungsanleitung

MPM

MPM MPM-145-SK Series Bedienungsanleitung

SAF

SAF PRESTOTIG 200AC/DC Kurzanleitung

Zanussi

Zanussi ZFT11407WA Bedienungsanleitung

AEG

AEG A63190GT Bedienungsanleitung

AEG

AEG A81000TNW0 Bedienungsanleitung

Matsui

Matsui MUC50S15E Bedienungsanleitung

NEFF

NEFF G4344X8 Bedienungsanleitung

Frigidaire

Frigidaire FV 1246 H Bedienungsanleitung

Frigidaire

Frigidaire FFC13K1AW Bedienungsanleitung

Beko

Beko RFNE350L24W Bedienungsanleitung

IKEA

IKEA TYNNERAS Bedienungsanleitung

Zanussi

Zanussi ZYAE82FR Bedienungsanleitung

Beko

Beko RFSA300S Bedienungsanleitung
