Electrolux E15IM60GP Bedienungsanleitung

Product No. E15IM60GPS0 E15IM60GSS0

Series Professional Designer

Market North America North America

Color stainless steel stainless steel

Volts 120 120

Owner's Guide 241927600 241927600

e15im60ep.eps BEI15IM55GS0.eps SEI15IM55GS0.eps 42247.eps

Electrolux Major Appliances

North & Latin America

P.O. BOX 212378

AUGUSTA, GA 30917

Publication No.

5995508685

08/03/25

(EN/SERVICE/KC)

099

ICE MAKER

Model No.

E15IM60GP /

E15IM60GS

Publication No: 5995508685 E15IM60GP / E15IM60GS

03/08 2

CABINET,DOORS

E15IM60GP / E15IM60GS Publication No: 5995508685

# Functional Parts 3 03/08

* Non-Illustrated Parts

CABINET,DOORS

Model Index: AE15IM60GP (E15IM60GPS0)

BE15IM60GS (E15IM60GSS0)

POS. NO PART NO. DESCRIPTION

1 # 75304465614 A B Thermistor, quick connect, white

2 # 75304465594 A B Control Board, printed circuit

6 # 75304465615 A B Thermistor, liquid line, black

7 75304465616 A B Base Plate, liner

8 # 75304465617 A B Display Assembly, blue LED

9 75304465618 A B Panel, control display, glass

10 75304465619 A B Housing, control display

11 75304465620 A B Screw, 8-18 X 0.75, Plastite

28 75304446590 A B Door Closer

29 75304446594 A B Pin, pivot post, hinge

30 75304446664 A B Hinge, top, w/pivot pin

31 75304446665 A B Hinge, bottom, w/pivot pin

32 75304446666 A B Plate, door pivot, with screws

33 75304446667 A B Panel, back

34 # 75304446668 A B Gasket, door

42 75304446611 A B Plug, hinge holes, top/bottom

44 # 75304446637 A - Door Assembly, Professional, with handle

44 # 75304446638 - B Door Assembly, Designer, with handle

46 75304446674 A B Grille, kick plate

50 # 75304465596 A B Power Cord, electric svce

51 75304446677 A B Scoop, ice

55 75304465621 A B Bushing, back panel, black

Publication No: 5995508685 E15IM60GP / E15IM60GS

03/08 4

SYSTEM

E15IM60GP / E15IM60GS Publication No: 5995508685

# Functional Parts 5 03/08

* Non-Illustrated Parts

SYSTEM

Model Index: AE15IM60GP (E15IM60GPS0)

BE15IM60GS (E15IM60GSS0)

POS. NO PART NO. DESCRIPTION

3 # 75304465590 A B Valve, water, solenoid

3* 75304446678 A B Nut, compression, with sleeve

3* 75304446680 A B Water Line Assy

4 # 75304446642 A B Tube, process

7 # 75304446643 A B Motor, condenser fan

8 # 75304446644 A B Fan Blade, condenser fan

9 75304465591 A B Receptacle, water dispersal

10 75304446646 A B Trough, water

11 75304446647 A B Cover, evaporator

12 75304446648 A B Cover, pump

15 75304465592 A B Pump, water, circulation

15* 75304446652 A B Wiring Harness, water pump

17 75304446653 A B Standpipe

19 75304446606 A B Leveling Leg, screw

20 75304446654 A B Elbow, 90 degree, brass

22 75304446655 A B Hook, ice scoop

24 # 75304465593 A B Compressor Assy, w/electricals, includes dryer

24*# 75304446658 A B Drier-filter

24*# 75304446659 A B Overload Protector, compressor

24*# 75304446660 A B Relay, compressor

35 # 75304446669 A B Condenser

36 # 75304446670 A B Evaporator Assy, w/tubing

37 # 75304446671 A B Tube, drain

37* 75304446679 A B Clamp, tube

39 # 75304446672 A B Tube, preformed

40 # 75304446673 A B Tubing, drain

49 # 75304465595 A B Valve, Hot Gas, w/coil & dryer

Publication No: 5995508685 E15IM60GP / E15IM60GS

03/08 6

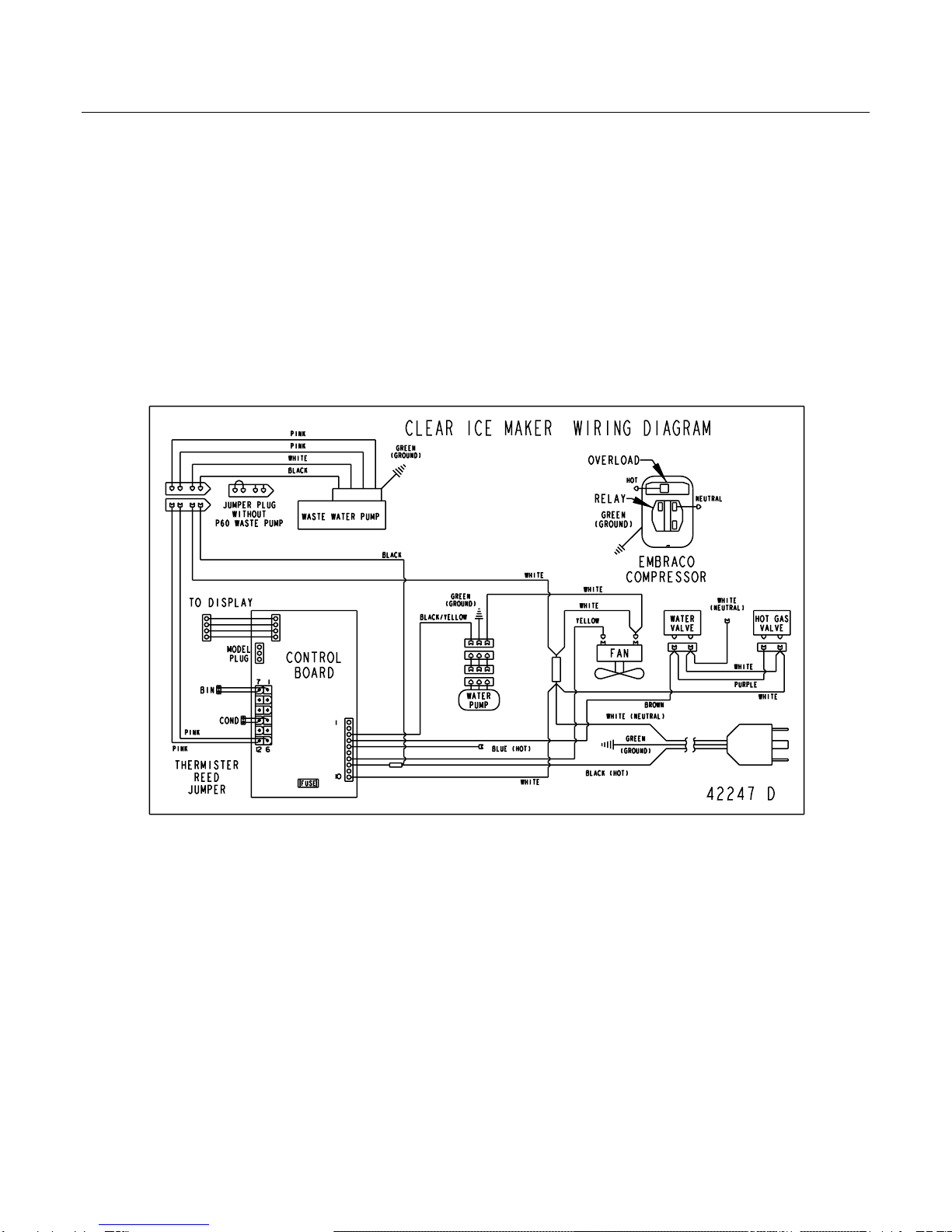

WIRING DIAGRAM

WATER

PUMP

Lawrence

BIN

COND

12 6

FUSE

CLEAR ICE MAKER WIRING DIAGRAM

42247 D

GREEN

BLACK (HOT)

WHITE (NEUTRAL)

CONTROL

BOARD

MODEL

PLUG

7 1

THERMISTER

REED

JUMPER

(GROUND)

TO DISPLAY

WASTE WATER PUMP

JUMPER PLUG

WITHOUT

P60 WASTE PUMP

GREEN

(GROUND)

BLACK

WHITE

PINK

FAN

HOT GAS

VALVE

WATER

VALVE

GREEN

(GROUND)

WHITE

WHITE WHITE

(NEUTRAL)

WHITE

BLUE (HOT)

YELLOW

BLACK/YELLOW

PURPLE

BROWN

WHITE

BLACK

OVERLOAD

NEUTRAL

HOT

RELAY

EMBRACO

COMPRESSOR

GREEN

(GROUND)
