Safety warnings

For the user

• The cooker hood is designed to extract unpleasant odours from

the kitchen, it will not extract steam.

• Always cover lighted elements, to prevent excess heat from

damaging the appliance. In the case of oil, gas and coal fired

cookers it is essential to avoid open flames.

• Also, when frying, keep the deep frying pan on the cooker top/

cooker under careful control.

• The hot oil in the frying pan might ignite due to overheating.

• The risk of self-ignition increases when the oil being used is dirty.

• It is extremely important to note that overheating can cause a fire.

•Never carry out any flambé cooking under the hood.

•Always disconnect the unit from the power supply before

carrying out any work on the hood, including replacing the light

bulb.

•It is very important to clean the hood and to perform

maintenance and care of filters at the recommended intervals.

Failure to do so could cause grease deposits to build up,

resulting in a fire hazard.

• The appliance is not intended for use by young children or infirm

persons without supervision.

• Young children should be supervised to ensure that they do not play

with the appliance.

• WARNING - Ensure that the appliance is switched off before

replacing the lamp to avoid the possibility of electric shock.

This appliance is marked according to the European directive 2002/96/

EC on Waste Electrical and Electronic Equipment (WEEE).

By ensuring this product is disposed of correctly, you will help prevent

potential negative consequences for the environment and human

health, which could otherwise be caused by inappropriate waste

handling of this product.

The symbol on the product, or on the documents accompanying

the product, indicates that this appliance may not be treated as

household waste. Instead it shall be handed over to the applicable

collection point for the recycling of electrical and electronic equipment.

Disposal must be carried out in accordance with local environmental

regulations for waste disposal.

For more detailed information about treatment, recovery and recycling

of this product, please contact your local city office, your household

waste disposal service or the shop where you purchased the product.

For the installer

• When used as an extractor unit, the hood must be fitted with a

150mm diameter duct.

•When installing the hood observe the following minimum

distances from the cooking top:

Electric cooking hobs 300mm.

• The national Standard on fuel-burning systems specifies a maximum

depression of 0.04 mbar in such rooms.

• The air outlet must not be connected to chimney flues or combustion

gas ducts. The air outlet must under no circumstances be connected

to ventilation ducts for rooms in which fuel-burning appliances are

installed.

• The air outlet installation must comply with the regulations laid down

by the relevant authorities.

• When the unit is used in its extractor version, a sufficiently large

ventilation hole must be provided, with dimensions that are approxi-

mately the same as the outlet hole.

• National and regional building regulations impose a number of

restrictions on using hoods and fuel-burning appliances connected

to a chimney, such as coal or oil room-heaters and gas fires, in the

same room.

• Hoods can only be used safely with appliances connected to a

chimney if the room and/or flat (air/environment combination) is

ventilated from outside using a suitable ventilation hole approxi-

mately 500-600 cm2 large to avoid the possibility of a depression

being created during operation of the hood.

• If you have any doubts, contact the relevant controlling authority or

building inspector’s office.

• Since the rule for rooms with fuel burning appliances is “outlet hole

of the same size as the ventilation hole”, a hole of 500-600 cm2,

which is to say a larger hole, could reduce the performance of the

extractor hood.

• If the hood is used in its filtering function, it will operate simply and

safely in the above conditions without the need for any of the

aforementioned measures.

• When the hood is used in its extractor function, the following rules

must be followed to obtain optimal operation:

- short and straight outlet ducting

- keep bends in outlet ducting to a minimum

- never install the ducts with an acute angle, they must always follow

a gentle curve.

- keep the duct as large as possible (preferably the same diameter

as the outlet hole).

• Failure to observe these basic instructions will drastically reduce the

performance and increase the noise levels of the extractor hood.

Description of the Appliance

•The cooker hood is designed to extract unpleasant odours from

the kitchen, it will not extract steam.

• The hood is supplied as an extractor unit and can also be used with

a recirculation version by fitting a charcoal filter.

Extraction version

• In this version fumes are extracted to the outside via a duct

connected to the coupling ring A. Fig. 1.

• In order to obtain the best performance the ducting should have a

diameter equal to the outlet hole.

Recirculation Version

• The air is filtered through charcoal filters and returned to the kitchen.

• You will need original charcoal filters for the recirculation function.

(Available from your local Service Centre).

• Fix the deflector using 2 screws Ø 3.5x9.5 mm. Fig. 2.

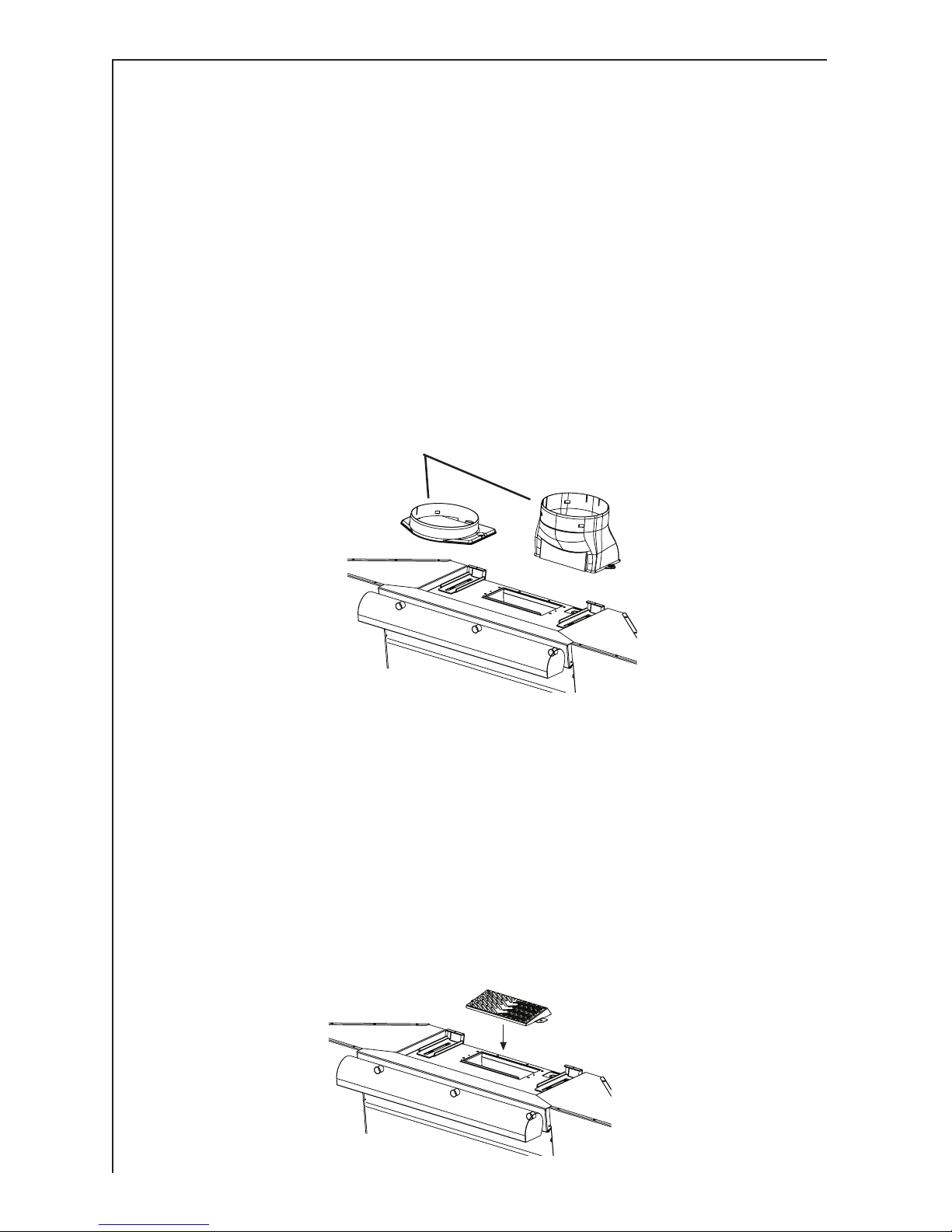

Fig. 1

Deflector

Fig. 2

Control Panel

• Best results are obtained by using a low speed for normal conditions

and a high speed when odours are more concentrated.

Turn the hood on a few minutes before you start cooking, you will

then get an under pressure in the kitchen. The hood should be left

on after cooking for about 15 minutes or until all the odours have

disappeared.

• Cooker hood operation can also be controlled

using the remote control (the remote control is an

accessory and may be ordered separately).

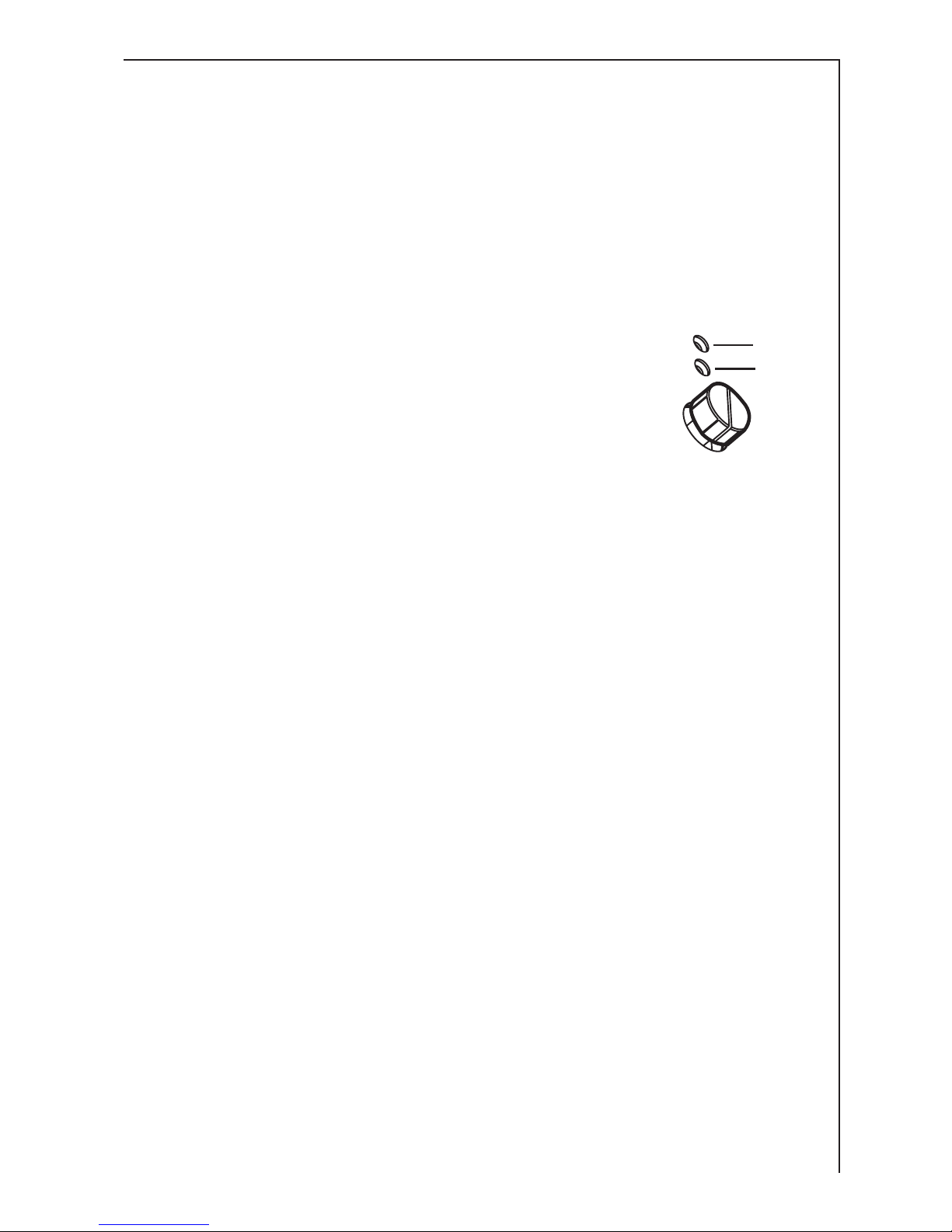

The control panel consists of a knob and 2 LEDs; it is

located at the bottom right-hand side of the cooker

hood.

•To switch the lights on and off:

Press and release the knob to switch the lights on; press and

release it again to switch them off.

Note: in some models it is possible to select one of 2 different

lighting intensity levels.

•To select an available suction speed (power) level:

Turn the knob in a clockwise direction to increase the suction speed

(power); turn it in an anticlockwise direction to decrease the power

until the hob is switched off.

The cooker hood is fitted with an LED (L1) which indicates the

suction speed (power) selected by displaying different colours:

•Light off:

Suction motor switched off.

•Fixed green light:

Cooker hood operating at power level 1 (minimum).

•Fixed orange light:

Cooker hood operating at power level 2 (medium).

•Fixed red light:

Cooker hood operating at power level 3 (maximum).

•Flashing red light:

Cooker hood operating at an intensive power level (for a duration of

5 minutes, after which the appliance automatically selects power

level 3).

Fig. 3

Filter checking device

The cooker hood is fitted with a device which indicates when the filter

must be cleaned or replaced.

Usually the device, which signals when the carbon filter needs

maintenance work, is deactivated.

To activate it, proceed as follows:

Switch off the cooker hood.

Press and hold the knob for approximately 5 seconds.

The L2 LED begins to flash in green and after approximately 2

seconds the L2 LED will also begin to flash in orange, to indicate that

the device, which indicates when it is necessary to perform carbon

filter maintenance, has been activated.

L2 LED - grease filter indicator

The LED lights up in green when the grease filter needs to be cleaned;

this happens approximately every 40 hours of operation.

Every time the cooker hood is used, check whether the L2 LED is lit.

L2 LED - carbon filter indicator

The LED lights up in orange when the carbon filter needs to be

cleaned/replaced; this happens approximately every 160 hours of

operation.

Every time the cooker hood is used, check whether the L2 LED is lit.

Resetting the filter saturation warning

After cleaning or replacing the filters, switch on the cooker hood at any

suction speed (power), then press and hold the knob for more than 3

seconds, until you hear a beep indicating that the reset procedure has

been performed successfully. The L2 LED and the cooker hood both

switch off.

In some situations (for example, when the L2 LED is indicating that

the grease filters and the carbon filter are saturated), the procedure

described above must be repeated.

Maintenance and Care

•The hood must always be disconnected from the electricity

supply before beginning any maintenance work.

Cleaning the hood

• Clean the outside of the hood using a damp cloth and a mild deter-

gent.

• Never use corrosive, abrasive or flammable cleaning products.

• Never insert pointed objects in the motor’s protective grid.

• Wash the outside surfaces using a delicate detergent solution.

Never use caustic detergents or abrasive brushes or powders.

• Only ever clean the control panel and filter grille using a damp cloth

and delicate detergents.

• It is very important to clean the hood and to perform maintenance

and care of filters at the recommended intervals. Failure to do so

could cause grease deposits to build up, resulting in a fire hazard.

• Clean the inner housing using a hot detergent solution only (never

use caustic detergents, abrasive powders or brushes).

Metal grease filter

• The purpose of the grease filters is to absorb grease particles which

form during cooking and it must always be used, either in the

external extraction or internal re-circulation function.

Attention: the metal grease

filters must be removed and

washed, either by hand or in

the dishwasher, every four

weeks.

• To access the grease filter,

first remove the front panels

which conceal the grease

filter.

Removing the front

panels:

Extract the small panel,

rotate upwards and unhook.

Repeat the operation for all

the small panels. Fig. 4.

Bild 3

Fig. 4

Unhook

Extract

Removing the metal grease filter

Pull the handle downards, then extract the filter.Fig. 5.

Hand washing

Soak grease filters for about one hour in hot water with a grease-

loosening cleaner, then rinse off thoroughly with hot water. Repeat

the process if necessary. Refit the grease filters when they are dry.

Dishwasher

Place grease filters in the dishwasher. Select most powerful washing

programme and highest temperature, at least 65°C. Repeat the

process. Refit the grease filters when they are dry.

When washing the metal grease filter in the dishwasher a slight

discolouration of the filter can occur, this does not have any impact

on its performance.

• Clean the inner housing using a hand hot solution only(never use

caustic detergents, abrasive powders or brushes).

Fig. 5

Handle

Inhaltsverzeichnis

Andere Electrolux Dunstabzugshaube Handbücher

Electrolux

Electrolux EFC 1436 Bedienungsanleitung

Electrolux

Electrolux CHI 950 Bedienungsanleitung

Electrolux

Electrolux EFT 615 Bedienungsanleitung

Electrolux

Electrolux DBGL1031CN Bedienungsanleitung

Electrolux

Electrolux DF 1090 Technisches Datenblatt

Electrolux

Electrolux EFC9588X Bedienungsanleitung

Electrolux

Electrolux EFB90581OX Bedienungsanleitung

Electrolux

Electrolux EFP 629 Bedienungsanleitung

Electrolux

Electrolux FHWC3 55LS Series Bedienungsanleitung

Electrolux

Electrolux WOL6035CN Bedienungsanleitung

Electrolux

Electrolux EFB70566BX Bedienungsanleitung

Electrolux

Electrolux EFG 535 Bedienungsanleitung

Electrolux

Electrolux LFC419X Bedienungsanleitung

Electrolux

Electrolux MCH 660 Bedienungsanleitung

Electrolux

Electrolux EFP 662 Technisches Datenblatt

Electrolux

Electrolux ICON E488WV120S Bedienungsanleitung

Electrolux

Electrolux AEG DD9663-M Bedienungsanleitung

Electrolux

Electrolux EFT 605 Bedienungsanleitung

Electrolux

Electrolux WHGL9030CN Bedienungsanleitung

Electrolux

Electrolux ERCE9025BK Bedienungsanleitung

Electrolux

Electrolux 7332543810222 Bedienungsanleitung

Electrolux

Electrolux U30306 CH1200-600-900 Bedienungsanleitung

Electrolux

Electrolux EFC 9408 EFC 6404 Bedienungsanleitung

Electrolux

Electrolux EFP 6446 Bedienungsanleitung

Beliebte Dunstabzugshaube Handbücher anderer Marken

emmeti

emmeti RECUPA MED A-140 Leitfaden

Nibe

Nibe F135 Bedienungsanleitung

Kuppersberg

Kuppersberg INTRO 60 Montage- und Wartungsanleitung

Zephyr

Zephyr Spruce AK9834BS Installationsanleitung

Hisense

Hisense MH6INBG Bedienungsanleitung

Miele

Miele DA 1255 Bedienungsanleitung

Broan

Broan 46000 Bedienungsanleitung

GE Profile PV977 Originalbetriebsanleitung

FALMEC

FALMEC FFRIA24W5FS Bedienungsanleitung

Whirlpool

Whirlpool RH2600XL-1 SERIES Bedienungsanleitung

Küppersbusch

Küppersbusch DX ISLA Bedienungsanleitung

ETNA

ETNA AV360RVS Bedienungsanleitung

JUNO

JUNO JDF603E6 Bedienungsanleitung

Miele

Miele DA 6708 D Bedienungsanleitung

Tricity Bendix

Tricity Bendix LE 150 Handbuch

AEG

AEG X68163BV1 Bedienungsanleitung

AEG

AEG 125 D Bedienungsanleitung

Smeg

Smeg KSEV97X Bedienungsanleitung
