DF 6160

Cooker Hood

Operating and Installation Instructions

Contents

Safety warnings ................................................................................ 3

For the user ........................................................................................ 3

For the installer ................................................................................... 4

Description of the Appliance ........................................................... 6

Extraction version ............................................................................... 6

Recirculation Version .......................................................................... 6

Control Panel .................................................................................... 7

Maintenance and Care ..................................................................... 8

Cleaning the hood .............................................................................. 8

Metal grease filter ............................................................................... 8

Charcoal filter ..................................................................................... 9

Changing the light bulb ..................................................................... 10

Special accessories........................................................................ 10

Something Not Working ................................................................. 11

Technical Specifications ................................................................ 12

Mounting accessories included ......................................................... 12

Electrical connection ..................................................................... 12

Installation ........................................................................................ 13

Safety warnings

For the user

• The cooker hood is designed to extract unpleasant odours from

the kitchen, it will not extract steam.

• Always cover lighted elements, to prevent excess heat from

damaging the appliance. In the case of oil, gas and coal fired

cookers it is essential to avoid open flames.

• Also, when frying, keep the deep frying pan on the cooker top/

cooker under careful control.

• The hot oil in the frying pan might ignite due to overheating.

• The risk of self-ignition increases when the oil being used is dirty.

• It is extremely important to note that overheating can cause a fire.

•Never carry out any flambé cooking under the hood.

•Always disconnect the unit from the power supply before

carrying out any work on the hood, including replacing the light

bulb.

•It is very important to clean the hood and to perform

maintenance and care of filters at the recommended intervals.

Failure to do so could cause grease deposits to build up,

resulting in a fire hazard.

• The appliance is not intended for use by young children or infirm

persons without supervision.

• Young children should be supervised to ensure that they do not play

with the appliance.

• WARNING - Ensure that the appliance is switched off before

replacing the lamp to avoid the possibility of electric shock.

This appliance is marked according to the European directive 2002/96/

EC on Waste Electrical and Electronic Equipment (WEEE).

By ensuring this product is disposed of correctly, you will help prevent

potential negative consequences for the environment and human

health, which could otherwise be caused by inappropriate waste

handling of this product.

The symbol on the product, or on the documents accompanying

the product, indicates that this appliance may not be treated as

household waste. Instead it shall be handed over to the applicable

collection point for the recycling of electrical and electronic equipment.

Disposal must be carried out in accordance with local environmental

regulations for waste disposal.

For more detailed information about treatment, recovery and recycling

of this product, please contact your local city office, your household

waste disposal service or the shop where you purchased the product.

For the installer

• When used as an extractor unit, the hood must be fitted with a

120mm diameter duct.

•When installing the hood, make sure you respect the following

minimum distance from the top edge of the cooking hob/ring

surfaces:

electric cookers 430 mm

gas cookers 650 mm

The hood can be installed above these heights but for optimum

performance it should be installed at the distance quoted for the

appropriate heat source.

• The national Standard on fuel-burning systems specifies a maximum

depression of 0.04 mbar in such rooms.

• The air outlet must not be connected to chimney flues or combustion

gas ducts. The air outlet must under no circumstances be connected

to ventilation ducts for rooms in which fuel-burning appliances are

installed.

• The air outlet installation must comply with the regulations laid down

by the relevant authorities.

• When the unit is used in its extractor version, a sufficiently large

ventilation hole must be provided, with dimensions that are approxi-

mately the same as the outlet hole.

• National and regional building regulations impose a number of

restrictions on using hoods and fuel-burning appliances connected

to a chimney, such as coal or oil room-heaters and gas fires, in the

same room.

• Hoods can only be used safely with appliances connected to a

chimney if the room and/or flat (air/environment combination) is

ventilated from outside using a suitable ventilation hole approxi-

mately 500-600 cm2 large to avoid the possibility of a depression

being created during operation of the hood.

• If you have any doubts, contact the relevant controlling authority or

building inspector’s office.

• Since the rule for rooms with fuel burning appliances is “outlet hole

of the same size as the ventilation hole”, a hole of 500-600 cm2,

which is to say a larger hole, could reduce the performance of the

extractor hood.

• If the hood is used in its filtering function, it will operate simply and

safely in the above conditions without the need for any of the

aforementioned measures.

• When the hood is used in its extractor function, the following rules

must be followed to obtain optimal operation:

- short and straight outlet ducting

- keep bends in outlet ducting to a minimum

- never install the ducts with an acute angle, they must always follow

a gentle curve.

- keep the duct as large as possible (preferably the same diameter

as the outlet hole).

• Failure to observe these basic instructions will drastically reduce the

performance and increase the noise levels of the extractor hood.

Description of the Appliance

•The cooker hood is designed to extract unpleasant odours from

the kitchen, it will not extract steam.

• The hood is supplied as an extractor unit and can also be used with

a recirculation version by fitting a charcoal filter.

Extraction version

• In this version fumes are extracted to the outside via a duct.

• In order to obtain the best performance the ducting should have a

diameter equal to the outlet hole.

Recirculation Version

• The air is filtered through charcoal filters and returned to the kitchen.

• You will need original charcoal filters for the recirculation function.

(Available from your local Service Centre).

Fig. 1

A = ON/OFF switches (Motor, light)

B = Grease filter

C = Light

D = Control panel

E = Visor (Removable)

Control Panel

• The switches are mounted on the upper right side of the

visor (Fig. 1 - E).

The numbers and symbols have the following meanings (from left to

right):

The fan is controlled by moving the sliding switch.

The extractor part (visor) of the hood is used to switch the fan on

and off when the appliance is switched on (Motor).

When the visor of the appliance is withdrawn, the fan automatically

switches on.

If the visor is pushed in without operating the switches, the fan is

switched off.

The lighting can be separately switched on and off with the slide

switch.

Turn the hood on a few minutes before you start cooking then you will

get an underpressure in the kitchen. It should be left on after cooking

for about 15 minutes or until all odours have disappeared.

= fan set 4

= fan set 3

= fan set 2

= fan set 1

= Light

= Light OFF

= Light ON

Maintenance and Care

•The hood must always be disconnected from the electricity

supply before beginning any maintenance work.

Cleaning the hood

• Clean the outside of the hood using a damp cloth and a mild deter-

gent.

• Never use corrosive, abrasive or flammable cleaning products.

• Never insert pointed objects in the motor’s protective grid.

• Wash the outside surfaces using a delicate detergent solution.

Never use caustic detergents or abrasive brushes or powders.

• Only ever clean the control panel and filter grille using a damp cloth

and delicate detergents.

• It is very important to clean the hood and to perform maintenance

and care of filters at the recommended intervals. Failure to do so

could cause grease deposits to build up, resulting in a fire hazard.

• Clean the inner housing using a hot detergent solution only (never

use caustic detergents, abrasive powders or brushes).

Metal grease filter

• The purpose of the grease filters is to

absorb grease particles which form

during cooking and it must always be

used, either in the external extraction

or internal re-circulation function.

Attention: the metal grease filters

must be removed and washed, either

by hand or in the dishwasher, every

four weeks.

Removing the metal grease filter

• Pull out the visor, remove the rear grease filter pulling the handle

designed for this purpose, then proceed in the same way to remove

the front grease filter. Fig. 2.

Hand washing

Soak grease filters for about one hour in hot water with a grease-

loosening cleaner, then rinse off thoroughly with hot water. Repeat

the process if necessary. Refit the grease filters when they are dry.

Dishwasher

Place grease filters in the dishwasher. Select most powerful washing

programme and highest temperature, at least 65°C. Repeat the

process. Refit the grease filters when they are dry.

When washing the metal grease filter in the dishwasher a slight

discolouration of the filter can occur, this does not have any impact

on its performance.

• Clean the inner housing using a hand hot solution only(never use

caustic detergents, abrasive powders or brushes).

Fig. 2

Charcoal filter

• The charcoal filter should only be used if you want to use the hood in

the recirculation function.

• To do this you will need an original charcoal filter (available from

your local Service Centre).

•Replacing the charcoal filter Type 150

This filter cannot be cleaned or reused.

As a general rule, the activated charcoal filter should be changed

once every 4 months.

•Cleaning/replacing the charcoal filter Type 150 LONG LIFE

Unlike other charcoal filters, the LONGLIFE charcoal filter can be

cleaned and reactivated. With normal use the filter should be

cleaned every second month (when using the hood 2,5 hours per

day,on avarage). The best way to clean the filter is in the

dishwasher. Use normal detergent and choose the highest tempera-

ture (65º C). Wash the filter separately so that no food parts gets

stuck on the filter and later causes bad odours. To reactivate the

charcoal, the filter should be dried in an oven for 10 minutes with a

maximum temperature of 100º C.

After approximately three years of use, the charcoal filter should be

replaced with a new, as the odour reduction capacity will be reduced.

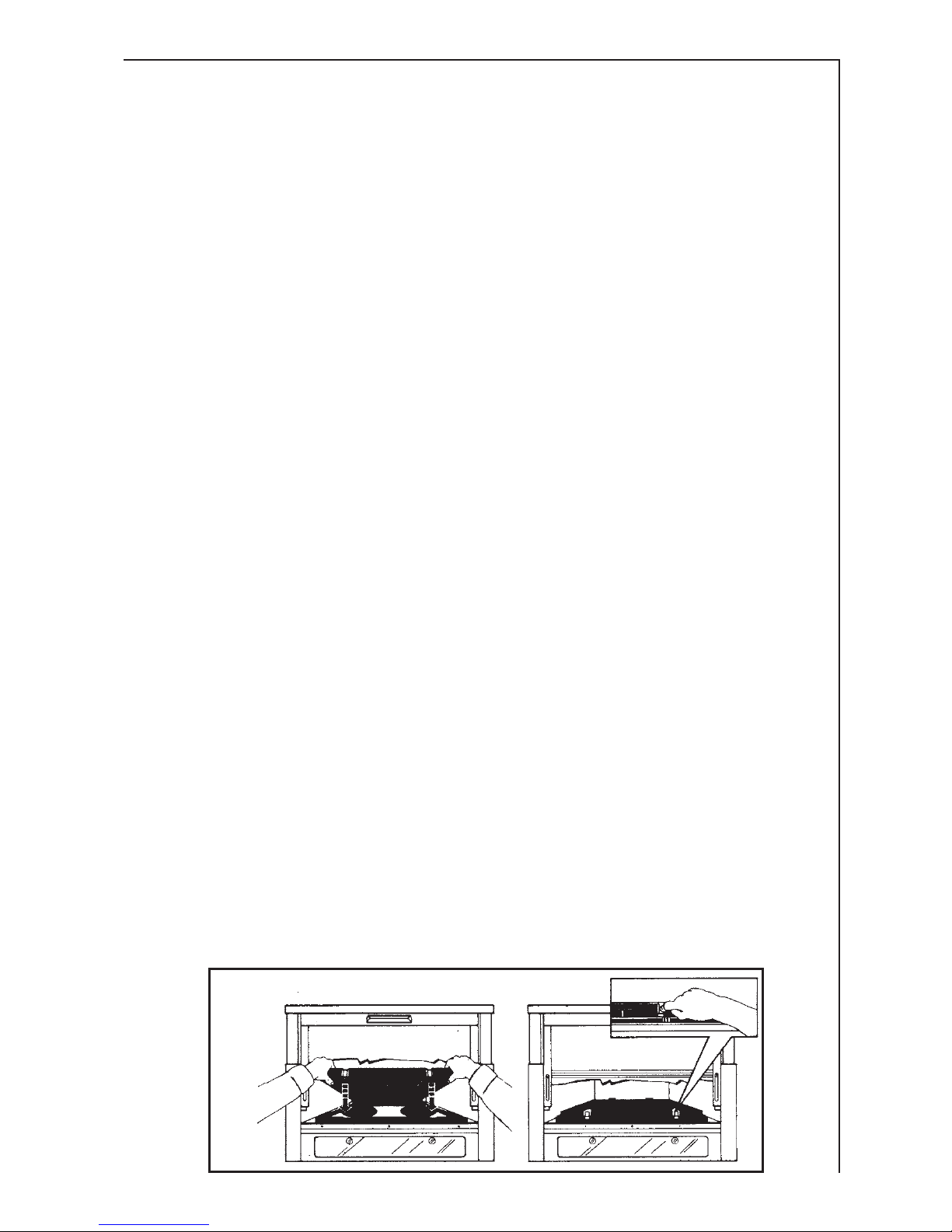

•Fitting

1. Pull out the visor (Fig. 1 - E).

2. Remove first the rear then the front grease filters.

3. Insert the charcoal filter into the lugs of the frame above using the

2 red clips to retain it, press the red clips inwards, and insert the

charcoal filter in the frame. Fig. 3.

•Removing:

1. Press both red lugs upwards (towards the inside of the housing)

and remove the charcoal filter downwards.

2. Clean the internal housing only with warm washing-up liquid’ suds

(never use any abrasive cleaners, brushes, or scouring agents).

• Always specify the hood model code number and serial number

when ordering replacement filters. This information is shown on the

registration plate located on the inside of the unit.

• The charcoal filter can be ordered from your local Service Centre.

Fig. 3

Warning

• Failure to observe the instructions on cleaning the unit and changing

the filters will cause a fire hazard. You are therefore strongly

recommended to follow these instructions.

• The manufacturer declines all responsibility for any damage to the

motor or any fire damage linked to inappropriate maintenance or

failure to observe the above safety recommendations.

Changing the light bulb

• Disconnect the cooker hood from the main supply.

• Unlock the lighting cover (D) by twisting the bolts to the left and fold

down the bulb cover. Fig. 4.

Replace the old light bulb(s) with a new light bulb of the same kind.

• Close the bulb cover and relock it by twisting the bolts to the right.

• If the light does not come on, make sure the bulb has been inserted

correctly before contacting your local Service Centre.

Fig. 4 D

Special accessories

Charcoal filter Type 150 LONG LIFE

Charcoal filter Type 150

Front panel M BF6060-m 942 121 996

Front panel AL BF6060-al 942 121 997

Finishing strip* ET-NR.: 502 426 420 02

Clips for finishing strip (3x)* ET-NR.: 502 302 940 06

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Electrolux Dunstabzugshaube Handbücher

Electrolux

Electrolux IUSL1271WE Bedienungsanleitung

Electrolux

Electrolux EFT 604 Bedienungsanleitung

Electrolux

Electrolux ZKD 4050 B Leitfaden

Electrolux

Electrolux EFC 1436 Bedienungsanleitung

Electrolux

Electrolux LFC419X Bedienungsanleitung

Electrolux

Electrolux Icon E368WV60ES Bedienungsanleitung

Electrolux

Electrolux EFC 6940 Bedienungsanleitung

Electrolux

Electrolux Icon E36WC45FSS Bedienungsanleitung

Electrolux

Electrolux ICON E30DD75ESS Bedienungsanleitung

Electrolux

Electrolux EFC1060 Bedienungsanleitung

Electrolux

Electrolux EFT 60233 Bedienungsanleitung

Electrolux

Electrolux EFC 60131 Bedienungsanleitung

Electrolux

Electrolux EFG 6416 Bedienungsanleitung

Electrolux

Electrolux EFB90566BX Bedienungsanleitung

Electrolux

Electrolux EFT 601-2 Bedienungsanleitung

Electrolux

Electrolux EFC 90344 Bedienungsanleitung

Electrolux

Electrolux EFC60246 Bedienungsanleitung

Electrolux

Electrolux EFT7540OX Bedienungsanleitung

Electrolux

Electrolux ERC925DSD Bedienungsanleitung

Electrolux

Electrolux ICON E30DD75ESS Bedienungsanleitung

Electrolux

Electrolux ERHC1238S Bedienungsanleitung

Electrolux

Electrolux EFC60401OW Bedienungsanleitung

Electrolux

Electrolux LFC316X Bedienungsanleitung

Electrolux

Electrolux EFG 540 Bedienungsanleitung

Beliebte Dunstabzugshaube Handbücher anderer Marken

emmeti

emmeti RECUPA MED A-140 Leitfaden

Nibe

Nibe F135 Bedienungsanleitung

Kuppersberg

Kuppersberg INTRO 60 Montage- und Wartungsanleitung

Zephyr

Zephyr Spruce AK9834BS Installationsanleitung

Hisense

Hisense MH6INBG Bedienungsanleitung

Miele

Miele DA 1255 Bedienungsanleitung

Broan

Broan 46000 Bedienungsanleitung

GE Profile PV977 Originalbetriebsanleitung

FALMEC

FALMEC FFRIA24W5FS Bedienungsanleitung

Whirlpool

Whirlpool RH2600XL-1 SERIES Bedienungsanleitung

Küppersbusch

Küppersbusch DX ISLA Bedienungsanleitung

ETNA

ETNA AV360RVS Bedienungsanleitung

JUNO

JUNO JDF603E6 Bedienungsanleitung

Miele

Miele DA 6708 D Bedienungsanleitung

Tricity Bendix

Tricity Bendix LE 150 Handbuch

AEG

AEG X68163BV1 Bedienungsanleitung

AEG

AEG 125 D Bedienungsanleitung

Smeg

Smeg KSEV97X Bedienungsanleitung
