Electrolux EFC 90505 Bedienungsanleitung

EFC 90505

Instructions Manual

Manual de instrucciones

Manual de Instruções

Instructions Manual

INDEX

RECOMMENDATIONS AND SUGGESTIONS......................................................................................................................5

CHARACTERISTICS..............................................................................................................................................................6

INSTALLATION......................................................................................................................................................................8

USE.......................................................................................................................................................................................11

MAINTENANCE....................................................................................................................................................................12

Manual de instrucciones

ÍNDICE

CONSEJOS Y SUGERENCIAS...........................................................................................................................................13

CARACTERÍSTICAS............................................................................................................................................................14

INSTALACIÓN......................................................................................................................................................................16

USO......................................................................................................................................................................................19

MANTENIMIENTO................................................................................................................................................................20

Manual de Instruções

ÍNDICE

CONSELHOS E SUGESTÕES............................................................................................................................................21

CARACTERÍSTICAS............................................................................................................................................................22

INSTALAÇÃO.......................................................................................................................................................................24

UTILIZAÇÃO.........................................................................................................................................................................27

MANUTENÇÃO....................................................................................................................................................................28

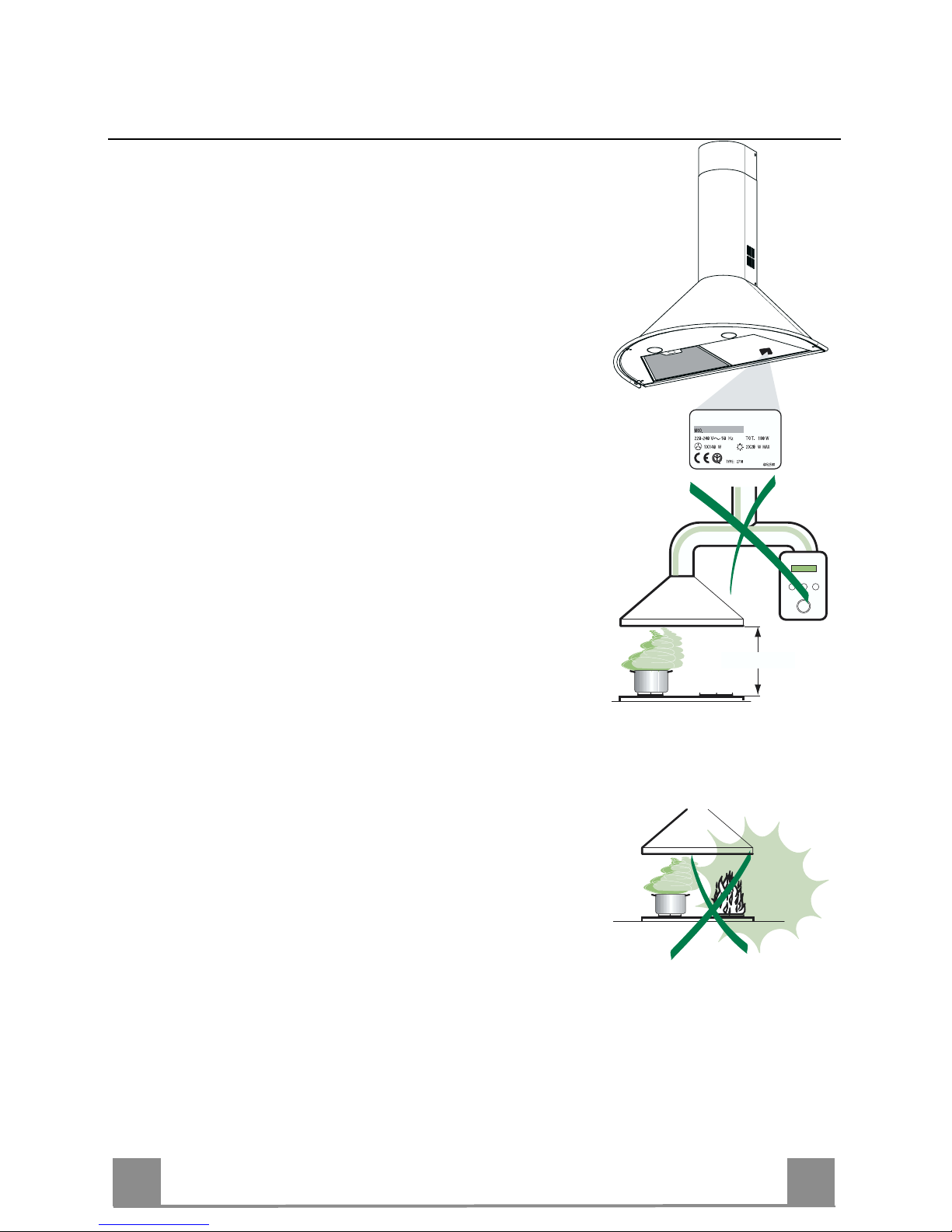

RECOMMENDATIONS AND SUGGESTIONS

INSTALLATION

• The manufacturer will not be held liable for any damages resulting

from incorrect or improper installation.

• The minimum safety distance between the cooker top and the extrac-

tor hood is 650 mm.

• Check that the mains voltage corresponds to that indicated on the

rating plate fixed to the inside of the hood.

• For Class I appliances, check that the domestic power supply guaran-

tees adequate earthing.

Connect the extractor to the exhaust flue through a pipe of minimum

diameter 120 mm. The route of the flue must be as short as possible.

• Do not connect the extractor hood to exhaust ducts carrying combus-

tion fumes (boilers, fireplaces, etc.).

• If the extractor is used in conjunction with non-electrical appliances

(e.g. gas burning appliances), a sufficient degree of aeration must be

guaranteed in the room in order to prevent the backflow of exhaust

gas. The kitchen must have an opening communicating directly with

the open air in order to guarantee the entry of clean air.

USE

• The extractor hood has been designed exclusively for domestic use to

eliminate kitchen smells.

• Never use the hood for purposes other than for which it has ben de-

signed.

• Never leave high naked flames under the hood when it is in operation.

• Adjust the flame intensity to direct it onto the bottom of the pan only,

making sure that it does not engulf the sides.

• Deep fat fryers must be continuously monitored during use: over-

heated oil can burst into flames.

• The hood should not be used by children or persons not instructed in

its correct use.

MAINTENANCE

• Switch off or unplug the appliance from the mains supply before carry-

ing out any maintenance work.

• Clean and/or replace the Filters after the specified time period.

• Clean the hood using a damp cloth and a neutral liquid detergent.

650 mm min.

CHARACTERISTICS

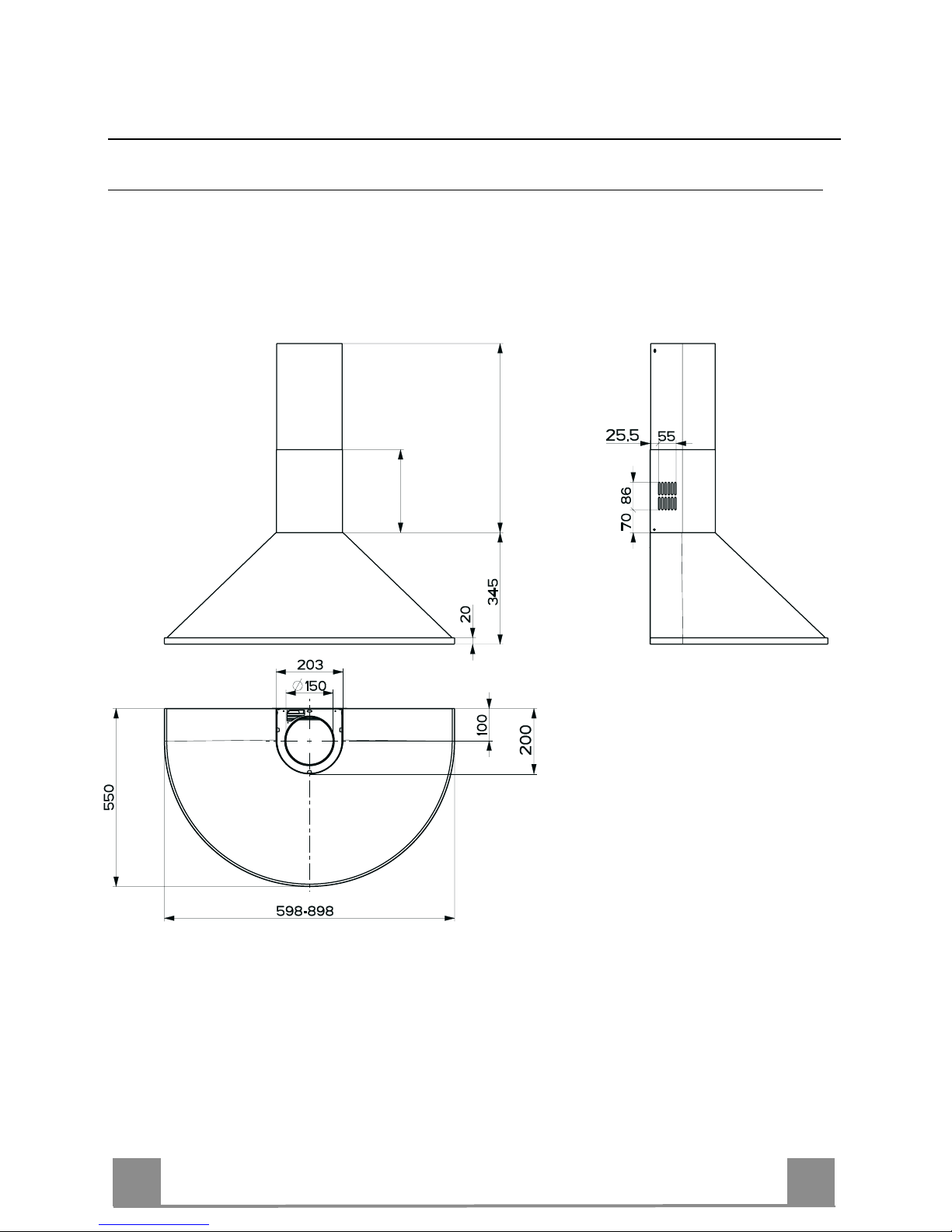

Dimensions

MIN.400 - MAX.660

270

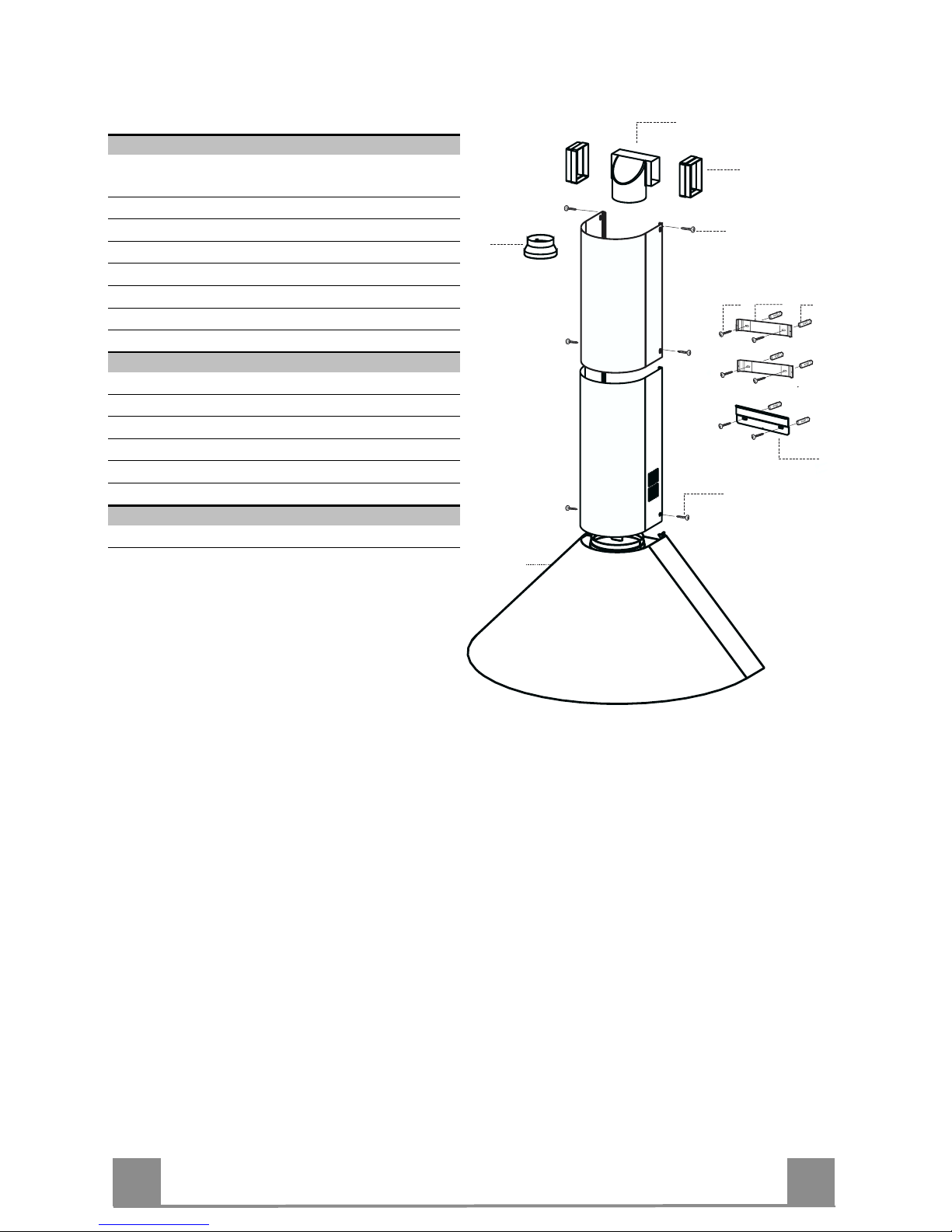

Components

Ref. Q.ty Product Components

1 1 Hood Body, complete with: Controls, Light,

Blower, Filters

2 1 Telescopic Chimney comprising:

2.1 1 Upper Section

2.2 1 Lower Section

9 1 Reducer Flange ø150-120 mm

14.1 2 Air Outlet Connection Extension

15 1 Air Outlet Connection

Ref. Q.ty Installation Components

7.1 1 Hood Body FixingBracket

7.2.1 2 Upper Chimney Section Fixing Brackets

11 6 Wall Plugs

12a 6 Screws4,2 x 44,4

12c 6 Screws2,9 x 9,5

Q.ty Documentation

1 Instruction Manual

14.1

7.1

12c

7.2.1

12a 11

INSTALLATION Wall drilling and bracket fixing

Wall marking:

• Draw a vertical line on the supporting wall up to the ceiling, or as high as practical, at the

centre of the area in which the hood will be installed.

• Draw a horizontal line at 650 mm above the hob for installation without the back panel, or at

height H (H = height of the visible part of the panel) for installation with the back panel.

• Place bracket 7.1 on the wall as shown, 287 mm above the horizontal reference line, align-

ing the centre (notch) with the vertical reference line.

• Mark the wall at the centres of the holes in the bracket.

• Place bracket 7.2.1 on the wall as shown about 1-2 mm from the ceiling or upper limit align-

ing the centre (notch) with the vertical reference line.

• Mark the wall at the centres of the holes in the bracket.

• Place bracket 7.2.1 on the wall as shown at X mm below the first bracket (X = height of the

upper chimney section supplied), aligning the centre (notch) with the vertical line.

• Mark the wall at the centres of the holes in the bracket.

REAR PANEL (OPTIONAL)

The Rear Panel must be fitted before fixing the hood body and, for both upper an lower posi-

tiion fixing, must be fitted at the correct height prior to installing the bases. As this operation is

rather complex, it should be carried out either by the kitchen installer or a qualified person

who knows the final dimensions of the units.

For the upper fixing position, proceed as follows:

• Rest the back panel on the base, inserting the lower plate between the upper surface and the

wall, centring it on the vertical reference line.

• Mark the centres of the two holes in the upper plate.

• Drill ø 8 mm holes at all the centre points marked.

• Insert the wall plugs 11 in the holes.

• Fix the brackets using the 12a screws (4,2 x 44,4) supplied.

• Fix the back panel (where present) using the 12a (4,2 x 44,4) screws supplied.

H 287 X1÷2

650 min.

7.2.1

7.1

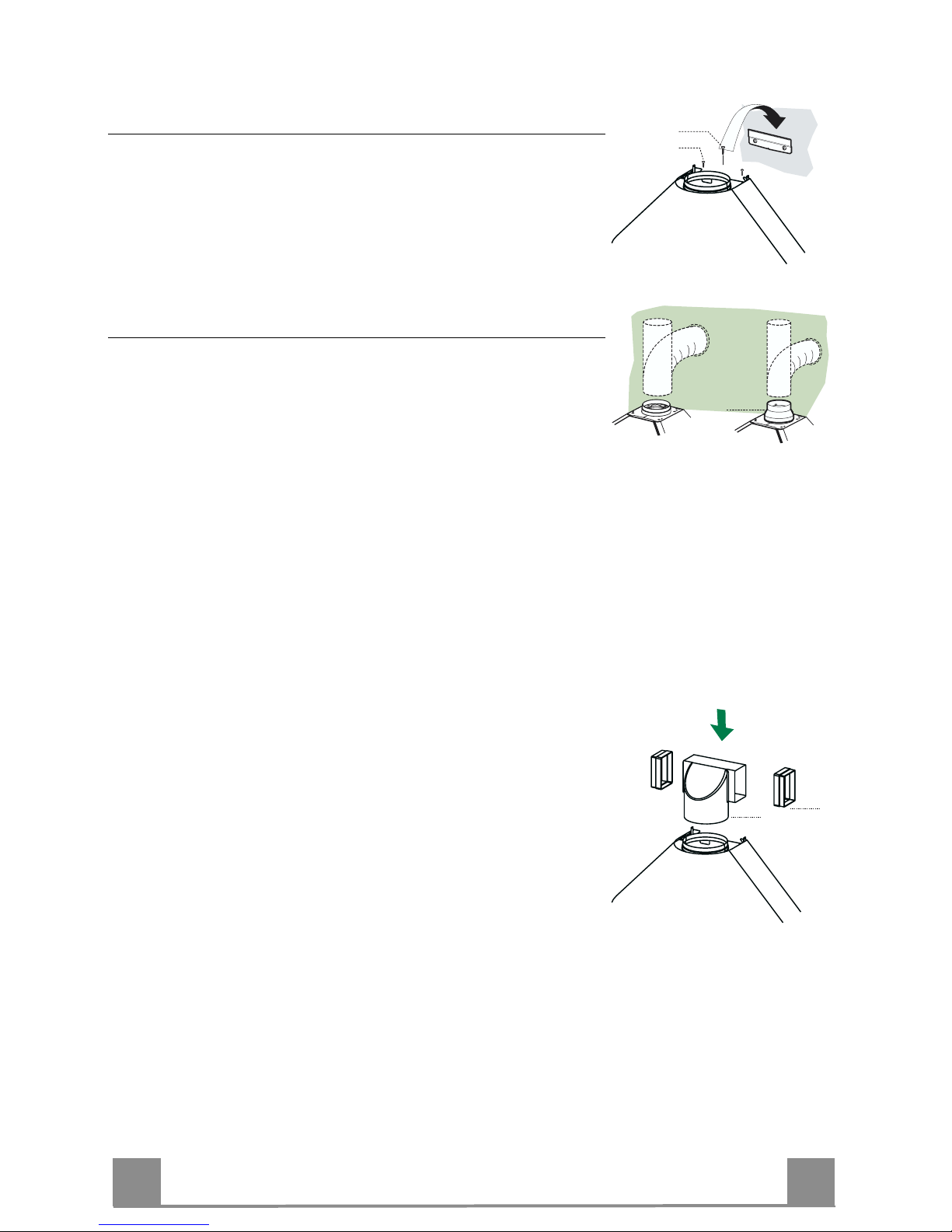

Mounting the hood body

• Before hooking up the hood body, adjust the two screws Vr

located on the hood body connection points so that they are at

the half way point.

• Hook the hood body to the mounted bracket.

• Adjust the screws Vr to level the hood body.

• Tighten the lock screw Vf.

Connections

DUCTED VERSION AIR EXHAUST SYSTEM

When installing the ducted version, connect the hood to the

chimney using either a flexible or rigid pipe ø 150 or 120 mm,

the choice of which is left to the installer.

• To install a ø 120 mm air exhaust connection, insert the re-

ducer flange 9on the hood body outlet.

• Fix the pipe in position using sufficient pipe clamps (not sup-

plied).

• Remove any activated charcoal filters.

ø 120ø 150

RECIRCULATION VERSION AIR OUTLET

• Push fit connection 15 onto the hood body outlet.

• Insert the connection extension pieces laterally 14.1 in connec-

tion 15.

• Make sure that the outlet of the extension pieces 14.1 is hori-

zontally and vertically aligned with the chimney outlets. If this

is not the case, adjust the position by either reversing the con-

nection extension pieces 14.1 and then reassemble as described

previously.

• Ensure that the activated charcoal filters have been inserted.

15 14.1

ELECTRICAL CONNECTION

• Connect the hood to the mains through a two-pole switch hav-

ing a contact gap of at least 3 mm.

• Remove the grease filters (see paragraph Maintenance) being

sure that the connector of the feeding cable is correctly inserted

in the socket placed on the side of the fan.

Flue assembly

Upper exhaust flue

• Slightly widen the two sides of the upper flue and hook them

behind the brackets 7.2.1, making sure that they are well

seated.

• Secure the sides to the brackets using the 4 screws 12c (2,9 x

9,5) supplied.

Lower exhaust flue

• Slightly widen the two sides of the flue and hook them be-

tween the upper flue and the wall, making sure that they are

well seated.

• Fix the lower part laterally to the hood body using the 2 screws

12c (2,9 x 9,5) supplied.

12c

7.2.1
