Electrolux EFC 9551 Bedienungsanleitung

EFC 9551

Instructions Manual

INDEX

RECOMMENDATIONS AND SUGGESTIONS......................................................................................................................3

CHARACTERISTICS..............................................................................................................................................................4

INSTALLATION......................................................................................................................................................................5

USE.........................................................................................................................................................................................8

MAINTENANCE....................................................................................................................................................................10

RECOMMENDATIONS AND SUGGESTIONS

INSTALLATION

• The manufacturer will not be held liable for any damages resulting

from incorrect or improper installation.

• The minimum safety distance between the cooker top and the extrac-

tor hood is 650 mm.

• Check that the mains voltage corresponds to that indicated on the

rating plate fixed to the inside of the hood.

• For Class I appliances, check that the domestic power supply guaran-

tees adequate earthing.

Connect the extractor to the exhaust flue through a pipe of minimum

diameter 120 mm. The route of the flue must be as short as possible.

• Do not connect the extractor hood to exhaust ducts carrying combus-

tion fumes (boilers, fireplaces, etc.).

• If the extractor is used in conjunction with non-electrical appliances

(e.g. gas burning appliances), a sufficient degree of aeration must be

guaranteed in the room in order to prevent the backflow of exhaust

gas. The kitchen must have an opening communicating directly with

the open air in order to guarantee the entry of clean air.

USE

• The extractor hood has been designed exclusively for domestic use to

eliminate kitchen smells.

• Never use the hood for purposes other than for which it has ben de-

signed.

• Never leave high naked flames under the hood when it is in operation.

• Adjust the flame intensity to direct it onto the bottom of the pan only,

making sure that it does not engulf the sides.

• Deep fat fryers must be continuously monitored during use: over-

heated oil can burst into flames.

• The hood should not be used by children or persons not instructed in

its correct use.

• The appliance is not intended for use by young children or infirm per-

sons without supervision.

• Young children should be supervised to ensure that they do not play

with the appliance.

MAINTENANCE

• Switch off or unplug the appliance from the mains supply before carry-

ing out any maintenance work.

• Clean and/or replace the Filters after the specified time period.

• Clean the hood using a damp cloth and a neutral liquid detergent.

650 mm min.

CHARACTERISTICS

Dimensions

260

300

490

108

150

650 min.

Components

Ref. Q.ty Product Components

11 Hood Body, complete with: Controls, Light, Blower,

Filters

21 Telescopic Chimney comprising:

2.1 1 Upper Section

2.2 1 Lower Section

91 Reducer Flange ø150-120 mm

14.1 2 Air Outlet Connection Extension

15 1 Air Outlet Connection

Ref. Q.ty Installation Components

7.2.1 2 Upper Chimney Section Fixing Brackets

7.3 1 Air Outlet Connection Support

11 6 Wall Plugs

12a 6 Screws 4,2 x 44,4

12c 6 Screws 2,9 x 9,5

Q.ty Documentation

1 Instruction Manual

2.1

2.2

12c

12a 7.2.1 11

12a

7.3

14.1

12a

338 X

11 6

1÷2

11 6

650 min.

7.2.1

INSTALLATION Wall drilling and bracket fixing

Wall marking:

• Draw a vertical line on the supporting wall up to the ceiling, or as high as practical, at the

centre of the area in which the hood will be installed.

• Draw a horizontal line at 650 mm above the hob.

• Place bracket 7.2.1 on the wall as shown about 1-2 mm from the ceiling or upper limit align-

ing the centre (notch) with the vertical reference line.

• Mark the wall at the centres of the holes in the bracket.

• Place bracket 7.2.1 on the wall as shown at X mm below the first bracket (X = height of the

upper chimney section supplied), aligning the centre (notch) with the vertical line.

• Mark the wall at the centres of the holes in the bracket.

• Mark a reference point as indicated at 116 mm from the vertical reference line and 338 mm

above the horizontal reference line.

• Repeat this operation on the other side.

• Drill ø 8 mm holes at all the centre points marked.

• Insert the wall plugs 11 in the holes.

• Fix the lower bracket 7.2.1 using the 12a screws (4,2 x 44,4) supplied.

• Fix the upper bracket 7.2.1 and the air outlet connection support 7.3 together using the 2

screws 12a (4,2 x 44,4) supplied.

• Insert the two screws 12a (4,2 x 44,4) supplied in the hood body fixing holes, leaving a gap

of 5-6 mm between the wall and the head of the screw.

Mounting the hood body

• Before attaching the hood body, tighten the two screws Vr lo-

cated on the hood body mounting points.

• Hook the hood body onto the screws 12a.

• Fully tighten support screws 12a.

• Adjust screws Vr to level the hood body.

12a

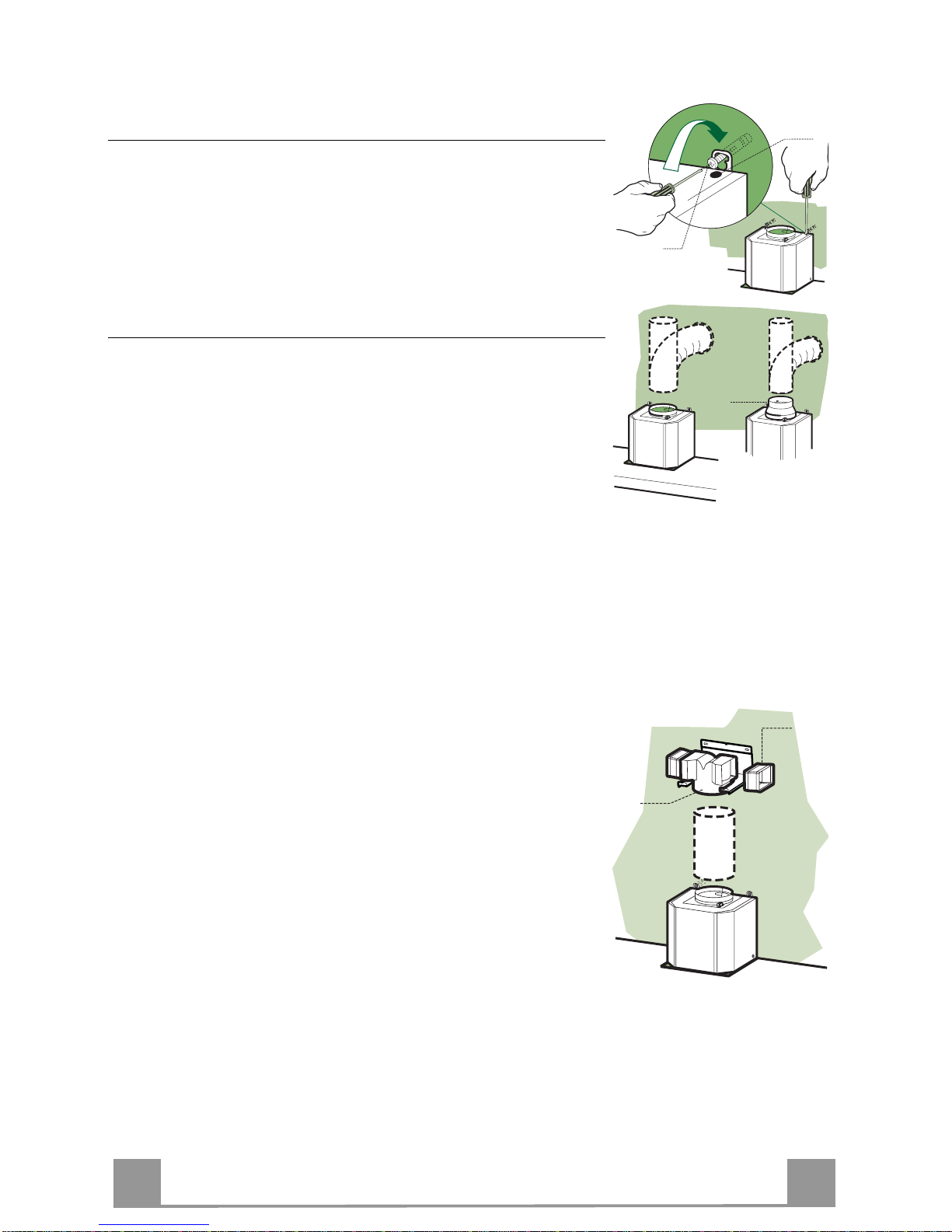

Connections

DUCTED VERSION AIR EXHAUST SYSTEM

When installing the ducted version, connect the hood to the

chimney using either a flexible or rigid pipe ø 150 or 120 mm,

the choice of which is left to the installer.

• To install a ø 120 mm air exhaust connection, insert the re-

ducer flange 9on the hood body outlet.

• Fix the pipe in position using sufficient pipe clamps (not sup-

plied).

• Remove any activated charcoal filters.

ø 120ø 150

RECIRCULATION VERSION AIR OUTLET

• Put connection 15 into the connection support 7.3.

• Insert the connection extension pieces laterally 14.1 in connec-

tion 15.

• Make sure that the outlet of the extension pieces 14.1 is hori-

zontally and vertically aligned with the chimney outlets.

• Connect the air outlet connection 15 to the hood body outlet

using either a flexible or rigid pipe ø 150 mm, the choice of

which is left to the installer.

• Ensure that the activated charcoal filters have been inserted.

ø 150

14.1

ELECTRICAL CONNECTION

• Connect the hood to the mains through a two-pole

switch having a contact gap of at least 3 mm.

• Remove the grease filters (see paragraph Mainte-

nance) being sure that the connector of the feeding

cable is correctly inserted in the socket placed on the

side of the fan.

Flue assembly

Upper exhaust flue

• Slightly widen the two sides of the upper flue and

hook them behind the brackets 7.2.1, making sure

that they are well seated.

• Secure the sides to the brackets using the 4 screws

12c (2,9 x 9,5) supplied.

• Make sure that the outlet of the extensions pieces is

aligned with the chimney outlets.

Lower exhaust flue

• Slightly widen the two sides of the flue and hook

them between the upper flue and the wall,

making sure that they are well seated.

• Fix the lower part laterally to the hood body using

the 2 screws 12c (2,9 x 9,5) supplied.

12c

2.1

2.2

7.2.1

12c

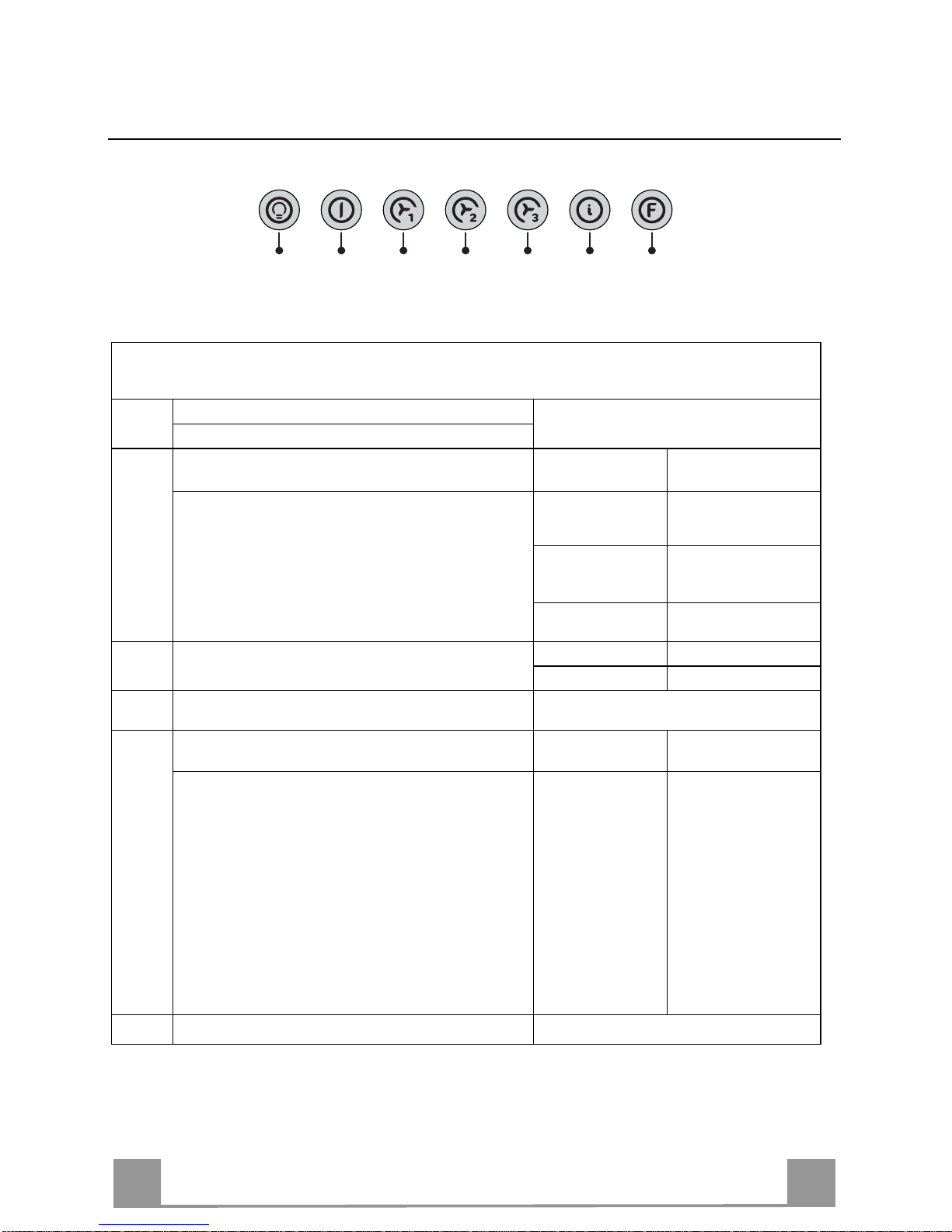

USE

L T1 T2 T3 T4 T5 F

The hood can be switched on pushing directly onto the requested speed without firstly hav-

ing to select 0/1 button .

Basic functions

Touch

control

Dua

l Function

Indicator lights

When briefly pressed it switches the lighting system

on and off. Touch control unlit Lights off

Touch control unlit

Lights off

Touch controllit Lights on

Whenpressed for 2 secondsit switches the electro-

luminescent lighting on and off.This function is in-

dependent from the basic functions of the control u-

nit.It is therefore possible to switch on simultane-

ouslythehood lighting and the electroluminescent

lighting.During the electroluminescent lightingmode

the touch control is unlit. Touch control unlit Electroluminescent

lighting on

Touch controllit Motoron

T1 When pressed the motor is stopped, regardless of the

speed it is set to. Touch control unlit Motoroff

T2 When pressed the motor is set to the first speed Touch control lit

By a brief pressing the motor is set to the second

speed. Touch controllit Second speed on

By pressing the touch control for approximately 2

seconds the Delay function is enabled, i.e dela-

yed shutdown of the appliance ensuring a com-

plete elimination of the residual odours. This fun-

ction can be activated at OFF-position and at 1°,

2° and 3°speeds. It can be stopped in advance

by pressing any of the touch controls (T) with the

exception of T3. The Delay function works accor-

ding to the following scheme:

1°speed / OFF = 20 minuets

2°speed = 15 minutes

3°speed = 5 minutes

Flashing touch

control Delay function on

T4 When pressed the motor is set to the third speed Touch control lit

Touch

control

Basic functions Indicator lights

T5 When pressed the motor is set to the intensive speed

timed to 5 minutes. At the end of 5 minutes of intensi-

ve speed the hood starts again at the speed it was set

to previously. In case the hood is set to the intensive

speed directly from OFF-state it will then start from

the first speed after 5 minutes of intensive speed.

Touch control lit

Metal grease filters satu-

ration alarm. Metalgrease

filtersneed to be washed.

The alarm starts up after

100 working hours.

F When pressed for 4 seconds it resets the filter alarm

signal indicated by flashing of the touch control T1.

This procedure can be carried out only when the

motor is stopped.

Flashing touch

control Charcoalodour filter satu-

ration alarm. Charcoal

filter hasto be replaced

and metal grease filters

washed. The alarm starts

up after 200 working

hours. (Activation; check

the paragraph “Odour

filter”)

MAINTENANCE

Cleaning the Comfort Panels

• Pull the Comfort Panel to open it.

• Disconnect the panel from the hood canopy by slid-

ing the fixing pin lever.

• The comfort panel must never be washed in a dish-

washer.

• Clean the outside using a damp cloth and neutral liq-

uid detergent.

• Clean the inside as well using a damp cloth and neu-

tral detergent; do not use wet cloths or sponges, or

jets of water; do not use abrasive substances.

• When the above operation has been completed, hook

the panel back to the hood canopy and close it by

turning the knob in the opposite direction.

Grease filters

CLEANING OF THE METAL CASSETTE FILTERS

Alarm reset

• Stop the motor.

• Press the F-

touch control for at least 4 seconds until

the T1 -touch control flashes.

Cleaning the filters

• Filters can be washed in the dish machine. They need

to be washed every 2 months or even more frequently

in case of particularly intensive use of the hood.

• Pull the Comfort Panel to open it.

• Remove the filters one by one pushing them towards

the back side of the unit and simultaneously pulling

downwards.

• Any kind of bending of the filters has to be avoided

when washing them. Before fitting them again into

the hood make sure that they are completely dry.

• When fitting the filters into the hood pay attention

that they are mounted in correct position and that the

handle faces outwards.

• Close the comfort panel.

Inhaltsverzeichnis

Andere Electrolux Dunstabzugshaube Handbücher

Electrolux

Electrolux EFD18000U Bedienungsanleitung

Electrolux

Electrolux EFP 936 G Bedienungsanleitung

Electrolux

Electrolux DXK6000 Bedienungsanleitung

Electrolux

Electrolux IHSL1242WE Bedienungsanleitung

Electrolux

Electrolux 5995433678 Bedienungsanleitung

Electrolux

Electrolux ICON RH36PC60GS Bedienungsanleitung

Electrolux

Electrolux LFT429K Bedienungsanleitung

Electrolux

Electrolux ICON E488WV120S Bedienungsanleitung

Electrolux

Electrolux PLHV36W7CC Bedienungsanleitung

Electrolux

Electrolux EFTD26K Bedienungsanleitung

Electrolux

Electrolux EFC 980 Bedienungsanleitung

Electrolux

Electrolux EFC 90600 Bedienungsanleitung

Electrolux

Electrolux EFB90550DX Bedienungsanleitung

Electrolux

Electrolux LFG235S Bedienungsanleitung

Electrolux

Electrolux ECVI4262AS Bedienungsanleitung

Electrolux

Electrolux EFG 525 Bedienungsanleitung

Electrolux

Electrolux LFC316X Bedienungsanleitung

Electrolux

Electrolux EFI 60021 Bedienungsanleitung

Electrolux

Electrolux ICON RH42PC60GS Bedienungsanleitung

Electrolux

Electrolux EFC 60652 Bedienungsanleitung

Electrolux

Electrolux EFF55680BX Bedienungsanleitung

Electrolux

Electrolux ERCI931SA Bedienungsanleitung

Electrolux

Electrolux EFC 9440 Bedienungsanleitung

Electrolux

Electrolux EFT 9460 Bedienungsanleitung

Beliebte Dunstabzugshaube Handbücher anderer Marken

emmeti

emmeti RECUPA MED A-140 Leitfaden

Nibe

Nibe F135 Bedienungsanleitung

Kuppersberg

Kuppersberg INTRO 60 Montage- und Wartungsanleitung

Zephyr

Zephyr Spruce AK9834BS Installationsanleitung

Hisense

Hisense MH6INBG Bedienungsanleitung

Miele

Miele DA 1255 Bedienungsanleitung

Broan

Broan 46000 Bedienungsanleitung

GE Profile PV977 Originalbetriebsanleitung

FALMEC

FALMEC FFRIA24W5FS Bedienungsanleitung

Whirlpool

Whirlpool RH2600XL-1 SERIES Bedienungsanleitung

Küppersbusch

Küppersbusch DX ISLA Bedienungsanleitung

ETNA

ETNA AV360RVS Bedienungsanleitung

JUNO

JUNO JDF603E6 Bedienungsanleitung

Miele

Miele DA 6708 D Bedienungsanleitung

Tricity Bendix

Tricity Bendix LE 150 Handbuch

AEG

AEG X68163BV1 Bedienungsanleitung

AEG

AEG 125 D Bedienungsanleitung

Smeg

Smeg KSEV97X Bedienungsanleitung
