EWF 1074BW
EN Washing Machine User Manual
CONTENTS
1. SAFETY INFORMATION....................................................................................3
2. SAFETY INSTRUCTIONS..................................................................................4
3. PRODUCT DESCRIPTION................................................................................ 6
4. CONTROL PANEL............................................................................................. 6
5. PROGRAMME CHART...................................................................................... 7
6. CONSUMPTION VALUES..................................................................................9
7. OPTIONS..........................................................................................................10
8. SETTINGS........................................................................................................11
9. BEFORE FIRST USE....................................................................................... 12
10. DAILY USE..................................................................................................... 12
11. HINTS AND TIPS........................................................................................... 16
12. CARE AND CLEANING..................................................................................17
13. TROUBLESHOOTING....................................................................................20
14. TECHNICAL DATA.........................................................................................23
WE’RE THINKING OF YOU
Thank you for purchasing an Electrolux appliance. You’ve chosen a product that
brings with it decades of professional experience and innovation. Ingenious and
stylish, it has been designed with you in mind. So whenever you use it, you can
be safe in the knowledge that you’ll get great results every time.
Welcome to Electrolux.
Visit our website for:
Get usage advice, brochures, trouble shooter, service information:
www.electrolux.com/webselfservice
Register your product for better service:
www.registerelectrolux.com
Buy Accessories, Consumables and Original spare parts for your appliance:
www.electrolux.com/shop
CUSTOMER CARE AND SERVICE
Always use original spare parts.
When contacting our Authorised Service Centre, ensure that you have the
following data available: Model, PNC, Serial Number.
The information can be found on the rating plate.
Warning / Caution-Safety information
General information and tips
Environmental information
Subject to change without notice.
www.electrolux.com2
1. SAFETY INFORMATION
Before the installation and use of the appliance, carefully
read the supplied instructions. The manufacturer is not
responsible for any injuries or damages that are the
result of incorrect installation or usage. Always keep the
instructions in a safe and accessible location for future
reference.
1.1 Children and vulnerable people safety
•This appliance can be used by children aged from 8
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision or
instruction concerning the use of the appliance in a
safe way and understand the hazards involved.
•Do not let children play with the appliance.
•Children aged 3 years and under must be kept away
from this appliance when it is in operation at all times.
•Keep all packaging away from children and dispose of
it appropriately.
•Keep detergents away from children.
•Keep children and pets away from the appliance when
the door is open.
•If the appliance has a child safety device, this should
be activated.
•Children shall not carry out cleaning and user
maintenance of the appliance without supervision.
1.2 General Safety
•Do not change the specification of this appliance.
•Do not exceed the maximum load of 7 kg (refer to the
"Programme chart" chapter).
•The operating water pressure at the water entry point
from the outlet connection must be between 0.5 bar
(0.05 MPa) and 8 bar (0.8 MPa).
•The ventilation opening in the base must not be
covered by a carpet, mat, or any floor covering.
ENGLISH 3
•The appliance must be connected to the water mains
using the new supplied hose sets, or other new hose
sets supplied by the Authorised Service Centre.
•Old hose sets must not be reused.
•If the mains power supply cable is damaged, it must
be replaced by the manufacturer, its Authorised
Service Centre or similarly qualified persons to avoid
an electrical hazard.
•Before any maintenance operation, deactivate the
appliance and disconnect the mains plug from the
socket.
•Do not use high pressure water sprays and/or steam
to clean the appliance.
•Clean the appliance with a moist cloth. Use only
neutral detergents. Do not use abrasive products,
abrasive cleaning pads, solvents or metal objects.
2. SAFETY INSTRUCTIONS
2.1 Installation
• Remove all the packaging and the
transit bolts.
• Keep the transit bolts in a safe place.
If the appliance is to be moved in
future they must be reattached to lock
the drum to prevent internal damage.
• Always take care when moving the
appliance as it is heavy. Always use
safety gloves and enclosed footwear.
• Do not install or use a damaged
appliance.
• Follow the installation instruction
supplied with the appliance.
• Do not install or use the appliance
where the temperature can be less
than 0°C or where it is exposed to the
weather.
• The floor area where the appliance is
to be installed must be flat, stable,
heat resistant and clean.
• Make sure that there is air circulation
between the appliance and the floor.
• Do not install the appliance directly
over the floor drain.
• Adjust the feet to have the necessary
space between the appliance and the
flooring.
• Do not install the appliance where the
appliance door cannot be fully
opened.
• Do not put a container to collect
possible water leakage under the
appliance. Contact the Authorised
Service Centre to ensure which
accessories can be used.
2.2 Electrical connection
• The appliance must be earthed.
• Always use a correctly installed
shockproof socket.
• Make sure that the parameters on the
rating plate are compatible with the
electrical ratings of the mains power
supply.
• Do not use multi-plug adapters and
extension cables.
• Make sure not to cause damage to
the mains plug and to the mains
cable. Should the mains cable need to
be replaced, this must be carried out
by our Authorised Service Centre.
• Connect the mains plug to the mains
socket only at the end of the
installation. Make sure that there is
www.electrolux.com4
access to the mains plug after the
installation.
• Do not touch the mains cable or the
mains plug with wet hands.
• Do not pull the mains cable to
disconnect the appliance. Always pull
the mains plug.
• This appliance complies with the
E.E.C. Directives.
2.3 Water connection
• Do not cause damage to the water
hoses.
• Before connection to new pipes, pipes
not used for a long time, where repair
work has been carried out or new
devices fitted (water meters, etc.), let
the water flow until it is clean and
clear.
• Ensure that there are no visible water
leaks during and after the first use of
the appliance.
• Do not use an extension hose if the
inlet hose is too short. Contact the
service centre for the replacement of
the inlet hose.
• You can extend the drain hose to
maximum 400 cm. Contact the
service centre for the other drain hose
and the extension.
2.4 Use
WARNING!
Risk of injury, electric shock,
fire, burns or damage to the
appliance.
• This appliance is for household use
only.
• Follow the safety instructions on the
detergent packaging.
• Do not put flammable products or
items that are wet with flammable
products in, near or on the appliance.
• Make sure that all metal objects are
removed from the laundry.
• Do not wash fabrics which are heavily
soiled with oil, grease or other greasy
substances. It can damage rubber
parts of the washing machine.
Prewash such fabrics by hand before
loading them into the washing
machine.
• Do not touch the glass door while a
programme is in operation. The glass
can get hot.
2.5 Service
• To repair the appliance contact an
Authorised Service Centre.
• Use original spare parts only.
2.6 Disposal
WARNING!
Risk of injury or suffocation.
• Disconnect the appliance from the
mains electrical and water supplies.
• Cut off the mains electrical cable
close to the appliance and dispose of
it.
• Remove the door catch to prevent
children or pets from becoming
trapped in the drum.
• Dispose of the appliance in
accordance with local requirements
for the disposal of Waste Electrical
and Electronic Equipment (WEEE).
ENGLISH 5
3. PRODUCT DESCRIPTION
3.1 Appliance overview
1 2 3
5
6
7
4
1Worktop
2Detergent dispenser
3Control panel
4Door handle
5Rating plate
6Drain pump filter
7Feet for levelling the appliance
3.2 Fixing plate kit
(4055171146)
Available from your authorised dealer.
If you install the appliance on a plinth,
secure the appliance in the fixing plates.
Read carefully the instructions supplied
with the accessory.
4. CONTROL PANEL
4.1 Control panel description
On/Off
Programs
Start/Pause
Cottons
Synthetics
Delicates
Wool/Handwash
Silk
Refresh 20 min
Mix 20
Cotton ECO 1000
800
600
Quick
Intensive
Easy Iron
Rinse Only
Drain &
spin
Finish In
987621 3 4 5
1On/Off button (On/Off)
2Programme selection touchpad
3Temperature selection touchpad
4Spin selection touchpad
www.electrolux.com6
5Options selection touchpad
6Start/Pause touchpad
7Finish in touchpad (Finish In)
8Display
9Door locked indicator

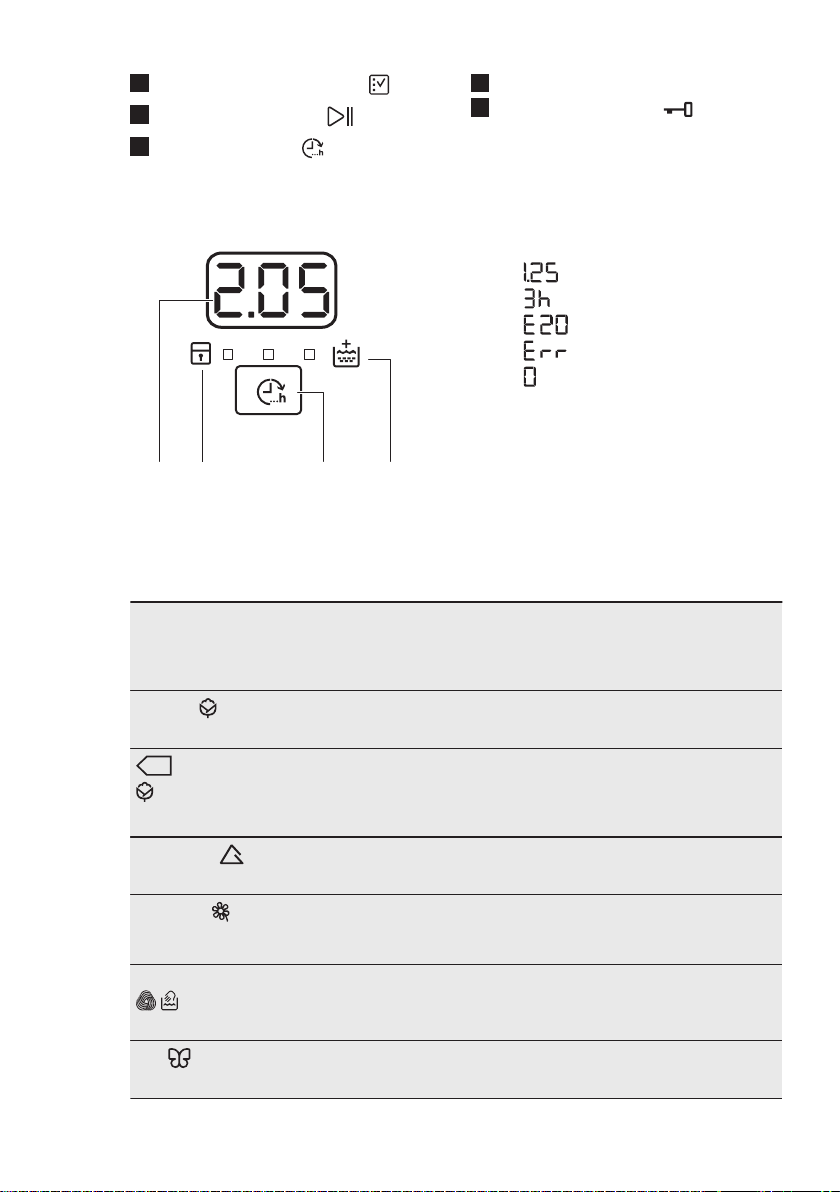

4.2 Display
Finish In
AB D C
A. The time area:
• : the programme duration
• : the "finish in" time
• : the alarm codes
•: the message of error
• : the programme is completed.
B. The child lock indicator:
• The indicator comes on when you
activate this device.
C. The extra rinse indicator:
• The indicator comes on when you
activate this option.
D. The Finish In touchpad.
5. PROGRAMME CHART
Programme
Temperature
range
Maximum
load
Maximum
spin speed
Programme description
(Type of load and soil level)
Cottons
90°C - Cold
7 kg
1000 rpm
White cotton and coloured cotton. Normal
soil and light soil.
Cotton ECO1)
60°C - 40°C
7 kg
1000 rpm
White cotton and fast-coloured cotton. Nor‐
mal soil. The energy consumption decreases
and the time of the washing programme is ex‐
tended.
Synthetics
60°C - Cold
3 kg
1000 rpm
Synthetic items or mixed fabric items. Nor‐
mal soil.
Delicates
40°C - Cold
3 kg
1000 rpm
Delicate fabrics such as acrylics, viscose
and mixed fabrics requiring a mild washing.
Normal soil.
Wool/Handwash
40°C - Cold
1,5 kg
1000 rpm
Machine washable wool, hand washable
wool and other fabrics with «hand washing»
care symbol2).
Silk
30°C
1 kg
800 rpm
Special programme for silk and mixed syn‐
thetic items.
ENGLISH 7
Programme
Temperature
range
Maximum
load
Maximum
spin speed
Programme description
(Type of load and soil level)
Refresh 20 min
40°C - 30°C
1 kg
1000 rpm
A very short cycle for cotton and synthetic
items with light soil level or worn only once.
Mix 20°
20°C
2 kg
1000 rpm
Special programme for cotton, synthetic and
mixed fabrics with light soil. Set this pro‐
gramme to decrease the energy consumption.
Make sure that the detergent is for low temper‐
ature in order to have good washing results3).
1) Standard programmes for the Energy Label consumption values. According to regu‐
lation 1061/2010, these programmes are respectively the «Standard 60°C cotton pro‐
gramme» and the «Standard 40°C cotton programme». They are the most efficient pro‐
grammes in terms of combined energy and water consumption for washing normally soiled
cotton laundry.
The water temperature of the washing phase may differ from the temperature
declared for the selected programme.
2) During this cycle the drum rotates slowly to ensure a gentle wash. It can seem that the
drum doesn't rotate or doesn't rotate properly, but this is normal for this programme.
3) No temperature indicator is on .
Programme options compatibility
Pro‐
gramme 1)
■ ■ ■ ■ ■ ■ ■ ■ ■ ■
■ ■ ■ ■ ■ ■ ■ ■
■ ■ ■ ■ ■ ■ ■ ■ ■ ■
■ ■ ■ ■ ■ ■ ■ ■ ■
■ ■ ■ ■ ■ ■
■ ■ ■ ■ ■
■ ■ ■ ■ ■ ■
■ ■ ■ ■ ■ ■ ■
1) When you set this option, we recommend that you decrease the quantity of the laundry. It
is possible to keep the full load but the washing results can be unsatisfactory. Recommen‐
ded load: cotton: 3,5 kg, synthetics and delicates: 1,5 kg.
www.electrolux.com8
5.1 Woolmark Apparel Care - Blue
The wool wash cycle of this machine has
been approved by The Woolmark Compa‐
ny for the washing of wool garments label‐
led as «hand wash» provided that the gar‐
ments are washed according to the instruc‐
tions issued by the manufacturer of this
washing machine. Follow the garment care
label for drying and other laundry instruc‐
tions. M1511
The Woolmark symbol is a Certification
mark in many countries.
6. CONSUMPTION VALUES
Stated values are obtained in laboratory conditions with relevant stand‐
ards. Different causes can change the data: the quantity and type of
laundry and ambient temperature. Water pressure, the supply voltage
and the temperature of inlet water may also affect the washing pro‐
gramme duration.
Technical specifications may be changed without prior notice to improve
the quality of product.
At the start of the programme, the display shows the programme dura‐
tion for the maximum load capacity.
During the washing phase the programme duration is automatically cal‐
culated and can be greatly reduced if the laundry load is lower than the
maximum load capacity (e.g. Cotton 60°C, maximum load capacity 7 kg,
the programme duration exceeds 2 hours; actual load 1 kg, the pro‐
gramme duration will be less than 1 hour).
When the appliance is calculating the real programme duration a dot
flashes in the display.
Programmes Load
(kg)
Energy
consump‐
tion (kWh)
Water con‐
sumption
(litre)
Approxi‐
mate pro‐
gramme
duration
(minutes)
Remaining
moisture
(%)1)
Cottons
60°C 7 1,34 68 157 60
Cottons
40°C 7 0,78 61 157 60
Synthetics
40°C 3 0,60 56 103 37
ENGLISH 9
Programmes Load
(kg)
Energy
consump‐
tion (kWh)
Water con‐
sumption
(litre)
Approxi‐
mate pro‐
gramme
duration
(minutes)
Remaining
moisture
(%)1)
Delicates
40°C 3 0,55 59 81 37
Wool/Handwash2)
30°C 1,5 0,45 62 75 32
Standard cotton programmes
Standard 60°C
cotton 7 0,92 45 250 60
Standard 60°C
cotton 3,5 0,68 35 204 60
Standard 40°C
cotton 3,5 0,53 36 189 60
1) At the end of spin phase.
2) Not available for some models.
Off Mode (W) Left On Mode (W)
0.48 0.48
The information given in the chart above is compliant with the EU Commission regu‐
lation 1015/2010 implementing directive 2009/125/EC
7. OPTIONS
7.1 Temperature
With this option you can change the
default temperature.
Indicator = cold water.
The indicator of the set temperature
comes on.
7.2 Spin
With this option you can change the
default spin speed.
The indicator of the set speed comes on.
Additional spin options:
No Spin
• Set this option to deactivate all spin
phases. Only the drain phase is
available.
• The related indicator comes on.
• Set this option for very delicate
fabrics.
• The rinses phase uses more water for
some washing programmes.
Rinse Hold
• Set this option to prevent the laundry
creases.
• The related indicator comes on.
• There is a water in the drum when the
programme is completed.
• The drum turns regularly to prevent
the laundry creases.
• The door stays locked. You must
drain the water to unlock the door.
www.electrolux.com10
Andere Handbücher für EWF 1074BW
1
Inhaltsverzeichnis
Andere Electrolux Waschmaschine Handbücher
Electrolux
Electrolux EWM1000 Bedienungsanleitung
Electrolux
Electrolux EWF 106510 W Bedienungsanleitung
Electrolux
Electrolux EW1024T Bedienungsanleitung
Electrolux
Electrolux EWF 830 Bedienungsanleitung
Electrolux
Electrolux EWF 935 Bedienungsanleitung
Electrolux
Electrolux MKTG15DNAWB Bedienungsanleitung
Electrolux
Electrolux EWF1481 Bedienungsanleitung
Electrolux
Electrolux SWX703CS0 Bedienungsanleitung
Electrolux
Electrolux SATF7000FS1 Bedienungsanleitung
Electrolux
Electrolux EW879F Bedienungsanleitung
Electrolux
Electrolux EWW1486HDW Bedienungsanleitung
Electrolux
Electrolux EW1220N Bedienungsanleitung
Electrolux
Electrolux EWF9043BDWA Bedienungsanleitung
Electrolux
Electrolux EIFLW50LIW Bedienungsanleitung
Electrolux
Electrolux EWT7078K6WA Bedienungsanleitung
Electrolux
Electrolux EWF 14991 W Bedienungsanleitung
Electrolux
Electrolux EW 560F Bedienungsanleitung
Electrolux
Electrolux FWS687RHS0 Bedienungsanleitung
Electrolux
Electrolux 427 series Bedienungsanleitung
Electrolux
Electrolux Swissline L EWF 1090 Bedienungsanleitung
