Electrolux EWFLW65H - 27'' Front-Load Washer Bedienungsanleitung

|nsta||afion |nstrucfions

Electro[u× Fro_t-Load Washer

lnstrucciones de lnsta|acion

[__avadora de carga fro_tal Electro[ux

Instructions d'insta||afion

Laveuse _ chargeme_lt fro_ta[ E[ectro[ux

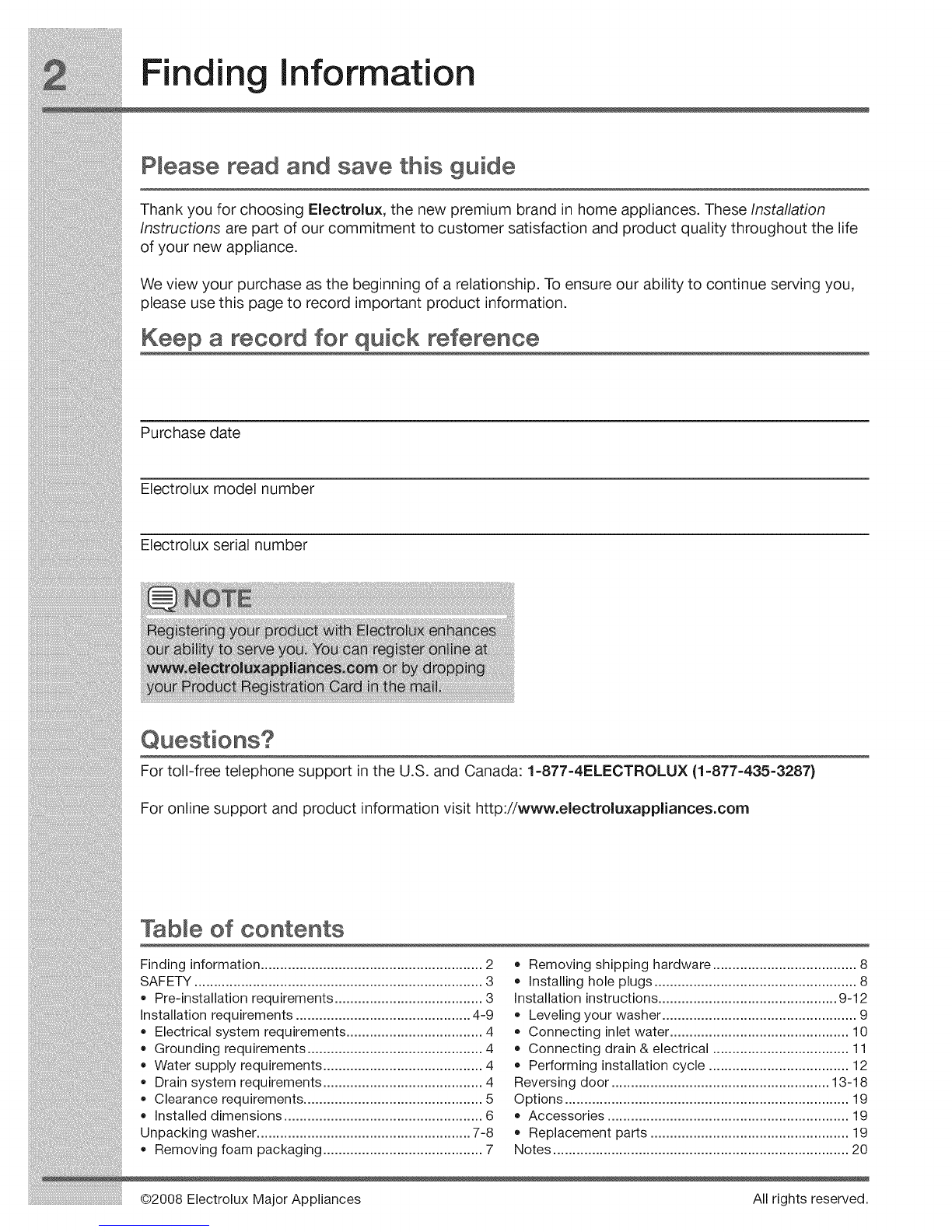

Finding Information

Please read and save this guide

Thank you for choosing Electrolux, the new premium brand in home appliances. These Installation

Instructions are part of our commitment to customer satisfaction and product quality throughout the life

of your new appliance.

We view your purchase as the beginning of a relationship. To ensure our ability to continue serving you,

please use this page to record important product information.

Keep a record for quick reference

Purchase date

Electrolux model number

Electrolux serial number

For toll-free telephone support in the U.S. and Canada: 1-877-4ELECTROLUX {1-877-435-3287)

For online support and product information visit http://www.electroluxappliances.com

Table of contents

Finding information ......................................................... 2

SAFETY .......................................................................... 3

• Pre-installation requirements ...................................... 3

Installation requirements ............................................. 4-9

Electrical system requirements ................................... 4

Grounding requirements ............................................. 4

Water supply requirements ......................................... 4

Drain system requirements ......................................... 4

Clearance requirements .............................................. 5

installed dimensions ................................................... 6

Unpacking washer ....................................................... 7-8

Removing foam packaging ......................................... 7

Removing shipping hardware ..................................... 8

Installing hole plugs .................................................... 8

Installation instructions .............................................. 9-12

Leveling your washer .................................................. 9

Connecting inlet water .............................................. 10

Connecting drain & electrical ................................... 11

Performing installation cycle .................................... 12

Reversing door ........................................................ 13-18

Options ......................................................................... 19

Accessories .............................................................. 19

Replacement parts ................................................... 19

Notes ............................................................................ 20

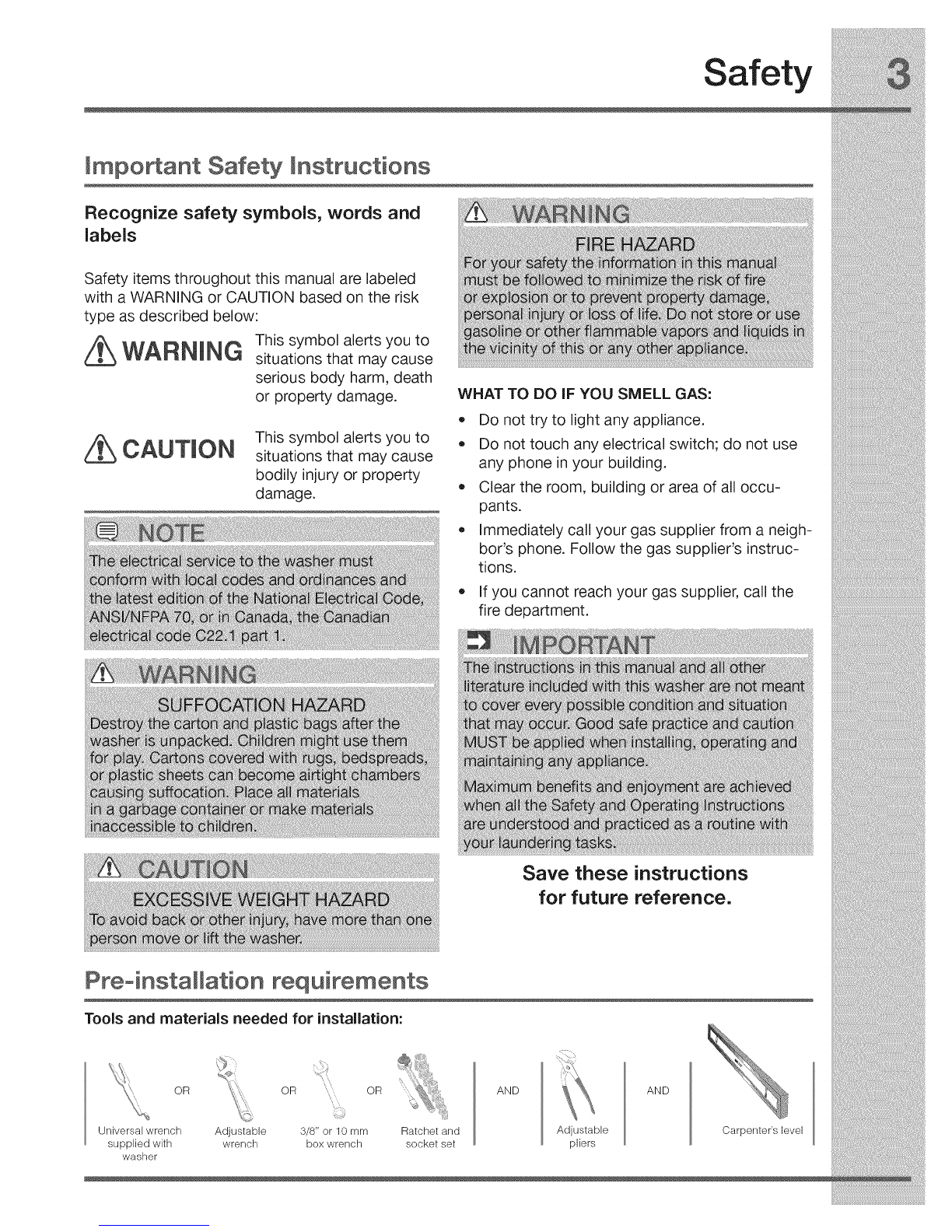

Safety

[mpoAant Safety Instructions

Recognize safety symbols, words and

labels

Safety items throughout this manual are labeled

with a WARNING or CAUTION based on the risk

type as described below:

This symbol alerts you to

WARNING situations that may cause

serious body harm, death

or property damage.

CAUTION This symbol alerts you to

situations that may cause

bodily injuryor property

damage.

Preoinsta[[ation requirements

WHAT TO DO IF YOU SMELL GAS:

• Do not try to light any appliance.

Do not touch any electrical switch; do not use

any phone in your building.

Clear the room, building or area of all occu-

pants.

Immediately call your gas supplier from a neigh-

bor's phone. Follow the gas supplier's instruc-

tions.

If you cannot reach your gas supplier, call the

fire department.

Tools and materials needed for installation:

OR OR OR

Universal wrench

supplied wkh

washer

Adjustable 3/8" or 10 mm

wrench box wrench Ratchet and

socket set

AND

Save these instructions

for future reference.

Adjustable

plbrs

AND

Carpenter's level

Installation Requirements

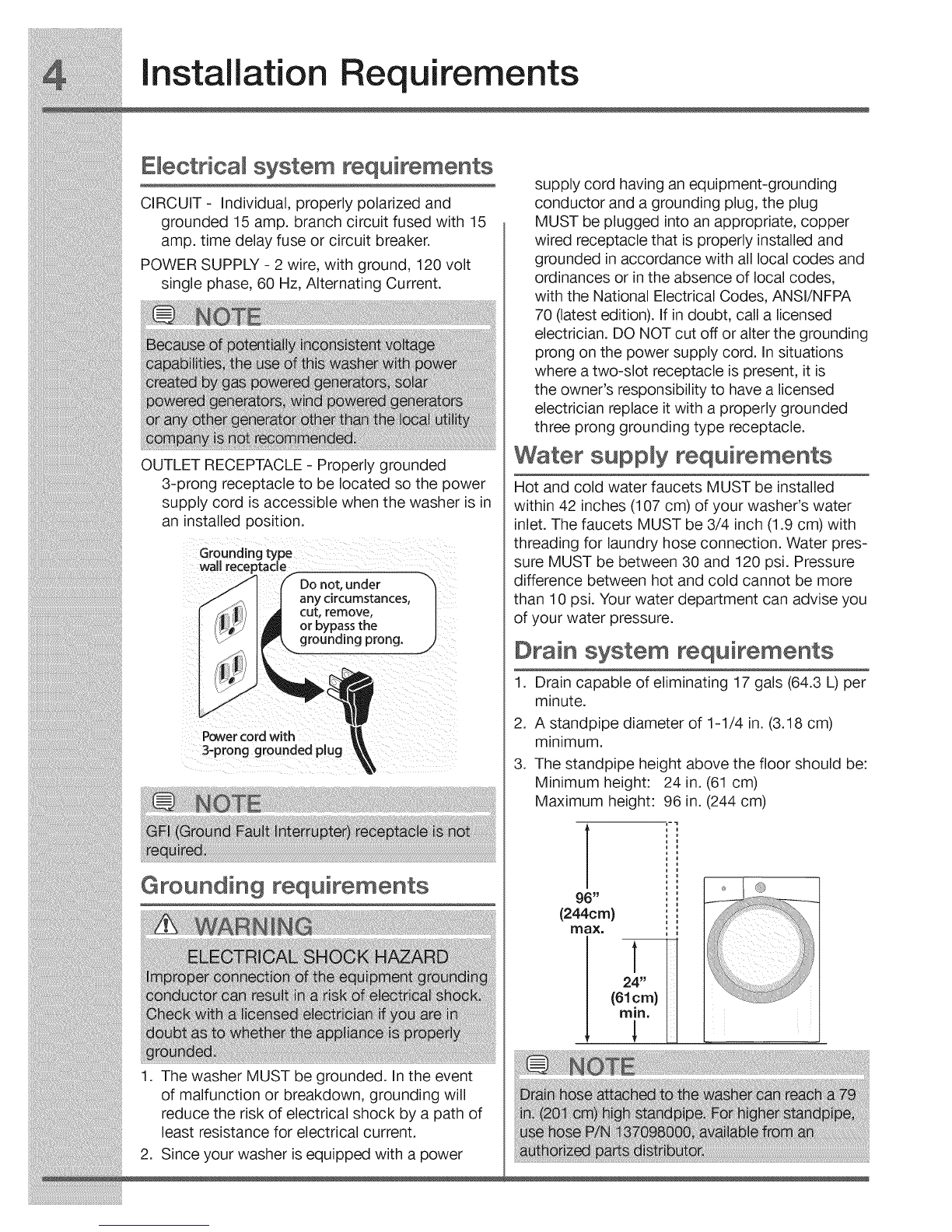

E ectrica system requirements

CIRCUIT - Individual, properly polarized and

grounded 15 amp. branch circuit fused with 15

amp. time delay fuse or circuit breaker.

POWER SUPPLY - 2 wire, with ground, 120 volt

single phase, 60 Hz, Alternating Current.

OUTLET RECEPTACLE - Properly grounded

3-prong receptacle to be located so the power

supply cord is accessible when the washer is in

an installed position.

Groul

wall Donot, under "_

anycircumstances, |

cut, remove, /

or bypassthe |

grounding prong, j)

Powercordwith

Grounding requirements

supply cord having an equipment-grounding

conductor and a grounding plug, the plug

MUST be plugged into an appropriate, copper

wired receptacle that is properly installed and

grounded in accordance with all local codes and

ordinances or in the absence of local codes,

with the National Electrical Codes, ANSI/NFPA

70 (latest edition). If in doubt, call a licensed

electrician. DO NOT cut off or alter the grounding

prong on the power supply cord. In situations

where a two-slot receptacle is present, it is

the owner's responsibility to have a licensed

electrician replace it with a properly grounded

three prong grounding type receptacle.

Water supply requirements

Hot and cold water faucets MUST be installed

within 42 inches (107 cm) of your washer's water

inlet. The faucets MUST be 3/4 inch (1.9 cm) with

threading for laundry hose connection. Water pres-

sure MUST be between 30 and 120 psi. Pressure

difference between hot and cold cannot be more

than 10 psi. Your water department can advise you

of your water pressure.

Drain system requirements

1. Drain capable of eliminating 17 gals (64.3 L) per

minute.

2. A standpipe diameter of 1-1/4 in. (3.18 cm)

minimum.

3. The standpipe height above the floor should be:

Minimum height: 24 in. (61 cm)

Maximum height: 96 in. (244 cm)

96 _

(244cm)

[lrlax.

(61 C/r I)

mln" m

1. The washer MUST be grounded. In the event

of malfunction or breakdown, grounding will

reduce the risk of electrical shock by a path of

least resistance for electrical current.

2. Since your washer is equipped with a power

Installation Requirements

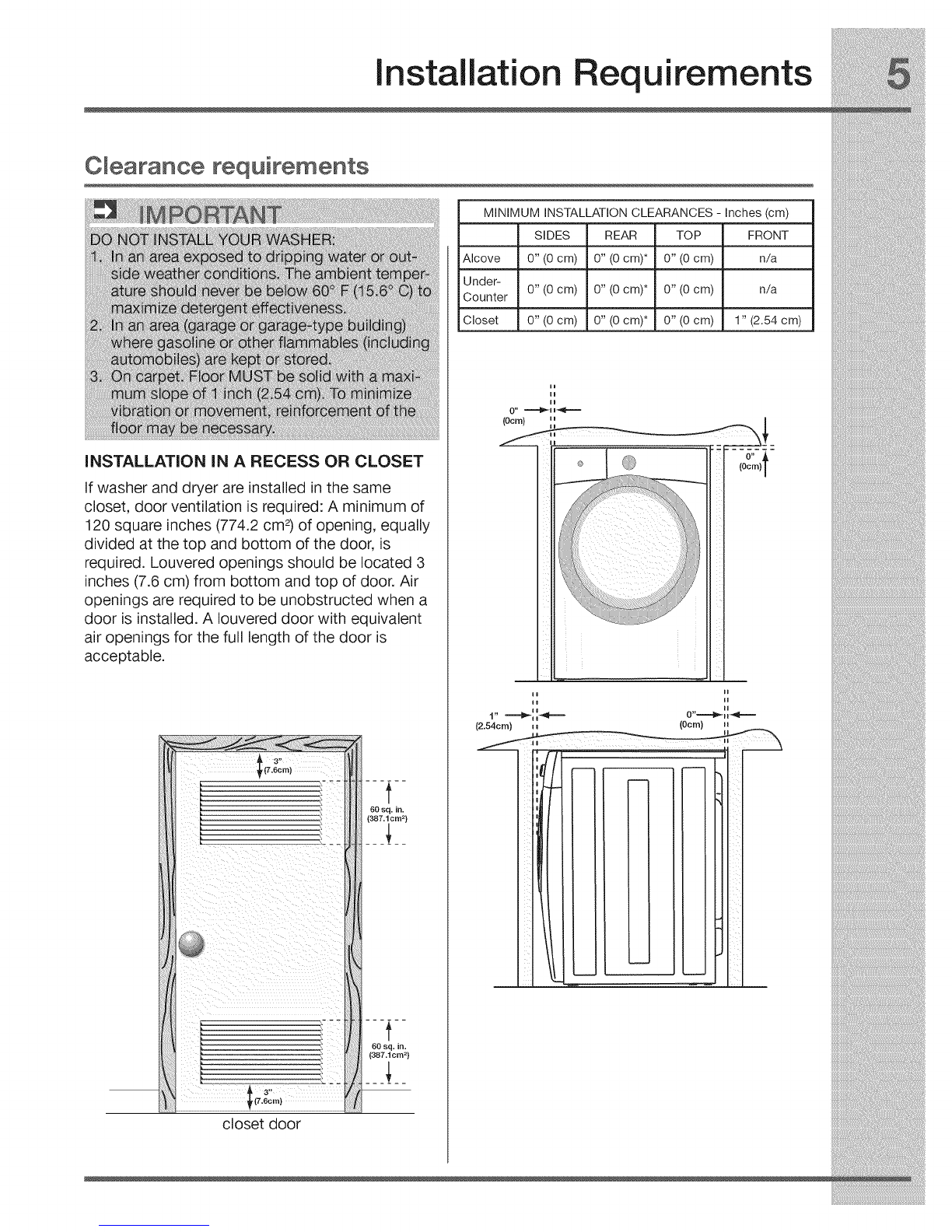

Clearance requirements

iNSTALLATiON iN A RECESS OR CLOSET

If washer and dryer are installed in the same

closet, door ventilation is required: A minimum of

120 square inches (774.2 cm 2)of opening, equally

divided at the top and bottom of the door, is

required. Louvered openings should be located 3

inches (7.6 cm) from bottom and top of door. Air

openings are required to be unobstructed when a

door is installed. A Iouvered door with equivalent

air openings for the full length of the door is

acceptable.

r(7.6crn]

closet door

MINIMUM INSTALLATION CLEARANCES - Inches (cm)

SIDES REAR TOP FRONT

Alcove 0" (0 cm) 0" (0 cm)* 0" (0 cm) n/a

Under-

Counter 0" (0 cm) 0" (0 cm)* 0" (0 cm) n/a

Closet 0" (0 cm) 0" (0 cm)* 0" (0 cm) 1" (2.54 cm)

lo O0

io II

H H

1" ""='€_ i i_ _=''= 0" -...........'li_i i_II,._

(2.54cm) i i (Ocrn} i i

installation Requirements

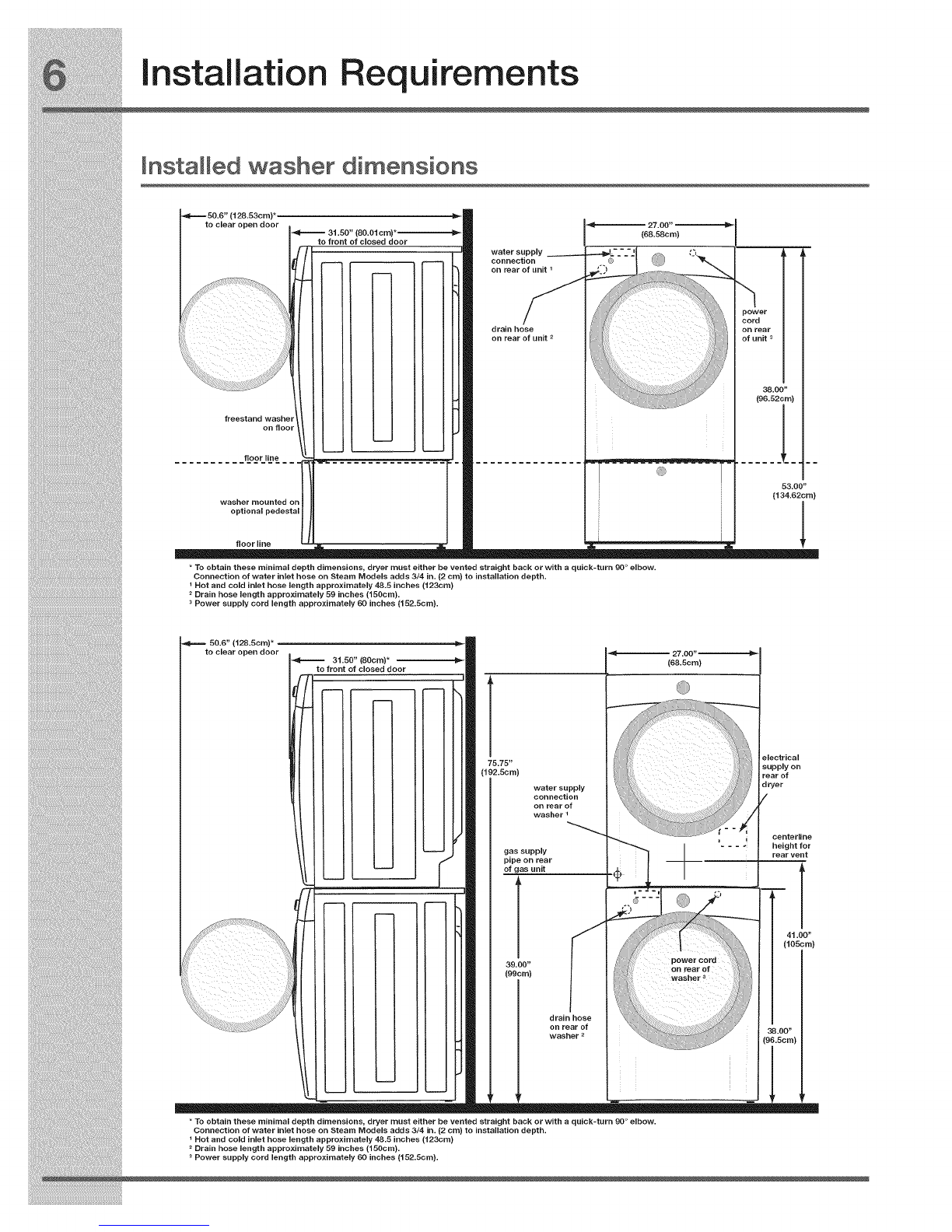

Installed washer dimensions

(128.53cm)*

to clear open door

freestand washer

on floor

floor line

washer mounted on

optional pedestal

floor line

(80.01cm)

to front of closed door

water supply

connection

on rear of unit 1

drain hose

on rear of unit 2

(68.58cm)

*To obtain these minimal depth dimensions, dryer must either be vented straight back or with aquick-turn 90 ° elbow.

Connection of water inlet hose on Steam Models adds 3/4 in. (2 cm) to installation depth.

I Hot and cold inlet hose length approximately 48.5 inches (123cm)

2 Drain hose length approximately 59 inches (150cm).

3 Power supply cord length approximately 60 inches (152.5cm).

power

cord

on rear

of unit 3

38.00"

(96.52cm)

53.00"

(134.62cm)

50.6" (128.5cm) _

to clear open door 31.50" (80cm)* --

to front of closed door

75.75"

(192.5cm)

27.00

(68.5cm)

water supply

connection

on rear of

washer 1

gas supply

pipe on rear

of gas unit

39.00"

(99cm)

drain hose

on rear of

washer 2

power cord

on rear of

*To obtain these minimal depth dimensions, dryer must either be vented straight back or with a quick-turn 90 ° elbow.

Connection of water inlet hose on Steam Models adds 3/4 in. (2 cm) to installation depth.

I Hot and cold inlet hose length approximately 48.5 inches (123cm)

2 Drain hose length approximately 59 inches (150cm).

3 Power supply cord length approximately 50 inches (152.5cm).

electrical

supply on

rear of

dryer

centerline

height for

rear vent

41.00"

(105cm)

Unpackin Washer

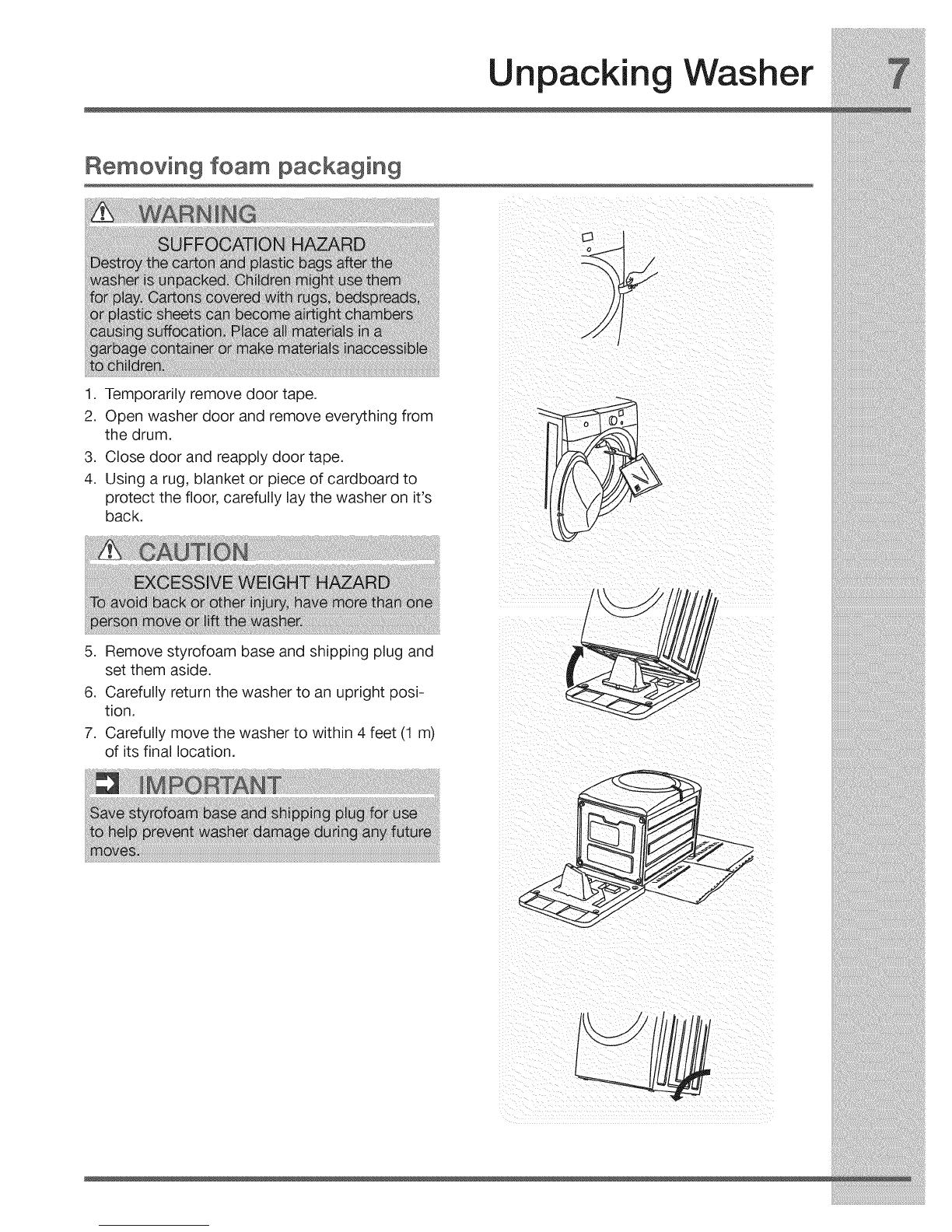

Removing foam packaging

1. Temporarily remove door tape.

2. Open washer door and remove everything from

the drum.

3. Close door and reapply door tape.

4. Using a rug, blanket or piece of cardboard to

protect the floor, carefully lay the washer on it's

back. !

5. Remove styrofoam base and shipping plug and

set them aside.

6. Carefully return the washer to an upright posi-

tion.

7. Carefully move the washer to within 4 feet (1 m)

of its final location.

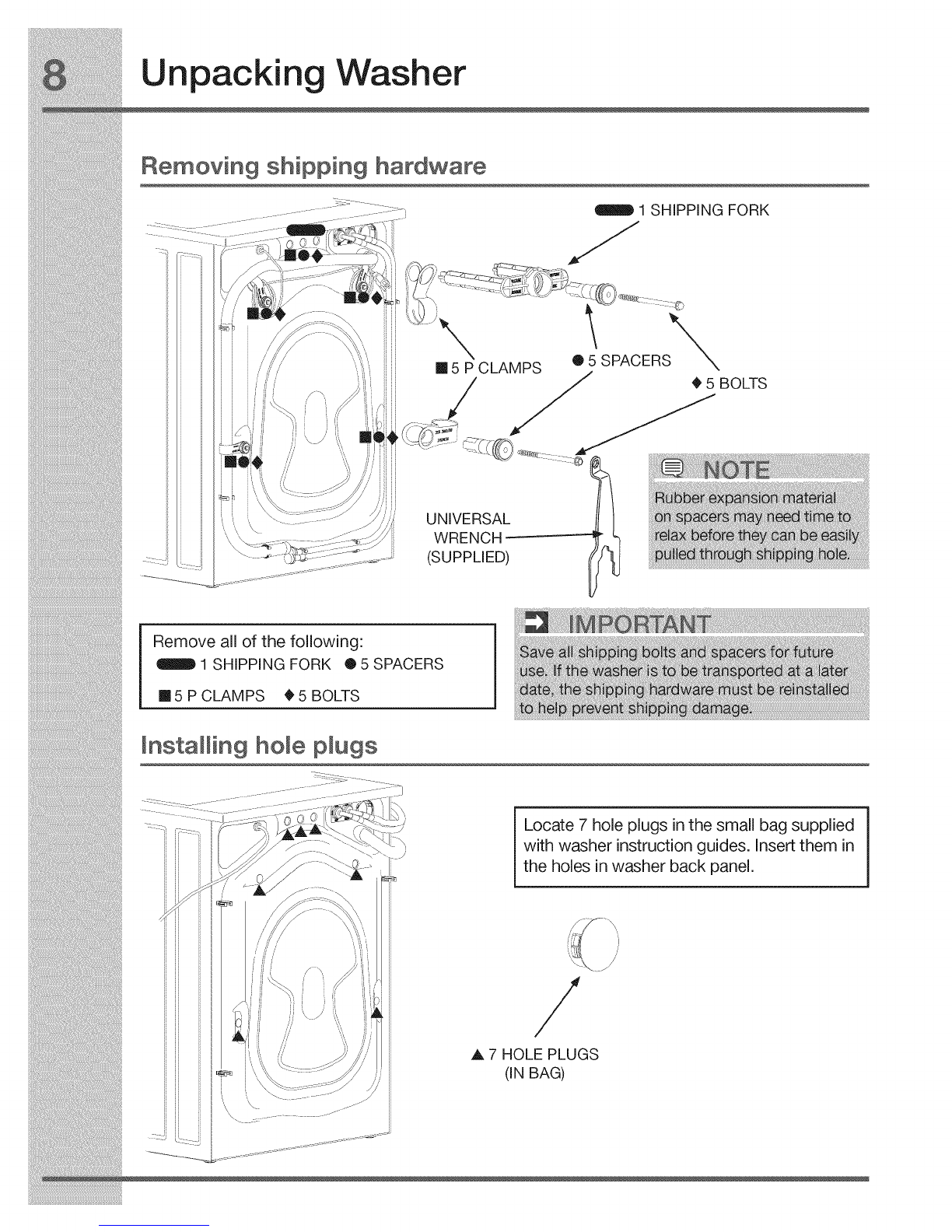

Unpacking Washer

Removing shipping hardware

1 SHIPPING FORK

UNWERSAI " ®_

WRENCH

(SUPPLIED) _/_

[] 5 P CLAMPS ® 5 SPACER

• BOLTS

Remove all of the following:

1 SHIPPING FORK ® 5 SPACERS

[]5PCLAMPS 05BOLTS

Installing hole pmugs

Locate 7 hole plugs in the small bag supplied

with washer instruction guides. Insert them in

the holes in washer back panel.

A 7 HOLE PLUGS

(IN BAG)

Installation instructions

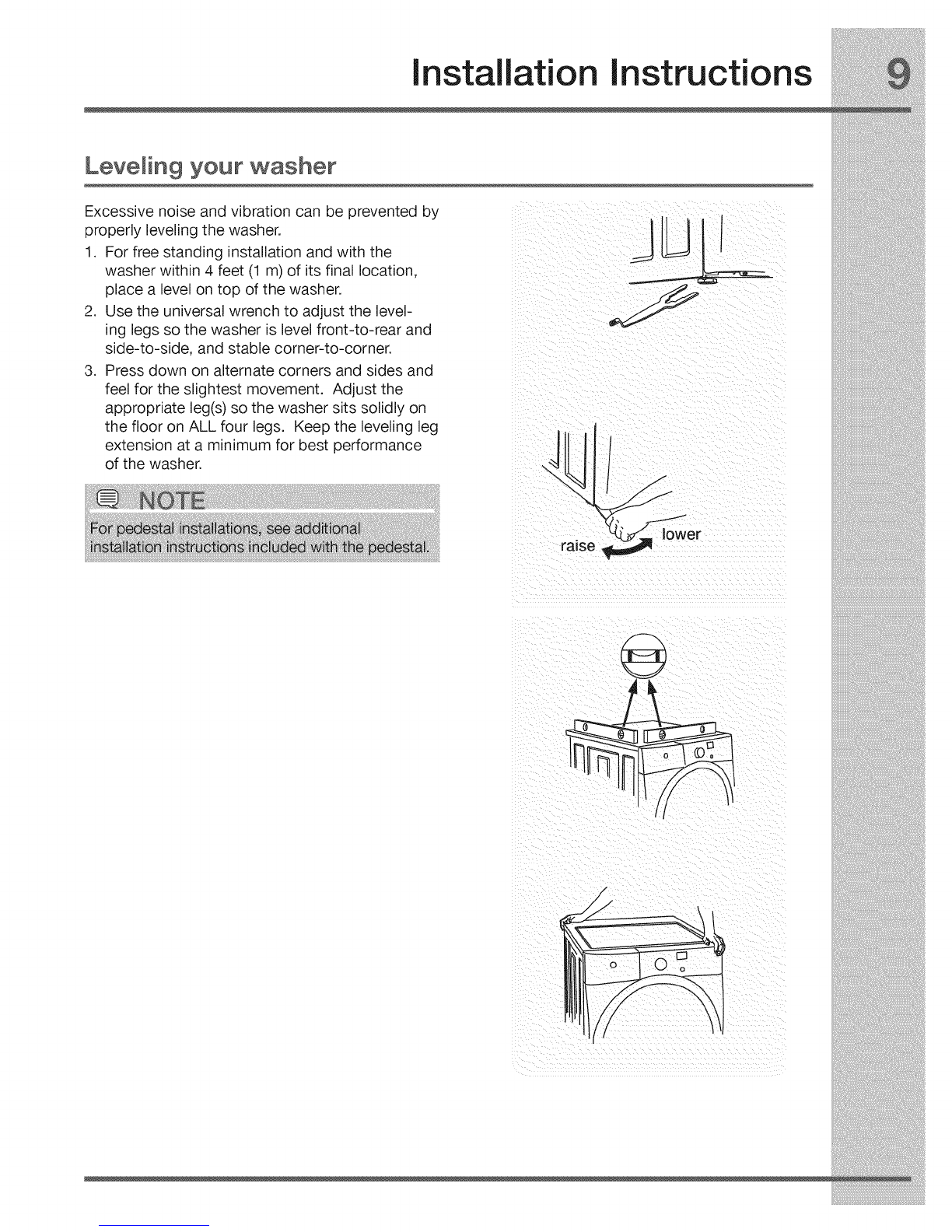

Leveling your washer

Excessive noise and vibration can be prevented by

properly leveling the washer.

1. For free standing installation and with the

washer within 4 feet (1 m) of its final location,

place a level on top of the washer.

2. Use the universal wrench to adjust the level-

ing legs so the washer is level front-to-rear and

side-to-side, and stable corner-to-corner.

3. Press down on alternate corners and sides and

feel for the slightest movement. Adjust the

appropriate leg(s) so the washer sits solidly on

the floor on ALL four legs. Keep the leveling leg

extension at a minimum for best performance

of the washer.

installation instructions

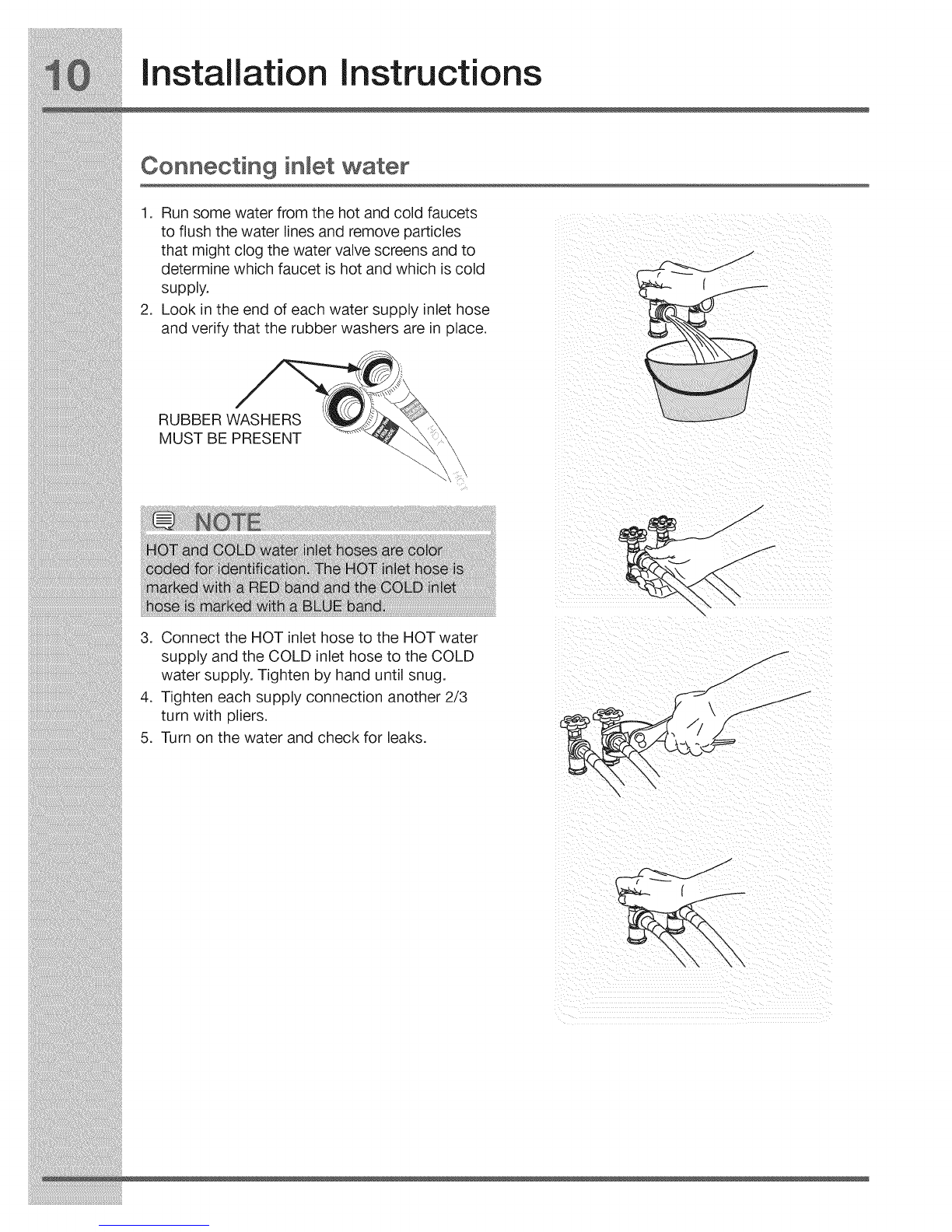

Connecting inlet water

1. Run some water from the hot and cold faucets

to flush the water lines and remove particles

that might clog the water valve screens and to

determine which faucet is hot and which is cold

supply.

2. Look in the end of each water supply inlet hose

and verify that the rubber washers are in place.

RUBBER WASHERS

MUST BE PRESENT

3. Connect the HOT inlet hose to the HOT water

supply and the COLD inlet hose to the COLD

water supply. Tighten by hand until snug.

4. Tighten each supply connection another 2/3

turn with pliers.

5. Turn on the water and check for leaks.

Andere Handbücher für EWFLW65H - 27'' Front-Load Washer

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Electrolux Waschmaschine Handbücher

Electrolux

Electrolux EWS 106410 W Bedienungsanleitung

Electrolux

Electrolux EWS 1230 Bedienungsanleitung

Electrolux

Electrolux EW 859 F Bedienungsanleitung

Electrolux

Electrolux EWG 14750 W Bedienungsanleitung

Electrolux

Electrolux EWS 106210 W Bedienungsanleitung

Electrolux

Electrolux EW6F528W Bedienungsanleitung

Electrolux

Electrolux WASL 3 T 200 Bedienungsanleitung

Electrolux

Electrolux W4300H Bedienungsanleitung

Electrolux

Electrolux EW7F249S Bedienungsanleitung

Electrolux

Electrolux EWF 12480 W Bedienungsanleitung

Electrolux

Electrolux EWG 14550 W Bedienungsanleitung

Electrolux

Electrolux EW6S347S Bedienungsanleitung

Electrolux

Electrolux W465H Bedienungsanleitung

Electrolux

Electrolux WAL3E300 Bedienungsanleitung

Electrolux

Electrolux EIFLS55I - 27'' Front-Load Washer Bedienungsanleitung

Electrolux

Electrolux EW 550 F Bedienungsanleitung

Electrolux

Electrolux EW1024T Bedienungsanleitung

Electrolux

Electrolux EW6S426BI Bedienungsanleitung

Electrolux

Electrolux EWS 83210 A Bedienungsanleitung

Electrolux

Electrolux EW 670 F Bedienungsanleitung

Electrolux

Electrolux EIFLS60LSS Bedienungsanleitung

Electrolux

Electrolux EWF80743 Bedienungsanleitung

Electrolux

Electrolux EWF 1487 HDW Bedienungsanleitung

Electrolux

Electrolux EWT1031 Bedienungsanleitung

Beliebte Waschmaschine Handbücher anderer Marken

Tricity Bendix

Tricity Bendix AW 1000 W Produkthandbuch

Panasonic

Panasonic NA-F60L5WRB Bedienungsanleitung

GE WSLP1500 Handbuch

Bosch

Bosch WAN2829BSN Bedienungsanleitung

LG TV2516DV3B Bedienungsanleitung

LG TH2517DSAV Bedienungsanleitung

VESTEL

VESTEL CMH-XL 7510 TE Bedienungsanleitung

AEG

AEG 74335 Bedienungsanleitung

Johnson

Johnson JWF721A Bedienungsanleitung

Beko

Beko WTE7604XLW0 Bedienungsanleitung

Danby

Danby DTT100A1WDB Montageanleitung

Amica

Amica WA 14 Ex Bedienungsanleitung

Daewoo

Daewoo DWD-F1222 Bedienungsanleitung

Bosch

Bosch WAS28461AU Bedienungsanleitung

Miele

Miele PW 6080 Vario Bedienungsanleitung

Finlux

Finlux FLX108CF220 Bedienungsanleitung

Whirlpool

Whirlpool 3LBR5132AN0 Bedienungsanleitung

Beko

Beko WKB 51231 PTMA Bedienungsanleitung
