EWG 147410 W

EN Washing Machine User Manual

CONTENTS

1. SAFETY INFORMATION....................................................................................3

2. SAFETY INSTRUCTIONS..................................................................................4

3. PRODUCT DESCRIPTION................................................................................ 5

4. CONTROL PANEL............................................................................................. 6

5. PROGRAMMES ................................................................................................ 9

6. CONSUMPTION VALUES................................................................................11

7. OPTIONS..........................................................................................................12

8. SETTINGS........................................................................................................14

9. BEFORE FIRST USE....................................................................................... 14

10. DAILY USE..................................................................................................... 14

11. HINTS AND TIPS........................................................................................... 17

12. CARE AND CLEANING..................................................................................18

13. TROUBLESHOOTING....................................................................................22

14. INSTALLATION.............................................................................................. 24

15. TECHNICAL DATA.........................................................................................32

WE’RE THINKING OF YOU

Thank you for purchasing an Electrolux appliance. You’ve chosen a product that

brings with it decades of professional experience and innovation. Ingenious and

stylish, it has been designed with you in mind. So whenever you use it, you can

be safe in the knowledge that you’ll get great results every time.

Welcome to Electrolux.

Visit our website for:

Get usage advice, brochures, trouble shooter, service information:

www.electrolux.com/webselfservice

www.registerelectrolux.com

Buy Accessories, Consumables and Original spare parts for your appliance:

www.electrolux.com/shop

CUSTOMER CARE AND SERVICE

Always use original spare parts.

When contacting our Authorised Service Centre, ensure that you have the

following data available: Model, PNC, Serial Number.

The information can be found on the rating plate.

Warning / Caution-Safety information

General information and tips

Environmental information

Subject to change without notice.

www.electrolux.com2

1. SAFETY INFORMATION

Before the installation and use of the appliance, carefully

read the supplied instructions. The manufacturer is not

responsible for any injuries or damages that are the

result of incorrect installation or usage. Always keep the

instructions in a safe and accessible location for future

reference.

1.1 Children and vulnerable people safety

•This appliance can be used by children aged 8 years

and above and by persons with reduced capabilities

provided that they have been given instruction and/or

supervision regarding the safe use of the appliance

and understand the potential hazards involved.

•Do not let children play with the appliance.

•Children aged 3 years and under must be kept away

from this appliance when it is in operation at all times.

•Keep all packaging away from children and dispose of

it appropriately.

•Keep detergents away from children.

•Keep children and pets away from the appliance door

when it is open.

•If the appliance has a child safety device, this should

be activated.

•Children shall not carry out cleaning and user

maintenance of the appliance without supervision.

1.2 General Safety

•Do not change the specification of this appliance.

•Do not exceed the maximum load of 7 kg (refer to the

"Programme chart" chapter).

•The operating water pressure at the water entry point

from the outlet connection must be between 0.5 bar

(0.05 MPa) and 8 bar (0.8 MPa).

•The ventilation opening in the base (if applicable) must

not be covered by a carpet, mat, or any floor covering.

ENGLISH 3

•The appliance must be connected to the water mains

using the new supplied hose sets, or other new hose

sets supplied by the Authorised Service Centre.

•Old hose sets must not be reused.

•If the mains power supply cable is damaged, it must

be replaced by the manufacturer, its Authorised

Service Centre or similarly qualified persons to avoid

an electrical hazard.

•Before any maintenance operation, deactivate the

appliance and disconnect the mains plug from the

socket.

•Do not use high pressure water sprays and/or steam

to clean the appliance.

•Clean the appliance with a moist cloth. Use only

neutral detergents. Do not use abrasive products,

abrasive cleaning pads, solvents or metal objects.

2. SAFETY INSTRUCTIONS

2.1 Installation

• Remove all the packaging and the

transit bolts.

• Keep the transit bolts in a safe place.

If the appliance is to be moved in

future they must be reattached to lock

the drum to prevent internal damage.

• Always take care when moving the

appliance as it is heavy. Always use

safety gloves and enclosed footwear.

• Do not install or use a damaged

appliance.

• Follow the installation instruction

supplied with the appliance.

• Do not install or use the appliance

where the temperature can be less

than 0°C or where it is exposed to the

weather.

• The floor area where the appliance is

to be installed must be flat, stable,

heat resistant and clean.

• Make sure that there is air circulation

between the appliance and the floor.

• Adjust the feet to have the necessary

space between the appliance and the

flooring.

• Do not install the appliance where the

appliance door cannot be fully

opened.

2.2 Electrical connection

• The appliance must be earthed.

• Always use a correctly installed

shockproof socket.

• Make sure that the electrical

information on the rating plate agrees

with the power supply. If not, contact

an electrician.

• Do not use multi-plug adapters and

extension cables.

• Make sure not to cause damage to

the mains plug and to the mains

cable. Should the mains cable need to

be replaced, this must be carried out

by our Authorised Service Centre.

• Connect the mains plug to the mains

socket only at the end of the

installation. Make sure that there is

access to the mains plug after the

installation.

• Do not touch the mains cable or the

mains plug with wet hands.

www.electrolux.com4

• Do not pull the mains cable to

disconnect the appliance. Always pull

the mains plug.

• This appliance complies with the

E.E.C. Directives.

2.3 Water connection

• Do not cause damage to the water

hoses.

• Before connection to new pipes, pipes

not used for a long time, where repair

work has been carried out or new

devices fitted (water meters, etc.), let

the water flow until it is clean and

clear.

• Ensure that there are no visible water

leaks during and after the first use of

the appliance.

2.4 Use

WARNING!

Risk of injury, electrical

shock, fire, burns or damage

to the appliance.

• This appliance is for household use

only.

• Follow the safety instructions on the

detergent packaging.

• Do not put flammable products or

items that are wet with flammable

products in, near or on the appliance.

• Make sure that all metal objects are

removed from the laundry.

• Do not put a container to collect

possible water leakage under the

appliance. Contact the Authorised

Service Centre to ensure which

accessories can be used.

• Do not touch the glass door while a

programme is in operation. The glass

can get hot.

2.5 Service

• To repair the appliance contact an

Authorised Service Centre.

• Use original spare parts only.

2.6 Disposal

WARNING!

Risk of injury or suffocation.

• Disconnect the appliance from the

mains electrical and water supplies.

• Cut off the mains electrical cable

close to the appliance and dispose of

it.

• Remove the door catch to prevent

children or pets from becoming

trapped in the drum.

• Dispose of the appliance in

accordance with local requirements

for the disposal of Waste Electrical

and Electronic Equipment (WEEE).

3. PRODUCT DESCRIPTION

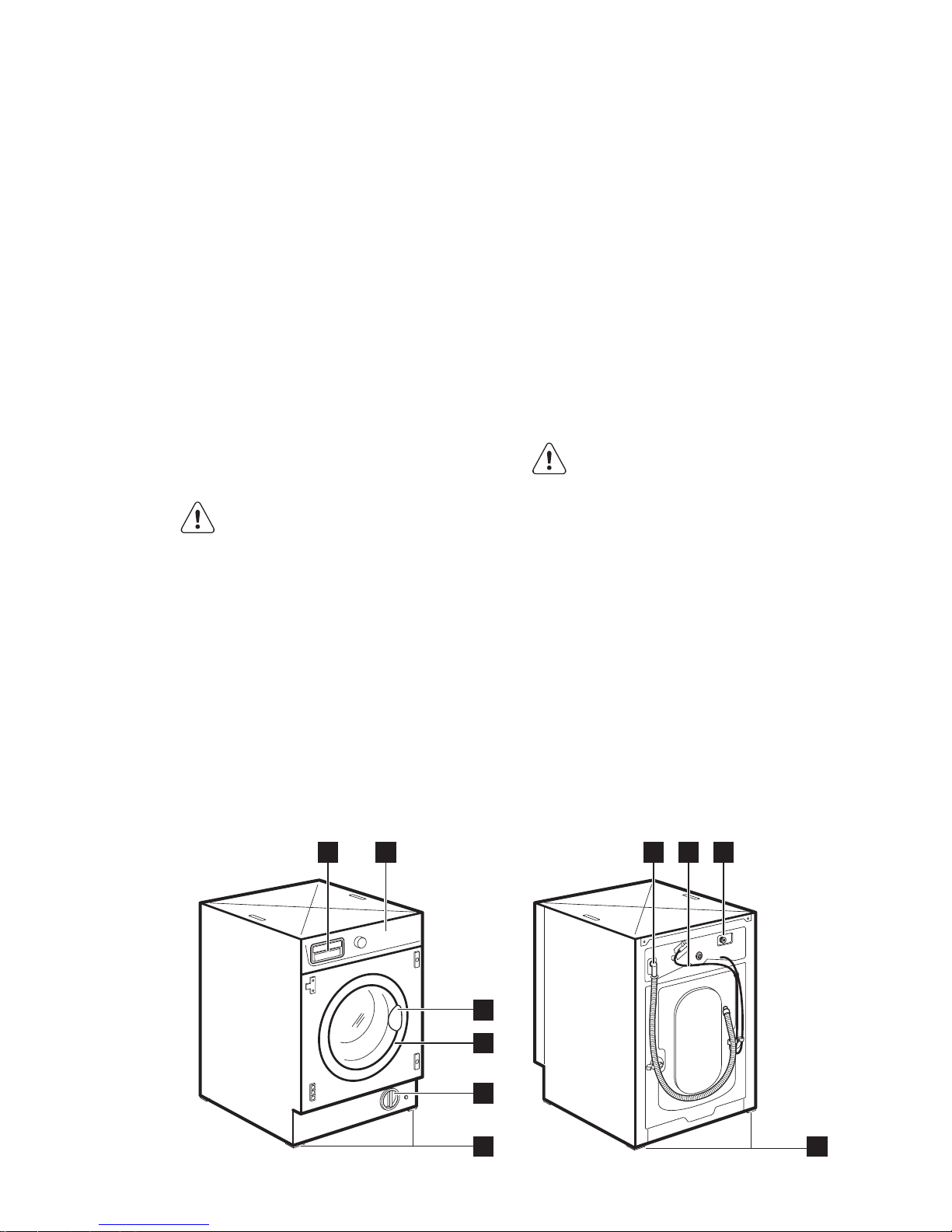

3.1 Appliance overview

7 8 9

1 2

ENGLISH 5

1Detergent dispenser

2Control panel

3Door handle

4Rating plate

5Drain pump filter

6Feet for levelling the appliance

7Water drain hose

8Mains cable

9Water inlet hose connection

10 Feet for levelling the appliance

3.2 How to activate the child

safety device

This device prevents children or pets

from being closed in the drum.

Turn the device clockwise, until the

groove is horizontal.

You cannot close the door.

To close the door, turn the device

anticlockwise until the groove is vertical.

4. CONTROL PANEL

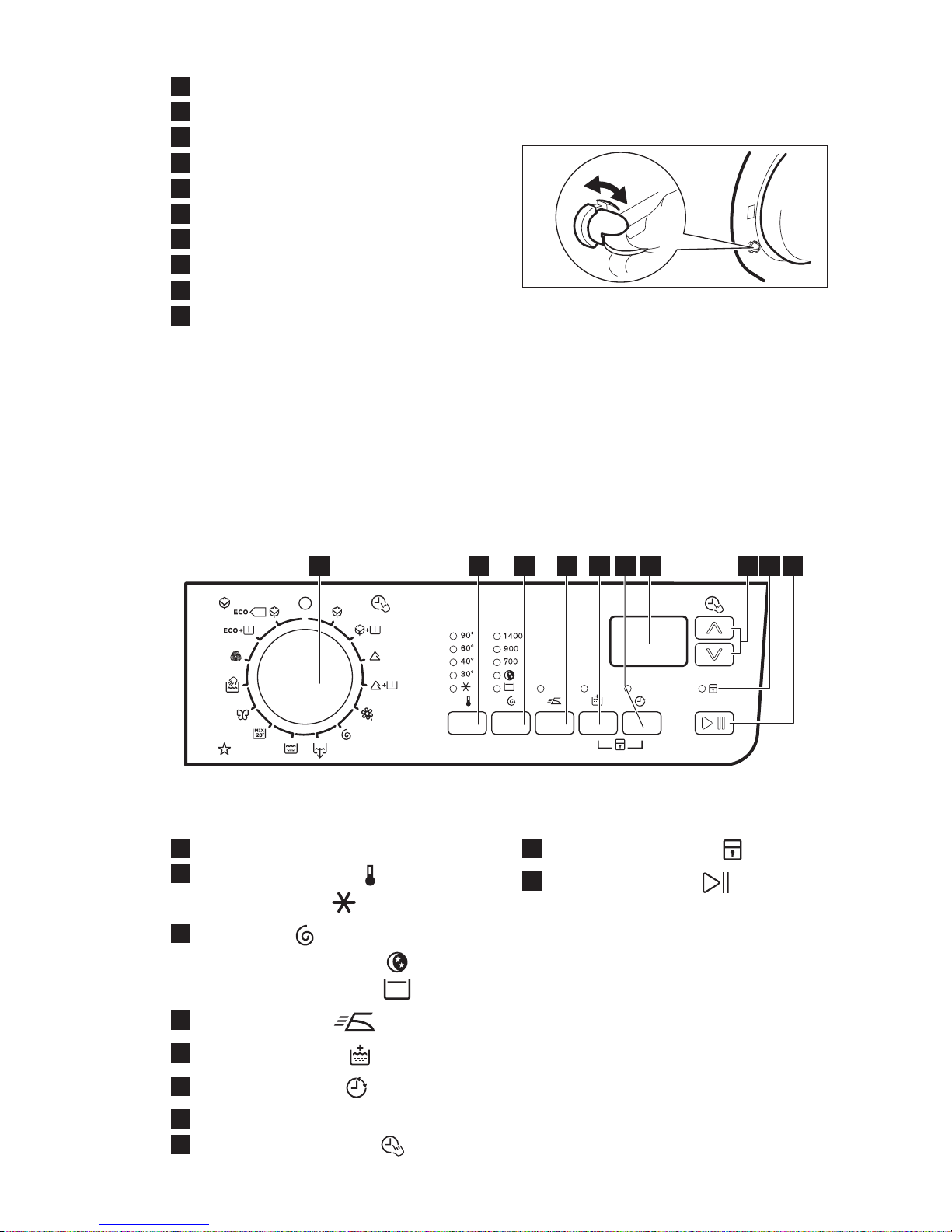

4.1 Control panel description

1 2 34 5 76 8 9 10

1Programme knob

2Temperature button

• Cold position

3Spin button

• Night Cycle function

• Rinse Hold function

4Easy Iron button

5Extra Rinse button

6Delay Start button

7Display

8Time Manager buttons

9Door locked indicator

10 Start/Pause button

www.electrolux.com6

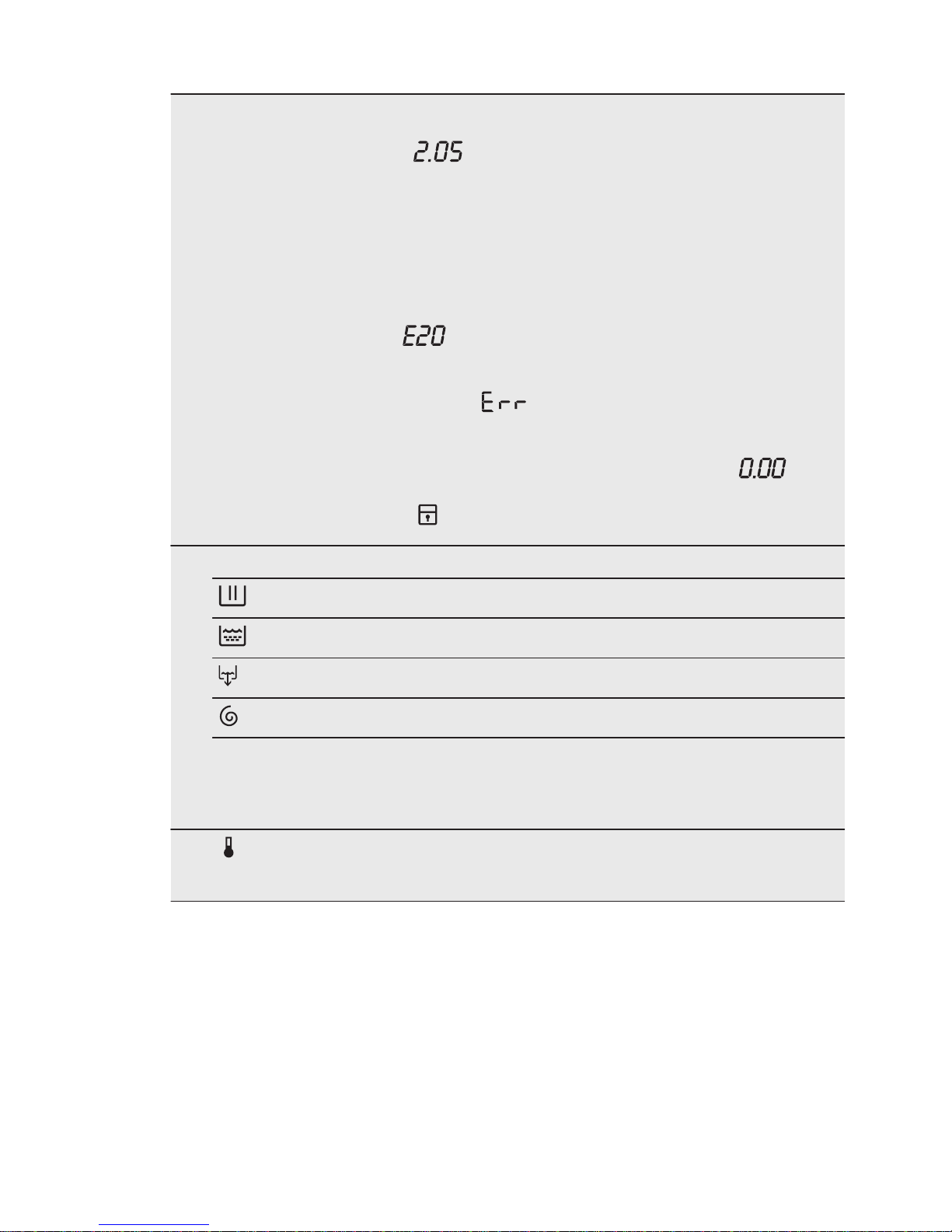

4.2 Display The display shows the following

information:

ASoil degree indicators:

Intensive

Normal

Daily

Light

Quick

Refresh

Super Refresh

When you select a programme, the display shows the indicator of the soil de‐

gree automatically proposed by the appliance.

BChild safety lock (see «Settings» chapter).

ENGLISH 7

A B C

CDigit

area:

•Duration of the selected programme

After you select a programme, the duration is displayed in hours and

minutes (e. g. ). The duration is calculated automatically on

the basis of the maximum recommended load for each type of fabric.

After the programme start, the time remaining is updated every mi‐

nute.

•Delayed start

The selected delay appears for a few seconds, then the display

shows the duration of the selected programme again.

•Alarm codes

In the event of operating problems, some alarm codes can be dis‐

played, e. g. (see chapter «Troubleshooting»).

•Incorrect option selection

If you set an option not compatible with the selected wash pro‐

gramme, the message shows up for a few seconds and the

red indicator of button Start/Pause starts flashing.

•End of programme

When the programme has finished, three flashing zeros are

displayed and the indicator of button Start/Pause goes out.

If the indicator goes off, you can open the door.

DWashing programme phase indicators:

Wash

Rinses

Drain

Spin

By selecting the wash programme, the washing programme indicators corre‐

sponding to the various phases making up the programme are shown.

After you have pressed the Start/Pause button, only the indicator of the running

phase stays on.

EDuring the washing cycle the display shows a temperature icon indicat‐

ing that the appliance has started the heating phase of the water in the

tub.

www.electrolux.com8

5. PROGRAMMES

5.1 Programme Chart

Programme

Temperature range

Maximum

load

Reduced

load1)

Maximum

spin speed

Programme description

(Type of load and soil level)

Cottons

90°C - (Cold)

7 kg

3.5 kg

1400 rpm

White cotton and coloured cotton. Normal soil

and light soil.

+ Prewash

90°C - (Cold)

7 kg

3.5 kg

1400 rpm

White cotton and coloured cotton. Heavy soil

and normal soil.

Synthetics

60°C - (Cold)

3 kg

1.5 kg

900 rpm

Synthetic items or mixed fabric items. Normal

soil.

+ Prewash

60°C - (Cold)

3 kg

1.5 kg

900 rpm

Synthetic items or mixed fabric items. Heavy

soil and normal soil.

Delicates

40°C - (Cold)

3 kg

1.5 kg

700 rpm

Delicate fabrics such as acrylics, viscose,

polyester items. Normal soil.

Spin

7 kg

1400 rpm

To spin the laundry and to drain the water in the

drum. All fabrics, except woollens and deli‐

cate fabrics.

Drain

7 kg To drain the water in the drum. All fabrics.

Rinse

7 kg

1400 rpm

To rinse and spin the laundry. All fabrics, ex‐

cept woollens and very delicate fabrics. Reduce

the spin speed accordingly to the type of laun‐

dry.

Mix 20°

20°C

3 kg

900 rpm

Special programme for cotton, synthetic and

mixed fabrics lightly soiled. Select this pro‐

gramme to reduce the energy consumption.

Make sure that the detergent is suitable for low

temperatures in order to have good washing re‐

sults2).

ENGLISH 9

Programme

Temperature range

Maximum

load

Reduced

load1)

Maximum

spin speed

Programme description

(Type of load and soil level)

Silk

30°C - (Cold)

1 kg

700 rpm

Special programme for silk and mixed synthet‐

ic items.

Handwash

40°C - (Cold)

2 kg

900 rpm

Machine washable wool, hand washable

wool and delicate fabrics with «hand washing»

care symbol.3)

Wool/Handwash

40°C - (Cold)

2 kg

900 rpm

Machine washable wool, hand washable

wool and delicate fabrics with «hand washing»

care symbol.3)

Cottons+Prewash

90°C - 40°C

7 kg

1400 rpm

White cotton and fast-coloured cotton. Nor‐

mal soil with stains. The energy consumption

decreases and the time of the washing pro‐

gramme is extended.

Cottons Eco4)

90°C - 40°C

7 kg

1400 rpm

White cotton and fast-coloured cotton. Nor‐

mal soil. The energy consumption decreases

and the time of the washing programme is ex‐

tended.

1) If you select the Super Quick, Refresh and Super Refresh option by pressing buttons

Time Manager, we recommend that you reduce the maximum load as indicated in the pro‐

grammes for cottons, synthetics and delicates. Full loading is possible however with some‐

what reduced cleaning results.

2) The appliance performs the short heating phase if the water temperature is below 20°C.

The appliance can show the temperature setting as “cold”.

3) During this cycle the drum rotates slowly to ensure a gentle wash. It can seem that the

drum doesn't rotate or doesn't rotate properly, but this is normal for this programme.

4) Standard programmes for the Energy Label consumption values. According to regu‐

lation 1061/2010, these programmes with temperature selected 60°C and with temperature

selected 40°C are respectively the «Standard 60°C cotton programme» and the «Standard

40°C cotton programme». They are the most efficient programmes in terms of combined en‐

ergy and water consumption for washing normally soiled cotton laundry.

The water temperature of the washing phase may differ from the temperature

declared for the selected programme.

Programme options compatibility

Programme

■ ■ ■ ■ ■ ■ ■

www.electrolux.com10

Andere Handbücher für EWG 147410 W

Inhaltsverzeichnis

Andere Electrolux Waschmaschine Handbücher

Electrolux

Electrolux EWFLW65IRR - 27" Front-Load Washer Bedienungsanleitung

Electrolux

Electrolux EWF 12780 W Bedienungsanleitung

Electrolux

Electrolux EWF12844 Bedienungsanleitung

Electrolux

Electrolux washing machine Bedienungsanleitung

Electrolux

Electrolux EWF8025CQWA Bedienungsanleitung

Electrolux

Electrolux ELAY10DGAW8 Bedienungsanleitung

Electrolux

Electrolux EWT 11730 W Bedienungsanleitung

Electrolux

Electrolux 6 Series Bedienungsanleitung

Electrolux

Electrolux EW 550 F Bedienungsanleitung

Electrolux

Electrolux EW 1043 S Bedienungsanleitung

Electrolux

Electrolux EWF 1499 Bedienungsanleitung

Electrolux

Electrolux EWF 705 Bedienungsanleitung

Electrolux

Electrolux EWS 1274 SEU Bedienungsanleitung

Electrolux

Electrolux LAVAMAT 42230 Bedienungsanleitung

Electrolux

Electrolux FLE120 Bedienungsanleitung

Electrolux

Electrolux EFLW417SIW Bedienungsanleitung

Electrolux

Electrolux ENV06 Bedienungsanleitung

Electrolux

Electrolux EWF1042BDWA Bedienungsanleitung

Electrolux

Electrolux EWT 8020 W Bedienungsanleitung

Electrolux

Electrolux EWF8025EQWA Bedienungsanleitung

Electrolux

Electrolux EW2F3068R8 Bedienungsanleitung

Electrolux

Electrolux UFW 47 K 8161 Bedienungsanleitung

Electrolux

Electrolux EW1232I Bedienungsanleitung

Electrolux

Electrolux EWF 1494 DBW Bedienungsanleitung

Beliebte Waschmaschine Handbücher anderer Marken

Tricity Bendix

Tricity Bendix AW 1000 W Produkthandbuch

Panasonic

Panasonic NA-F60L5WRB Bedienungsanleitung

GE WSLP1500 Handbuch

Bosch

Bosch WAN2829BSN Bedienungsanleitung

LG TV2516DV3B Bedienungsanleitung

LG TH2517DSAV Bedienungsanleitung

VESTEL

VESTEL CMH-XL 7510 TE Bedienungsanleitung

AEG

AEG 74335 Bedienungsanleitung

Johnson

Johnson JWF721A Bedienungsanleitung

Beko

Beko WTE7604XLW0 Bedienungsanleitung

Danby

Danby DTT100A1WDB Montageanleitung

Amica

Amica WA 14 Ex Bedienungsanleitung

Daewoo

Daewoo DWD-F1222 Bedienungsanleitung

Bosch

Bosch WAS28461AU Bedienungsanleitung

Miele

Miele PW 6080 Vario Bedienungsanleitung

Finlux

Finlux FLX108CF220 Bedienungsanleitung

Whirlpool

Whirlpool 3LBR5132AN0 Bedienungsanleitung

Beko

Beko WKB 51231 PTMA Bedienungsanleitung
