EWP 0864 TDW

EWP 1064 TDW

................................................ .............................................

EN WASHING MACHINE USER MANUAL

CONTENTS

1. SAFETY INFORMATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

2. SAFETY INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

3. PRODUCT DESCRIPTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

4. CONTROL PANEL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

5. WASHING PROGRAMMES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

6. CONSUMPTION VALUES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

7. OPTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

8. BEFORE FIRST USE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

9. DAILY USE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

10. HINTS AND TIPS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

11. CARE AND CLEANING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

12. TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

13. TECHNICAL INFORMATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

WE’RE THINKING OF YOU

Thank you for purchasing an Electrolux appliance. You’ve chosen a product that brings with it

decades of professional experience and innovation. Ingenious and stylish, it has been designed

with you in mind. So whenever you use it, you can be safe in the knowledge that you’ll get great

results every time.

Welcome to Electrolux.

Visit our website for:

Get usage advice, brochures, trouble shooter, service information:

www.electrolux.com

www.electrolux.com/productregistration

Buy Accessories, Consumables and Original spare parts for your appliance:

www.electrolux.com/shop

CUSTOMER CARE AND SERVICE

We recommend the use of original spare parts.

When contacting Service, ensure that you have the following data available.

The information can be found on the rating plate. Model, PNC, Serial Number.

Warning / Caution-Safety information

General information and tips

Environmental information

Subject to change without notice.

2www.electrolux.com

1. SAFETY INFORMATION

Before the installation and use of the appliance, carefully

read the supplied instructions. The manufacturer is not

responsible if an incorrect installation and use causes in-

juries and damages. Always keep the instructions with

the appliance for future reference.

1.1 Children and vulnerable people safety

WARNING!

Risk of suffocation, injury or permanent disability.

• This appliance can be used by children aged from 8

years and above and persons with reduced physical,

sensory or mental capabilities or lack of experience and

knowledge if they have been given supervision or in-

struction concerning use of the appliance in a safe way

and understand the hazards involved.

• Do not let children play with the appliance.

• Keep all packaging away from children.

• Keep all detergents away from children.

• Keep children and pets away from the appliance door

when it is open.

• If the appliance has a child safety device, we recom-

mend you activate it.

• Cleaning and user maintenance shall not be made by

children without supervision.

1.2 General Safety

• Before maintenance, deactivate the appliance and dis-

connect the mains plug from the mains socket.

• Do not change the specification of this appliance.

• Obey the maximum load volume of 6 kg (refer to the

“Programme chart” chapter).

ENGLISH 3

• If the supply cord is damaged, it must be replaced by

the manufacturer, its service agent or similarly qualified

persons in order to avoid a hazard.

• The operating water pressure (minimum and maximum)

must be between 0,5 bar (0,05 MPa) and 8 bar (0,8

MPa)

• The ventilation openings in the base (if applicable) must

not be obstructed by a carpet.

• The appliance is to be connected to the water mains

using the new supplied hose-sets. Old hose sets must

not be reused.

2. SAFETY INSTRUCTIONS

2.1 Installation

• Remove all the packaging and the

transit bolts.

• Keep the transit bolts. When you move

the appliance again you must block the

drum.

• Do not install or use a damaged appli-

ance.

• Do not install or use the appliance

where the temperature is less than 0 °C

or where it is exposed to the weather.

• Obey the installation instruction sup-

plied with the appliance.

• Make sure that the floor where you in-

stall the appliance is flat, stable, heat

resistant and clean.

• Do not install the appliance where the

appliance door can not be fully opened.

• Always be careful when you move the

appliance because it is heavy. Always

wear safety gloves.

• Make sure that there is air circulation

between the appliance and the floor.

• Adjust the feet to have the necessary

space between the appliance and the

carpet.

Electrical connection

WARNING!

Risk of fire and electrical shock.

• The appliance must be earthed.

• Make sure that the electrical information

on the rating plate agrees with the pow-

er supply. If not, contact an electrician.

• Always use a correctly installed shock-

proof socket.

• Do not use multi-plug adapters and ex-

tension cables.

• Make sure not to cause damage to the

mains plug and to the mains cable.

Should the appliance power supply ca-

ble need to be replaced, this must be

carried out by our Service Centre.

• Connect the mains plug to the mains

socket only at the end of the installa-

tion. Make sure that there is access to

the mains plug after the installation.

• Do not pull the mains cable to discon-

nect the appliance. Always pull the

mains plug.

• Do not touch the mains cable or the

mains plug with wet hands.

• Only for UK and Ireland. The appliance

has a 13 amp mains plug. If it is neces-

sary to change the fuse in the mains

plug, use a 13 amp ASTA (BS 1362)

fuse.

4www.electrolux.com

•

This appliance complies with the E.E.C.

Directives.

Water connection

• Make sure not to cause damage to the

water hoses.

• The appliance is to be connected to the

water mains using the new supplied

hose-sets. Old hose sets must not be

reused.

• Before you connect the appliance to

new pipes or pipes not used for a long

time, let the water flow until it is clean.

• The first time you use the appliance,

make sure that there is no leakage.

2.2 Use

WARNING!

Risk of injury, electrical shock, fire,

burns or damage to the appliance.

• Use this appliance in a household envi-

ronment.

• Do not change the specification of this

appliance.

• Obey the safety instructions on the de-

tergent packaging.

• Do not put flammable products or items

that are wet with flammable products

in, near or on the appliance.

• Do not touch the glass of the door

while a programme operates. The glass

can be hot.

• Make sure that you remove all metal

objects from the laundry.

• Do not put a container to collect possi-

ble water leakage under the appliance.

Contact the Service to ensure which

accessories can be used.

2.3 Care and Cleaning

WARNING!

Risk of injury or damage to the

appliance.

• Before maintenance, deactivate the ap-

pliance and disconnect the mains plug

from the mains socket.

• Do not use water spray and steam to

clean the appliance.

• Clean the appliance with a moist soft

cloth. Only use neutral detergents. Do

not use abrasive products, abrasive

cleaning pads, solvents or metal ob-

jects.

2.4 Disposal

WARNING!

Risk of injury or suffocation.

• Disconnect the appliance from the

mains supply.

• Cut off the mains cable and discard it.

• Remove the door catch to prevent chil-

dren and pets to get closed in the ap-

pliance.

ENGLISH 5

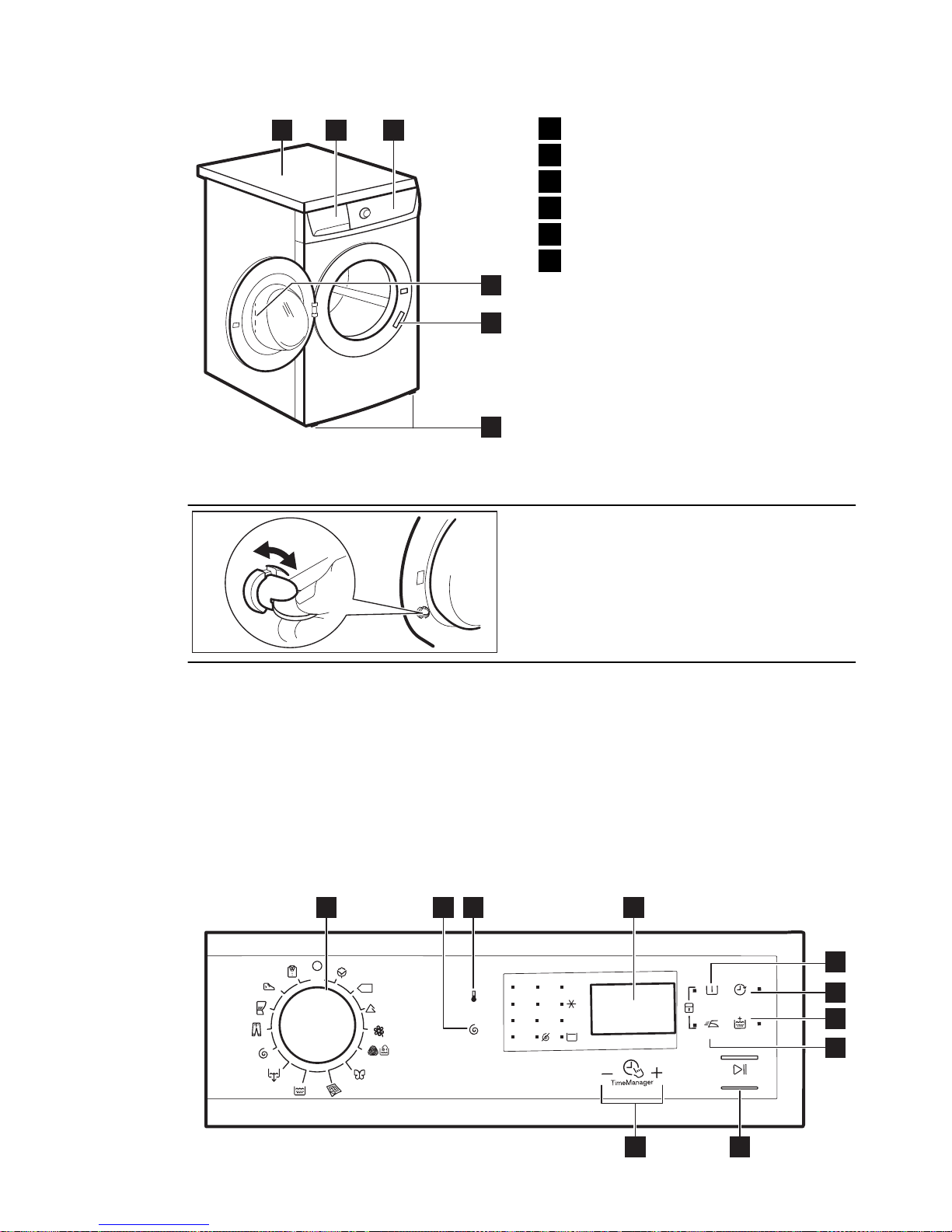

3. PRODUCT DESCRIPTION

1 2 3

1Worktop

2Detergent dispenser

3Control panel

4Door handle

5Rating plate

6Feet for the appliance level

3.1 Child safety device

When you activate this device, you cannot

close the door. This prevents children or

pets to be closed in the drum. To activate

the device, turn it clockwise, until the

groove is horizontal. To deactivate the de-

vice, turn it counter-clockwise, until the

groove is vertical.

3.2 Fixing plate kit (405517114)

Use this special accessory, when you in-

stall the appliance on a plinth.

It prevents the movements of the appli-

ance when it operates.

Read carefully the instructions supplied

with this accessory.

You can buy it in all approved Service.

4. CONTROL PANEL

Temp.

Spin

Delay Start

Easy Iron Extra Rinse

Prewash

Start/Pause

90° 60° 40°

30° 20°

1000 800 600

400

Silk

Cottons Eco

Cottons

Curtains

Rinse

Spin

Drain

Duvet

Jeans

Synthetics

Delicates

Sports

5 Shirts

Wool/Handwash

1 2 3 4

910

6www.electrolux.com

1Programme knob

2Spin reduction touchpad

3Temperature touchpad

4Display

5Prewash touchpad

6Delay start touchpad

7Extra rinse touchpad

8Easy iron touchpad

9Start pause touchpad

10 Time Manager touchpads

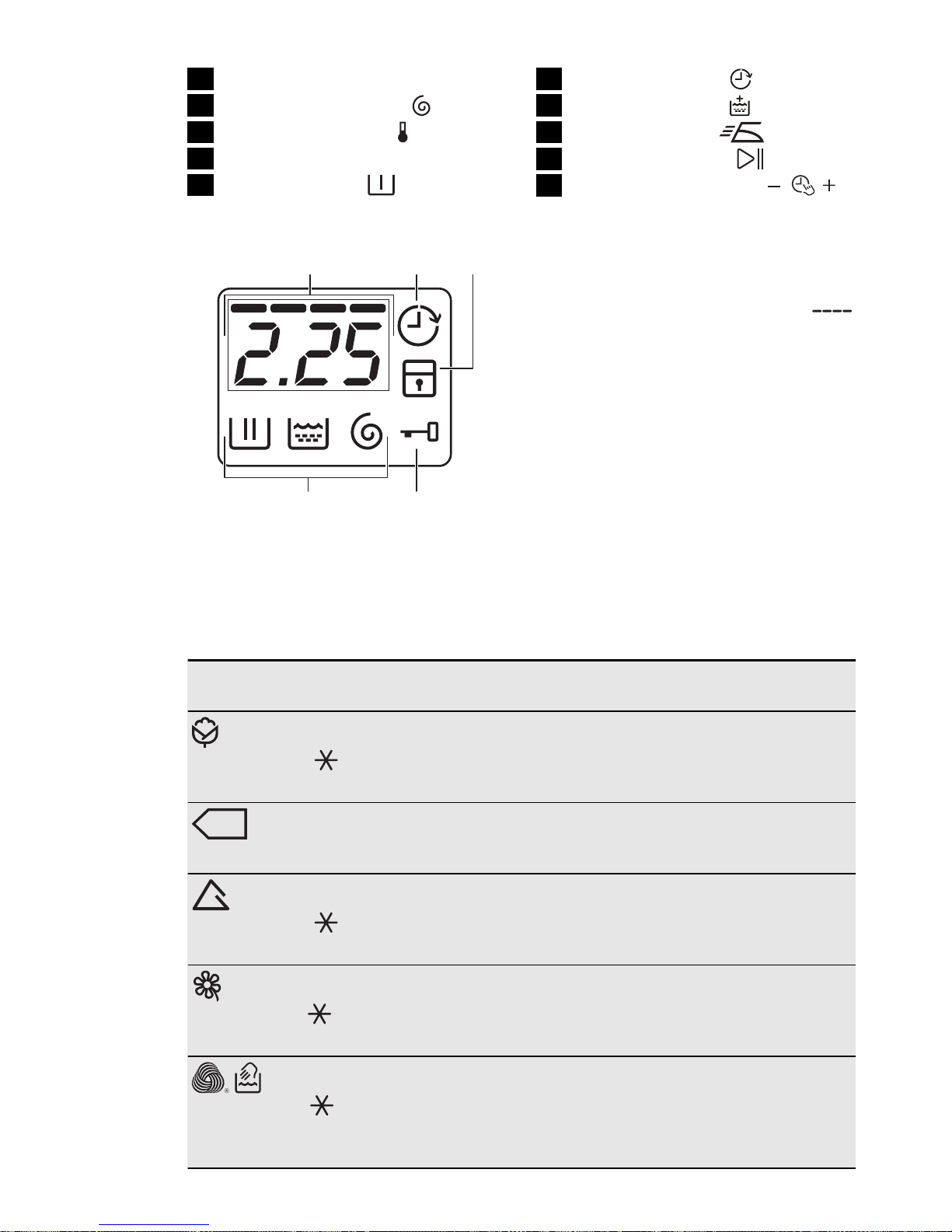

4.1 Display

A) The time area:

– Programme time.

– The alarm codes. Refer to the chap-

ter “Troubleshooting” for their de-

scription.

–The level of the Time Manager

B) The Delay Start indicator.

C) The Child Lock indicator.

D) The Door Lock indicator:

– It is on, you cannot open the door.

– It is off, you can open the door.

– It flashes, you cannot open the

door. Wait for some minutes until

the indicator is off.

E) Washing phase indicators.

5. WASHING PROGRAMMES

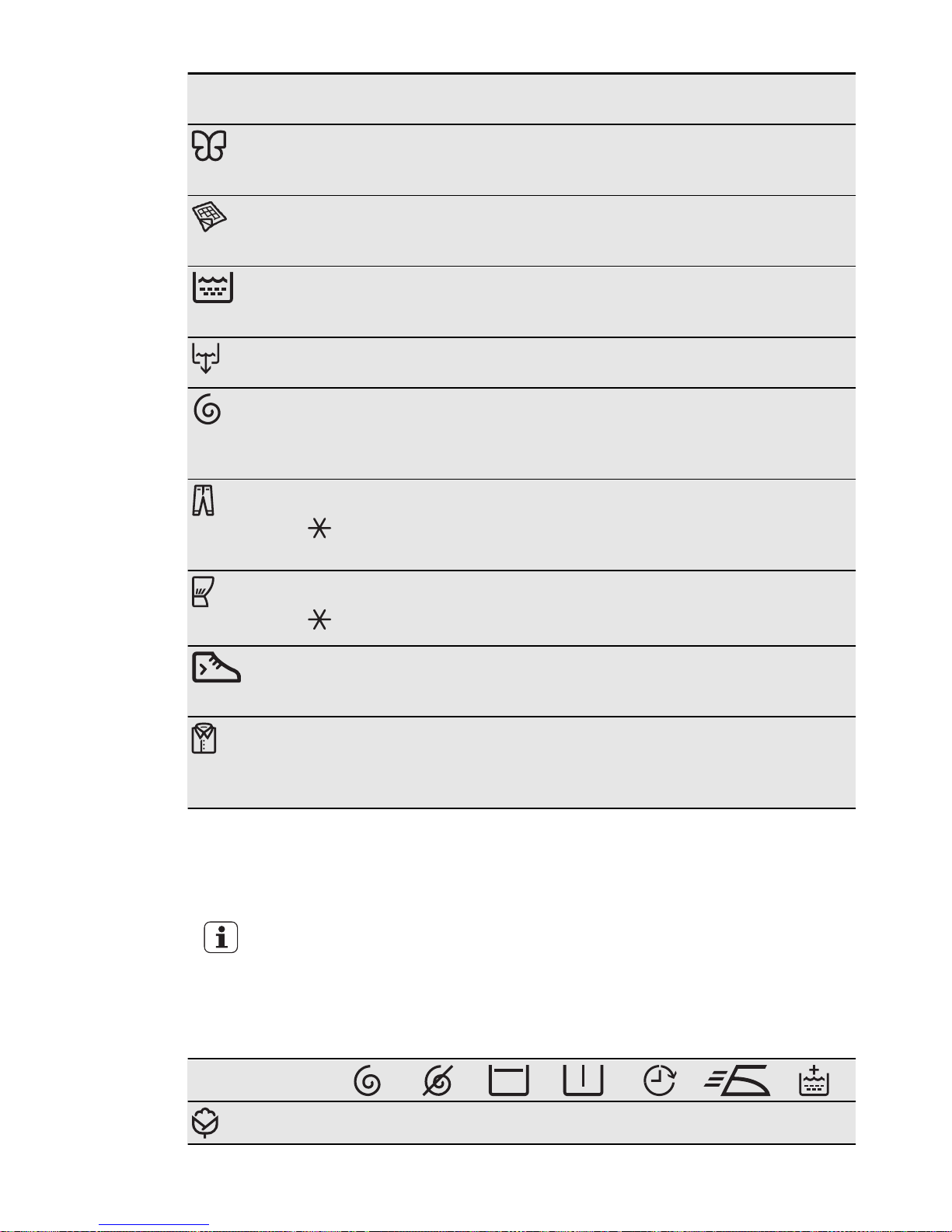

Programme

Temperature range

Type of load and soil

Maximum load, Maximum spin

Cottons

90°C — Cold ( )

White cotton and coloured cotton. Normal soil

and light soil.

6 kg, 800 rpm (EWP0864TDW), 1000 rpm

(EWP1064TDW)

Cottons Eco

60 °C – 40 °C

White cotton and colour-fast cotton. Normal soil.

6 kg, 800 rpm (EWP0864TDW), 1000 rpm

(EWP1064TDW)

Synthetics

60 °C— Cold ( )

Synthetic items or mixed fabric items. Normal

soil.

3 kg, 800 rpm (EWP0864TDW), 1000 rpm

(EWP1064TDW)

Delicates

40 °C - Cold ( )

Delicate fabrics as acrylics, viscose, polyester

items. Normal soil.

3 kg, 800 rpm (EWP0864TDW), 1000 rpm

(EWP1064TDW)

Wool/Handwash

40 °C – Cold ( )

Machine washable wool, hand washable wool

and delicate fabrics with «hand washing» care

symbol.

2 kg, 800 rpm (EWP0864TDW), 1000 rpm

(EWP1064TDW)

ENGLISH 7

Programme

Temperature range

Type of load and soil

Maximum load, Maximum spin

Silk

30 °C

Special programme for silk and mixed synthetic

items.

1 kg, 800 rpm

Duvet

60 °C – 30 °C

Special programme for one synthetic blanket, du-

vet, bedspread and so on.

2 kg, 800 rpm

Rinse

Cold

To rinse and spin the laundry. All fabrics.

6 kg, 800 rpm (EWP0864TDW), 1000 rpm

(EWP1064TDW)

Drain To drain the water in the drum. All fabrics.

6 kg

Spin To spin the laundry and to drain the water in the

drum. All fabrics.

6 kg, 800 rpm (EWP0864TDW), 1000 rpm

(EWP1064TDW)

Jeans

60 °C - Cold ( )

Items in denim and jersey. Also for items in dark

colors.

3 kg, 800 rpm (EWP0864TDW), 1000 rpm

(EWP1064TDW)

Curtains

40 °C - Cold ( )

Special programme for curtains. The prewash

phase activates automatically.

2 kg, 800 rpm

Sports

30 °C

Synthetic and delicate items. Light soil or items or

items to refresh.

3 kg, 800 rpm

5 Shirts

30 °C

Synthetic and mixed fabric items. Light soil and

items to freshen up.

For 5 - 6 shirts.

800 rpm

1) Standard programmes for the Energy Label consumption values.

According to regulation 1061/2010, these programmes are respectively the «Standard 60

°C cotton programme» and the «Standard 40 °C cotton programme». They are the most

efficient programmes in terms of combined energy and water consumptions for washing

normally soiled cotton laundry.

The water temperature of the washing phase may differ from the temperature de-

clared for the selected programme.

2) Do not use any detergent for prewash phase to rinse only with water.

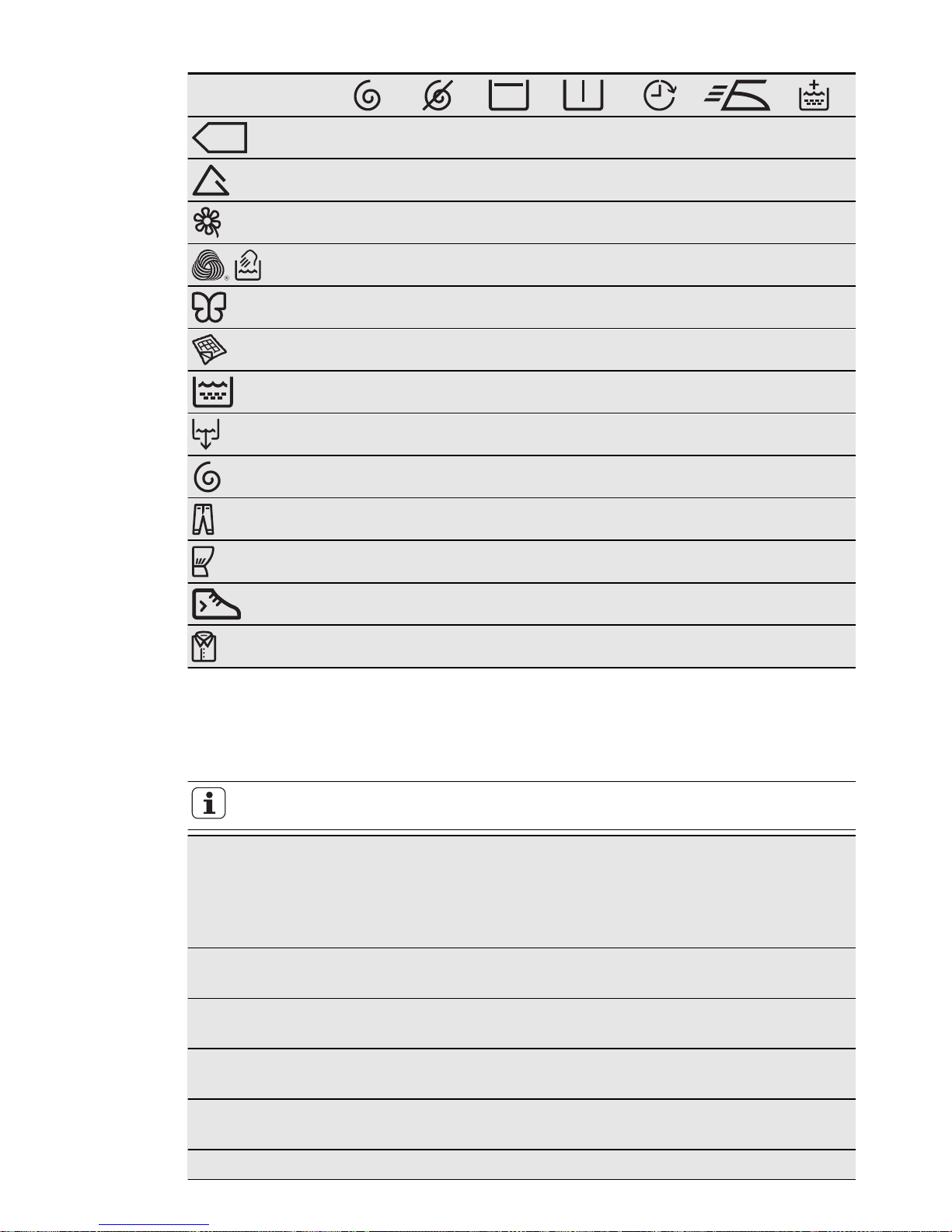

Programme options compatibility

Programme

∎ ∎ ∎ ∎ ∎ ∎ ∎

8www.electrolux.com

Programme

∎ ∎ ∎ ∎ ∎ ∎

∎ ∎ ∎ ∎ ∎ ∎ ∎

∎ ∎ ∎ ∎ ∎ ∎

∎ ∎ ∎ ∎

∎ ∎ ∎

∎∎

∎ ∎ ∎ ∎∎

∎

∎∎

∎ ∎ ∎ ∎ ∎ ∎

∎ ∎ ∎ ∎∎

∎ ∎ ∎

6. CONSUMPTION VALUES

The data of this table are approximate. Different causes can change the data:

the quantity and type of laundry, the water and ambient temperature.

Pro-

grammes

Load

(Kg)

Energy

consump-

tion (kWh)

Water con-

sumption

(litre)

Approxi-

mate pro-

gramme

duration

(minutes)

Remain-

ing mois-

ture (%)

Cottons 60

°C 61.20 70 170 66

/ 60

Cottons 40

°C 60.75 72 145 60

/ 60

Synthetics 40

°C 30.60 57 95 37

Delicates 40

°C 30.60 65 75 37

Wool 30 °C 20.30 48 55 32

ENGLISH 9

Pro-

grammes

Load

(Kg)

Energy

consump-

tion (kWh)

Water con-

sumption

(litre)

Approxi-

mate pro-

gramme

duration

(minutes)

Remain-

ing mois-

ture (%)

Standard cotton programmes

Standard 60

°C cotton 60.98 50 225 66

/ 60

Standard 60

°C cotton 30.67 36 153 66

/ 60

Standard 40

°C cotton 30.46 36 154 66

/ 60

Off Mode (W) Left On Mode (W)

0.48 0.48

The information given in the chart above are in compliance with the EU Commis-

sion regulation 1015/2010 implementing directive 2009/125/EC.

1) At the end of spin phase.

2) For model EWP0864TDW .

3) For model EWP1064TDW.

At programme start the display shows the duration programme for the maxi-

mum load capacity.

During the washing phase the programme duration is automatically calculated

and can greatly be reduced if the laundry load is lower than the maximum load

capacity (e.g. Cotton 60°C, maximum load capacity 6 kg, the programme du-

ration exceeds 2 hours; real load 1 kg, the programme duration don’t reach 1

hour).

When the appliance is calculating the real programme duration a dot blinks in

the display.

7. OPTIONS

7.1 Temperature

Set this option to change the default tem-

perature.

Indicator = cold water.

The indicator of the set temperature

comes on.

7.2 Spin

With this option you can change the de-

fault spin speed.

The indicator of the set speed comes on.

Additional spin options:

No Spin

• Set this option to deactivate all spin

phases. Only the drain phase is availa-

ble.

• The related indicator comes on.

• Set this option for very delicate fabrics.

• The rinses phase uses more water for

some washing programmes.

Rinse Hold

• Set this option to prevent the laundry

creases.

• The related indicator comes on.

10 www.electrolux.com

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Electrolux Waschmaschine Handbücher

Electrolux

Electrolux EIFLS55I - 27'' Front-Load Washer Bedienungsanleitung

Electrolux

Electrolux EWF 148420 W Bedienungsanleitung

Electrolux

Electrolux EWF 630 Bedienungsanleitung

Electrolux

Electrolux EWX 147410 W Bedienungsanleitung

Electrolux

Electrolux EWT 805 Bedienungsanleitung

Electrolux

Electrolux EWT1031 Bedienungsanleitung

Electrolux

Electrolux EWF 888 Bedienungsanleitung

Electrolux

Electrolux EW 932 F Kurzanleitung

Electrolux

Electrolux EWF 1284BMW Bedienungsanleitung

Electrolux

Electrolux EWFLW65H - 27'' Front-Load Washer Bedienungsanleitung

Electrolux

Electrolux EW F147410 A Bedienungsanleitung

Electrolux

Electrolux EWFLW65HTS - 27" Front-Load Washer Bedienungsanleitung

Electrolux

Electrolux EWF 1220 Bedienungsanleitung

Electrolux

Electrolux EW6F6268N5 Bedienungsanleitung

Electrolux

Electrolux EIFLS60JIW1 Bedienungsanleitung

Electrolux

Electrolux 134700400 Bedienungsanleitung

Electrolux

Electrolux EN6F5922BF Bedienungsanleitung

Electrolux

Electrolux EWF 147440 W Bedienungsanleitung

Electrolux

Electrolux washing machine Bedienungsanleitung

Electrolux

Electrolux EOB63100X Bedienungsanleitung

Electrolux

Electrolux EWF 1440 Bedienungsanleitung

Electrolux

Electrolux Wascator W100 Bedienungsanleitung

Electrolux

Electrolux W455H Bedienungsanleitung

Electrolux

Electrolux WH828 Bedienungsanleitung

Beliebte Waschmaschine Handbücher anderer Marken

Tricity Bendix

Tricity Bendix AW 1000 W Produkthandbuch

Panasonic

Panasonic NA-F60L5WRB Bedienungsanleitung

GE WSLP1500 Handbuch

Bosch

Bosch WAN2829BSN Bedienungsanleitung

LG TV2516DV3B Bedienungsanleitung

LG TH2517DSAV Bedienungsanleitung

VESTEL

VESTEL CMH-XL 7510 TE Bedienungsanleitung

AEG

AEG 74335 Bedienungsanleitung

Johnson

Johnson JWF721A Bedienungsanleitung

Beko

Beko WTE7604XLW0 Bedienungsanleitung

Danby

Danby DTT100A1WDB Montageanleitung

Amica

Amica WA 14 Ex Bedienungsanleitung

Daewoo

Daewoo DWD-F1222 Bedienungsanleitung

Bosch

Bosch WAS28461AU Bedienungsanleitung

Miele

Miele PW 6080 Vario Bedienungsanleitung

Finlux

Finlux FLX108CF220 Bedienungsanleitung

Whirlpool

Whirlpool 3LBR5132AN0 Bedienungsanleitung

Beko

Beko WKB 51231 PTMA Bedienungsanleitung
