Electrolux W4330S Bedienungsanleitung

PROFESSIONAL LAUNDRY

50 **

234/62 234/62

0.4/1.6 0.4

- 2.4

W4330S

35/75

330

795

671

200

19.7

Compass Control

Clarus Control

Main speciﬁcations

Max. capacity kg/lb

Drum, volume litre

diameter ø mm

Extraction rpm

G-factor

Heating alternatives, 230/400V electricity kW

steam

non-heated

Consumption data ”Normal 60°C” * (3G01)

Total time min

Water consumption (cold/hot) litre

Energy consumption (motor/heating) kWh

Steam consumption kg

Washer extractor

W4330S

Certiﬁed in accordance with ISO 9001 and ISO 14001 and approved IP 24D.

El Steam

* Water temperature 15°C cold water and 65°C hot water.

** Depending on steam pressure.

Main options

• Automaticliquiddetergentsupply(optionalI/Oboardfor

Compass Control)

• Stainlesssteelfrontpanel

• Stainlesssteelsidepanel(onlywithClarusControl)

• Dualdrainvalvesforwaterre-use(ClarusControl)

Features and beneﬁts

• Frequency-controlledmotorwithxedwashandextractionspeeds

ensuressmoothactioninthewashandextractionsequence

• GooddewateringabilityduetohigherG-forcecomparedwitha

traditional solid mount machine

• Solidmountconstructionwithrobustframeingalvanizedsteel

• Availablewithtwotypesofprogramcontrols:

Compass Control with:

– Large display and one dial for easy program selection

– Language selection

 – TwoQuickStartbuttonsforfrequentlyusedwashprograms

 – WashprogrampackagesoptimizedonEconomy,

Performance and Time

Clarus Control with:

 – Fullyprogrammablemicroprocessor

 – Allrelevantwashparameterscanbeprogrammed

– Programming from key pad or downloading via memory card

•AS–AutomaticSavings:

– The machine weighs the linen and adjusts the amount of water

and energy according to the load. This leads to considerable

savings in case the machine is not fully loaded

• Extremelylowwaterandenergyconsumption–seetablebelow

• Fourcompartmentsoapboxformanualdosingofpowderorliquid

detergent

• Largedooropeningforeasyloading/unloading

• Stainlessandgalvanizedsteelinallvitalpartsforhighdegreeofrust

protection

• SuperBalanceTM guarantees the correct extraction force

Images shown are a representation of the product only and

variations may occur.

5281

5459

W4330S

19.7(63)

21.2(63)

19.7(35)

1.5(10)

150-400

170

300-600

11.2

4.3 ± 6.9

298

318

1.82

910

1040

1445

500

1075

1155

1365

170

1325

255

1155

280

335

145

180

5282

Share more of our thinking at www.electrolux.com

Electrical connections*

Heating Voltage

El. 230V3AC50Hz kW(A)

 208-240V3AC60Hz kW(A)

 400-415V3NAC50Hz kW(A)

Steam 208-240V1AC50/60HzkW(A)

non-heated

Water and steam connection

Water valves DN

Water pressure kPa

Capacity at 300 kPa l/min

Drain valve ø mm

Draining capacity l/min

Steam valve DN

Steam pressure kPa

Liquiddetergentsupplies

Floor requirements

Frequencyofthedynamicforce Hz

Floorloadatmaxextraction kN

Sound levels

Soundpressurelevel** dB(A)

Sound power level (IEC60704-2-4)

wash     dB(A)

extraction    dB(A)

Heat emission

% of installed power, max

Shipping data

net, kg

crated, kg

Shipping volume m3

Accessories

Hose kits for water or steam

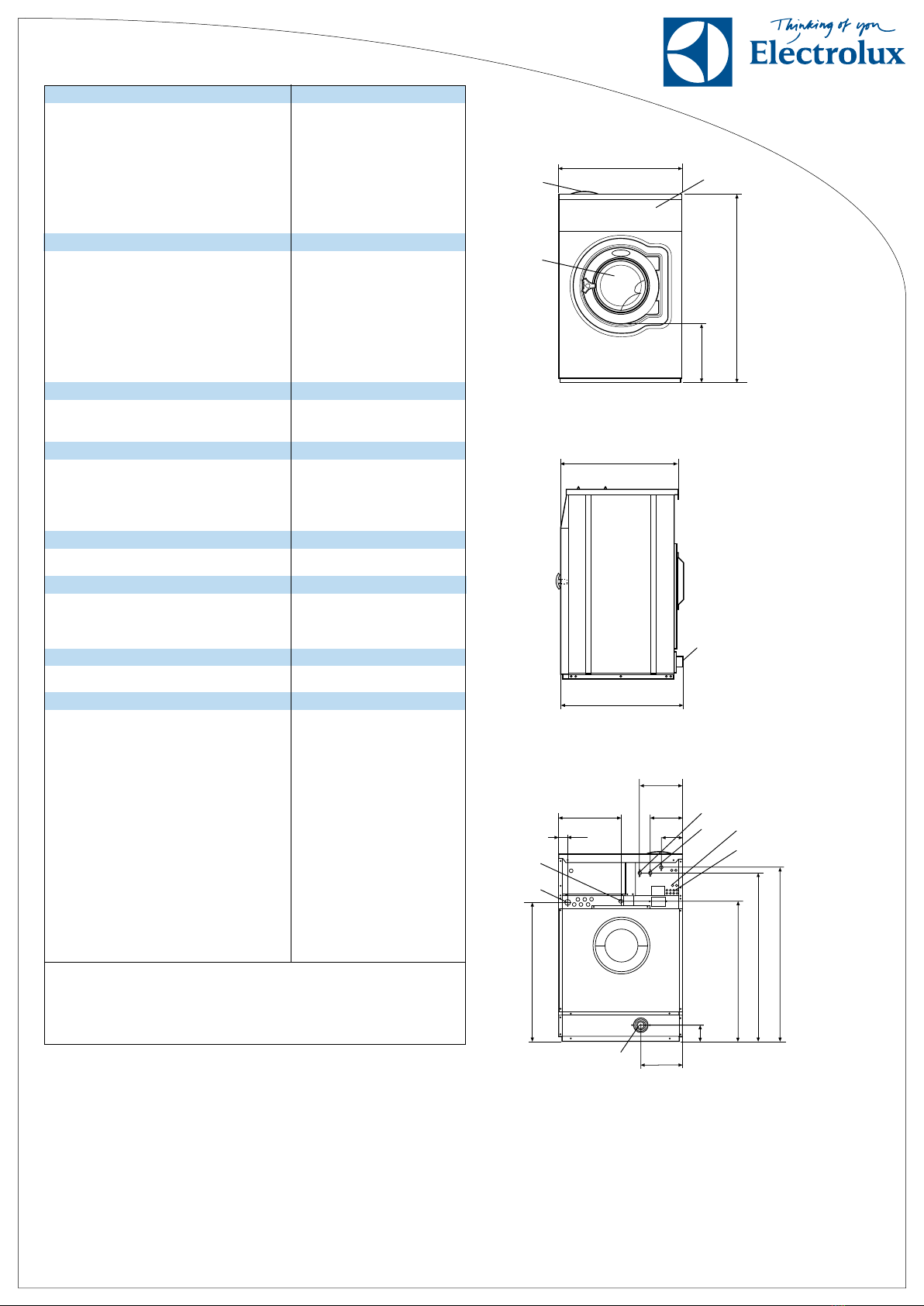

Dimensions in mm

A Width

B Depth

C Height

1 Electrical connections

2 Cold water

3 Hot water

4 Steam connection

5 Drain

6 Liquidsupplyconnections

7 Control panel

8 Soap box

9 Connections for water re-use

10 Door opening ø435

Front

Rear side

Right side

Art.No.438913571/2011.09.19

We reserve the right to alter speciﬁcations without notice.

Frontandsidepanelsinlightgreywith”BlueWave”onfrontpanel(RAL2607005,2506030)

* Othervoltagesavailable,seeinstallationmanual

** Approx.valueatoperatorspositioninamid-sizelaundryroom

www.electrolux.com/laundrysystems
