Electrolux W4400H Bedienungsanleitung

438 9211-81/EN

2011.01.31

Installation manual

Washer extractors

W4400H, W4600H, W4850H, W41100H

Type W4.H.

Clarus Control

Installation manual in original language

Contents

Safety Precautions.....................................................................................5

Technical data............................................................................................7

Installation................................................................................................11

Location and surface...........................................................................11

Mechanical installation ........................................................................11

Machine equipped with weight measurement ....................................11

Connecting the water supply ..............................................................16

Steam supply.......................................................................................17

Compressed air connection ................................................................18

Drain ....................................................................................................20

Ventilation............................................................................................20

Detergent dispenser, non-liquid detergents........................................21

Installation of equipment for external liquid supply.............................21

Electrical installation............................................................................22

Tilt function (optional equipment) ............................................................26

The manufacturer reserves the right to make changes to design and

component speciﬁcations.

Safety Precautions

All external equipment which is connected to the machine must be CE/EMC-approved

and connected using an approved shielded cable.

Safety Precautions

The machine is only intended for water-wash use.

Do not allow minors to use the machine.

Do not hose down the machine with water.

The machine's door lock must under no circumstances be bypassed.

If the machine develops a fault, this must be reported to the person in charge as soon

as possible. This is important both for your safety and that of others.

The machine is not intended to be used by people (including minors) with reduced

physical or mental capacity or lack of experience and knowledge. Such people must

be instructed in the use of the machine by a person who has responsibility for their

safety. Minors must be supervised to ensure that they do not play with the machine.

In order to prevent damage to the electronics (and other parts) that may occur as the

result of condensation, the machine should be placed in room temperature for 24 hours

before being used for the ﬁrst time.

W4400H W4600H W4850H W41100H

400 600 850 1100

920 980 1220 1220

37 36 42 42

825 800 720 663

36 36 or 54 – –

x x x x

350 350 350 300

1095-1450* 1380-1480 2200-2300* 2300-2400*

75 76 73 73

W4400H W4600H W4850H W41100H

32 32 40 40

1 1/4" 1 1/4" 1 1/2" 1 1/2"

200-600 200-600 200-600 200-600

50-1000 50-1000 50-1000 50-1000

150 150 200 200

110 110 110 110

400 400 400 400

20 20 32 32

3/4" 3/4" 1 1/4" 1 1/4"

300-600 300-600 300-600 300-600

50-800 50-800 50-800 50-800

6 6 6 6

1/8" 1/8" 1/8" 1/8"

500-700 500-700 500-700 500-700

20 20 20 20

Water valves DN

connection BSP

Rec. water pressure kPa

Functioning limits

for water valve kPa

Capacity at

300 kPa l/min

Drain valve

outer Ø mm

Draining capacity l/min

Steam valve DN

connection BSP

Rec. steam pressure kPa

Functioning limits for

steam valve kPa

Compressed air DN

connection BSP

Rec. air pressure kPa

Consumption l/h

Innerdrum

volume litres

diameter mm

Drum speed

wash rpm

extraction rpm

Heating

electricity kW

steam

hot water

G-factor

Weight, net kg

Sound pressure level

dB (A)

Technical data

Connections

* Precise weight depends on accessories ﬁtted.

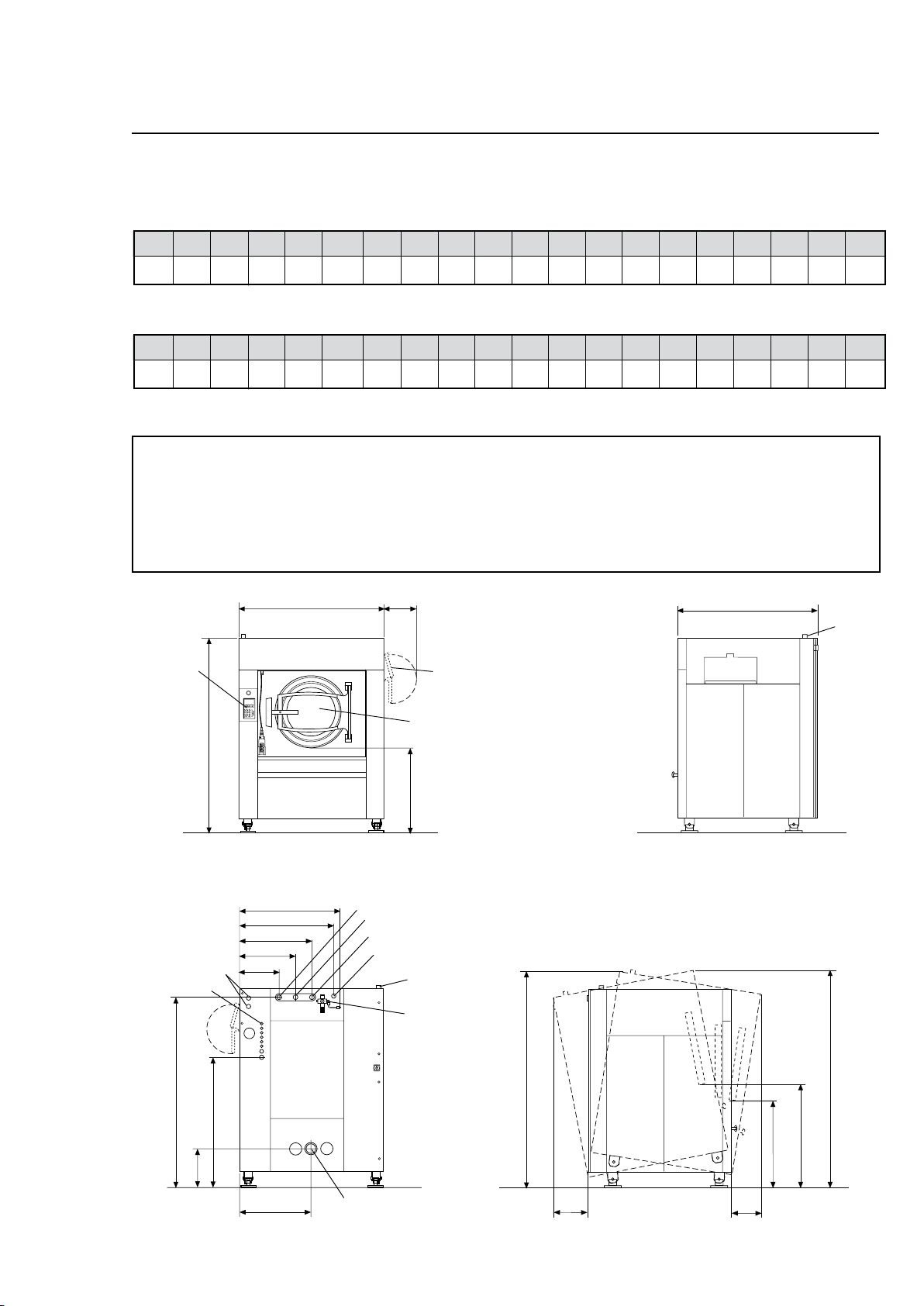

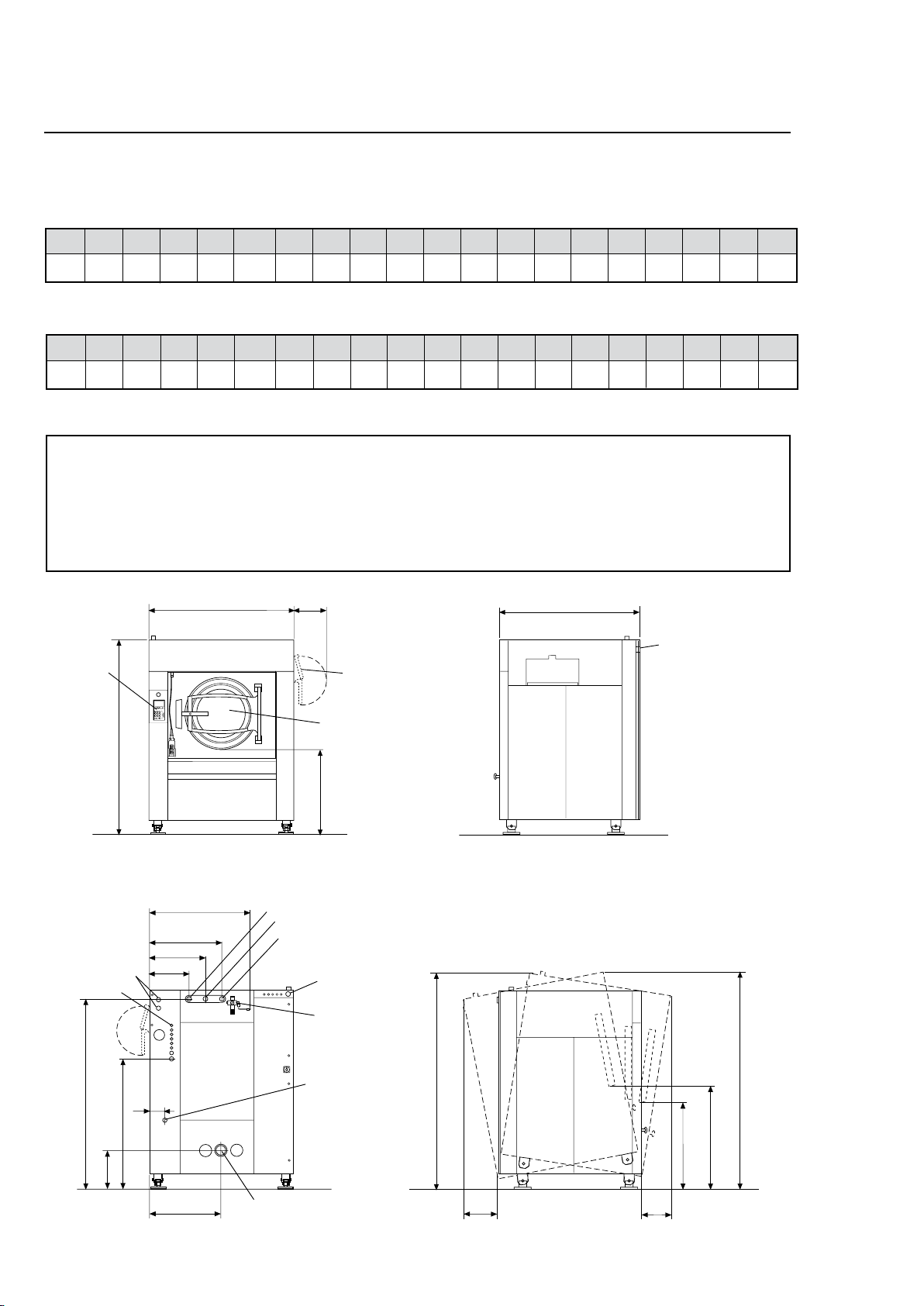

W4400H

A B C D E F G H I K L M N O P R S T U V

1325 1450 2015 910 300 1865 270 660 525 425 895 1425 420 435 2205 1140 2235 950 345 370

W4600H

A B C D E F G H I K L M N O P R S T U V

1390 1585 2015 910 300 1865 270 660 525 425 960 1425 420 435 2200 1120 2225 935 300 325

Technical data

Dimensions

1 Control panel

2 Door opening ø 535

3 Soap supply injector, powder

(optional)

4 Cold water connection

5 Hot water connection

6 Third water connection (optional)

7 Steam connection

8 Drain

9 Electrical connection

10 Compressed air

11 External liquid supply,

6 pcs ø 10, 1 pc ø 16 and 1 pc ø 20

12 Water connection, soap supply injector (optional)

The movement

when tilting

Front Right side

Rear side

6695

6696 A

6697 A

6698

W4400H

A B C D E F G H I K L M N O P R S T U V

1325 1450 2015 910 300 1865 270 660 525 425 895 1425 420 435 2205 1140 2235 950 345 370

W4600H

A B C D E F G H I K L M N O P R S T U V

1390 1585 2015 910 300 1865 270 660 525 425 960 1425 420 435 2200 1120 2225 935 300 325

W4850H

A B C D E F G H I K L M N O P R S T U V

1640 1635 2230 995 380 2135 1070 830 635 445 1140 1660 435 820 2410 1175 2480 960 285 400

W41100H

A B C D E F G H I K L M N O P R S T U V

1640 1850 2230 995 380 2135 1070 830 635 445 1140 1660 435 820 2400 1160 2480 955 240 335

1 Control panel

2 Door opening ø 700 mm / 27 9/16"

3 Soap supply injector, powder

(optional)

4 Cold water connection

5 Hot water connection

6 Third water connection (optional)

7 Steam connection

8 Drain

9 Electrical connection

10 Compressed air

11 External liquid supply, 6 pcs ø 10 mm / 3/8",

1 pc ø 16 mm / 5/8" and 1 pc ø 20 mm / 13/16"

12 Water connection, soap supply injector (optional)

Dimensions

The movement

when tilting

Front Right side

Rear side

6695

6696 B

6697 B

6698

Technical data

10 Technical data

W4400H W4600H W4850H W41100H

13.8 12.7 12.0 11.1

15.8 ± 1.2 15.9 ± 6.4 22 ± 7.3 24 ± 7.3

Frequency of the

dynamic force Hz

Max ﬂoor load

at extraction kN

Technical data

5.5 6 6.7 6.8

Sound levels

Airborne sound level

dB (A) re 2x10-5 Pa

With insulation

Motor

Power consumption kW

75 76 73 73

< 70 < 70 < 70 < 70
