Electronic Sound Solutions M-Blaster2 Bedienungsanleitung

MIDI FILES MP3 PLAYER

User’s Manual

Electronic Sound Solutions s.r.l.,

via Parigi, 79, 46042

Castel Goffredo MN,

tel. 0376 778712, fax 0376 772100

info@essound.com assistenza@essound.com

www.essound.com

INDEX

INDEX .................................................................................................................................. 2

INTRODUCTION ............................................................................................................... 3

CONNECTION AND COMMANDS ................................................................................4

POWER SUPPLY.............................................................................................................. 6

AUDIO CONNECTIONS.................................................................................................. 6

HOW TO START ................................................................................................................ 7

SWITCHING ON .............................................................................................................. 7

SONGS.............................................................................................................................. 8

HOW TO PLAY A SONG................................................................................................. 8

EASY TUNE ..................................................................................................................... 9

OPERATIONAL MODE..................................................................................................... 9

FUNCTION KEYS (FIG.1/6)............................................................................................ 10

SONGS MODE ............................................................................................................... 10

CHORDS AND LYRICS VISUALIZATION .................................................................. 11

PLAY/STOP/CONTINUE ............................................................................................... 12

PARAM. (PARAMETERS).................................................................................................. 13

TRKCHANG (TRACK CHANGE) ................................................................................. 15

PARAMETERS FOR MIDI FILES................................................................................ 15

PARAMETERS FOR MP3 FILES................................................................................. 19

PLAY LIST ..................................................................................................................... 20

HOW TO CHOOSE A LIST OF SONGS IN PLAY LIST................................................ 21

HOW TO PLAY SONGS IN PLAY LIST........................................................................ 21

LIST Visualize the list of songs in a group.................................................................... 22

TEXT and TRKCHANG (TRACK CHANGE)................................................................ 22

MENU/INFO...................................................................................................................... 23

DRUMKIT EDITOR .............................................................................................................................................. 24

TV SETUP............................................................................................................................................................... 26

C.F. UTILITY ......................................................................................................................................................... 26

SONGS ERASE................................................................................................................................................... 27

CLEAR ALL DATA............................................................................................................................................. 28

REBUILT INDEX ............................................................................................................................................... 28

FREE SPACE ..................................................................................................................................................... 28

MAKE A PLAYLIST ............................................................................................................................................. 28

EXPANDER MODE............................................................................................................................................... 29

USB CONNECTION ................................................................................................................................................. 30

OPERATING SYSTEM............................................................................................................................................ 30

COMPACT FLASH................................................................................................................................................... 31

TECHNICAL DATA SHEET .................................................................................................................................. 31

WHAT TO DO IF: ..................................................................................................................................................... 32

INTRODUCTION

First of all, ESS would like to thank you for your purchase of M-Blaster2.

M-Blaster2 is a MIDI, Karaoke and MP3 player characterized by a very

intuitive user interface.

M-Blaster2 plays:

•Standard MIDI files (.mid format 0 and 1)

•Karaoke files (.kar format 1)

•MP3 files (VBR/CBR, successfully tested up to 256 Kbps

(depending on the encoder)

M-Blaster2 utilizes as a data storage unit a Compact Flash Card that can

be loaded up to 4095 songs.

Included in the packaging are:

-n.1 Off- Line Switching Power Supply Adapter;

-n.1 CdRom containing the software E-link to transfer,

manage files and Backup;

-n.1 Operating manual;

-n.1 USB cable;

-n.1 Compact Flash card;

-n.1 Audio/Video cable (L+R Red/White / Video Yellow)

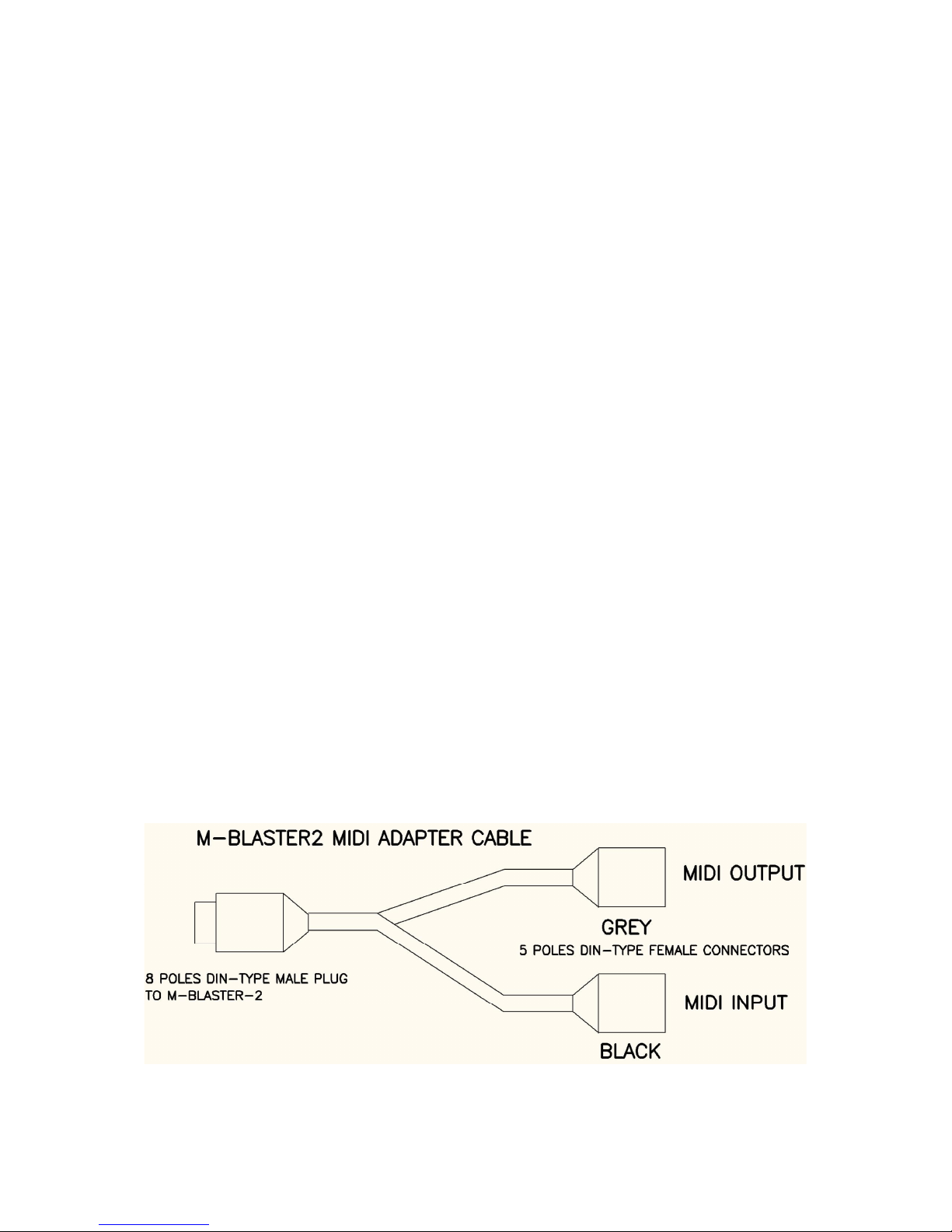

-N.1 Cable MIDI in/MIDI out

CONNECTION AND COMMANDS

Frontal panel

1 10 11 12

2 3 4 5 6 7 8 9

1) Alpha dial encoder, to modify the values of the various parameters

and change the displayed page;

2) Key to use to go back to the page previously displayed;

3) Key to access the global adjustments on the player, like: global

equalization, effects adjustment on the inputs Mic1/Mic2,global

transposition on MIDI songs;

4) Key to access options like: song erasing, adjustment of the TV set if

connected, page for the files transfer from the PC and the creation of

groups and Index. If the key is pressed while a song is in “play” mode,

the screen will display info about the song. It is possible to adjust the

display contrast pressing the MENU key (fig 1/4) and rotating the alpha

dial knob (fig. 1/1).

5) “Easy Tune” to instantly adapt the tonality key of the song on the

performer peculiarities;

6) Function keys to select different functions; depending on the page

displayed on the screen;

7) Compact Flash Card housing;

8) Play/Stop, to start or stop the song playback;

9) Slider keys, to underline the wanted element among those

visualized on the screen;

10) High brightness backlit display;

11) Individual microphones volume fader;

12) Global volume fader.

Back Panel

1 2 3 4 5 6 7 8 9 10

Fig.2

1) Stereo mini-jack output for headphones connection;

2 - 3) Microphones input (Jack 6,3 mm TSR);

4) Audio output (to be connected to the audio system);

5) Video connectors. Output (Video out) / Input (Video in)

6) Connector for video camera power supply (optional) or external

lyrics display (optional);

7) Port MIDI In when M-Blaster22 is an Expander and Port MIDI Out

to connect an external MIDI Synth generator;

8) USB connector to connect M-Blaster2 to a PC;

9) Power Switch;

10) Connection to the supplied external power supply adapter;

POWER SUPPLY

Connect the adapter plug (male) to the PWR IN female connector

positioned on the M-Blaster2 back panel

(Fig.2/10)

Finally, connect the adapter plug to the main socket.

IMPORTANT

Please use exclusively the supplied adapter. Otherwise, the

equipment can be damaged.

AUDIO CONNECTIONS

Connect the M-Blaster2 Audio Outputs (fig 2/4) to your audio equipment

(mixer line input or directly to the line inputs of an audio equipment,

inputs AUX or TAPE of your home Hi-Fi or else).

Note: in order not to damage the audio equipment, it is strongly

recommended that M-Blaster2 is turned on before the amplification set-

up.

HOW TO START

M-Blaster2 is supplied with a software E-link for the Personal Computer

that allows the MIDI and MP3 file transfer directly from the PC to the M-

Blaster2 data storage unit (Compact Flash Card) and moreover can be

used for backup operations.

First of all install the supplied software on the Personal Computer and,

successively, connect M-Blaster2 through a standard USB cable A/B

(such as the one used for USB printers ) to a properly functioning USB

port on the PC.

Note: when executing the program, if correctly set, M-Blaster2 will

automatically position on the “USB” page.

After having done this, launch the program double clicking on the icon

previously created during installation. As for the utilization, please refer to

the on-line guide included with the software.

SWITCHING ON

To switch the M-Blaster2 on, it is sufficient to insert the supplied adapter

connector in the corresponding socket positioned on the back panel and

push the ON button.

The display will light and after a few seconds wait, the display will read

the following:

READING PROGRAM

Shortly followed by

ESS

M-BLASTER 2

VERSION XXXX

MIDI MP3 PLAYER

For its correct functioning M-Blaster2 needs the Data storage unit

(Compact Flash Card), to be inserted in its proper housing (fig1/7).

Otherwise, on the display it will appear the following message:

“COMPACT FLASH NOT PRESENT”

note: The Compact Flash Cards are formatted when the product is sold;

However, if necessary, the formatting should be executed with the

following characteristics: FAT 12/16 bit formatting (it will be implemented

to FAT 32).

Insert the Compact Flash in its proper housing (fig1/7) without forcing its

introduction. M-Blaster2 will then display the page Songs. It is possible to

adjust the display contrast pressing the MENU key (fig 1/4) and rotating

the alpha dial knob (fig. 1/1).

SONGS

The page on the display (PAGE xxx) contains the songs list, in MIDI or

MP3 format, in alphabetical order, 6 titles of 26 letters per page where,

the audio songs (MP3) are marked by the “A” letter before the title while

the MIDI files are preceded by the suffix “M” (.mid) or “K” (.kar). Above

left on the display it is displayed the current page number. To visualize

the other pages it is sufficient to rotate the switch (fig. 1/1): at every click

the page will change to a new one containing 6 songs.

It is also possible to move from a song to another one, using the slider

keys; after the last song the next page will be displayed.

HOW TO PLAY A SONG

It is extremely easy to play a song, it is sufficient to select the requested

song on the current page through the slider keys (fig. 1/9), and then push

the PLAY button. To stop the playback, just push the STOP button. It is

also possible to keep playing the song just halted by pushing the

CONTINUE key that appears on the display after having used the STOP

button.

EASY TUNE

Thanks to this exclusive function it is possible to instantly adjust, before

or while playing a MIDI song, the tonality key depending on the user

needs.

The functioning is extremely intuitive:

•MALE: if this key is lighted M-Blaster2 will adjust the MIDI song key

for a male voice;

•NORMAL: if this key is lighted M-Blaster2 will play the MIDI song in

its original key;

•FEMALE: if this key is lighted M-Blaster2 will adjust the MIDI song

key for a female voice.

Note: the tonal transposition of “EASY TUNE” is not automatically saved.

In order to do that, the transposition will have to be done (and then

saved) in the “TRKCHANG” (track change) page.

Despite the fact that “EASY TUNE” adjusts correctly most of the MIDI

songs and the transposition depending on the performer (male/female), it

is possible that certain songs, with special peculiarities, will not adapt

perfectly to the transposition.

You can find the tonal transposition of “EASY TUNE” on the PARAM-

MIDI page.

OPERATIONAL MODE

Before describing the various operational modes, it is necessary a

preliminary remark on the display and on the slider key. The meaning of

the words and the symbols visualized on the display varies depending on

the chosen mode:

•in SONGS mode: name of the songs;

•in PLAYLIST mode: name of the groups;

•in MENU/INFO mode: player managing functions or played song

characteristics;

•in PARAM.mode: MIDI/Audio global adjustments functions, like the

MIDI transposition and equalizations.

FUNCTION KEYS (fig.1/6)

The use given to the four function keys F1-F2-F3-F4 is variable and

changes from time to time depending on the active operational mode.

Clearly, it is not necessary to remember which function is assigned to

every key as it shows on the last line displayed: in correspondence of

every function key there is a box that displays the possible use of the

below key in that moment.

In this way the four function keys can always access the “typical”

functions of the operational mode running in that moment.

SONGS MODE

The functions offered by the SONGS mode allow to:

•choose via the slider keys a single song to play using the PLAY

key;

•visualize chords and lyrics (if memorized in the song);

•adjust volume, effects, transposition and playing metronomic time

of the song (“TRKCHANG”);

•exclude instantly from the listening the melody track (if present in

the MIDI file).

Authorised function keys:

If in SONGS mode and with no song in PLAY (or if the previous song is

finished), M-Blaster2 is in “stand-by” (the STOP button is lighted while

the PLAY button is off);

In the last line of the display the following function keys are active:

•“TRCK ON” / “TRCK OFF”: it allows halting the melody track from

playing. The factory set MIDI channel is 4, however in “Param.”→

“MIDI” it is possible to assign the value to other channels as well.

Once set, the parameter will remain active until the equipment is

turned off or when the function is disabled;

“TRCK ON” the melody track (ch4 default) is activated;

“TRCK OFF” the melody track (ch4 default) is disabled.

•“PLAYLIST”: allows to access the PLAYLIST mode described later;

Inhaltsverzeichnis

Andere Electronic Sound Solutions MP3-Player Handbücher

Electronic Sound Solutions

Electronic Sound Solutions M-Blaster Bedienungsanleitung

Beliebte MP3-Player Handbücher anderer Marken

Blaupunkt

Blaupunkt Compact Drive MP3 Bedienungsanleitung

Memorex

Memorex MMP9008 - 8GB USB 2.0 Bedienungsanleitung

Meizu Electronic Technology

Meizu Electronic Technology E5 Bedienungsanleitung

Naxa

Naxa NMV-173NX Bedienungsanleitung

Philips

Philips PSA250 Bedienungsanleitung

Zipy

Zipy go! Waving Bedienungsanleitung

Sylvania

Sylvania SMPK4068 Bedienungsanleitung

Sony

Sony NW-MS7 - Memory Stick Walkman Bedienungsanleitung

Irradio

Irradio RF-42UC Bedienungsanleitung

NABAIJI

NABAIJI SWIM MUSIC 100 Bedienungsanleitung

Laser

Laser MP3-A9-4GB Bedienungsanleitung

Samsung

Samsung YP-T7F Bedienungsanleitung

Savant

Savant SMS-1001-00 Kurzanleitung

Trevi

Trevi XP 71 BT Bedienungsanleitung

AGPtek

AGPtek C2 Bedienungsanleitung

MobiBlu

MobiBlu DAH-1500i Bedienungsanleitung

Denver

Denver MPS-201 Bedienungsanleitung

Steren

Steren MP3-002 Bedienungsanleitung
