Elegoo NEPTUNE 3 PRO Bedienungsanleitung
User Manual for
NEPTUNE 3 PRO
3D Printer
Pictures are only for illustration purpose, please take actual product as standard.
Thank you for choosing ELEGOO product!
For your convenience, please read this instruction manual carefully before use, the cautions and
tips in this manual can help you better avoid incorrect installation and use.
For questions or problems not covered in this manual, please contact us at this email address:
ELEGOO team is always ready to provide you with quality service.
To give you a better experience of our products, you can also gain knowledge of the operation of the
equipment in the following ways：
1.The instruction manual: You can find the relevant operating instructions and videos on how to
operate the machine in the TF Card.
2.ELEGOO official website: www.elegoo.com You can go to our official website to find the relevant
operating instructions for the machine and contact information.
Cautions
1. Do not place the printer in vibrating or other unstable environments, as the shaking of the machine
will affect the print quality.
2. Do not touch the nozzle and heatbed when the printer is working to prevent high-temperature
scald and personal injury.
3. After printing, please take advantage of the residual temperature of the nozzle and clean the
filaments on the nozzle with the help of tools. Do not touch the nozzle directly with your hands during
cleaning to avoid scald.
4. Please do product maintenance frequently, and regularly clean the printer body with a dry cloth to
wipe away dust and sticky print material under the situation of power off.
5. 3D printers contain high-speed moving parts, so be careful not to get your hands caught.
6. Children must be supervised by adults when using the machine to avoid personal injury.
7. In case of emergency, please cut off the power directly.
Contents
Machine Parameters ----------------------------------------------------
Machine Structure Diagram --------------------------------------------
Packing List ----------------------------------------------------------------
Machine Installation ------------------------------------------------------
Operation Screen Introduction ----------------------------------------
Auto Leveling -------------------------------------------------------------
Model Test ------------------------------------------------------------------
Resume Printing Description ------------------------------------------
Software Installation -----------------------------------------------------
Online Print ----------------------------------------------------------------
Troubleshooting Guide -------------------------------------------------
Circuit wiring --------------------------------------------------------------
17
14
12
11
10
9
8
4
3
2
1
18
1
Machine Parameters
Print Parameters
Print Principle: FDM（Fused Deposition Modeling）
Build Size: 225X225X280(mm³)
Print Precision: ±0.1mm
Nozzle Diameter: 0.4mm
Print Speed: 30~180mm/s（60mm/s is recommanded）
Temperature Parameters
Ambient Enviroment Temperature: 5°C~40°C
Maximum Temperature of Nozzl: 260°C
Maximum Temperature of Hotbed: 100°C
Software Parameters
Slicer Software: Cura
Input Format: STL、OBJ
Output Format: Gcode
Connection Type: TF Card、USB Wire
Power Supply Parameters
Power Input: 100-120V/220-240V
Power Output: 24V
Physical Parameters
Machine Size: 475*445*515mm
Net Weight: 8.1kg
2
X-axis limit
switch
Lead Screws T8
Rigid Coupling
Filament tube
Filament holder
Filament detector
switch
X-axis belt
tensioner
Type-B interface
TF Card
slot
Touch screen
Timing Pulley
X-axis
stepper
Z-axis
stepper
Y-axis
stepper
Power Switch
Y-axis belt
tensioner
Build platform
Nozzle kit
Machine Structure Diagram
ELEGOO 3D Printer
01 02
3
03 04 05 06 07
08 09
Fasteners
Tools
Packing List
（HM5*45）4pcs
（PM4*20）5pcs
（PM4*8） 1pcs
（HM4*M3*3) 1pcs
(1.5 / 2.0 / 2.5 / 3.0 / 4.0)
4（HM5*45）4pcs
03
02
01
4.0
① ②
2.5

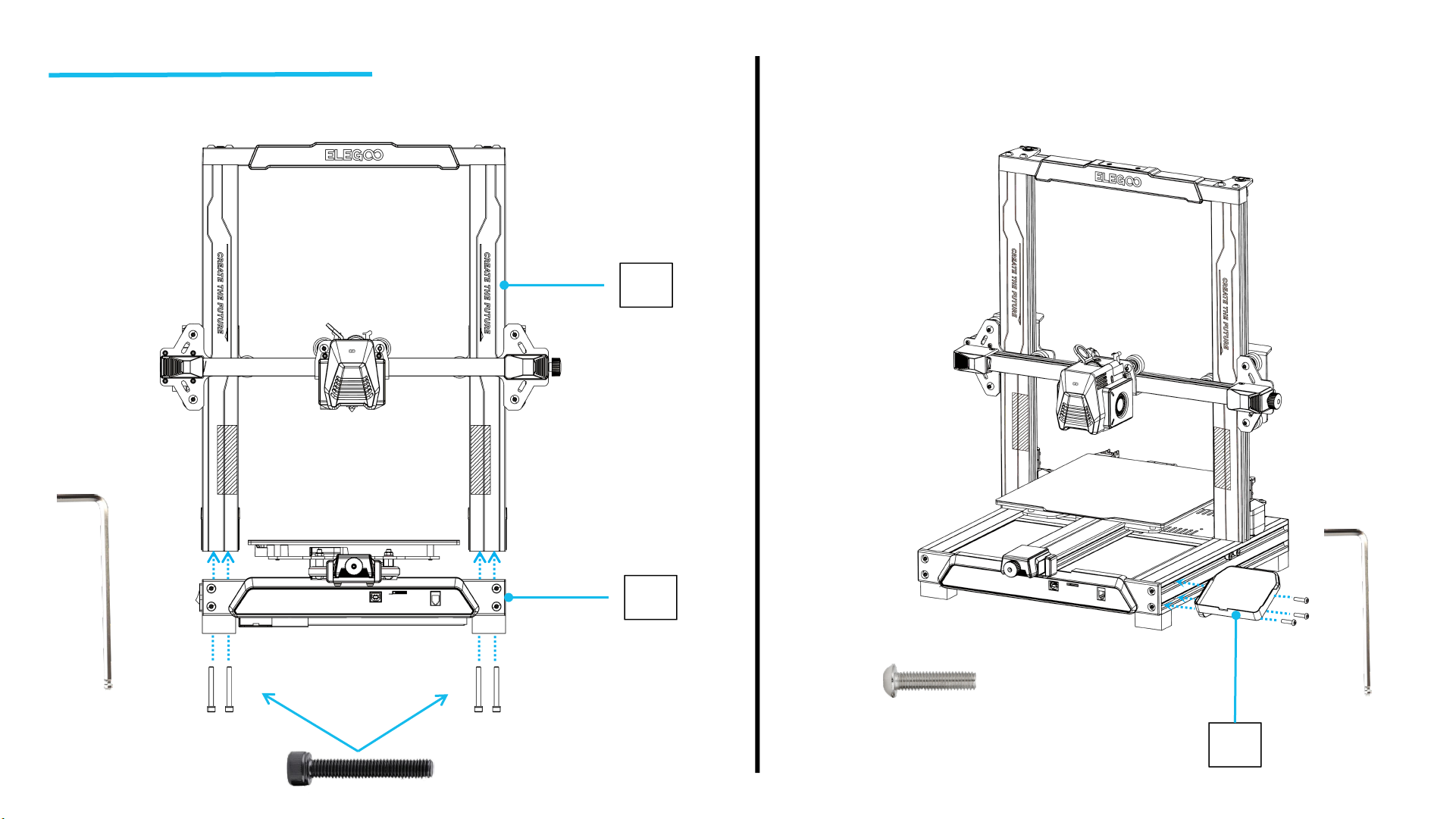

Machine Installation
The TF card of the machine comes with an installation instruction video.
（PM4*20）3pcs
5
05
③ ④
04
06
07
3.0
（PM4*20）2pcs
Filament detector installation:
R-shaped buckle fixing:
08
（PM4*8） 1pcs
（HM4*M3*3) 1pcs
2.5
2.5
6
X
X
Z
⑤
Please adjust the voltage
to match the local
voltage before use.
Filament detector switch
X-axis limit
switch
X-axis
stepper
Z-axis
stepper
