FOR SUPPORT, VISIT ELEMENTELECTRONICS.COM/SUPPORT 1Quick Start Guide

Roku, Roku TV, and the Roku logo are the trademarks of

Roku, Inc. All other trademarks and logos herein are the

property of their respective owners.

OUTDOOR

TELEVISION

55"

CLASS

QUICK START GUIDE2FOR SUPPORT, VISIT ELEMENTELECTRONICS.COM/SUPPORT 3

WHAT’S

INCLUDED

Your new TV!

Remote

2 AAA

Remote

Batteries

WHAT YOU’LL NEED

(NOT INCLUDED)

Screwdriver

Phillips head

needed for mounting

Wireless Router

Needed for streaming

Smartphone, Computer or Tablet

Needed for setup

Internet Connection

Needed for streaming

Protective Remote Sleeve

QUICK START GUIDE4 FOR SUPPORT, VISIT ELEMENTELECTRONICS.COM/SUPPORT 5

CONNECT DEVICES

TO YOUR TV

Your TV’s connections are secured behind a panel door on the back of your TV. is panel

is lined with foam to keep dust & moisture out and keep your cords dry and in place.

To access your TV’s ports and connect devices, complete the following:

1. Place TV screen-down on a clean, at, so surface

(ie: blanket) to prevent scratches or damage to the screen.

2. Locate the panel door on the back of your TV, remove the seven

screws by hand and open panel door. See ﬁ gure one.

3. Find the power cord (located inside the door) and run the

plug out to the bottom of the panel. Do not connect to power

until all cable connections have been made. See ﬁ gure two.

4. Plug in any devices and ensure they are securely connected.

Device cords should run at out the bottom of the panel (between

the two bottom screw holes) and not be layered. See ﬁ gure two.

5. Close the panel door and replace the seven screws tightly by hand,

ensuring there are no large gaps between the foam and cords.

Before mounting:

ﬁ gure one

ﬁ gure two

power cord

run cords through here

QUICK START GUIDE6FOR SUPPORT, VISIT ELEMENTELECTRONICS.COM/SUPPORT 7

CONNECT DEVICES

TO YOUR TV

Check to ensure that you have selected the right cables for the ports and

that they are connected securely (cables and external devices not included).

Loose connections can aect your picture and audio quality.

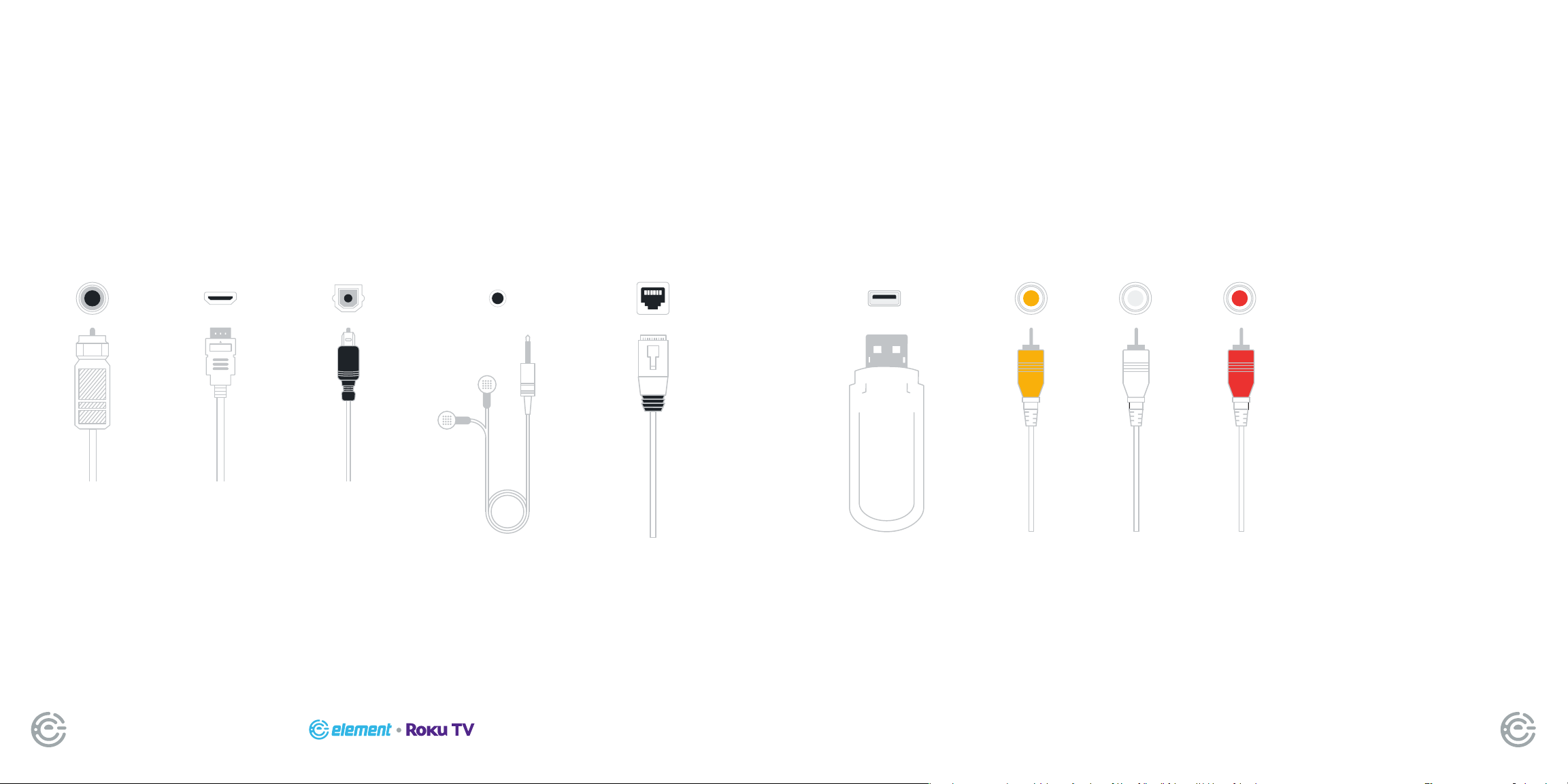

ANT/CABLE HDMI OPTICAL VIDEO IN L R

Connect an

outdoor or

indoor

antenna.

Connect a Blu-ray

or DVD player,

gaming console,

or other external

devices to your TV.

Highest quality

audio/visual

connection.

Connect

an optical

cable from

an external

digital audio

system.

Connect a composite video cable and le-right

audio cables from an external AV device.

CONNECT DEVICES

TO YOUR TV

HEADPHONE LAN USB

Connect

headphones

or external

speakers.

Connect an Ethernet

cable to access

a network or the

Internet. e TV

also has a wireless

connectivity feature.

Connect a

USB device for

browsing photos,

music, movies, or

pausing live TV.

(continued)

QUICK START GUIDE8 FOR SUPPORT, VISIT ELEMENTELECTRONICS.COM/SUPPORT 9

1. Place TV screen-down on a clean, at, so surface (ie: blanket)

to prevent scratches or damage to the screen.

2. Using a Phillips head screwdriver, remove the four screws located inside

the VESA mount points as shown. WARNING: e included screws are

NOT for use with a wall mount and should be removed before mounting.

3. Mount the VESA bracket using four M8 x 20 mm (max depth) screws (not included)

and follow the mounting instructions provided with your wall mount.

TV PLACEMENT

IMPORTANT: Choose a location for your TV where

it will NOT be in direct sunlight and is partially

shaded (ie: near trees, under structures, patio

cover, etc.). Remember that the position of the sun

changes throughout the day, so choose a location

and position based on the time of day you would

use it most oen.

WARNING: e TV must be installed at least ve

feet from a pool, spa, or other body of water.

Your TV has four mounting holes for a VESA approved mounting bracket (not included).

Please ensure your wall mount can hold >71lbs and is compatible with a 300 x 300

VESA mount pattern. A minimum of two people are required for installation.

CAUTION: Your new TV is heavy! If you have any doubts about your ability

to safely install your TV, please consult a professional installer.

700

nits

MOUNTING YOUR TV

(continued)

TIP: Please connect

all your devices

prior to mounting

your TV, as the

connections

panel will not be

easily accessible

aer mounting.

300 mm

QUICK START GUIDE10 FOR SUPPORT, VISIT ELEMENTELECTRONICS.COM/SUPPORT 11

SETTING UP

YOUR TV

SETTING UP

YOUR TV

Power your TV remote by

inserting the included batteries

carefully matching (+) and (-)

indicated inside the battery

compartment.

Place remote inside protective

sleeve for added protection

against falls or condensation.

e protective sleeve is not

weather-proof. Please

properly store your remote

indoors when not in use.

Place Batteries

in Remote

Find your TV’s power cord

by accessing the panel door

located on the back of your

TV (see pages 4-5 for complete

access instructions). Next, plug

your TV into the wall outlet and

press the power button on your

remote control.

Plug in and

Turn on TV

Power

Button

When your TV powers on, follow the easy on-screen

instructions for setup.

Your TV will automatically detect wireless networks

in your area, so have your network name and password

handy. If you aren’t ready to connect to a wireless

network you can still use it as a regular TV.

Follow the On-Screen Instructions

Activate your TV using your computer,

smartphone, or tablet to link to a Roku

account. You need a Roku account to

activate your TV and access entertainment

across thousands of streaming channels.

NOTE: ROKU DOESN’T CHARGE

FOR ACTIVATION SUPPORT -

BEWARE OF SCAMS.

Roku accounts are free and while a

valid credit card number is not required

to create a Roku account, saving your

credit card information makes renting

and purchasing entertainment from the

Roku Channel Store fast and convenient.

Once connected to your account,

your TV will automatically update with

the latest soware, and you can start

streaming immediately.

Activate Your Smart TV

(continued)

A paid subscription or other payments may be required for some streaming channels.

Channel availability subject to change and varies by country.

If your remote gets warm/hot during use,

discontinue use and contact customer

support immediately.

QUICK START GUIDE12 FOR SUPPORT, VISIT ELEMENTELECTRONICS.COM/SUPPORT 13

USING YOUR

REMOTE

Power Turn TV on and o

Back Return to previous screen

Home Return to Roku Home screen

Volume Raise and lower volume

OK Select an option from a menu

Navigate Move up, down, le or right

Mute Mute and restore sound

Instant Replay Replay the last

few seconds of streaming video

Sleep Set the sleep timer

Options Access to picture settings,

more streaming channel icons and more

RWD Rewind streaming video,

scroll le one page at a time

Play/Pause Start or pause playback

FWD Fast forward streaming video,

scroll right one page at a time

TIP: e button gives you easy access

to picture settings, display options and

more. Try it on every screen.

CONNECTING

AN ANTENNA

With the built-in tuner you can connect your TV to

an antenna and enjoy over-the-air entertainment.

1. When the setup wizard is complete select the

Antenna/Live TV icon from the home screen.

2. Follow the on-screen instructions.

3. Whenever you want to watch antenna TV,

select the Antenna/Live TV icon.

4. Live TV Pause feature: Pause up to 90

minutes of live antenna TV when you connect

a 16 GB or larger USB drive to your TV. All data

on the USB drive will be deleted prior to use.

UNIVERSAL

REMOTE SETUP

If you prefer to use your cable set-to box or satellite receiver remote as a

universal remote, please refer to the manual your cable or satellite service

provided. It includes instructions on how to program your remote to your TV.

You can nd the most common cable and satellite provider universal

remote codes at roku.com/universalremote.

e Roku TV remote should feel right at home in your

hand. We designed it to be incredibly intuitive for

watching TV and navigating on-screen menus.

Actual remote includes pre-set channel buttons with channel logos.

B C

KLM

QUICK START GUIDE14 FOR SUPPORT, VISIT ELEMENTELECTRONICS.COM/SUPPORT 15

LET’S REGISTER

YOUR PRODUCT

It’s super easy, just head on over to

elementelectronics.com/register

WE’RE HERE

TO HELP

elementelectronics.com

1.888.842.3577

customerservice@elementelectronics.com

Find resources and get help with product setup,

connecting devices, technical issues,

downloading manuals and more!

BENEFITS OF REGISTERING YOUR PRODUCT:

Updates

Stay current with

important product updates

and notications.

Support

Get assistance quickly

by pre-registering

your product.

News & Offers

Take advantage of the
