Elgato RING LIGHT Bedienungsanleitung

REVIEWERS GUIDE

1. RING LIGHT AT A GLANCE

2. ADVANTAGES OF RING LIGHT

3. EDGE-LIT ARCHITECTURE

4. PRECISE COLOR TEMPERATURE CONTROL

5. RING LIGHT HARDWARE

6. ASSEMBLING RING LIGHT

7. MOUNT A CAMERA

8. PAIR RING LIGHT

9. SOFTWARE - CONTROL CENTER

10. WORKS WITH STREAM DECK

11. WORKS WITH MULTI MOUNT

12. PRODUCT COMPARISON

13. PRODUCT DETAILS

14. CONTACT INFORMATION

15. GLOSSARY

16. TROUBLESHOOTING

CONTENTS

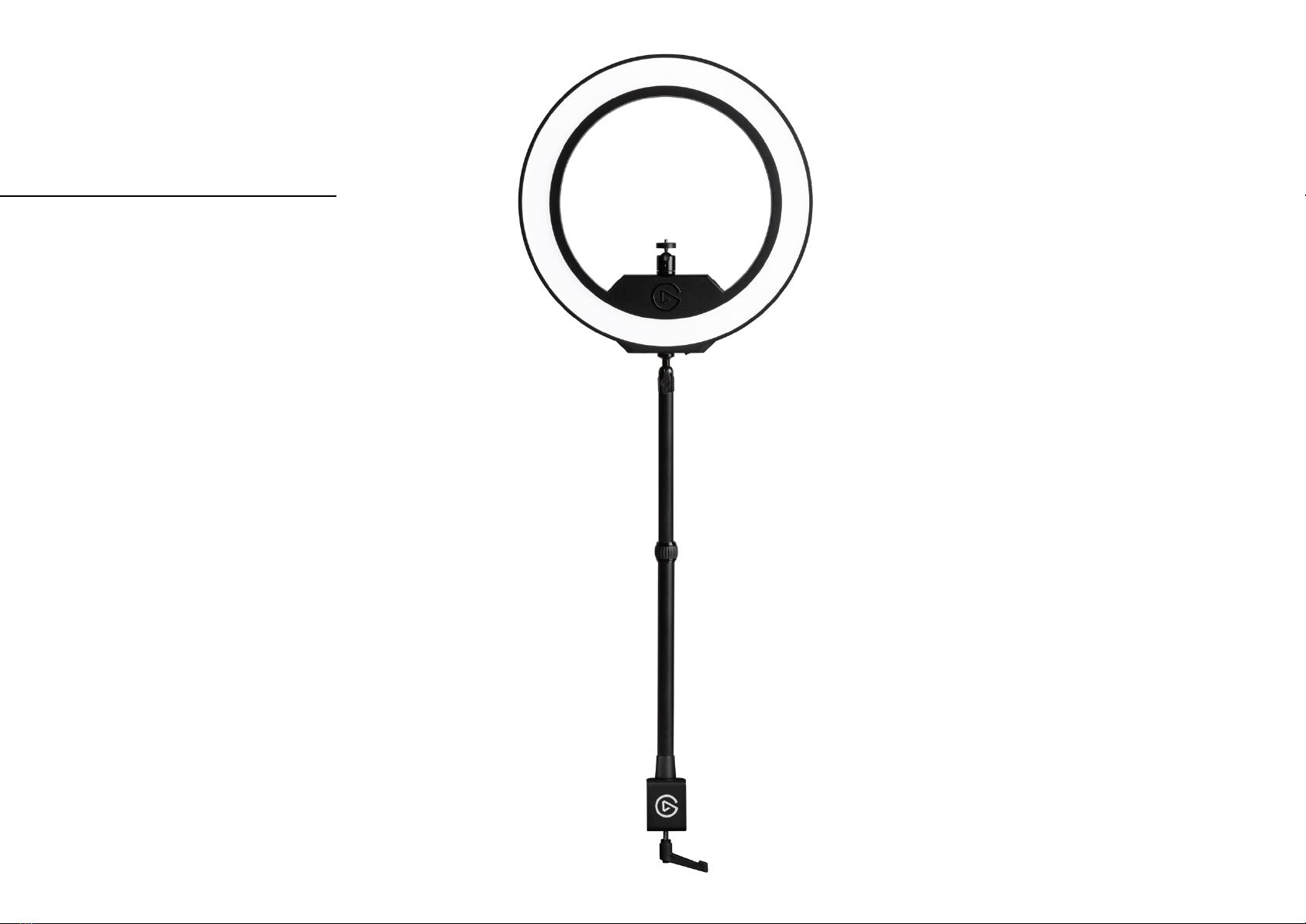

RING LIGHT

AT A GLANCE

TOTAL CONTROL

Control light settings via the

onboard buttons or app on Mac/

Windows/iPhone/Android.

2500 LUMENS

Ultra-bright and fully dimmable.

2900 – 7000 K

Adjust color from sunset

amber to arctic blue.

PREMIUM OSRAM LEDS

Constant intensity without ﬂicker.

EDGE-LIT WITH MULTI-

LAYER DIFFUSION

Indirect, even illumination

guarantees comfort for hours.

CAMERA BALL MOUNT

Set camera angle independently

of the lighting angle.

MASTER MOUNT S

Adjust height and beam angle.

PADDED DESK CLAMP

Super secure and space-saving.

MULTI MOUNT COMPATIBLE

Explore additional rigging options.

WORKS WITH STREAM DECK

Direct integration provides

one-touch tactile control.

ADVANTAGES

OF RING LIGHT

Ring lights are among the

most popular lighting choice

for content creators and portrait

photographers for good reason:

they illuminate evenly and

eliminate shadows.

Elgato Ring Light does a whole

lot more to deliver a truly

professional, ultra-comfortable

lighting experience:

WI-FI ENABLED

Switch on/off and

ﬁne-tune light settings

via the Control Center

app on Mac, Windows,

iPhone and Android –

without using the

onboard buttons.

LOW HEAT OUTPUT

Gone are the days of

sweating while creating

content. Thanks to

premium LEDs and a

compact form factor, Ring

Light emits minimal heat.

HIGH-QUALITY OSRAM LEDS

Featuring 160 premium OSRAM

LEDS, Ring Light can output up to

2500 lumens and dim down to zero.

At up to 45 watts, maximum power

draw is much lower than that of

traditional soft box lights.

WIDE COLOR RANGE

A color temperature range

of 2900 K to 7000 K lets

you set the perfect hue

from warm yellow through

icy white to cool blue, and

every shade in between.

GLARE-FREE DIFFUSION

Edge-lit architecture

with multi-layer diffusion

technology ensures soft

illumination that’s easy on

your eyes.

EDGE-LIT

ARCHITECTURE

In conventional light panels, LEDs are

positioned behind the viewing surface and

shine directly at the user, thus causing eye

discomfort and lighting artifacts.

With Elgato Ring Light, LEDs line the

inner circumference of the frame and shine

across the reﬂective back panel. Only then

is light distributed outwards. This indirect

lighting method combined with three

diffusion layers results in bright yet soft

illumination that is free from visible

hotspots, and does not strain the eyes.

PRECISE COLOR

TEMPERATURE CONTROL

With 160 high-quality OSRAM LEDs and a

color temperature range of 2900 K to 7000 K,

Ring Light easily adapts to almost any lighting

conditions you throw at it. Cloudy outside? Dial

in 2900 K to warm up your shot. Ceiling lamps

saturating your camera feed? Counteract their

orange tint with a cool color temperature of

6500 K.

Compared to conventional ring lights that

come with a handful of fragile color ﬁlters

which need to be manually ﬁtted, Ring Light

sports over eighty different color temperature

settings, and a CRI rating of over 94.

7000 K 2900 K

RING LIGHT HARDWARE

EDGE-LIT LED PANEL

with multiple diffusion layers

DECREASE

COLOR TEMPERATURE

OR BRIGHTNESS

INCREASE

COLOR TEMPERATURE

OR BRIGHTNESS

CAMERA BALL

HEAD MOUNT

with 1/4 inch threading

POWER SWITCH

MASTER MOUNT S

with steel tubing and joints

ASSEMBLING RING LIGHT

2. Secure Ring Light to the 1/4 inch screw

on top of the ball head. Extend Master

Mount S to your preferred height.

1. Download and install the Control Center

app for Mac, Windows, iOS or Android.

3. Connect the power supply and plug it into

a power outlet. Switch on Ring Light. It will

take approximately 10 seconds to boot up.

DOWNLOAD SOFTWARE

MOUNT A CAMERA

Ring Light comes with a camera ball head mount

featuring the industry standard 1/4 inch threaded

screw.

To attach a camera to Ring Light, hold the camera

in place with one hand while turning the ball head

with the other hand to secure the cam-era. After

the camera is secure, fasten the mount into place

by using the tightening screw.

The maximum supported weight of the camera

mount is 2.00Kg /4.5lbs. Ensure that the camera,

including lens does not exceed the weight limit.

If the camera has a particularly long or heavy lens

attached, extra tightening of the ball head mount

may be required to stop the camera from tilting

forward.

max. 31 cm / 12.2 in

MAXIMUM LOAD

2,00 kg / 4,50 lbs

PAIR RING LIGHT - WINDOWS

DOWNLOAD SOFTWARE

1. Download and install Elgato Control

center from the following links:

Windows

https://edge.elgato.com/egc/windows/

eccw/1.1/ControlCenter_1.1.3.767_x64.msi

macOS

https://edge.elgato.com/egc/macos/

eccm/1.1.3/Control_Center_1.1.3.10336.zip

2. Open Control Center and click

on the + icon. If Ring Light is found,

a number will appear next to the

+ icon indicating how many Ring

Light devices are in range and ready

for pairing.

3. Select the Ring Light which will

be paired and click on connect.
