Insta-DE 2 Series

Dry-Erase Front Projection Screen Film

User’s Guide

Product Features

Award winning and GREENGUARD certified VersaWhite material.

1.1 gain with 180 degree wide viewing angle.

Special anti-scratch layer to ensure long use as a dry-erase/projection screen.

Anti-reflection diffusion surface eliminates glare and hot-spot while using a projector.

Application Advantages

Instantly converts flat surfaces/walls into a dry-erase whiteboard projection screen.

Includes adhesive black velveteen border to enhance contrast and overall appearance.

Perfect dry-erase and projection solution for today's short throw projectors.

Ideal and effective instructional presentation tool in the classroom, boardroom, and training facilities.

Product specifications

Specifications:

Color display

White

Thickness

2.1mm

Material composition

High molecular weight copolymer

of Terephthalic acid ethyl esters

Weight

1m2/377g

Temperature

At room temperature

Gain

1.1

Viewing Angle

160∘

What’s in the package

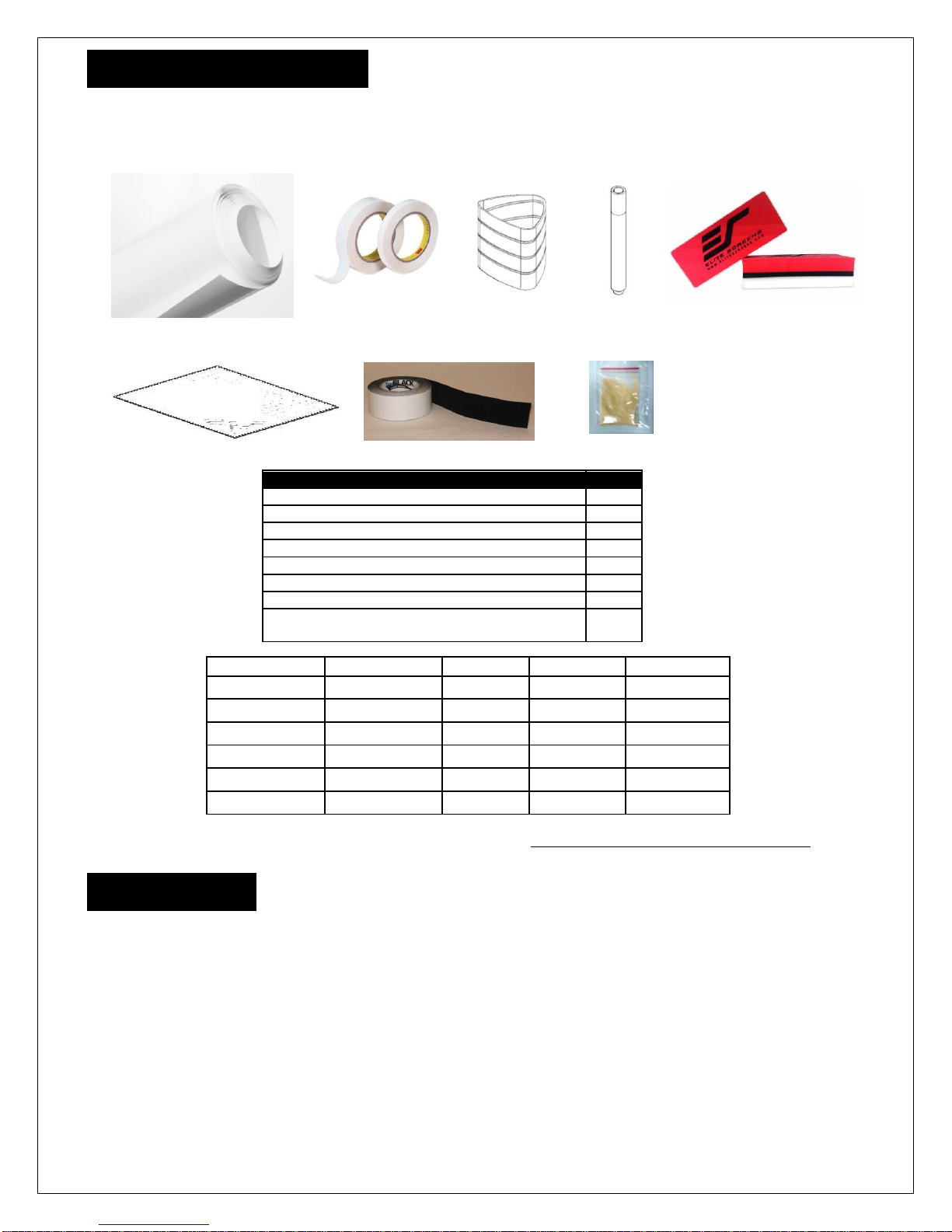

Please make sure all parts listed below are included.

a b c d e

f g h.

Model Number

No powder bag

1 bag(25g)

2 bags (50g)

3 bags (150g)

IWB86VW2

IWB97XW2

IWB105HW2

IWB4.2x10W2

IWB4.2x20W2

IWB4.2x30W2

Notes: For best results and maximum product longevity, ALWAYS and ONLY use a high density whiteboard Eraser.

Preparation

The Insta-DE 2 product is to be solely installed on flat surfaces. Prepare the flat wall/surface by cleaning

the entire area. Do not install if any imperfections are found on the surface such as drilled holes, glue/tape

residue, dents, etc. We recommend sanding the area first to make sure you have a clean flat and smooth

surface. Failure to remove such imperfections can damage the product. The dry erase function of this

product requires a smooth writeable surface and Elite Screens is not responsible should these instructions

are not be properly followed.

Take the Insta-DE 2 film roll out of the package and unroll it on a clean surface and lay it on its front side.

Parts List

QTY

a. Insta-DE 2 Screen Material Film Roll

b. Double-sided adhesive tape

c. Self-stick cradle

d. Whiteboard pens

e. High density eraser

f. Microfiber cleaning cloth

g. Black velvet border adhesive strip roll

h. Powder compound (xanthan gum)

See chart below for details

1-3

Rev101612-JA www.elitescreens.com/ide2 3

Installation using double-sided tape

For models IWB86VW2, IWB97XW2, and IWB105HW2

1. Begin by marking the size of the screen size to be installed on the wall or surface.

2. Peel off one side of the double-sided adhesive film

tape and apply it from top to bottom (vertically)

every four to six inches apart from one end to the

other.

3. After the double-sided tape has been applied, completely peel off the first strip and peel off the

rest about an inch as shown below.

Two people required:

4. Carefully pick up the Insta-DE2 film and make sure the back side is facing the wall it will be

installed on. Do not allow the film to fold in any way to avoid permanent damage.

Note: The back side of the Insta-DE2 is shinny.

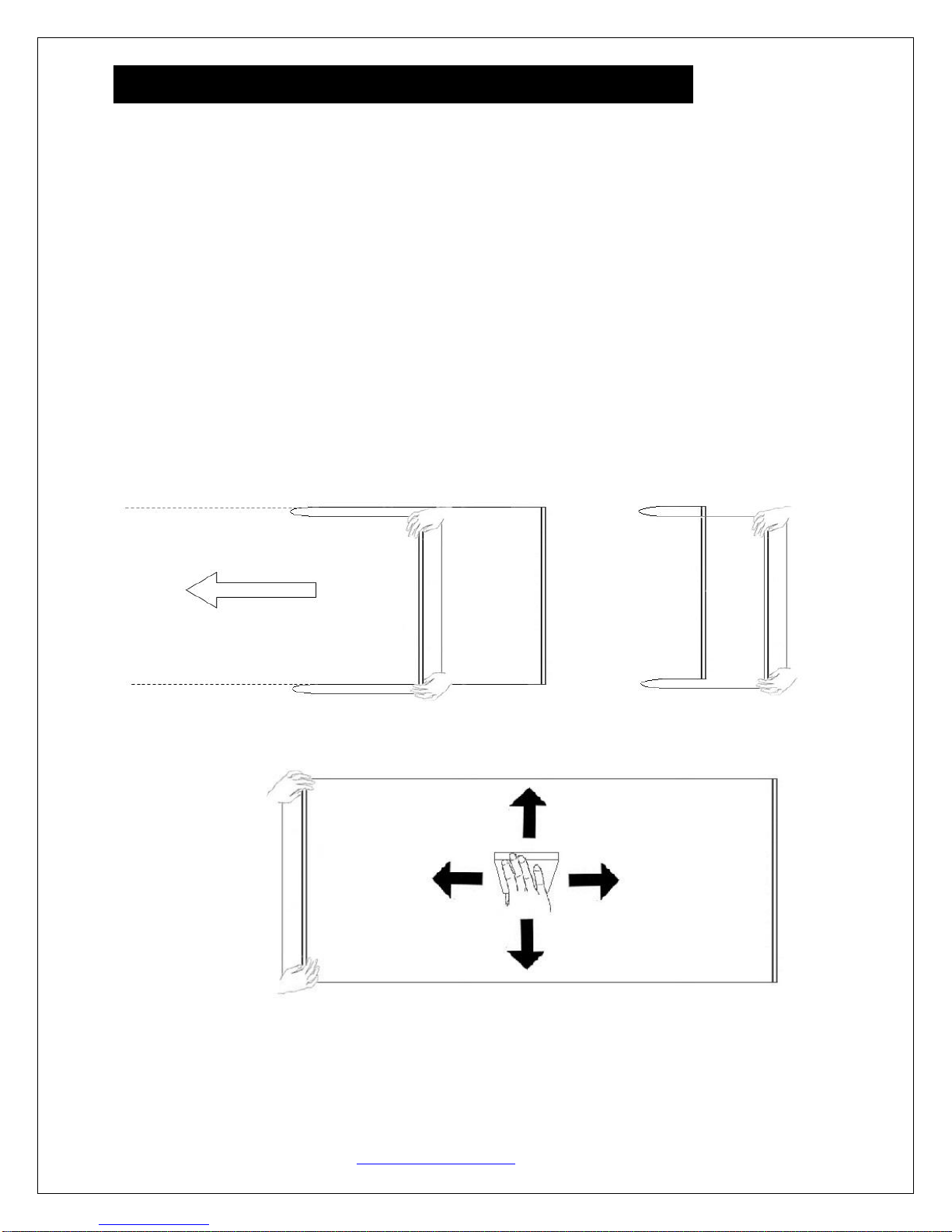

5. Gently bring the Insta-DE2’s edge as close as possible to the

installation area, align it, and gently press on the Insta-DE 2

with your fingers in a up and down sliding motion to finish

attaching the first end. Continue to completely remove the

remaining tape strips and repeat procedure on strip at a time

to ensure no air bubbles/pockets are created.

6. Repeat the process throughout the rest of the material and

use the smoothing tool in an upward and downward motion

to assure a flat installation and to remove any air

bubbles/pockets that could arise.

Caution:

The adhesive surface of the double-sided tape is meant to be permanent for the life of the product. It

does not remove easily. Please attach very carefully to avoid having to remove the product and

positioning it in a different location.

Tape strip completely removed

Rev101612-JA www.elitescreens.com/ide2 4

Installation using the powder compound

For models IWB4.2X10, IWB4.2X20, and IWB4.2X30

1. Begin by marking the area of the screen size to be installed on the wall or surface.

2. Pour an entire powder bag into a spray bottle and mix with 27 oz. of room temperature water and

shake well. This will make the mixture into an adhesive compound for sticking the film to the wall.

Note: Once the liquid adhesive has been mixed, it must be applied within 4 hours to ensure a sealed

installation of the Insta-DE2 to the wall. Use one bag for every 27 oz of water.

3. Spray the adhesive evenly on the wall within the marked area where the Insta-DE2 screen will be

applied.

4. Carefully pick up the Insta-DE2 film and make sure the back side is facing the wall it will be

installed. Be careful and do not allow the film to fold in any way to avoid permanent creasing or

wrinkles. Note: The back side of the Insta-DE 2 is shiny.

5. Align the edge of the Insta-DE2 to the marked area that now has the adhesive compound and attach

it to the surface. Once the edge has been glued to the surface, repeat the process in 3-4 feet increments

making sure to flatten the material along the way to avoid creating air bubbles/pockets.

6. Repeat the process throughout the rest of the material and use a flexible wall covering smoothing

tool (not included) in an upward and downward motion to assure a flat installation and to remove any

air bubbles/pockets.

7. Use a soft damp cloth to clean and remove any residue from the adhesive compound.

Caution:

The adhesive compound is meant to be permanent for the life of the product. It does not remove easily. Please

attach very carefully to avoid having to remove the product and positioning it in a different location.

Rev101612-JA www.elitescreens.com/ide2 5

Adhesive Black velvet border installation

1. Measure the top/bottom and left/right sides of the Insta-DE2 screen to obtain the required length of

the velvet border you will need to use for bordering your screen.

2. Peel a small portion off of the velvet border and place it about half an inch over the white area of

the screen. Continue to peel off and roll out the remainder of the velvet border until you have reached

the end and cut the edge.

Note: For best results we recommend cutting the edge in a 45° angle.

3. Repeat the process for the remainder of the sides until all sides are bordered as shown below.

Safety Precautions:

A. Avoid using sharp objects directly on the screen which can result in permanently damaging the

product and voiding your warranty.

B. Creases or wrinkles caused by improper installation are not removable.

C. The adhesive powder compound (xanthan gum) does not have any biological hazards. Excess of

this product therefore can be simply diluted with water and discharged into the sewer.

XANTHAN GUM

PRODUCT IDENTIFICATION

CAS NO.

11138-66-2

EINECS NO.

234-394-2

FORMULA

(C35H49O29)n

MOL WT.

> 10,000,000

H.S. CODE

1301.90.0000

TOXICITY

SYNONYMS

Corn sugar gum; Xanthan; Gum xanthan;

Polysaccharide gum; Other RN: 9088-32-8; 12673-42-6; 12771-06-1; 37189-49-4; 37279-85-9; 37332-19-7; 37383-52-

1; 39393-27-6; 39444-54-7; 51811-95-1; 54511-23-8; 56592-13-3; 80450-59-5; 82600-55-3; 85568-76-9; 98112-77-7;

478314-71-5

CLASSIFICATION

Polysaccharide
