Section 1: Screen Design

1.1 What is it for?

The ezFrame 2 Series uses Elite’s CineWhite™ tensioned 1.1 gain material within a velveteen

coated frame. s an added bonus, a new installation kit is included free of charge.

1.2 How does it work?

new design feature for the CineWhite™ material is a rubber-edge border that makes

installation a lot easier and a lot less time consuming.

Section 2: Product Features

2.1 Characteristics

Screen Material

• Award Winning CineWhite™ 1.1 Gain front projection material with black backing and full tension

uniformity across entire viewing surface

• Outstanding picture uality at any viewing angle with no compromise in resolution or brightness

• Active 3D, 4K Ultra HD, and HDR Ready

• Available in the following range of diagonal sizes:

• 84" - 200" in 16:9 format

• 109" - 144" in 16:10 format

Design and Installation

• 2.4” width frame and is velvet coated

• Elegant velvet covered frame absorbs projector overshoot and increases picture contrast

• Assembles in minutes and includes installation hardware

• Split-frame design facilitates lower shipping costs without sacrificing uality

• Easy to assemble and install in minutes

• Wall brackets allow screen to slide horizontally for properly centered installation

• Installation kit includes: Wood screws & anchors, Wall Brackets, Screwdriver, Mallet

Quality and Reliability

• 2-year Parts & Labor manufacturer's warranty

• 3-year warranty offered through ENR-G program (Education, Non-Profit, Religious and

Government)

  ! 

http://www.elitescreens.com

Elite Screens Inc. |Elite Screens Europe GmbH| Elite Screens India |Elite Screens China Ltd.

Elite Screens Taiwan Corp |Elite Screens Japan |Elite Screens ustralia

2.2 Model Numbers

Model Number

Diag.

Size

spect

Ratio

Viewable

Height

(in)

Viewable

Width

(in)

Screen Material

Case

Color

N.W.

(lbs)

G.W.

(lbs)

Packaging

Dimentions

(LxWxH)

R84WH2 84" 16:9 41.4 73.3 CineWhite™ Black 21.0 29.2 52.8"x6.7"x11.8"

R100H2 100" 16:9 48.8 87.0 CineGrey Black 24.9 34.3 61.4"x6.7"x11.8"

R100WH2 100" 16:9 48.8 87.0 CineWhite™ Black 24.2 33.5 51.4"x6.7"x11.8"

R106WH2 106" 16:9 52.0 92.2 CineWhite™ Black 25.5 35.1 63.5"x6.7"x11.8"

R110WH2 110" 16:9 53.9 95.9 CineWhite™ Black 26.5 36.9 65.5"x6.7"x11.8"

R120H2 120" 16:9 58.7 104.7 CineGrey Black 29.3 39.6 69.7"x6.7"x11.8"

R120WH2 120" 16:9 58.7 104.7 CineWhite™ Black 28.4 38.3 69.7"x6.7"x11.8"

R135H2 135" 16:9 66.1 117.7 CineGrey Black 31.4 42.0 78.2"x5.7"x15.8"

R135WH2 135" 16:9 66.1 117.7 CineWhite™ Black 31.2 41.9 78.2"x5.7"x15.8"

R150WH2 150" 16:9 73.6 130.7 CineWhite™ Black 35.1 46.4 85.6"x5.7"x15.8"

R165WH2 165" 16:9 80.9 143.8 CineWhite™ Black 39.7 51.3 92.9"x5.7"x15.8"

R180WH2 180" 16:9 88.2 156.9 CineWhite™ Black 43.1 57.8 100.2"x7.7"x15.8"

R200WH2 200" 16:9 98.0 173.1 CineWhite™ Black 48.3 63.9 110"x7.9"x15.8"

R109WX2 109" 16:10 57.5 92.0 CineWhite™ Black 25.9 36.4 69.4"x6.7"x11.8"

R114WX2 114" 16:10 60.0 96.0 CineWhite™ Black 27.6 39.0 72.1"x6.7"x11.8"

R125WX2 125" 16:10 66.2 106.0 CineWhite™ Black 30.6 40.3 77.2"x5.5"x15.8"

R144WX2 144" 16:10 76.3 122.1 CineWhite™ Black 34.2 46.0 88.4"x5.5"x15.8"

Section 3: Screen Material Specifications

3.1 Characteristics

3.1.1 CineWhite™

CineWhite™ (Tension Matte White) has broad

light dispersion through diffusion uniformity,

black & white contrast and true color

rendition making it the most versatile in Elite's

tensions screen product lines. This tension

PVC surface is the best choice for today's

high-contrast ratio projectors in commercial or residential presentations. The CineWhite™ material

e uals the performance to our MaxWhite™ product, but improves the experience with the superior

  ! 

http://www.elitescreens.com

Elite Screens Inc. |Elite Screens Europe GmbH| Elite Screens India |Elite Screens China Ltd.

Elite Screens Taiwan Corp |Elite Screens Japan |Elite Screens ustralia

surface flatness. Uniform diffusion surface has black-backing to eliminate light penetration and is easily

washable with mild soap and water.

Features & Benefits

• Multi-layer PVC (Polyvinyl chloride) with texture and surface coating

• Gain: 1.1

• View Angle: 180° (90° ±LR)

• Full Lambertian Diffuser- no half gain drop

• Produces exceptional picture uality for any presentation

• Mildew Resistant

• Active 3D and 4K Ultra HD ready

• Surface can be cleaned with (water) moist cotton cloth

3.1.2 CineGrey

CineGrey (Tension High Contrast Grey) is

designed for low contrast DLP and LCD Home

Cinema Projectors. Its superior flatness makes

the CineGrey ideal for home theater use. It

enhances black levels while minimizing loss in

color reproduction. Uniform diffusion surface

has black-backing to eliminate light

penetration and is easily washable with mild soap and water. *Manufacturer's Tip: if your projector's

contrast ratio is more than 2000:1, we recommend you use CineWhite™ material for a brighter picture.

Features & Benefits

• Multi-layer PVC with texture and surface coating

Specifications

Thickness 0.27 mm

Weight 350 g/m2

Maximum Height 3.2 M (10 ft)

On-axis Gain 1.1

Half-Gain ngle Does not reach half gain

  ! 

http://www.elitescreens.com

Elite Screens Inc. |Elite Screens Europe GmbH| Elite Screens India |Elite Screens China Ltd.

Elite Screens Taiwan Corp |Elite Screens Japan |Elite Screens ustralia

• Gain: 1.0

• View Angle: 160° (80° ±LR)

• Mildew Resistant

• Black backing

• Surface can be cleaned with (water) moist cotton cloth

• Active 3D and 4K Ultra HD ready

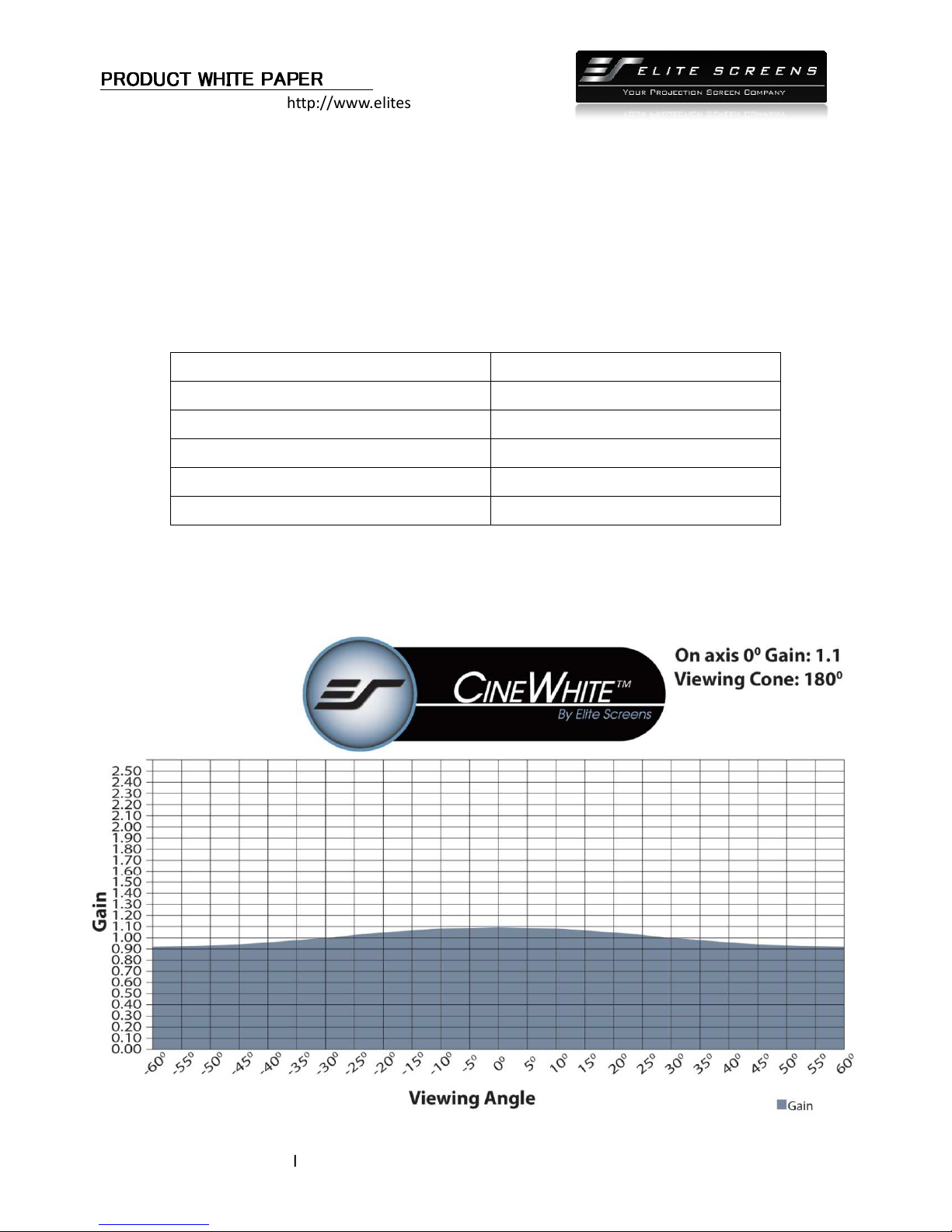

3.2 Gain Chart

3.2.1 CineWhite™

Specifications

Thickness 0.3 mm

Weight 350 g/m2

Maximum Height 3.2 M (10 ft)

On-axis Gain 1.0

Half-Gain ngle t 50°

  ! 

http://www.elitescreens.com

Elite Screens Inc. |Elite Screens Europe GmbH| Elite Screens India |Elite Screens China Ltd.

Elite Screens Taiwan Corp |Elite Screens Japan |Elite Screens ustralia

3.2.2 CineGrey

Section 4: Execution

4.1 Care and Use Instructions

Dust, dirt and scratches on the projection surface will affect the picture quality, please take note of

the points below to prevent that from occurring:

• Do not touch the projection surface with your hands

• Do not write or draw on the projection surface

• Do not use fingers or sharp objects to point on the projection surface; this will damage the

screen material.

• Use a soft-damp cloth to clean the projection surface; do not use chemical cleaning agents

or alcohol.

• Use clean water when dampening the cleaning cloth and do not rub against the material to clean it.

  ! 

http://www.elitescreens.com

Elite Screens Inc. |Elite Screens Europe GmbH| Elite Screens India |Elite Screens China Ltd.

Elite Screens Taiwan Corp |Elite Screens Japan |Elite Screens ustralia

4.2 Hardware and Parts List

. Frame Parts x 6 pcs (4 top/bottom frame pcs + 2 side frame pcs)

B. Screen Material x 1 pc

C. Center joints x 2 pcs

D. Elbow Joints x4pcs

E. Wall brackets x4pcs (depending on model/size)

F. Wood Screws x 8pcs

G. Drywall anchors x 8pcs

H. M5x15 screws x 16 pcs

I. Center Support Bar x 1 - 2 pcs (depending on model/size)

J. Support joiner x 2 - 4 pcs (depending on model/size)

K. Fix Plates x 60 - 180 pcs (depending on model/size)

L. Rubber hammer x 1 pc

M. Screw driver x 1 pc

Note: Please make sure all parts are included in your package before proceeding to assemble your fixed

frame projection screen.

4.3 FR ME SSEMBLY

1. Insert the center joint connector into to one of the 1/2 horizontal frames and fasten it with two

M5x15 screws.

2. Insert the other ½ horizontal frame piece to the center joint (c) connector and fasten it with

twoM5x15 screws (h).Repeat steps 1 and 2 for assembling the second horizontal frame.

bevel

½ Long Frame

M5×15 Screw

  ! 

http://www.elitescreens.com

Elite Screens Inc. |Elite Screens Europe GmbH| Elite Screens India |Elite Screens China Ltd.

Elite Screens Taiwan Corp |Elite Screens Japan |Elite Screens ustralia

Push

Short frame

Note: a. Two½ size horizontal frames should be assembled for a screen.

b. Do not tighten the screws completely until all frame pieces have been assembled

correctly.

3. Insert both elbow joint (d) connectors into the long horizontal frame and fasten it with twoM5x15

screws (h) seeFig.1. Then insert the vertical short frames into the exposed elbow joint(d)connectors

and fasten them with M5x15 screws(fig.1.2).

Push Push

Joint

Long frame

( fig.1)

M5x15

Bevel connection

½ Long Frame

Push

Horizontal Long

M5x15

(Fig.1.1)

M5x15 Screws

Screw

(Fig.1.2)

M5x15 screws

  ! 

http://www.elitescreens.com

Elite Screens Inc. |Elite Screens Europe GmbH| Elite Screens India |Elite Screens China Ltd.

Elite Screens Taiwan Corp |Elite Screens Japan |Elite Screens ustralia

Push

( fig.2)

Insert the exposed ends of the joint connectors

into the short (vertical) frame and align the four

corners so that they meet at perfect right angles

4. Join all four frame parts together following the steps shown below. (Fig.2)

Note: When assembled, please push simultaneously the two ends of the long frames.

4.4 ttaching the screen material to the frame

1. Make sure the screen material and frame are both lying face down on a clean, dry, and non-abrasive

surface.

2. Carefully unroll the material inside the frame. (Fig.3)

Please note the material will be noticeabl smaller than the frame, as the material must be stretched to create a

sufficient amount of tension for perfect material flatness.

15 screws

Screw

  ! 

http://www.elitescreens.com

Elite Screens Inc. |Elite Screens Europe GmbH| Elite Screens India |Elite Screens China Ltd.

Elite Screens Taiwan Corp |Elite Screens Japan |Elite Screens ustralia

3. ttach the fix plates.

(1)

Stretch the material to the corner and insert the screen material’s edge in the groove of the frame.

While one hand holds the material in place the other hand snaps in the push plate (Fig.4-Fig.5).

(2) Begin by securing the four corners in the following sequence →B→C→D (Fig.6).

(3) Insert the fix the plates as shown on Fig. 5. Fix plate ① is about 10cm away from the frame’s

corner. Fix plate ② is about 5cm away. (Fig.7)

(Fig. 6)

(

Fig.

)

Notes

• Make note of the label to help distinguish

the back and front side.

• Unroll the screen material face down

• Keep the screen material as close as

possible to the frame and do not allow it

to scratch against any part of the frame.

(Fig. 4) Insert push plate in

Screen material edge

(Fig. 5)

Schematic cross section

of the

rame

Plate

Frame groove

(Fig.3)

  ! 

http://www.elitescreens.com

Elite Screens Inc. |Elite Screens Europe GmbH| Elite Screens India |Elite Screens China Ltd.

Elite Screens Taiwan Corp |Elite Screens Japan |Elite Screens ustralia

(4) Place a fix plate in the center of each side in the following orderE→F→G→H.(Fig.9)

(5) Next, fasten a fix plate on the center of each frame side in the following order I

P as shown in Fig.10.

(6) Fasten the remainder of the fix plates in the empty locations in the red markings to complete

attaching the screen material. (Fig.11)

Tip for attaching the last corner (D):

1. Position yourself left of location

2. Pull the material to the corner of the frame with your hand while your left

hand snaps in the fix plate on location

(the third red dot).

3. Then insert and snap in the fix plate on location

4. Next, moveand position yourself on location

then pull the edge to

the frame and fasten plates on locations

and

)

Pull

(Fig. 8)

(Fig.9)

(Fig.10)

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Elite Screens Projektorzubehör Handbücher

Elite Screens

Elite Screens Spectrum Tab-Tension 2 CineGrey 3D Series Bedienungsanleitung

Elite Screens

Elite Screens ZHOMELB11-4 Bedienungsanleitung

Elite Screens

Elite Screens Manual Series Bedienungsanleitung

Elite Screens

Elite Screens Spectrum Series Bedienungsanleitung

Elite Screens

Elite Screens EDGE FREE Aeon CineGrey 4D AT Series Bedienungsanleitung

Elite Screens

Elite Screens YARD MASTER MANUAL SERIES Bedienungsanleitung

Elite Screens

Elite Screens Universal Mobile Stand Bedienungsanleitung

Elite Screens

Elite Screens Cinema235 Series Bedienungsanleitung

Elite Screens

Elite Screens PicoScreen Series Bedienungsanleitung

Elite Screens

Elite Screens VMAX113XWS Bedienungsanleitung

Elite Screens

Elite Screens CineGrey 5D Leitfaden

Elite Screens

Elite Screens Yard Master OMS125WHT-BAT-ELEC Bedienungsanleitung

Elite Screens

Elite Screens Spectrum 2 Series Bedienungsanleitung

Elite Screens

Elite Screens YARD MASTER MANUAL SERIES Bedienungsanleitung

Elite Screens

Elite Screens ZSP-TR01 Bedienungsanleitung

Elite Screens

Elite Screens Ceiling Trim Kit Bedienungsanleitung

Elite Screens

Elite Screens TRIPOD LITE Series Bedienungsanleitung

Elite Screens

Elite Screens VMAX99XWS2 Bedienungsanleitung

Elite Screens

Elite Screens VMAX110UWH2 E24 Bedienungsanleitung

Elite Screens

Elite Screens Tripod Tab-Tension CineGrey 5D Series Bedienungsanleitung

Elite Screens

Elite Screens elite home series Bedienungsanleitung

Elite Screens

Elite Screens OMS125HLITE Bedienungsanleitung

Elite Screens

Elite Screens Aeon CineWhite A8K Series Bedienungsanleitung

Elite Screens

Elite Screens Evanesce Tab Tension B CineGrey 5D Bedienungsanleitung

Beliebte Projektorzubehör Handbücher anderer Marken

Optoma

Optoma BX-AL133B Bedienungsanleitung

PEERLESS

PEERLESS PE 1120 Leitfaden

Osram

Osram SIRIUS HRI Series Handbuch

Presentation Switchers

Presentation Switchers PS111 Bedienungsanleitung

Kramer

Kramer VIA GO Bedienungsanleitung

Yamaha

Yamaha PJL-112 Stücklistenhandbuch

Swedstyle

Swedstyle CL23AA02ZA25E Bedienungsanleitung

Mitsubishi Electric

Mitsubishi Electric 236CB Betriebsanleitung

Epson

Epson BrightLink 475Wi Bedienungsanleitung

Acer

Acer WP100 Bedienungsanleitung

i3 i3board Bedienungsanleitung

CHIEF

CHIEF HB-43E Bedienungsanleitung

Biamp

Biamp Modena Hub Service-Handbuch

NEC

NEC MP10RX Bedienungsanleitung

Panamorph

Panamorph DCR-S3 Bedienungsanleitung

Exact solutions

Exact solutions FRAME-EVO-P10 Bedienungsanleitung

CHIEF

CHIEF VCM103S Bedienungsanleitung

InFocus

InFocus LP70+ Leitfaden

Elite Screens ezFrame 2 Series Kurzanleitung

Beliebte Projektorzubehör Handbücher anderer Marken
