Elite Learning Universal Remote Control –R800D

Ver. 1.1 www.elitescreens.com / [email protected] / Page 1 of 23

Thank you for your purchase the R800D universal remote control. It features the largest infrared code library for

American market.Based on our creative design, it has the easiest and fastest way to set up directly by the brand name

and code no, in its LCD screen even without the manual book later.

The R800D universal remote control almost all brands of Televisions (TV), DVD-players and DVR-players (DVD),

DVB receivers and (digital) Satellite receivers and Cable box (SAT), Video Recorders (VCR), Audio amplifiers and

LD-players and other Audio (AUX),Projector(PRO),Elite Projector Screen(just only for brand ELITE)(SCR).The R800D

universal remote control operates almost all main functions of your selection of devices.

You can use Auto Search to scan the code library in case of you can not find your device brand in the list.

Besides, R800D can learn a new code from an original remote control to supplement the codes in case of its shortage.

Show View function scans all channels for you to have a program quick view.

All off function can switch off all your devices with one button.

Macro function makes several sequent operations with one button for your home theater.

Volume lock can fix VOL+/VOL- button to control Amplifier only for your home theater.

Device lock can fix the device against changing by a new set up until you unlock it.

R800D has backlight for LCD screen and separate device backlight to show you the currently working device.

Low battery indication to remind you when need to replace batteries.

Light keys all the keys with fluorescence materials to help you to see all the keys clearly even in dark surround.

The R800D also has real time clock to show your time andAM or PM.

All the set up data will be stored in back up memory permanently, you don’t need to be worry about data loss when

you replace battery.

Elite Learning Universal Remote Control –R800D

Ver. 1.1 www.elitescreens.com / [email protected] / Page 2 of 23

All above mentioned functions show you R800D is an advanced, very powerful LCD universal remote control.

Please read this user manual carefully prior to using you new LCD remote control.

Device Code Assignment

Bank

for Device

Initial code

Total of codes

048

488

VCR

075

182

SAT

Satellite,Cable,DVB

075

403

DVD

DVD,DVR

026

190

SCR

Elite Screen

001

PRO

Projector

002

3(extend the codes by

learning function)

AUX1

AMP, LD,VCD

032

204

AUX2

AMP, LD,VCD

006

204

●Realizing the keys

Elite Learning Universal Remote Control –R800D

Ver. 1.1 www.elitescreens.com / [email protected] / Page 3 of 23

SET Start to set up (program) the remote control.

LEARN Setting up learning functions.

MACRO Sequent operation of your home theater.

TV, DVD, SCR(SCREEN),VCR, PRO(PROJECTOR),SAT,

AUX 1,AUX 2, Selecting the device which you want to control

Turning the device on and off

0-9 The number keys operate the same as on your original remote control,

and maybe also used for entering device codes when set up.

Works like the enter key on your original remote.

AV Works like the TV/Video key on your original TV remote, and

TV/SAT key on your original satellite remote A.B in cable and CD modes.

MENU Works like the Menu or OSD (on-screen display) or Memory

key on your original remote control.

CH+,CH- Works like the Channel Up and Down keys

on your original remote control.

VOL+,VOL- Control the volume like the Volume Up and Down

on your original remote control.

Mute To mute the sound

REW（fast reverse）

PLAY (operate your DVD, LD etc)

FFWD (fast forward)

REC (Record)

STOP (terminate your operation)

PAUSE

，OK，EXIT Works like the UP，DOWN，LEFT，

RIGHT，OK，EXIT keys on your original remote control for menu function.

DISPLAY display info on the selected channel.

ALL OFF turn off or turn on all devices by one button.

SHOW VIEW Scans all channels for your program quick view.

A,B,C,D,E,F,G,H Spare keys to store your learning command keys.

●Battery installation

This remote control needs 2 batteries to work with,please refer to the

direction marks inside the battery apartment and put 2 pieces of fresh AAA

in the battery apartment.Alkaline batteries are recommended.

To install the batteries:

1. Turn the remote over,pull up the tap and lift the cover off.

2. Insert the bateries matching the batteries to the (+) and (-) marks inside the battery case.

3. Slide the battery cover back into the place.

●Set Up(by Brand and Code) for ELITE SCREEN

1. Be sure already Fixing the Elite Screen OK,be sure the POWER is ON.

2. Press and hold the SET key on your remote control. Then press (simultaneously) the device key SCR..

Elite Learning Universal Remote Control –R800D

Ver. 1.1 www.elitescreens.com / [email protected] / Page 4 of 23

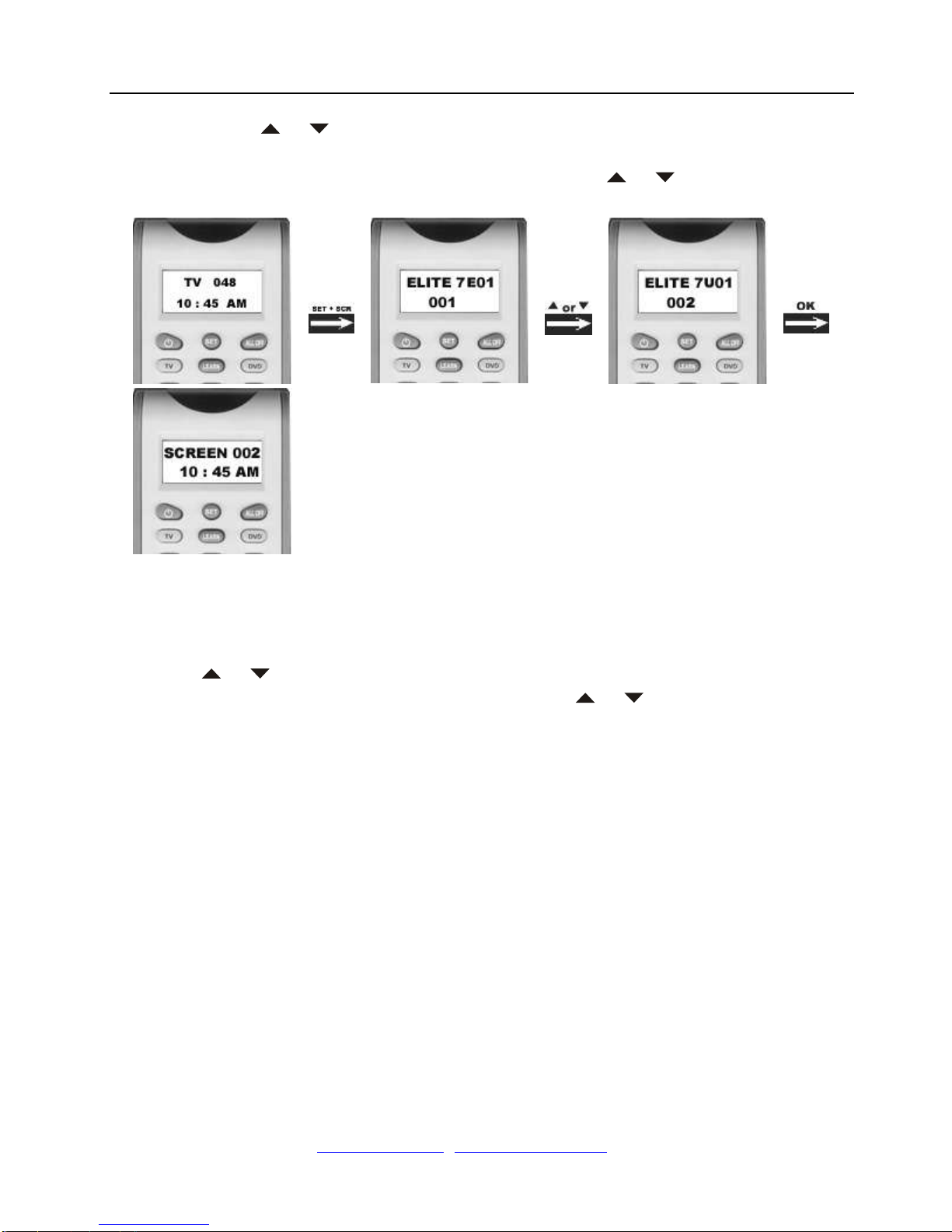

3. Then release them, the Elite Screen detailed type will be displayed on the screen.

4. You can press the or key to select the type of your device (e.g. your detialed type: ELITE 7U 01).

5. Press the OK key to save it. LCD shows SUCCESS and then finishes the set up.

5. Point R800D to the receiver window of screen control box and Press the or or OK(STOP) key to Check

the function .

● Set Up(by Enter Code) for ELITE SCREEN

1. Be sure already Fixing the Elite Screen OK,be sure have Switched on the Screen.

2. In the back section of this manual, find the elite screen detailed type and code number(e.g. ELITE 7E02).

3. Press the SET key on R800D for more than 3 seconds, then release it.

4. Press the or keys to select to CODE SETUP in the LCD menu, and press the OK key.

5. The screen shows the DEV SEARCH in the LCD menu, press the or keys to select to DEV SETUP

in the LCD menu, and press the OK key.

6. Then you press device key SCR on R800D and then press the OK key, you must now enter the 3-digit device

code (e.g. 006 for ELITE 7E02)

7. Press the OK key to save it and LCD shows SUCCESS, and press the device key SCR to exit the SETUP mode.

8. Please check the function of the keys UP,DOWN,OK(STOP) on R800D.

Elite Learning Universal Remote Control –R800D

Ver. 1.1 www.elitescreens.com / [email protected] / Page 5 of 23

Remark:

1. To return to beginning status, press the EXIT key or the device key (e.g. TV, or VCR…)

2. You must point your remote control to the device that you want to control during when you test the keys.

3. The keys of OK, EXIT only used to set-up your new remote control during set up. You can’t

control your device as normal menu function at this moment until you quit from set up.

4. If the device is locked, you must first unlock the device then setting up.

Elite Screen Brand

Brand

Code

ELITE 7E01 001

ELITE 7U01

002

ELITE 7E00 003

ELITE 7E04

004

ELITE 7E05 005

Elite Learning Universal Remote Control –R800D

Ver. 1.1 www.elitescreens.com / [email protected] / Page 6 of 23

ELITE 7E02

006

ELITE 7E07 007

ELITE 7E03

008

ELITE 7E08 009

ELITE 7E06

010

ELITE 7X01 011

ELITE 7X02

012

ELITE 7Y01 013

ELITE 7E09

014

●How to Replace your TV,DVD,VCR,AUX,SAT,PROJECTOR ORIGINAL Remote Control

You can replace your TV,DVD,VCR,AUX,SAT, PROJECTOR original remote controls with R800D by learning

function easily. That means you do not need to control your home appliance with many remote controls as before,but

only one remote control the R800D.

The LEARN feature is also used to supplement the preprogrammed code list. The standard code list may provide

most of the functions needed, but you can add additional special functions of your original remote control for your new

LCD remote control.

Or you can learn all functions of your original remote control to the keys on the LCD remote control you

want,and replace your original remote control.

In learn mode, you must need to prepare a another original remote control that you will take the codes into your

R800D.

You can select LEARN KEY to learn commands, or DELETE KEY to delete learnt commands, or choose DELETE

DEV to delete all commands under a device, or DELETE ALL for all learnt commands under all device in learn category.

You can enter into the learning mode to press and hold LEARN key for more than 3 seconds.

Learn a Command

1. Press a device key (e.g. TV) where you want to learn to.

2. Press and hold the SET key for more than 3 seconds, then release it.

3. Scroll or key to LEARNING in the LCD menu, then press the OK key.

4. Scroll or key to LEARN KEY in the LCD menu and then press the OK key. The LCD displays SELECT

KEY.

5. Select the (target) key on your R800D you want to learn (e.g. Power).

6. Point the transmitter of the original remote control remotes face to the receiver window of R800D by approximately

20mm(please notice the distance) apart.

Elite Learning Universal Remote Control –R800D

Ver. 1.1 www.elitescreens.com / [email protected] / Page 7 of 23

7. Press the POWER key on the R800D,the LCD displays WAITING ;Press and hold the original remote key (e.g.

Power) until the LCD displays SUCCESS for 1 second. If LCD displays FAILED, please Repeat Steps 4-6. Do not

shake your original remote control and R800D when in leraning process.

8. Repeat Steps 4-6 to learn more other keys.

9. Press a device key (e.g. TV) to quit the learn operation when all desired remote commands are learnt.

Power

IF NO

Press

source

key

from

original

remote

Remark:

1. A selected target key can be multi learnt from different sources key, R800D will store the final learnt signal only.

2. All usual function keys can be learnt except SHOW VIEW,ALL OFF,MACRO,DEVICE KEYS,LEARN etc..

3. Some code form may not be learn by this remote control (due to the material cost limit.)

4. You can learn about 100 key totally for 8 devices key.

Delete the Learnt Key

If you like to delete a learnt command, you can follow the steps as below:

Elite Learning Universal Remote Control –R800D

Ver. 1.1 www.elitescreens.com / [email protected] / Page 8 of 23

1. Press the device key (e.g. TV) where you like to delete commands from.

2. Press and hold the SET key for more than 3 seconds, then release it.

3. Scroll or key to LEARNING in the LCD menu, then press the OK key and the LCD display LEARN KEY.

4. Scroll or key to DELETE KEY in the LCD menu and then press the OK key.

5. Press the key on R800D that you want to delete, the LCD shows SURE DELET and then press the OK key to confirm,

the LCD will show SUCCESS .

6. Repeat Step 4 to delete next key you want.

7. Press a device key (e.g. TV) to quit the delete operation when all desired remote commands are deleted.

Select

a key

you

want

delete

IF NO

delete

key

Delete All Learnt Command For a Device

If you like to delete all learnt commands in a device with one order in stead of deleting every key one by one, please

follow the below steps:

1. Press and hold the SET key for more than 3 seconds, then release it.

2. Scroll or key to LEARNING in the LCD menu, and then press the OK key and the LCD display LEARN KEY.

Elite Learning Universal Remote Control –R800D

Ver. 1.1 www.elitescreens.com / [email protected] / Page 9 of 23

3. Scroll or key to DELETE DEV in the LCD menu and then press the OK key.

4. You select device want to delete(e.g. DVD), press the device key DVD.

5. The LCD shows SURE DELET and then press the OK key, the LCD shows SUCCESS.

6. Repeat step 4-5 to delete commands in other device key.

7. Press EXIT key to quit deletes operation.

Select

device

you

want

delete

IF NO

Remark: sometimes it can take about 3 minutes for delete all commands in one device. If the commands are not many,

we suggest you delete commands one by one.

Delete All Learnt Keys

If you like to delete all learnt commands in the unit, please follow the below steps:

1. Press and hold the SET key for more than 3 seconds, then release it.

2. Scroll or key to LEARNING in the LCD menu, then press the OK key, LCD shows LEARN KEY.

Elite Learning Universal Remote Control –R800D

Ver. 1.1 www.elitescreens.com / [email protected] / Page 10 of 23

3. Scroll or key to DELETE ALL in the LCD menu and then press the OK key.

4. The LCD shows SURE DELET, then press the OK,LCD shows SUCCESS to finish the deletion.

●Other Set Up

☆1: Direct Set Up (by Brand and Code) (suitable for TV,DVD,VCR,AUX1.AUX2,SAT)

1. Turn on the device (e.g. TV) you would like to operate. If it is a VCR, Please insert a tape.

2. Press and hold the SET key on your remote control. Then press (simultaneously) one of the device keys (e.g. TV)

3. Then release them, the Brand will be displayed on the screen.

4. You can press the or key to select the brand of your device (e.g. your TV brand: Philips)

5. Check the function of the keys(such as POWER,MUTE,VOL+,VOL-,CH+,CH-,DIGITAL KAYO,1,2,…9,etc). If none

of the keys of your new remote control can work, or most of the keys work improperly, please try another code by the

or key, then Check the function of the keys(such as POWER,MUTE,VOL+,VOL-,CH+,CH-,DIGITAL

KAYO,1,2,…9,etc). until all basic functions operate properly.

6. If you are satisfied with the code, just press the OK key to save it. LCD shows SUCCESS and then finishes the set

up.

Inhaltsverzeichnis

Andere Elite Fernbedienung Handbücher

Elite

Elite TH0471 Bedienungsanleitung

Beliebte Fernbedienung Handbücher anderer Marken

Panasonic

Panasonic EUR7622KB0 Bedienungsanleitung

Bang & Olufsen

Bang & Olufsen Beo4 Bedienungsanleitung

Sunwave Tech.

Sunwave Tech. RemoteComm SRC-7000 Bedienungsanleitung

Multiplex

Multiplex PROFI TX 9 Bedienungsanleitung

One Remote

One Remote RMB4 Bedienungsanleitung

FUTABA

FUTABA 9ZAP - PART2 Bedienungsanleitung

HR Matic

HR Matic HR MULTI 3 Bedienungsanleitung

Yamaha

Yamaha ACC-GNRST-30-20 Bedienungsanleitung

EisSound

EisSound KBSOUND Bedienungsanleitung

Marantz

Marantz RC101 Bedienungsanleitung

Conrad

Conrad FS20 TC6 Bedienungsanleitung

Anritsu

Anritsu MP1777A Bedienungsanleitung

Niles

Niles WVC100 Fehlerbehebungshandbuch

RCA

RCA RCU1300 Bedienungsanleitung

Bang & Olufsen

Bang & Olufsen BEO6 Bedienungsanleitung

GE 94901 Bedienungsanleitung

Onbon

Onbon YQ1-75 Bedienungsanleitung

FUTABA

FUTABA R7108SB Montageanleitung
