1. Delete the device from the control unit.
2. The device can be reset within three minutes of powering up. If the status LED has been powered for longer than three
minutes, remove the battery and reinsert it.
3. Hold the button pressed for 10 seconds, then release to reset the device.
4. After resetting, all information configuration will be cleared and the device can reconnect again to the system.
W
Wa
al
lk
k
T
Te
es
st
t
Once learned, use the Walk Test function to check that the status LED is inside the control unit signal range. Proceed as follows:
- Start Walk Test mode described in the installation manual of the system.
- Keep the status LED in the desired position and press the function button.
- After the confirmation beep on the control unit, press the "Refresh" button on the programming interface of the control unit on
which the device and the RSSI range will appear.
Once the correct operation of the status LED in the chosen position has been checked, proceed with the installation following the
procedure described below.

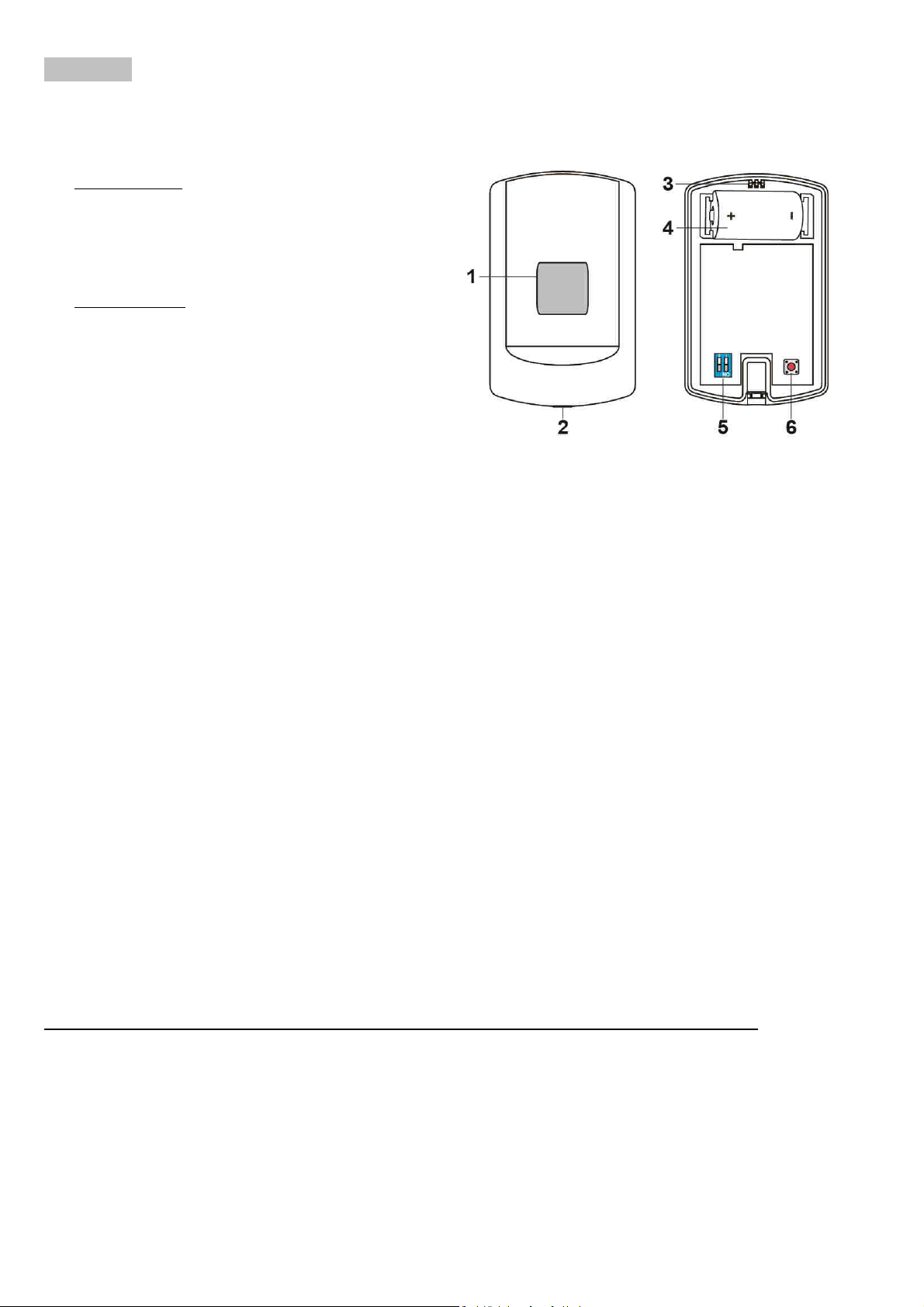

Installation
D
De
ev
vi
ic
ce
e
i
in
ns
st
ta
al
ll
la
at
ti
io
on
n
The status LED can be fitted in two different ways: with double-sided adhesive tape or with
screws.
Installation with double-sided adhesive tape (not recommended)
1. Clean the surface using a suitable degreaser.
2. Fix the double-sided tape on the base behind the device.
3. Undo the upper cover from the base and secure the base by pressing it firmly into the
desired position.
4. Do not use the installation method with double-sided adhesive tape poorly painted
and/or rough surfaces.
Installation with screws
The base of the status LED has two provisions for holes where the plastic is thinner. For installation:
1. With a screwdriver, undo the top cover from the base by loosening the locking screw.
2. Drill the provisions in the base and use it as a template to insert the anchor bolts.
3. Screw the base into the anchor bolts.
4. Reposition the top cover by fitting the fastening hook on the top and close it firmly onto the base.
5. Tighten the fastening screw again.
T
Te
ec
ch
hn
ni
ic
ca
al
l
s
sp
pe
ec
ci
if
fi
ic
ca
at
ti
io
on
ns
s
Power supply: 1 lithium battery CR123A 3V
Battery life: 2 years (typical value, can vary according to use)
Two-way radio frequency 2.4 GHz
Working temperature range -10°C to +45°C
Dimensions: 73.93 mm x 45.8 mm x 22 mm
Weight: 50 g
Conforming to EN 50131 Degree 2, Class Ⅱ
Simplified EU Declaration of Conformity
The manufacturer, URMET S.p.A., hereby declares that the wireless device: LS600 EGON SYSTEM STATUS LEDS complies with
Directive 2014/53/EU. The complete EU Declaration of Conformity can be downloaded from the following Internet address:
www.elkron.com.
DIRECTIVE 2012/19/EU OF THE EUROPEAN PARLIAMENT AND OF THE COUNCIL of 4 July 2012 on waste electrical and
electronic equipment (WEEE).
The symbol of the crossed-out wheeled bin on the product or on its packaging indicates that this product must not be
disposed of with your other household waste.
Instead, it is your responsibility to dispose of your waste equipment by handing it over to a designated collection point for the
recycling of waste electrical and electronic equipment. The separate collection and recycling of your waste equipment at the time of
disposal will help to conserve natural resources and ensure that it is recycled in a manner that protects human health and the
environment.
For more information about where you can drop off your waste equipment for recycling, please contact your local city office, your
household waste disposal service or the shop where you purchased the product.
