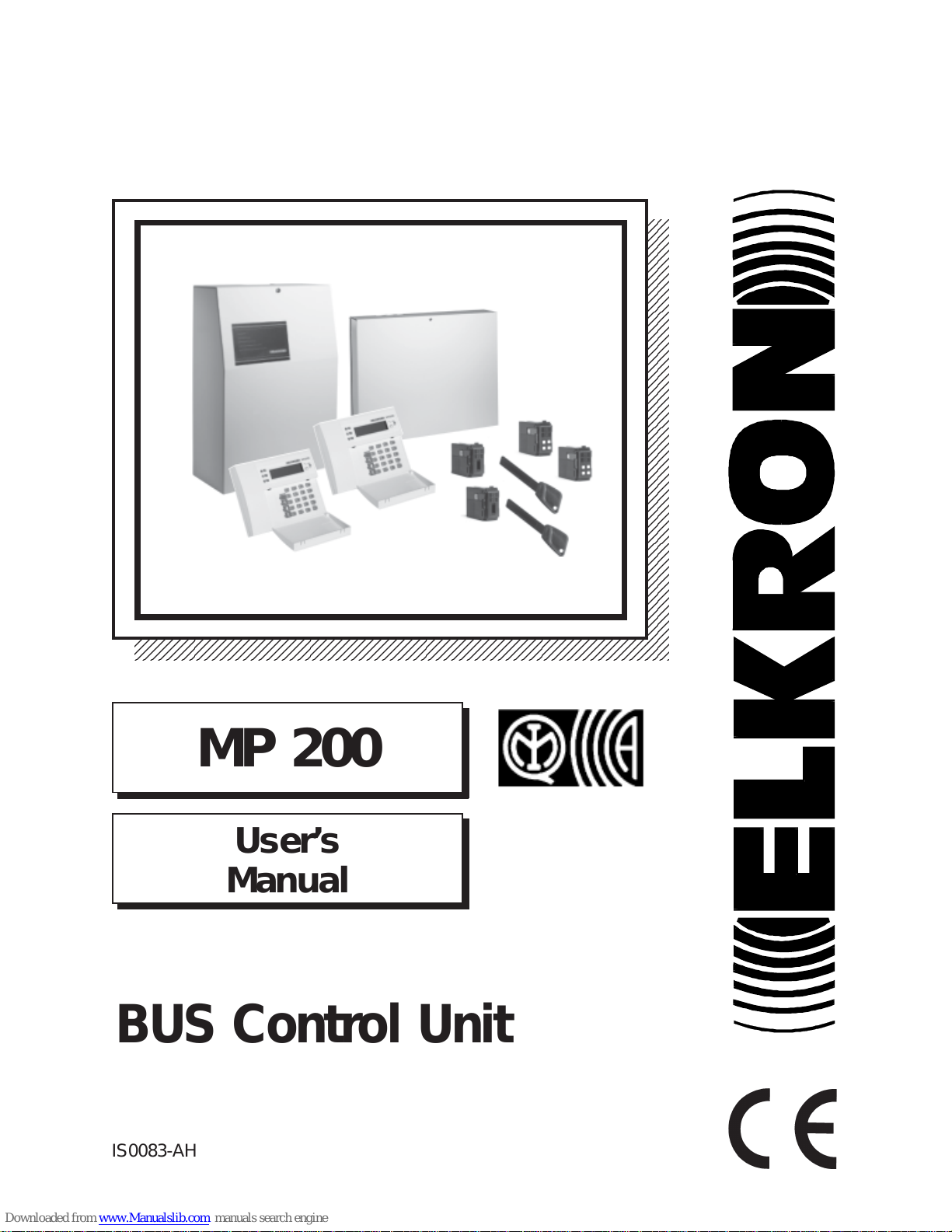

MP 200

BUS Control Unit

User’s

Manual

IS0083-AH

MP200User’sManual

Sommario

1.0 KP200D KEYPAD ......................................................................................................... 3

1.1EVENT / SYSTEM MEMORY.................................................................................... 4

1.1.1 DISPLAYING ALARM EVENTS .................................................................... 4

1.1.2 DISPLAYING TAMPER / SABOTAGEATTEMPTS .......................................... 4

1.1.3 DISPLAYING OPEN ZONES ........................................................................ 5

1.1.4 DISPLAYING AREA EXCLUSION AND TAMPERING ................................... 5

1.1.5 DISPLAYING MESSAGES ............................................................................ 5

2.0 TURNING THE SYSTEM ON AND OFF BY SECTORS ...................................... 6

2.1 TURNING THE SYSTEM ON: TOTALLY / PARTIALLY USING KEYPAD ............. 6

2.2 TURNING THE SYSTEM OFF: TOTALLY / PARTIALLY USING KEYPAD ........... 7

2.3 TURNING THE SYSTEM ON AND OFF WITH THE USER KEY / READER ......... 7

2.4 READING AND SETTING ZONES WITH THE USER KEY / READER.................. 8

3.0 USER'S MENU ............................................................................................................ 9

3.1 CHANGING THE "USER ID" ACCESS CODE ....................................................... 10

3.2 ACTIVATING / DEACTIVATING ZONES ............................................................... 10

3.2.1 EXAMPLE OF SELECTIVE ZONE ACTIVATION / DEACTIVATION ........... 11

3.3 ENABLE SINGLE ACCESS BY SYSTEM ENGINEER........................................... 11

3.4 SYSTEM TESTING................................................................................................. 12

3.4.1 WARNING SYSTEM TEST........................................................................... 12

3.4.2 ZONE TEST.................................................................................................. 12

3.4.3 BATTERY TEST ........................................................................................... 13

3.4.4 PURGE MEMORY ........................................................................................ 13

3.5 EVENT LOG MENU................................................................................................ 14

3.6 ACTIVATING / DEACTIVATING: THE BUZZER AND / OR THE CHIME............... 15

3.7 ENABLING USERS................................................................................................. 15

3.8 ADDING OR DELETING USER'S ID ACCESS CODES / KEYS ............................ 16

3.9 MEMORIZING TELEPHONE NUMBERS ==> POSITION 1 - 6 (OPTIONAL)........ 19

3.10 LISTENING TO VOICE MESSAGES (OPTIONAL) ............................................... 20

3.11 MAKING TEST CALLS TO MEMORIZED NUMBERS (OPTIONAL) ..................... 20

3.12 PROGRAMMING THE DATE / TIMER FUNCTIONS ............................................ 21

TableofContents

MP200User’sManual

1.0 KP200D Keypad

The KP 200D keypad is the main instrument for the user to interface the control unit. The number keys are used for

keying in codes.Automatically generated optical/acoustic warnings are shown on the keypad display.

According to how the installer programs the system during installation, a keypad can be associated with the entire

system, i.e., with all the sectors in the system, or only to specific sectors.

Each keypad associated with the system can be used to activate/deactivate the entire system and to show optical

and acoustic warnings, etc. The keypad functions associated with a sector are valid for the relevant sector only.

LED - system status indicator (indicates the on/off status of the sector associated with the keypad)

1) OFF............................= all sectors are disactivated

2) ON .............................= all sectors are activated

3) BLINKING ..................= only some sectors are activated

LED - alarm event memory indicator

1) OFF............................ = no alarm events are present

2) BLINKING ..................= 1 or more alarm events are present

LED - Sabotage / tampering memory indicator

1) OFF............................ = no tampering attempts are present

2) BLINKING ..................= 1 or more tampering attempts are present

LED - open zone indicator

1) OFF............................ = all zones are off

2) BLINKING ..................= some zones are on

LED - excluded zone indicator

1) OFF............................ = no zones are excluded

2) BLINKING ..................= some zones are excluded

LED - level indicator for: mains, control unit battery, remote power sources for concentrators

1) ON ............................. = system is connected to mains

2) OFF............................ = system is running on battery (no mains)

3) BLINKING ..................= battery is low

• The alphanumeric keypad can be used to assign names to new "user ID codes" which are programmable from

the Master level (see paragraph 3.8). This procedure can be useful, for example, when reading the Event Log,

because the names are associated with the codes indicating what operations were done and who did them.

mainsand

batterylevel

indicator

navigation

buttons

system status

indicator--

notused

backlitLCD

alphanumeric

screen - 2 x 16

characters

zone status

andmemory

foralarm

events alphanumeric

keypad used to

assignuser names

to user IDs & keys

MP200User’sManual

1.1.1

ALARM EVENTS

• The LED will blink to indicate that there are stored alarms to be

viewed. Press to view the memorized alarm data on the display.

Press (forward) and (backward) to scroll the list.

• A long tone will be heard after is pressed when the last alarm

has been reached.

• Only the alarms generated in the activated sectors associated with

the keypad will be shown.

• A default name will appear if no names were assigned to the zones,

eg., “Intruder Zone # “.

• Press to quit the "alarm events" menu.

1.1.2

TAMPER / SABOTAGE ATTEMPTS

• The LED will blink to indicate that there are stored tamper /

sabotage attempts memorized. Press to view the stored data.

Press to scroll forward in the list.

• A long tone will be heard when is pressed and the last stored

data has been reached.

• Only the events generated in the sectors associated with the keypad

will be shown.

• A default name will appear if no names were given to the zones, e.g.

"Tamper / Sabotage Zone #".

• Press to quit the "tamper / sabotage attempts" menu.

NOTE: "Zone #" means that something triggered the alarm

of the Control Unit in that Zone number (#).

Intruder

HALL IR

Intruder

Zone 2

Intruder

Zone 3

Tamper / Sabotage

LIVING ROOM IR

Tamper / Sabotage

Zone 2

Tamper / Sabotage

Zone 3

to confirm a choice

to cancel a choice

tomovetotheright or to go forward

to move to the left or to go back

to close a menu

to cancel data

• Repeatedly press a button to change the character.

Ex.: press button 1 once for the letter A, twice for the letter B, etc.

• Press to move to the next character or for a blank space

• Press to go back to the previous character

• Press to delete a character

• Press to display a dot or a dash

• Press to delete an entire string

NOTE: Names can only be written in CAPITAL LETTERS.

Menu navigation buttons:

1.1 EVENT / SYSTEM MEMORY

MP200User’sManual

2.0

Turning System ON/OFF by Sectors

2.1

TURNING SYSTEM ON: TOTALLY / PARTIALLY USING KEYPAD

NOTE:“Set” = Turn ON / Activate & “Unset” = Turn OFF / Deactivate; “O” = OK & “N” = NO

Enter a valid 6 digit "access code".

The message "Full Set? O/N" will appear on the display, unless an automatic system message is seen

(paragraph 1.1.5), in which case,

Press to reach the "Full Set? O/N" message.

Press to activate all sectors controlled by the keypad and/or by the access code.

Press for partial activation. The message "Partial Set? O/N" will appear on the display.

Press again to view the current situation in each sector. A default name will appear for each sector

which has not been named, eg., Sector 1, Sector 2, Sector 3, etc.

Press to select / confirm the current configuration for each sector.

Press to change the current setting. Select the required configuration then,

Press to confirm the setting and then go on to the next sector.

Press to view all configurations in all the sectors controlled by the keypad and/or by the access code.

After setting all sectors, the system will prompt whether to confirm the settings: "Activate Setting? O/N".

Press to activate the selected sector and go back to: "Activate Setting? O/N".

Full Set?

O/N OK

FIRST FLOOR OFF?

O/N

EXIT

Activate all sectors controlled by

keypad or access code => EXIT MENU

Partial Set?

O/N

OFFICE AREA

OFF? O/N

"last sector"

OFF? O/N

Activate Setting?

O/N

FIRST FLOOR Set?

O/N

OFFICE AREA

Set? O/N

"last sector" Set? O/N

ACCESS

CODE 1

2 3

NOTE:The ELKRON MP200 SYSTEM is programmed into zones and sectors. A "zone" is an input on the "CU" or

Control Unit associated with some type of sensor. A "sector" is a functional or logical grouping of zones,

preprogrammed by the installer at the time of installation of the system.

MP200User’sManual

2.2

TURNINGSYSTEMOFF:TOTALLY/PARTIALLYUSING KEYPAD

NOTE: “Set” = Turn ON / Activate & “Unset” = Turn OFF / Deactivate; “O” = OK & “N” = NO

Enter a valid 6 digit "access code".

The message “Full Unset? O/N” will appear on the display if at least one of the sectors controlled by the

keypad is on.

If an automatic system message is shown (see paragraph 1.1.5),

Press to reach the "Full Unset? O/N" message.

Press to deactivate all the sectors controlled by the keypad and/or the access code.

The "Full Unset? O/N" message will appear again.

Press to go to the partial deactivation option.

The menu will appear in the same sequence already described in paragraph 2.1.

Scroll the sectors and deactivate as required, as shown in steps 3, 4 and 5 of the previous paragraph.

The menu interface will continue on to the next instruction.

2.3

TURNING SYSTEM ONAND OFF WITH "USER KEY" / READER

• Configured readers can be used to activate/deactivate the sectors that each authorized "user key" controls.

• Important Note: the controlled sectors are those associated with the reader during installation

and those associated with the key in use. For example, if a reader is associated

with the system (i.e., all sectors) and a key associated with sector 1 is being

used, then only sector 1 can be activated/deactivated. Similarly, if a reader is

associated only with sector 1 and a key associated with the system is being

used, then only sector 1 can be activated/deactivated.

• Partial activation/deactivation is not possible using a reader. For example, if the reader and the key in use are

associated with sectors 1, 2 and 3, then all three sectors will be activated/deactivated at the same time. Partial

activation/deactivationisonly possible by using splitters (see paragraph2.4).

• In case of activation with readers proximity readers AC200P, is necessary to wait at least 5 seconds

between disarming and arming.

FullUnset?

O/N OK

PartialUnset?

O/N OK

ACCESS

CODE

To deactivate all the sectors controlled by

the keypad and/or the access code

EXIT

DK4000reader

TotalActivation = On Steady .

Partial Activation = Blinking . On Steady =Alarm Memory

Blinking = Low Battery / NO Mains

OnSteady = Open Zones

Blinking = Excluded Zones

OnSteady

(keyinserted)

MP200User’sManual

2.4

READING / SETTING ZONES WITH THE USER KEY / READER

There are two operating modes for zones controlled by a splitter, namely:

Mode A called "direct action" and Mode B called "pre-programmed action".

As mentioned in paragraph 2.0, the splitter is programmed by the installer.

Mode A: In this mode, leave the key inserted in the associated reader and press the buttons on the splitter to

select the associated sectors to be activated or deactivated directly.

1.Insert the "user key" in the "user key" reader.

Reader LED 1 will blink for approximately 5 secs.

Reader LED 3 will then light up steady.

The LEDs on the splitter will indicate the status of

each associated sector.

2.Press the splitter buttons corresponding to the

sectors to be activated / deactivated.

LED is on = sector is on

1 2

3 4

1 2

3 4

Mode B: In this mode, leave the key in the associated reader and press the buttons on the splitter to select

whether to memorize the activation/deactivation of the associated sectors. You will later be able to set the

system as programmed simply by inserting the key.

1. Insert the key in the associated reader.

Reader LED 1 will blink for approximately 5 secs.

Reader LED 3 will then light up steady.

All LEDs related with the sectors that are about to

be activated/deactivated will blink on the splitter.

2.Press the buttons on the splitter corresponding to the sectors whose status you want to change.

Splitter LED is on = sector is activated.

1 2

3 4

1 2

3 4

Splitter LED is off = sector is deactivated.

3.Remove the key from the reader: the sector status

will switch either to off (if it was on) or vice versa.

As the key is removed, the settings become func-

tional.

Reader LED 1 is blinking = partial activation

(only some of the sectors are activated)

Reader LED 1 is on steady = total activation

(all of the sectors are activated).

4.At this point, you can activate/deactivate the sectors simply by inserting and removing the key.

NOTE: The LEDs on the splitter will go out after approximately 30 seconds.

Press any button on the splitter to switch them on again.

1 2

3 4

1 2

3 4

READER SPLITTER .

LED is off = sector is off

3. Once you remove the key from the reader the settings will become functional.

Reader LED 1 is blinking = partial activation (only some sectors will be activated).

Reader LED 1 is on steady = total activation (all sectors will be activated).

NOTE: The LEDs on the splitter will go out after approximately 30 seconds.

Press any button on the splitter to switch them on again.

MP200User’sManual

3.0

User's Menu

• Authorizeduserscan exploit thevariousfunctionsofferedby the MP200controlunit'suser menuwhichisaccessed

after keying in your access code on the KP 200D keypad.

• The first menu instruction will appear on the KP 200D display, typically, “Full Set? O/N” (unless a message is

viewed, in which case, see paragraph 1.1.5).

• Scroll the various menu instructions to reach the required option. Press [OK] to confirm. The user is guided

during the navigation in the sub-menus by various instructions which appear on the keypad display during use.

• A single 6 digit access code exists when the system is installed for the first time (default code = 1 1 1 1 1 1). After

installation, you are advised to personalize the default code with another code consisting of six digits in any

sequence (see paragraph 3.1, “Changing the 'User ID' code").

Full Unset? O / N

(if at least one

sector is active) OK

Timed Prog.

Functions? O / N Paragraph 3.12

Change access

code? O / N Paragraph 3.1

Exclude / Include

Zones? O / N Paragraph 3.2

Enable Installer?

O / N Paragraph 3.3

Test System?

O / N Paragraph 3.4

Event Log

Menu? O / N Paragraph 3.5

Program KP 200D

Buzzer? O / N Paragraph 3.6

Full Set? O / N OK

Partial Set? O / N OK

EXIT

ACCESS

CODE

Enable

Users? O / N Paragraph 3.7

New Code or

Key? O / N OK

Cancel Access

Code? O / N Paragraph 3.8

Delete User's

Key? O / N OK

Program Tel #?

O / N Paragraph 3.9

Program Remo-

Access? O / N

(NOTUSED)

Listen to

Message? O / N Paragraph 3.10

Make Test

Call? O / N Paragraph 3.11

EXIT

MP200User’sManual

3.1 CHANGING THE "USER ID" ACCESS CODE

The procedure to change the "User ID" access code is as follows:

3.2 ACTIVATING / DEACTIVATING ZONES

Zone exclusion (deactivation) is useful for opening a zone without generating an alarm.

An excluded zone can be again included (activated) by following the same procedure.

Enter the current 6 digit User ID access code.

Press either or until the "Change Access Code?" message

appears on the display.

Press until the message "Enter New Code?" appears on the

display. The current 6 digit code is displayed after the question mark “?”.

Enter the new 6 digit code. The code will be displayed as it is entered.

Press to confirm and to quit.

Enter a valid 6 digit User ID access code.

Press or until the message "Exclude / Include Zones? O /N" appears on the display.

Press until the first sector controlled by the keypad or user access code appears.

Press to program the first sector or press to set the next sector.

The first zone of the sector will appear by pressing .

Press / to exclude / include it.

The second zone of the sector will appear after setting and confirming the first zone.

Repeat the same operation for all zones and sectors.

Press to quit.

The LED on the associated keypad will blink to indicate that the zone has been excluded.

Change Access

Code? O / N

Enter New

Code ? 1 1 1 1 1 1

Enter the new 6

digit access code.

ACCESS

CODE

Exclude / Include

Zones? O / N FIRST FLOOR ?

O / N IncludeHALL?

O / N Include LOUNGE?

O / N

SECOND FLOOR ?

O / N Exclude HALL?

O / N

THIRD FLOOR ?

O / N

ACCESS

CODE

OK OK OK OK

NO NO NO

QUIT

2 3 4 5

Exclude LOUNGE?

O / N

Andere Handbücher für MP 200

Inhaltsverzeichnis

Andere Elkron Sicherheitssystem Handbücher

Beliebte Sicherheitssystem Handbücher anderer Marken

Inner Range

Inner Range Concept 2000 Bedienungsanleitung

Climax

Climax Mobile Lite R32 Montageanleitung

CADDX

CADDX NX-6 Bedienungsanleitung

FBII

FBII XL-31 Series Bedienungsanleitung

Johnson Controls

Johnson Controls PENN Connected PC10 Bedienungsanleitung

Aeotec

Aeotec Siren Gen5 Bedienungsanleitung

Blaupunkt

Blaupunkt SA 2700 Bedienungsanleitung

IDEAL

IDEAL Accenta Betriebsanleitung

AJAX

AJAX DoubleButton Bedienungsanleitung

Swann

Swann SW-P-MC2 Bedienungsanleitung

Ecolink

Ecolink Siren+Chime Bedienungsanleitung

Digital Monitoring Products

Digital Monitoring Products XR150 Bedienungsanleitung

EDM

EDM Solution 6+6 Wireless-AE Bedienungsanleitung

Highway Safety Group

Highway Safety Group EA401 Bedienungsanleitung

Siren

Siren LED GSM Bedienungsanleitung

Detection Systems

Detection Systems 7090i Montageanleitung

Se-Kure Controls

Se-Kure Controls MicroMini SK-4841 Bedienungsanleitung

Siemens

Siemens FDM273 Bedienungsanleitung
