Elnec DIL20W/PLCC20 ZIF Bedienungsanleitung
DIL20W/PLCC20 ZIF
(ord.no. 70-0921)
universal adapter, assigned for devices in PLCC20 (for
example PLDs, configuration (EE)PRO s)
there exist also DIL20/PLCC20 ZIF-CS adapter, which
is designed for mass-production purposes
operation (mechanical) life of ZIF socket - 10.000
actuations
made in Slovakia
Ord. no 70-0921
Socket ZIF PLCC20, open top type
Bottom 2 rows, 2x 10 pins, square, 0.6x0.6mm, rows spa ing
600mil
Class Universal
Subclass DIL/PLCC
Adapter manual
Insert adapter to the device programmer ZIF socket according to the picture placed near of it. If you have
some doubts about orientation of this adapter in device programmer ZIF socket, it is valid general rule, the
orientation of the text of title is the same as the text on the top of the device programmer.
Push the top of adapter ZIF socket to open it. Insert the device into the adapter ZIF socket. The right position
of the programmed device in adapter ZIF socket is show at picture near (mainly left above) the adapter ZIF
socket. Then release adapter ZIF socket.
Visually check interconnection between device and adapter ZIF socket. If everything looks OK, the device is
ready for programming.
Be careful, because the incorrect insertion of adapter to the device programmer ZIF socket or device to the
adapter ZIF socket can damage the programmed device.
To take out the device push the top of adapter ZIF socket and remove device from it.
When you finish work with adapter, remove it from the device programmer ZIF socket.
Do not directly touch the pins of the adapter and adapter ZIF socket, because dirt may cause errors during
programming of device.
For handling with the device we recommended to use a vacuum pick up tool.
If programming yields isn't 100% when using programming adapter or if some unreliability appears, try to
connect one 22nF-100nF multilayer capacitor (that meet the EIA X7R or Z5U specification) between leads of
adapter connected to pins VCC and GND pins of programmed chip.
Software note
If software version, you're using currently, doesn't contain support for this programming adapter, please
download the latest version of software - Regular or OnDemand - from our web site.

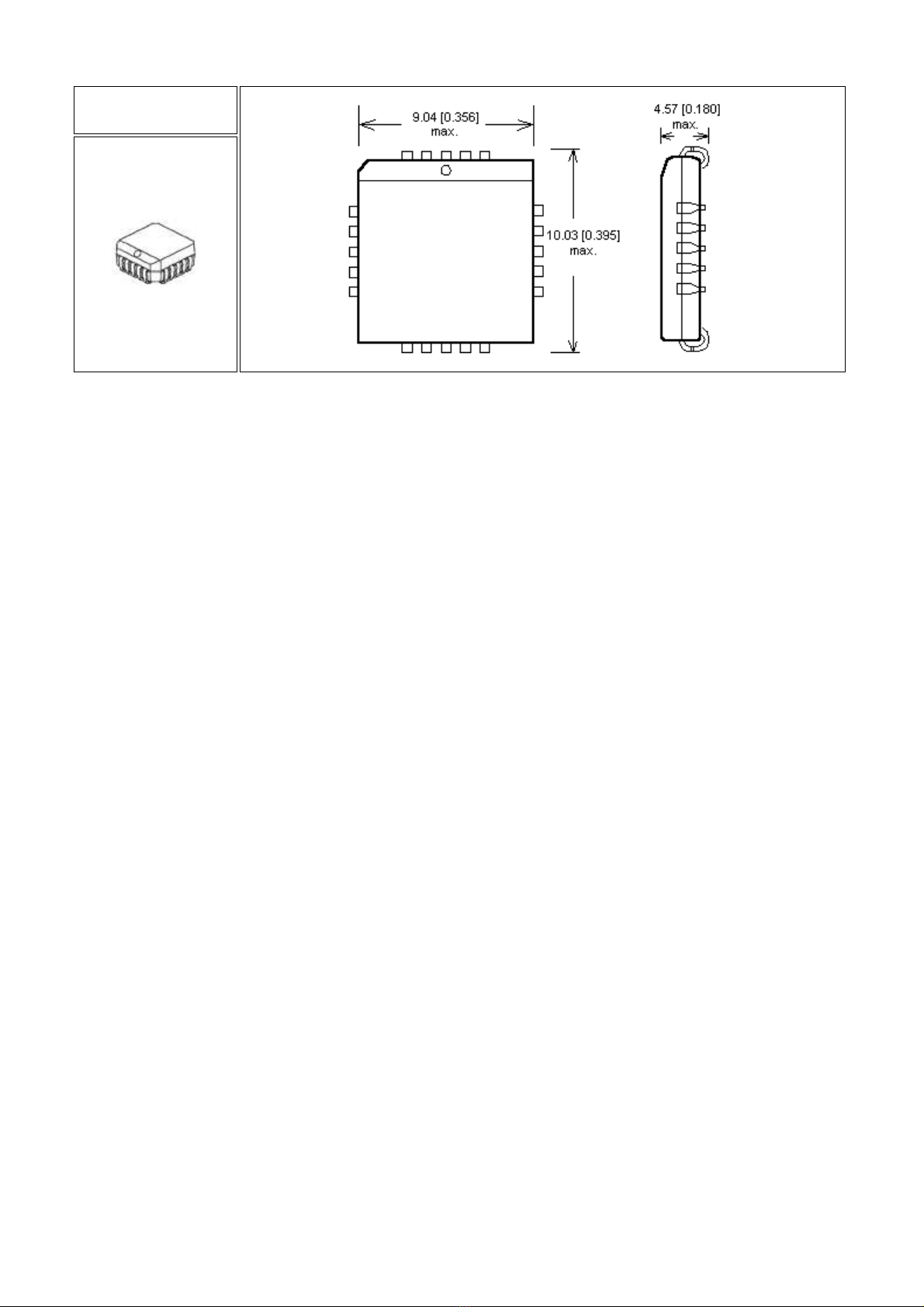

Accepted package(s)
PLCC20
