Elo TouchSystems Entuitive 1725L Series Bedienungsanleitung

Elo Entuitive Touchmonitor

User Guide

For 17" LCD Desktop Touchmonitors

1725L/1727L Series

Revision C

Elo Entuitive Touchmonitor

User Guide

17" LCD Desktop Touchmonitors

1725L/1727L Series

Revision C

P/N 008555E

Elo TouchSystems, Inc.

1-800-ELOTOUCH

www.elotouch.com

No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or

translated into any language or computer language, in any form or byany means, including, butnot limit-

ed to, electronic, magnetic, optical, chemical, manual, or otherwise without prior written permission of

EloTouchSystems.

Disclaimer

The information in this document is subject to change without notice. Elo TouchSystems makes no

representations or warranties with respect to the contents hereof, and specifically disclaims any implied

warrantiesof merchantability or fitnessfora particularpurpose. EloTouchSystemsreserves the right to

revise this publication and to make changes from time to time in the content hereof without obligation

of Elo TouchSystems to notify any person of such revisions or changes.

TrademarkAcknowledgments

IntelliTouch, iTouch, SecureTouch,AccuTouch, Entuitive, and MonitorMouse are trademarks of Elo

TouchSystemsInc.

Other product names mentioned herein may be trademarks or registered trademarks of their respective

companies. Elo TouchSystems claims no interest in trademarks other than its own.

Chapter 1

Introduction 1

Precautions ...................................................................... 1

About the Product ............................................................ 1

Chapter 2

Installation and Setup 3

Unpacking Your Touchmonitor......................................... 3

Product Overview ............................................................ 4

MainUnit ...................................................................... 4

Rear View..................................................................... 4

Side View...................................................................... 5

Bae Bottom View .......................................................... 5

TouchInterference Connection........................................ 6

STEP 1-Routing the cables .......................................... 7

STEP 2-Connecting the Video Cable ........................... 8

STEP 3-Connecting the Serial or USB

Touchscreen cable or both Serial and USB cable........ 9

STEP 4-Connecting the speaker Cable ..................... 10

STEP 5-Connecting the Power Cable ........................ 11

Optimizing the LCD Display ........................................... 12

VESA Mount on Your Touchmonitor .............................. 12

Accessing the VESA Mounting Interface ................... 13

Mountingthe base ...................................................... 13

Installing the Drive Software .......................................... 14

Installing the Serial Touch Driver................................ 15

Installing the Serial Touch Driver for Windows XP,

2000, Me, 95/98 and NT 4.0.................................... 15

Installing the Serial Touch Driver for MS-DOS and

Windows 3.1 ........................................................... 16

Installing the USB Touch Driver ................................. 17

Installing the USB Touch Driver for Windows XP,

2000,Me and98 ..................................................... 17

Chapter 3

Operation 19

AboutTouchmonitor Adjustments .................................. 19

Using the On-Screen Display (OSD) Menus ................. 19

Side Bezel Buttons......................................................... 20

OSD Menu Function ...................................................... 21

Chapter 4

Trouble shooting 23

Solutions to Common Problems..................................... 23

Appendix A

Native Resolution 25

Appendix B

Touchmonitor Safety 27

Care and Handling of your Touchmonitor....................... 28

Appendix C

Technical Specifications 29

CompatibleVideo Modes ............................................... 29

TouchmonitorSpecifications .......................................... 30

17" LCD Touchmonitor (ET 172XL-XXWF-X)

Dimensions .................................................................... 35

Regulatory Information 37

Warranty 40

Index 43

Table of Contents

1-1

C H A P T E R

INTRODUCTION

Congratulations on your purchase of an Elo TouchSystems Entuitive touchmonitor. Your new touch-

monitor combines the reliable performance of Elo’s touch technology with the latest advances in LCD

display design.This combination of features creates a natural flow of information between a user and

your touchmonitor.

Precautions

Follow all warnings, precautions and maintenance as recommended in this user’s manual to maximize

the life of your unit. SeeAppendix B for more information on touchmonitor safety.

About the Product

Your LCDDesktopTouchmonitor is a 17.0” SXGATFTcolor display with the following features:

• Direct analog RGB orDigital RGB input

• 17.0” diagonal screen size

• 16.2M color (6 bit + FRC)

• 1280 x 1024 resolution

• SXGA/XGA/SVGA/VGA/VESA/Maccompatible

• 31.5kHz~80kHzhorizontal scan

• 56.3~75Hz refresh rate

1-2 Elo Entuitive Touchmonitor User Guide

• Autoadjustment capability

• High quality full screen re-scaling

• MultilingualOSDmenus infive languages: English, French,German, Spanishand Japanese.

• Serial or USB touch interface (USB requires Windows 98, 2000, Me and XP.)

• Built in speakers with volume control through OSD

• Patented touch technology of Elo TouchSystems

• VESADDC1/2B data communication

• VESADPMSpowersaving

• Standard with minimum 95 angle of tilt

• Cablemanagementdevice

• VESAflat panel monitor physical mounting interface (Both of 75 & 100mm)

• OSDand Power button lockouts

• Wall mountablewith existingstand

• M5 threaded holes on bottom of stand for securing to desk or other surface, i.e. table top

• Cable strain reliefs for all cables

For full Product Specifications refer toAppendix C.

2-3

C H A P T E R

INSTALLATION AND SETUP

This chapter discusses how to install your LCD touchmonitor and how to install Elo TouchSystems

driver software.

Unpacking Your Touchmonitor

Check that the following 10 items are present and in good condition:

LCD Display

User Guide-on CD,

Quick Install Guide and software CD

Software

Quick Install Guide

European monitor

power cable

Monitor power cable

(US/Canada)

Serial touchscreen

cable(optional)

Speaker cable Video cable

Adapter

DVI-D video cable

USB Cable

(optional)

2-4 Elo Entuitive Touchmonitor User Guide

Product Overview

Main Unit

Rear View

LCD Display

Stand

2-5

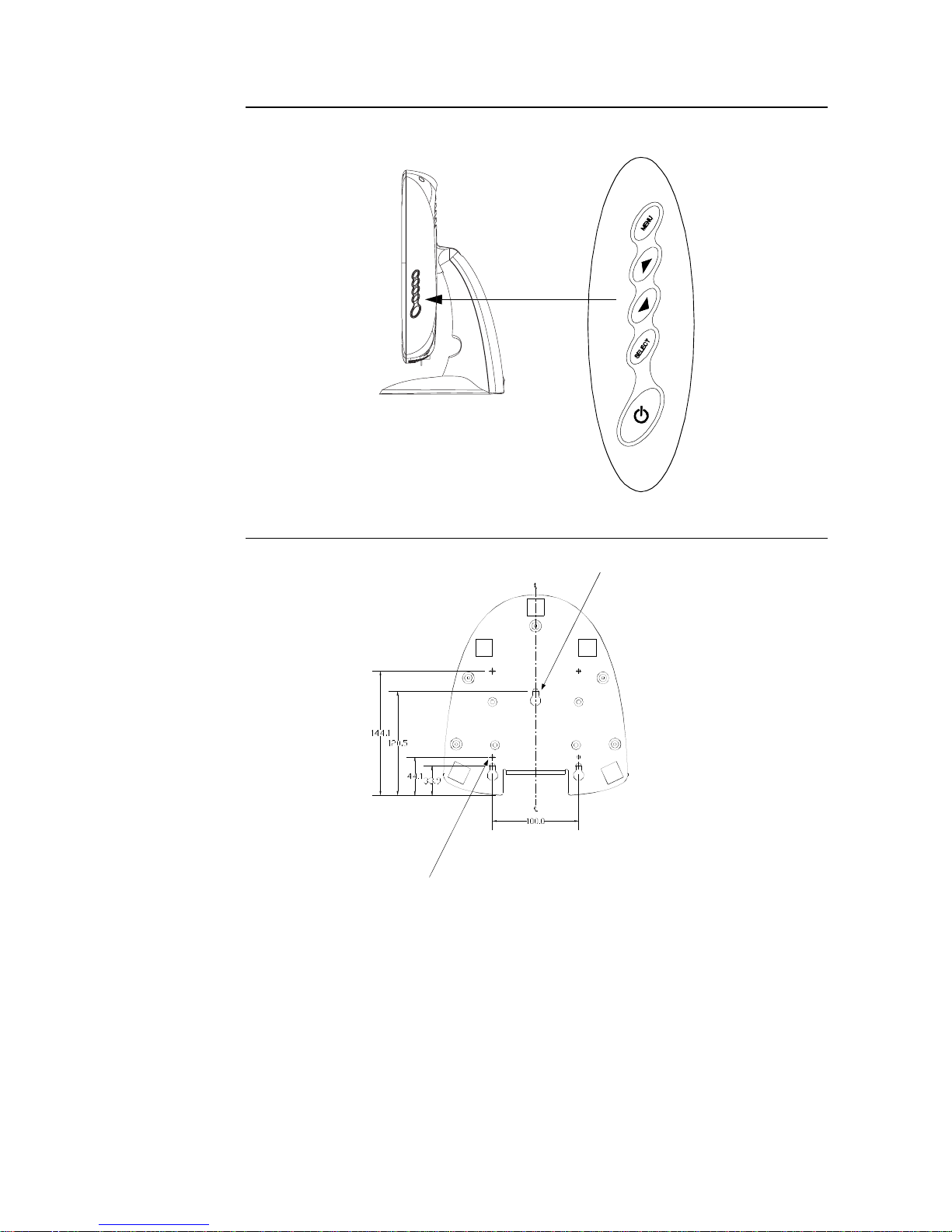

Side View

Base Bottom View

User Controls

Key hole for M5 screw

4X thread M5x0.8

2-6 Elo Entuitive Touchmonitor User Guide

Touch Interface Connection

Your touchmonitor comes with one of the following touchscreen connector cables: Serial (RS-232)

cable or USB cable. (For Wi ndows 98, 2000, Me and XPsystems only.)

To set up this display, please refer to the following figures and procedures:

Serial or USB or both Serial and USB Connection

The following illustrations guide you step by step in connecting your touchmonitor using a serial or

USB or both Serial and USB cable connection.

When both serial and USB cable are connected with PC and touchscreen at the same time, the touch

function is based on USB connection.

CAUTION Before connecting the cables to your touchmonitor and PC, be sure that the computer and

the touchmonitor are turned off.
