Elo TouchSystems Entuitive 1825L Series Bedienungsanleitung

Elo Entuitive Touchmonitor

User Guide

For 18.1" LCD Desktop Touchmonitors

1825L/1827L Series

Revision B

Elo Entuitive Touchmonitor

User Guide

18.1"LCD Desktop Touchmonitor

1825L/1827L Series

Revision B

P/N 008563

Elo TouchSystems, Inc.

1-800-ELOTOUCH

www.elotouch.com

iii

No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system,

or translated into any language or computer language, in any form or by any means, including, but not

limited to, electronic, magnetic, optical, chemical, manual, or otherwise without prior written

permission of Elo TouchSystems.

Disclaimer

The information in this document is subject to change without notice. Elo TouchSystems makes no

representations or warranties with respect to the contents hereof, and specifically disclaims any

implied warranties of merchantability or fitness for a particular purpose. Elo TouchSystems reserves

the right to revise this publication and to make changes from time to time in the content hereof

without obligation of Elo TouchSystems to notify any person of such revisions or changes.

Trademark Acknowledgments

IntelliTouch, iTouch, SecureTouch, AccuTouch, Entuitive, and MonitorMouse are trademarks of Elo

TouchSystems Inc.

Other product names mentioned herein may be trademarks or registered trademarks of their

respective companies. Elo TouchSystems claims no interest in trademarks other than its own.

Chapter 1

Introduction 1

Precautions . . . . . . . . . . . . . . . . . . . . 1

About the Product . . . . . . . . . . . . . . . . . 1

Chapter 2

Installation and Setup 3

Unpacking Your Touchmonitor. . . . . . . . . . . 3

Product Overview . . . . . . . . . . . . . . . . . 4

Main Unit . . . . . . . . . . . . . . . . . . . . 4

Rear View . . . . . . . . . . . . . . . . . . . 4

Side View. . . . . . . . . . . . . . . . . . . . 5

Base Bottom View . . . . . . . . . . . . . . . 5

Touch Interface Connection . . . . . . . . . . . . 6

Serial or USB Connection . . . . . . . . . . . 6

STEP 1-Routing the Cables . . . . . . . . . 7

STEP 2-Connecting the Video Cable . . . . 8

STEP 3-Connecting the Serial or USB

Touchscreen Cable . . . . . . . . . . . . . 9

STEP 4-Connecting the Speaker Cable . 10

STEP 5-Connecting the Power Cable. . . 11

Chapter 3

Operation 19

About Touchmonitor Adjustments. . . . . . . . 19

Using the On-Screen Display (OSD) Menus . . 19

Side Bezel Buttons . . . . . . . . . . . . . . . 20

OSD Menu Function . . . . . . . . . . . . . . 21

Auto Adjustment . . . . . . . . . . . . . . . . 22

Chapter 4

Troubleshooting 23

Solutions to Common Problems . . . . . . . . 23

Appendix A

Native Resolution 25

Appendix B

Touchmonitor Safety 27

Care and Handling of Your Touchmonitor. . . . 28

Appendix C

Technical Specifications 29

Compatible Video Modes . . . . . . . . . . . . 29

Touchmonitor Specifications . . . . . . . . . . 30

18.1" LCD Touchmonitor (ET182XL-XXWB-X)

Dimensions . . . . . . . . . . . . . . . . . . 34

Regulatory Information 37

Warranty 41

Index

Table of Contents

Optimizing the LCD Display . . . . . . . . . . . 12

VESA Mount on Your Touchmonitor. . . . . . . 12

Accessing the VESA Mounting Interface. . . 13

Mounting the Base . . . . . . . . . . . . . . . 13

Installing the Driver Software . . . . . . . . . . 14

Installing the Serial Touch Driver. . . . . . . 15

Installing the Serial Touch Driver for Windows

XP, 2000, Me, 95/98 and NT 4.0 . . . . . 15

Installing the Serial Touch Driver for MS-DOS

and Windows 3.1 . . . . . . . . . . . . . 16

Installing the USB Touch Driver . . . . . . . 17

Installing the USB Touch Driver for Windows

XP, 2000, Me and 98 . . . . . . . . . . . 17

1-1

CHAPTER

HAPTER

NTRODUCTION

Congratulations on your purchase of an Elo TouchSystems Entuitive

touchmonitor. Your new touchmonitor combines the reliable performance of

Elo’s touch technology with the latest advances in LCD display design. This

combination of features creates a natural flow of information between a user

and your touchmonitor.

Precautions

Follow all warnings, precautions and maintenance as recommended in this

user’s manual to maximize the life of your unit. See Appendix B for more

information on touchmonitor safety.

About the Product

Your LCD Desktop Touchmonitor is a 18.1”SXGA TFT color display with the

following features:

• Direct analog RGB or Digital RGB input

•18.1” diagonal screen size

• 16.7 million displayable colors

•1280 x 1024 resolution

•SXGA/XGA/SVGA/VGA/VESA/Mac compatible

•30kHz~80kHz horizontal scan

• 56~75Hz refresh rate

1-2 Elo Entuitive Touchmonitor User Guide

• Auto adjustment capability

• High quality full screen re-scaling

• Multilingual OSD menus in six languages: English, French, German,

Spanish, Italian and Japanese

• Serial or USB touch interface (USB requires Windows 98, 2000, Me and

XP.)

•Built in speakers with volume, treble, bass and balance control through OSD

• Patented touch technology of Elo TouchSystems

•Power saving mode

•Stand with minimum 95oangle of tilt.

•Cable management device

•VESA flat panel monitor physical mounting interface (Both of 75 & 100mm)

•OSD and Power button lockouts

•Wall mountable with existing stand

•M5 threaded holes on bottom of stand for securing to desk or other surface,

i.e. table top

Cable stain reliefs for all cables

For full Product Specifications refer to Appendix C.

•

2-3

CHAPTER

HAPTER

NSTALLATION AND

ETUP

This chapter discusses how to install your LCD touchmonitor and how to install

Elo TouchSystems driver software.

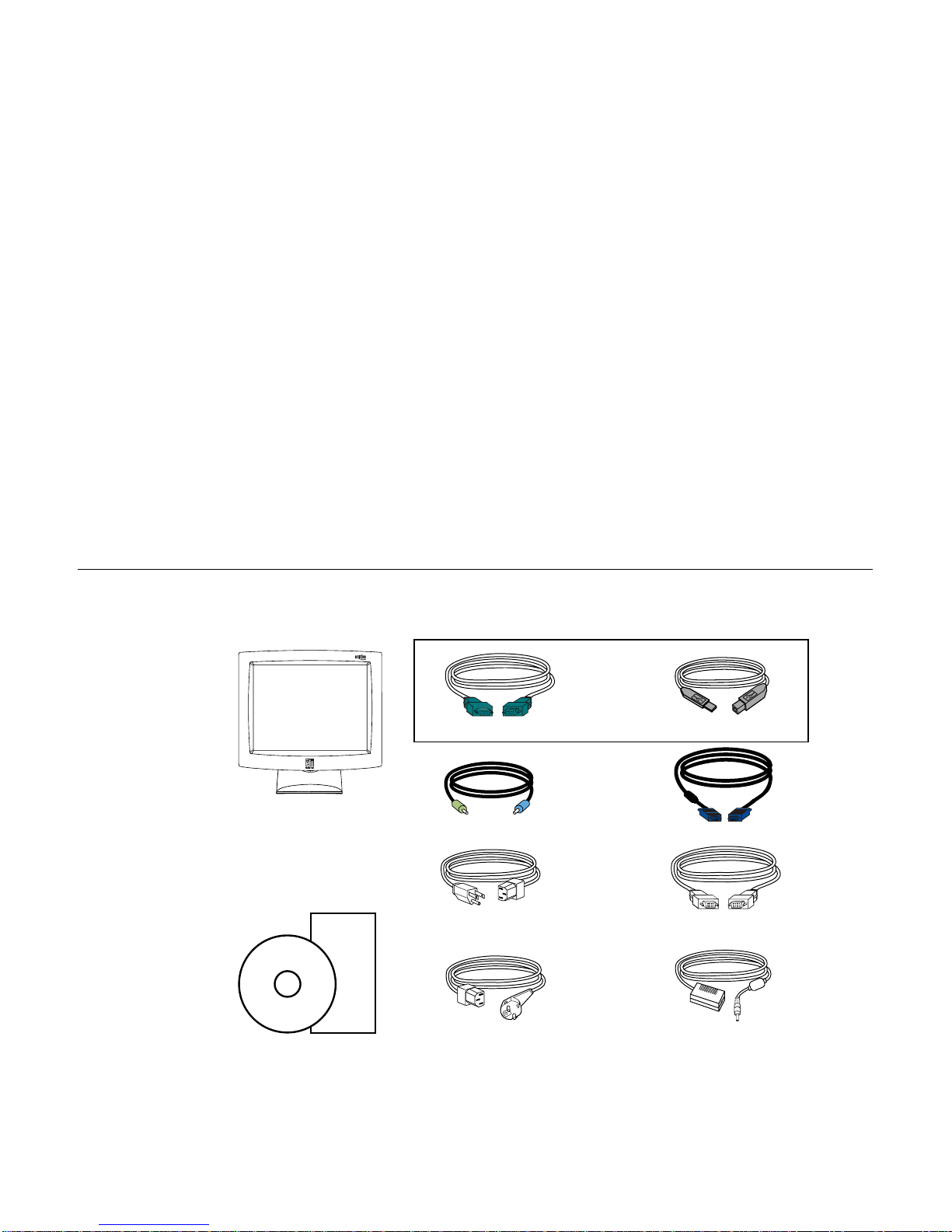

Unpacking Your Touchmonitor

Check that the following 10 items are present and in good condition:

LCD Display

European monitor

power cable

Monitor power cable

(US/Canada)

Serial touchscreen cable

Speaker cable Video cable

Adapter

DVI-D video cable

USB Cable

User Guide-on CD,

Quick Install Guide and software CD

Software

Quick Install Guide

2-4 Elo Entuitive Touchmonitor User Guide

Product Overview

Main Unit

Rear View

LCD Display

Stand
