Eltako OnWall Bedienungsanleitung
MANUAL
OnWall
DEUTSCHENGLISH
Page 12
OnWall
MANUAL
Introduction
Thank you for choosing our OnWall wall docking station.
This user manual is intended to guide you through the hardware installation.
Further information and the latest FAQs be found at: www.eltako.com
Package content
The scope of supply includes the Eltako OnWall, an 110-240 V AC to USB-A power supply
unit, two WAGO® terminals and two 3x20mm screws.
A PoE to USB-A power supply unit is optionally available.
If an USB-C capable iPad is used, a conversion kit to USB-C is optionally available.
Page 13
OnWall
MANUAL
ENGLISH

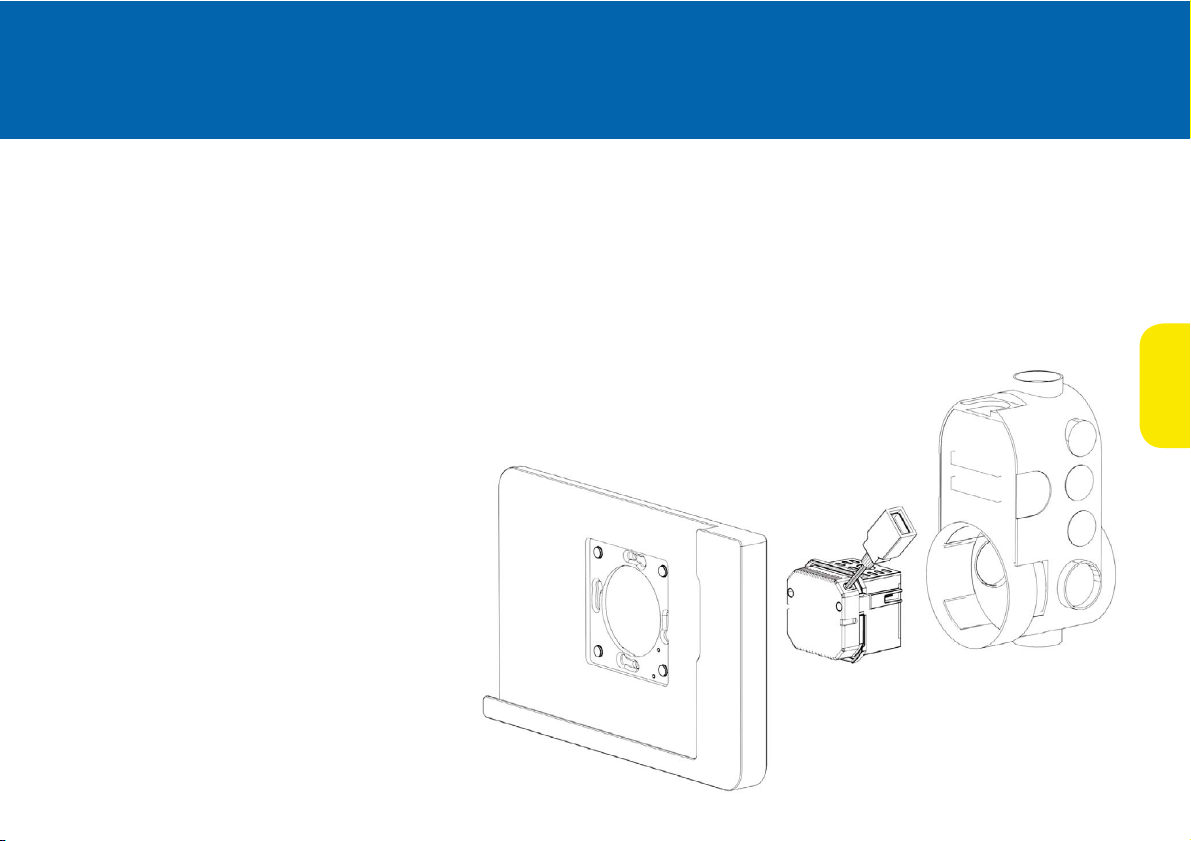

Installation
An electronics box must be used for installation.
Page 14
OnWall
MANUAL
Connecting 110-240 V AC
Connect the connection cable to the power supply unit according to the
color code using the WAGO terminals and lower it as far as possible into the
electronics box.
1. Remove the mounting cover from the magnet bracket 2. Plug the OnWall‘s USB ribbon cable into the
USB-A socket on the power supply unit.
Page 15
OnWall
MANUAL
ENGLISH
5. The installation is now complete.
4. Now put the mounting cover back on the OnWall.
3. Screw the OnWall onto the electronics box with two suitable
screws. The supplied 3x20mm screws can be used if necessary.
Make sure that the USB ribbon cable is not kinked as far as
possible.
Page 16
OnWall
MANUAL
Inserting the iPad:
The OnWall has a sliding Lightning charging connector
that can be moved by hand and thus adapted to the size
of the iPad.
The Lightning charging connector can also be replaced
by an optionally available USB-C charging connector.
Click
Page 17
OnWall
MANUAL
ENGLISH
Technical Data OnWall
Outside Dimensions 220mm x 140mm x 18mm
Power Supply 110-240V AC, POE optional
Function Description Store & charge iPad
Operating Temperature 0 - 35°C or 32 - 95°F
Operating Humidity 20% - 90%
Weight 0,6 kg
Cleaning
The product requires no special care, but only a regular cleaning of the glass. Do not use any abrasive or harsh cleaners.
For general cleaning of the surfaces please use a soft cloth with screen cleaner. If possible frequently change the cloth so that no
dust particles get stuck in the towel causing scratches.
!
Page 18
OnWall
MANUAL
Electrical Safety Information
1. Compliance is required with respect to voltage, frequency, and current requirements indicated on the
manufacturer’s label. Connection to a different power source than those specied may result in improper
operation, damage to the equipment or pose a re hazard if the limitations are not followed.
2. There are no operator serviceable parts inside this equipment. Service must be provided only by an
authorized service technician.
Page 19
OnWall
MANUAL
ENGLISH
Apple and iPad are registered trademarks of Apple Inc. Due to periodic product improvement, all features and specications are subject to change without
notice. The tablet is NOT part of the scope of delivery!
FCC Compilance Statement
This equipment complies with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
RoHS/WEEE Compliance Statement
This symbol was placed in accordance with the European Union Directive 2011/65/EU on the Waste Electrical and
Electronic Equipment (the WEEE Directive). If disposed of within the European Union, this product should be
treated and recycled in accordance with the laws of your jurisdiction implementing the WEEE Directive.
Declaration of Conformity
Hereby the Eltako GmbH declares, that this Eltako GmbH device, is in compliance with the essential requirements and other relevant
provisions of Directive 2014/35/EU & 2014/30/EU.
Subject to changes at any time. The technical details and specications do not equate to any form of guarantee.
All products mentioned protected by international copyright and patent laws.
OnWall
Premium iPad OnWall Docking Station.
Made out of high-quality aluminium.
Must be kept for later use!
02/2021 Subject to change without notice.
Eltako GmbH
D-70736 Fellbach
Technical Support English:
+49 711 94350025
technical-support@eltako.de
eltako.com
