Eltek Valere STS118 Bedienungsanleitung

Static Transfer Switch

STS118

User Manual

Page 1 (24)

STATIC TRANSFER SWITCH

STS118

USER MANUAL

UM_STS118_E_R0.0

Static Transfer Switch

STS118

User Manual

Page 2 (24)

Notes to this manual

ATTENTION! Read this manual carefully before installing and commissioning the specified module.

This manual is a part of the delivered module. Familiarity with the contents of this manual is required

for installing and operating the specified module.

The rules for prevention of accidents for the specific country and the general safety rules in accor-

dance with IEC 364 must be observed.

The function description in this manual corresponds to the date of publishing.

Technical changes and changes in form and content can be made at any time by the manufacturer

without notice. There are no obligations to update the manual continually.

The module is manufactured in accordance with applicable DIN and VDE standards such as VDE 0106

(part 100) and VDE 0100 (part 410). The CE marking on the module confirms compliance with EU stan-

dards 2006-95-EG (low voltage) and 2004-108-EG (electromagnetic compatibility) if the installation and

operation instructions are followed.

Supplier:

ELTEK VALERE DEUTSCHLAND GmbH

GB Industrial

Schillerstraße 16

D-32052 Herford

+ 49 (0) 5221 1708-210

FAX + 49 (0) 5221 1708-222

Email [email protected]

Internet http://www.eltekvalere.com

Please note: Repetition, copying and /or taking possession of this operation and maintenance manual,

even in extracts, with electronic or mechanical means, requires the written prior permission of the

manufacturer.

Static Transfer Switch

STS118

User Manual

Page 3 (24)

The current revision status of this manual is the following:

Revision: 0.0

Date: 2009-07-02

Revision Description of change Writer Date

0.0 Preliminary first edition RTH 2009-07-02

Static Transfer Switch

STS118

User Manual

Page 4 (24)

Table of Contents

1. Safety Instructions and Waste Disposal Rules ......................................................................6

2. General Information ......................................................................................................................7

2.1 Example of use .........................................................................................................................................................7

2.2 Operating modes......................................................................................................................................................8

2.2.1 Inverter priority configuration.......................................................................................................................8

2.2.2 Mains priority configuration ..........................................................................................................................8

3. Type Range/ Main Data................................................................................................................8

3.1 Main output data......................................................................................................................................................8

3.2 Necessary equipment for STS118 assembly: ..................................................................................................9

3.3 Front view: control elements, indicators ...........................................................................................................9

3.4 Electrical connections.......................................................................................................................................... 10

3.4.1 Pin assignment of the rear side backplane connectors...................................................................... 11

3.4.2 Pin assignment of the rear side CAN-Bus connectors X22 & X23 (RJ11):...................................... 12

3.4.3 Pin assignment of the front side Ethernet connector (RJ45):........................................................... 12

3.5 Cooling/Air flow direction ................................................................................................................................... 13

3.6 Communication interfaces ................................................................................................................................. 13

3.6.1 CAN-Bus........................................................................................................................................................... 13

3.6.2 Ethernet (Net Connection).......................................................................................................................... 14

4. Handling ........................................................................................................................................ 15

4.1 Storage .................................................................................................................................................................... 15

4.2 Commissioning....................................................................................................................................................... 15

4.3 Operation................................................................................................................................................................. 15

4.3.1 LED Indications............................................................................................................................................... 16

4.3.2 Adjustment keys........................................................................................................................................... 16

4.3.3 LC-Display: Indication of measured values and alarm messages ..................................................... 17

5. Parameter adjustment / Menu structure............................................................................. 18

5.1 Adjustable Parameters (Customer menu) ...................................................................................................... 18

5.2 Structure of the customer menu...................................................................................................................... 19

6. Maintenance ................................................................................................................................2

7. Trouble shooting......................................................................................................................... 21

8. Technical specifications ........................................................................................................... 23

8.1 Dimensional drawings .......................................................................................................................................... 24

Static Transfer Switch

STS118

User Manual

Page 5 (24)

Index of Figures

Figure 1. Block diagram “Example of use” ....................................................................................................................7

Figure 2. Front view............................................................................................................................................................9

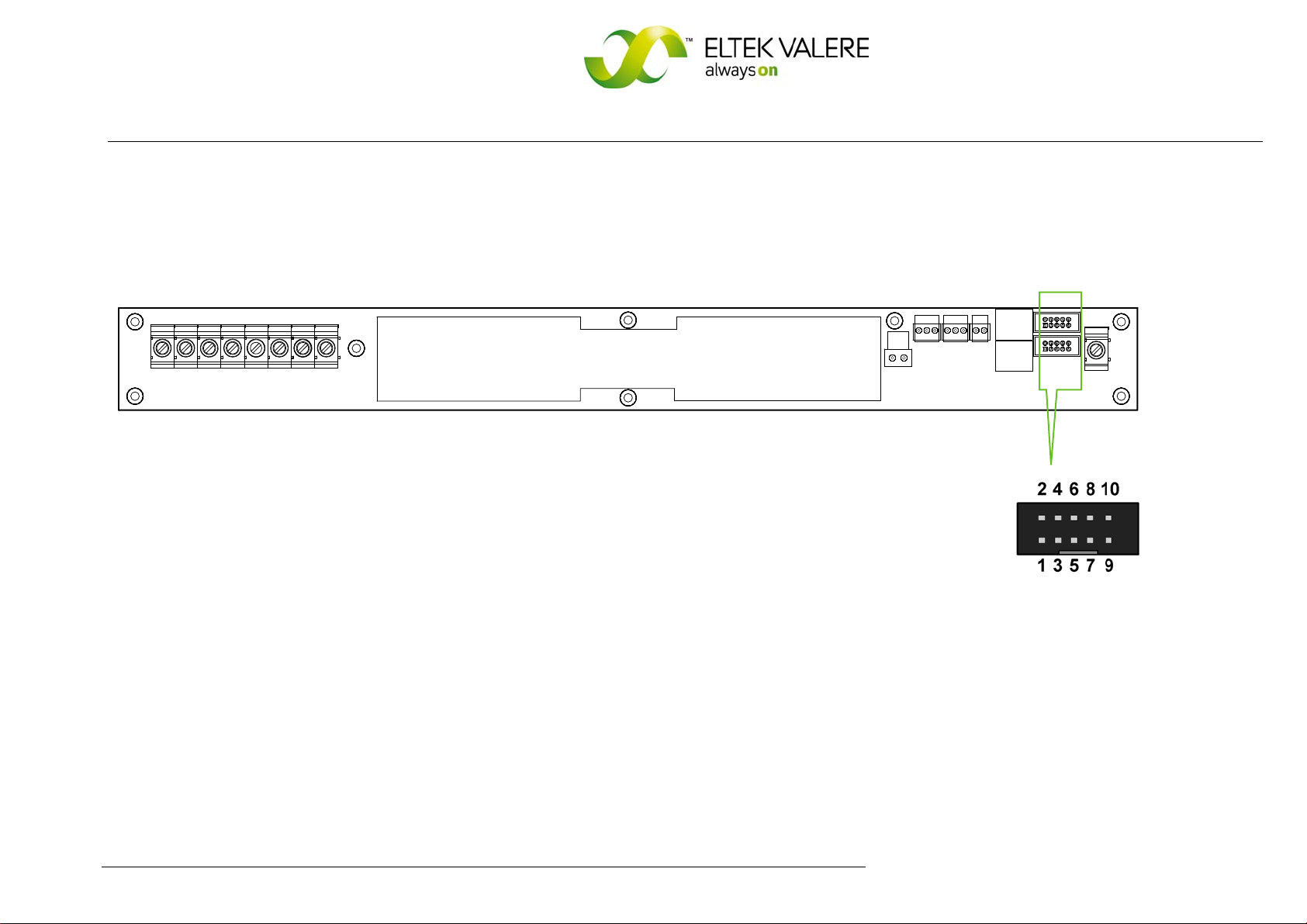

Figure 3. Backplane, shown from the rear side........................................................................................................ 10

Figure 4. Detail X10 & X15 (synchronous bus connectors) ................................................................................. 10

Figure 5. Rear side CAN-Bus connector ..................................................................................................................... 12

Figure 6. Front side Ethernet connector.................................................................................................................... 12

Figure 7. Module air flow ................................................................................................................................................ 13

Figure 8. Sample screenshot “Net Connection”....................................................................................................... 14

Figure 9. LC-Display: Indication of measured values .............................................................................................. 17

Figure 10. Structure of the customer menu............................................................................................................. 19

Figure 11. Continuation of the customer menu....................................................................................................... 20

Figure 12. Display “Alarm Messages”.......................................................................................................................... 21

Figure 13. Module dimensions ...................................................................................................................................... 24

Static Transfer Switch

STS118

User Manual

Page 6 (24)

1. Safety Instructions and Waste Disposal Rules

Warning!

Because several components of operating electrical modules are charged by dangerous voltage, the

improper handling of electrical modules may be the cause of accidents involving electrocution, injury,

or material damages.

Operation and maintenance of electrical modules must be performed by qualified skilled

personnel such as electricians in accordance with EN 50110-1 or IEC 60950.

Install the module only in areas with limited access to unskilled personnel.

Before starting work, the electrical module must be disconnected from mains. Make sure that

the module is earthed.

Do not touch connector pins as they can be charged with dangerous voltage up to 30 seconds

after disconnection.

Only spare parts approved by the manufacturer must be used.

All electric modules must be disposed of separate from domestic waste at collecting points that

have been set up by the government or municipal authority.

“Separate collection is the precondition to ensure specific treatment and recycling of WEEE and is

necessary to achieve the chosen level of protection of human health and the environment in the

Community.”

The above statement from EU directive 2002/96/EC applies to all electric modules installed within

EU countries.

In countries outside the EU, different rules may apply regarding waste disposal of electric modules.

For more information about waste disposal of your discarded equipment, contact your

ELTEK VALERE INDUSTRIAL partner.

Static Transfer Switch

STS118

User Manual

Page 7 (24)

2. General Information

The static transfer switch STS118 is designed for a nominal switching capacity of 18kVA and is

used for nearly interruption free switching (<4 ms) between two AC sources (usually inverter and

substitute-mains supply). It is intended for operation in combination with inverters of series

INV215/222. Consequently AC consumers can be driven nearly without interruption if one of the two

power sources fails. All operation and indication elements as well as an Ethernet connector are user-

friendly integrated in the front plate of the unit.

The STS118 is a hot plug-in module with rear side connectors and is designed to be mounted in an as-

sembly set sub rack (see section 3.2). A maximum of eight INV222 (two fully equipped AC power racks

ACR INV222-9.0) can be connected to the STS118.

2.1 Example of use

Static Bypass Switch

STS118

Figure 1. Block diagram “Example of use”

Static Transfer Switch

STS118

User Manual

Page 8 (24)

2.2 Operating modes

The static transfer switch STS is designed for the operating modes “inverter priority” and

“mains priority”. The consumer load is energized by the priority source if the operating system works

under fully functional conditions.

2.2.1 Inverter priority configuration

In the operating mode “inverter priority” the load is switched on inverters during normal operation.

This is the standard configuration (factory setting).

Source “Mains” only is required to energize the consumer load if source “Inverter” fails or is overloaded

(i. e. distortions by short circuit behaviour or overload).

The priority source is programmable via the service menu.

2.2.2 Mains priority configuration

In the operating mode “mains priority” the AC mains works as priority source and the inverter

(as “substitute mains”) as source 2.

3. Type Range/ Main Data

Type Designation Article Code Nominal

Input

Nominal Input

Frequency

Redundant Circuitry

Supply

STS118-230/230-

24V

601-180-411.00 230VAC 50 Hz/ 60Hz

(ad

ustable)

19-45VDC and from

both AC in

uts

STS118-230/230LV 601-180-511.00 230VAC 50 Hz/ 60Hz

(ad

ustable)

38-75VDC and from

both AC in

uts

STS118-230/230HV 601-180-711.00 230VAC 50 Hz/ 60Hz

(ad

ustable)

90-275VDC and from

both AC in

uts

3.1 Main output data

Nominal output voltage: 230VAC

Nominal output current: 78AAC

Nominal switching capacity: 18kVA

Output frequency: according to the input frequency

For more specific data, see section 8.

Static Transfer Switch

STS118

User Manual

Page 9 (24)

3.2 Necessary equipment for STS118 assembly:

Assembly set 19” sub rack 1U for one static transfer switch STS118 including a wired back-

plane): Material code= 602-118-011.00

3.3 Front view: control elements, indicators

Figure 2. Front view

The STS118 is equipped with:

One Ethernet connector 10/100MB (RJ45)

Four adjustment keys: Up, Down, ENT, ESC

Seven LED indicators: STANDBY, INVERTER, MAINS,

LOAD ON INVERTER, LOAD ON MAINS, SYNC, ALARM

(Collective failure)

One LC-Display (4 x 16 characters)

For more information about the control elements, LED indicators, LC-Display and front connector, see

the following sections.

Static Transfer Switch

STS118

User Manual

Page 10 (24)

3.4 Electrical connections

All electrical connectors such as AC inputs and outputs, DC supply, CAN-Bus, synchronous bus and signals are fitted on the rear side of the module. A sub rack

with backplane is necessary to connect the module to the system. The rear side connections of the backplane are shown in figure 3) and defined in the table

“Assignment of the rear side backplane connectors” on the next page.
