Elvox 85CE/240 Bedienungsanleitung

ART. 85CE/240

AUDIO DOOR-ENTRY SYSTEM FOR 3 RESIDENCES

OPERATION

Make calls by pushing door panel and talk hands-free after receiving reply.

Answer calls by lifting phone handset. Operate electric lock by pushing appropriate button.

POWER SUPPLIES FOR AUDIO DOOR-ENTRY SYSTEMS

SAFETY INSTRUCTIONS FOR INSTALLERS

- Carefully read the instructions on this leaflet, they give important information on the safety,use and maintenance of the installation.

- After removing the packing, check the integrity of the set. Packig components (plastic bags, expanded polystyrene etc.) are dangerous for

children.

- Installation must be carried out according to national safety regulations.

- A safety switch, installed before the power supply is recommended.

- Before connecting the set, ensure that the data on the label correspond to those of the network.

- Use this set only for the purposes designed, i.e. to supply power to electric door-opener systems. Any other use may be dangerous.

- The manufacturer is not responsible for damage caused by improper, erroneous or irrational use.

- Before cleaning or maintenance, disconnect the set.

- In case of failure or faulty operation, disconnect the set and do not open it. For repairs apply to the technical assistance centre authorized

by the manufacturer.

- Safety may be compromised if these instructions are disregarded.

- Do not obstruct openings of ventilation/heat exit slits.

- Installers must ensure that manuals with the above instructions are left on connected units after installations, for user’s information.

- All items must only be used for the purposes designed.

- This leaflet must always be enclosed with the power supply.

S6I.85C.E24 ed. 00 05/2004

INSTALLATION

To open phone

Wall-mounting

1 Partially fasten upper screw

"A" to back box leaving it out

for 2 or 3 mm.

2 Hook interphone to upper

screw "A" in rear hole and pull it

downwards. 1 - 2

3 Complete mounting with lower

screw "B" in prepared hole.

For panel Art. 8103 see encluded instructions.

All manuals and user guides at all-guides.com

all-guides.com

4/5

12345

(240V)

PRI

4/5

MINIMUM CONDUCTOR SECTION (mm2.)

Transformer

Art. 832/000.062

(240V∼)

Mains

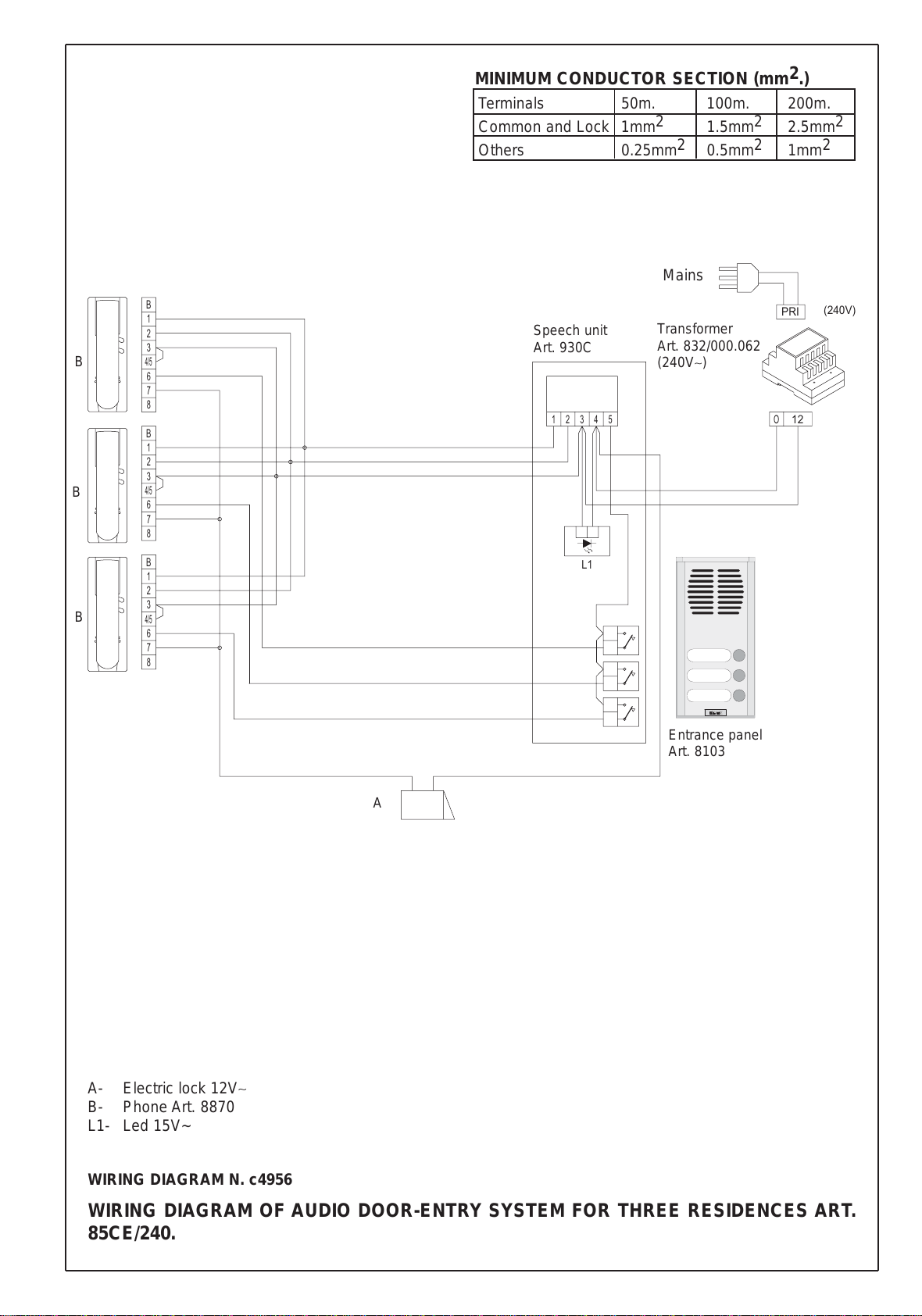

WIRING DIAGRAM N. c4956

WIRING DIAGRAM OF AUDIO DOOR-ENTRY SYSTEM FOR THREE RESIDENCES ART.

85CE/240.

A- Electric lock 12V∼

B- Phone Art. 8870

L1- Led 15V~

Speech unit

Art. 930C

Entrance panel

Art. 8103

Terminals 50m. 100m. 200m.

Common and Lock 1mm21.5mm22.5mm2

Others 0.25mm20.5mm21mm2

All manuals and user guides at all-guides.com
