Elvox 52WS/4 Bedienungsanleitung

Net Video Server

Art. 52WS/4

8/2012

RL.00

Cod. S6I.52W.S4E

INSTALLATION AND OPERATION MANUAL

Product is according to EC Directive 2004/108/CE, 2006/95/CE and following norms.

INDEX

CHAPTER 1 INTRODUCTION.................................................................................................................. 3

1.1 52WS/4 FUNCTIONS AND FEATURES.................................................................................................3

1.2 COMMON APPLICATION.................................................................................................................. 3

CHAPTER 2 INSTALLATION................................................................................................................... 4

2.1 HARDWARE INSTALLATION ............................................................................................................. 4

2.1.1 Installation steps.............................................................................................................................. 4

2.1.2 Installation notice ............................................................................................................................ 4

2.2 PANEL DESCRIPTION.............................................................................................................................4

2.3 THE PIN DEFINITION OF PHYSICS INTERFACES ........................................................................... 5

2.3.1 PIN definition of RS-232 serial interface..........................................................................................5

2.3.2 PIN definition of RS485 serial interface ...........................................................................................8

2.3.3 PIN definition of Ethernet interface..................................................................................................8

CHAPTER 3 CONFIGURATION VIA WEB BROWSER............................................................................11

CHAPTER 4 FREQUENT ASK QUESTIONS......................................................................................... 11

SAFETY FOR THE INSTALLER................................................................................................................12

Thanks for purchasing the products of Elvox. If you have any requests or questions, please contact us

immediately.

This manual is applicable to 52WS/4 Net Video Server.

This manual may contain some technically incorrect places or printing errors. The contents will be up-

dated on a regular basis without additional specific notice. The updates will be added to the new ver-

sion of this manual. We will readily improve and update the products or procedures described in the

manual.

2/12

52WS/4

Good list

1. One piece of 52WS/4 video server;

2. A CD contains client application;

3. One power supply voltage stabilizer

4. A 220V power cable;

5. A cable connecting RS232 with DTE;

Chapter 1 Introduction

52WS/4 net video server adopts embedded Linux operation system (RTOS) and TI DaVinci processor

that is completely independent of PC platform, and efficiently improves system performance. Firmware

is burned into the FLASH, making the system more steady and reliable.

52WS/4net video server has the function of compressing the video signal and audio signal simultane-

ously into H.264 compression standard; transmitting the compression stream through network; real-

time video and audio preview; supporting stream protocol (RTP/RTCP, RTSP), IE browser, bi-directional

voice talk and multilingual etc.

Notes:

DS-6104HCI: 4 channels video inputs and 4 channels audio inputs. All channels can support CIF reso-

lution real time (25FPS for PAL or 30FPS for NTSC).

1.1 52WS/4 functions and features

Basic Function:

1. High speed & high compression ratio of H.264 video hardware real-time compression;

2. Multiple security level leads to high system safety;

3. Support one RS-485 interface that can be used for controlling pan-tilt-zoom and translucent chan-

nel input.

Compression Function 1. Support four channels video (PAL/NTSC) signal, and can be real-time

hardware compressed in 25F/S (PAL) or 30F/S (NTSC) CIF resolutions independently. Video is com-

pressed with H.264 standard, and it supports not only variable bit rate but also variable frame rate.

When choosing video image quality, you can also limit the bit rate of the compression code.

2. Support changeable OSD position, the date and time can be added automatically.

3. Support LOGO, the position is changeable in the video image.

Network Function

1. Support one 10M/100M Ethernet compatible interface;

2. Support TCP/IP protocols; support video, audio, alarm, voice data, serial device data transmission

through TCP/IP network; build-in WEB browser, support IE access.

3. Support pan-tilt-zoom control such as PTZ, iris and focus;

4. Support remote upgrading and maintenance;

5. RS-485 interfaces support transparent transmission mode, and remote hosts can control serial de-

vices through it;

1.2 Common application

Network digital surveillance, such as ATM machine, factory and the bank etc;

Remote monitoring service for prison, nursery and school;

Intelligent gate system (dynamic record the people in and out);

Intelligent building and community;

Uncared-for system of electric power station or telecom base station;

Outdoor equipment monitoring;

Bridge, tunnel and cross road-monitoring system;

Pipeline, warehouse monitoring;

24 hour traffic monitoring;

Remote monitoring of forest, water and river, etc.

3/12

52WS/4 GB

Chapter 2 Installation

2.1 Hardware installation

2.1.1 Installation steps

1. Open packing case, and check the integrity;

2. Take out things needed during installation;

3. Connect cables needed (video signal input cable, audio signal input cable, RS485 cable and cable

for LAN);

4. Take out stabilizer power supply and power on.

2.1.2 Installation notice

Please read the following notice carefully. If you have any question, please contact us.

Notice:

1. After Opening the packing box, please check carefully to confirm that the goods in it are consistent

with list;

2. Please read user manual carefully before installation;

3. Please power-off all related equipments before installation;

4. Please check the voltage of power supply to avoid voltage mismatch;

5. Installation environmental: Do not use it under humidity and high temperature; to keep ventilation

vent freely, avoid being walled up; keep them horizontally, avoid setting up in the vibration surroun-

dings.

2.2 Panel description

Front panel:

4/12

52WS/4

Interface Instruction (From left to right in turn)

1. Tx/Rx indicator lamp;

2. Link indicator lamp;

3. Power supply indicator lamp;

123

5/12

52WS/4 GB

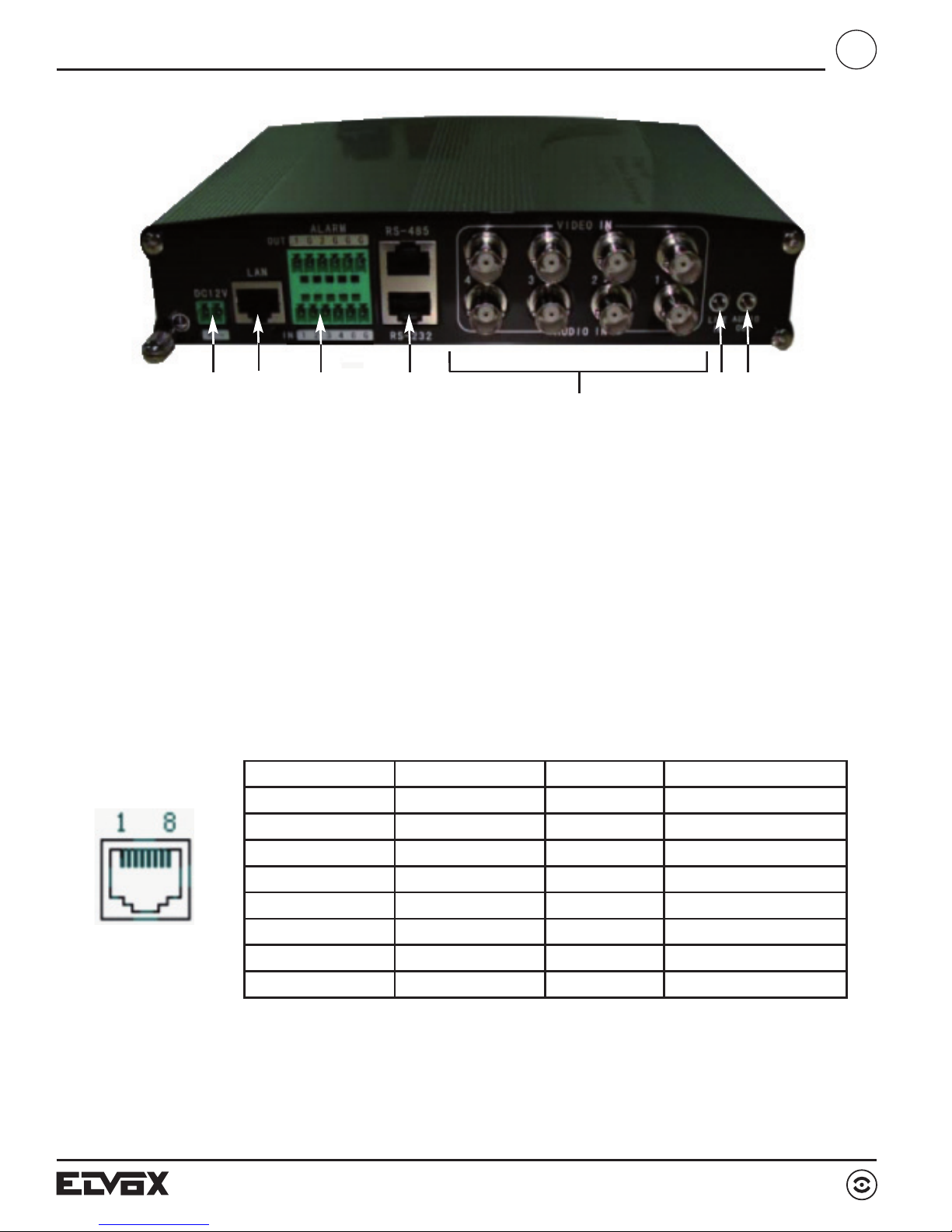

Back panel:

Interface Instruction (From left to Right in return):

1. Power jack is connected with 12V direct current through voltage stabilizer; Please use the stabili-

zer power supply correctly;

2. UTP network connector;

3. 4 external alarm input and 2 relay output;

4. Standard RS-485 serial port RJ45 socket and Standard RS-232 serial port RJ45 socket;

5. 4 channels video input and audio input;

6. One line in audio input

7. One audio output.

2.3 The pin definition of physics interfaces

2.3.1 PIN definition of RS-232 serial interface

The DVS has one RS232 standard serial interface, with RJ-45 connector. Its pin definition is as follows

(‘I’ means input, and ‘O’ means output):

(1) When the RS232 interface of the DVS connects with the DTE equipment, one end of the cable is the

8-pin RJ45 connector (to DVS) and the other of the cable is the DB25 female connector (to DTE). Below

is the description of the internal connection between RJ45 and DB25.

Pin No Name I/O Explanation

1DCD ICarrier Detect

2RxD IReceive

3TxD OTransmit

4CTS IClear send

5RTS ORequest to send

6DTR OData Terminal Ready

7GND GND

Table 2.1 Pin definition of RS232 serial port

12 3 4

GB 52WS/4

6/12

(2) 25-pin to 9-pin converter’s internal connection is like this:

52WS/4

7/12

(3) If you don’t want to use 25-pin to 9-pin convertor to connect DVS and DTE through RS232 interface,

you must use RJ45-DB9 cable. Its internal connection description is:

(4) When the RS232 interface of the DVS connects with the DCE (such as MODEM), one end of the

cable is the 8-pin RJ45 connector and the other is the DB25 male connector. Below is the description

of the internal connection between RJ45 and DB25:

GB 52WS/4

8/12

2.3.2 PIN definition of RS485 serial interface

2.3.3 PIN definition of Ethernet interface

(1) PIN definition of the direct network cable connecting DVS and HUB:

(2) Piedinatura della connessione incrociata del cavo di rete tra DVS e PC host:

(Bianco - Arancio)

(Arancio)

(Bianco - verde)

(Blu)

(Bianco - blu)

(Verde)

(Bianco - Marrone)

(Marrone)

(Bianco - Arancio)

(Arancio)

(Bianco - verde)

(Blu)

(Bianco - blu)

(Verde)

(Bianco - Marrone)

(Marrone)

52WS/4

9/12

Chapter 3 Configuration via Web browser

Before visit the camera via web browser, user should adjust security level. Open the web browser, and

enter the menu “Tool/ internet option/Security/Custom level”, then set the security level to Security

Level - Low, or enable ActiveX Control and the Plug-in directly. Figure 3.2.1 gives you a visual illustra-

tion. After you can see the camera video, recover the security level for security.

1, Failure to control PTZ

It is possible that the camera and equipment are not connected through RS485 port, or the wrong con-

figuration of the decoder.

2, Certain individual channel picture is un-normal

Please check whether the video cable is well connected with the camera and the Embedded DVS

3, Possible reasons which can cause the failure of upgrading

Failure of the network, IP address error in the FTP host computer, FTP service is not been booted by

PC, the path to upgrade is incorrect; no permission (usually happened when to upgrade through

client-end.)

If the above information cannot meet your demand, please not hesitate to contact the provider.

Fig. 3.1 Set the Security Level

GB 52WS/4

10/12

The default IP of the camera is 192.0.0.64 with 8000 as the default port, admin as the administrator, and

12345 as the password. The administrator can create up to 15 separate operators with different right le-

vels.

To login the camera through IE, input the IP address in the address column, and the “Login” dialog box

will pop-up as Fig. 3.2.2. Input your user name and password, and then click “Login” to enter the “pre-

view” page. Double click the “Camera 01” channel or “Preview” button to preview the video as Figure

3.2.3. Right click the “Camera 01” channel, and the “Main Stream”, “Sub Stream” and “Open sound”

options will popup. Select the Open sound option if you connect a pickup to the camera.

For detailed instructions of further configuration, please refer to the user manual of network

camera V.2.00.

Fig. 3.2.2 Login Interface
