Using Your eMachines Flat-Panel Monitor

Unpackingthemonitor

Your monitor box should contain the following items:

•Monitor (with neck attached)

•Base

•This User Guide

•VGA cable

•Audio cable

•Power cord

Ifyouaremissing any items, callCustomerCare.Fortelephone numbers,seethelabelon theback

of your monitor.

Connectingthemonitor

To set up the monitor, first attach the base, then make your cable connections.

Attachingthebase

To attach the base:

•Place the monitor base on a table top, then slide the monitor neck down onto the base until

it clicks into place.

www.emachines.com

Connectingvideoandaudioinputs

To connect video and audio inputs to your monitor:

1Position your computer and the monitor so you can reach the back of each.

2Connect the VGA video cable to the VGA video connector under the back of the display.

3Make sure that your computer is turned off, then connect the other end of the video cable

to the matching video port on the back of your computer.

4Connect the speaker (green) cable from the speaker jack onthe monitorto your computer’s

audio out jack.

Connectingpower

To connect power:

1Position your monitor so you can reach the back, then connect the power cord to the power

connector under the back of the monitor.

2Plug the power cord into a correctly grounded power outlet. We recommend using a surge

protector to protect your monitor from voltage spikes.

Adjustingmonitortilt

To adjust your monitor’s tilt:

•Adjust the tilt of the monitor for your viewing comfort.

Video cable

Audio cable

Power outlet

Power cable

Using Your eMachines Flat-Panel Monitor

Ergonomicguidelines

Therecommendedscreenpositioningisbaseduponthefollowingguidelines.Theseguidelinesare

based on available scientific literature and published standards.

Screen height

The recommended screen height for displays (except in special circumstances, such as for bifocal

use) is that the top of the display should be set at or slightly below (about 1 inch or 25 mm) your

eye level while you are sitting in a comfortable working posture. This guideline places the center

of the screen at an ideal 15° to 20° viewing angle for most desktop displays.

Screen tilt

The screen should be tilted so your line of sight is perpendicular to the screen. This angle creates

the most consistent viewing distance when scanning from the top of the screen to the bottom.

You may need to adjust lighting to avoid screen glare when the screen is tilted upward.

Screen distance from user

The screen should first be placed at arm’s length from the user, then adjusted back and forth to

suit individual preference.

Startingthemonitor

To start the monitor:

1Press the power button on the front of your monitor. The power LED turns from orange to

green.

2Turn on your computer.

Afteryourcomputerisrunning, thepowerLED(centeredabovethemonitorbuttons) should

be green. Allow about 10 seconds for the display image to appear. If the power LED is not

green or you do not see a display image, check the connections. For more troubleshooting

information, see “Troubleshooting” on page13.

3Adjust the tilt of the monitor for the best viewing angle.

4After you see the Windows desktop, press the Auto button (the second button from the

right on the front of the monitor) to automatically adjust your display image to the ideal

settings. See “Monitor buttons” on page 5.

5Use the on-screen display (OSD) to adjust other monitor settings. For more information, see

“Adjusting monitor settings” on page 5.

Important

When adjusting the monitor settings, always press the Auto button before

enteringtheOSD.Thiswillautomaticallyadjustthedisplayimagetotheidealsettings

for the current screen resolution.

Power button

www.emachines.com

Adjustingmonitorsettings

Use the monitor controls (located on the monitor itself) and computer controls (accessible through

Windows) to adjust the display image. For more information about computer controls, see

“Changing Windows screen settings” on page 10.

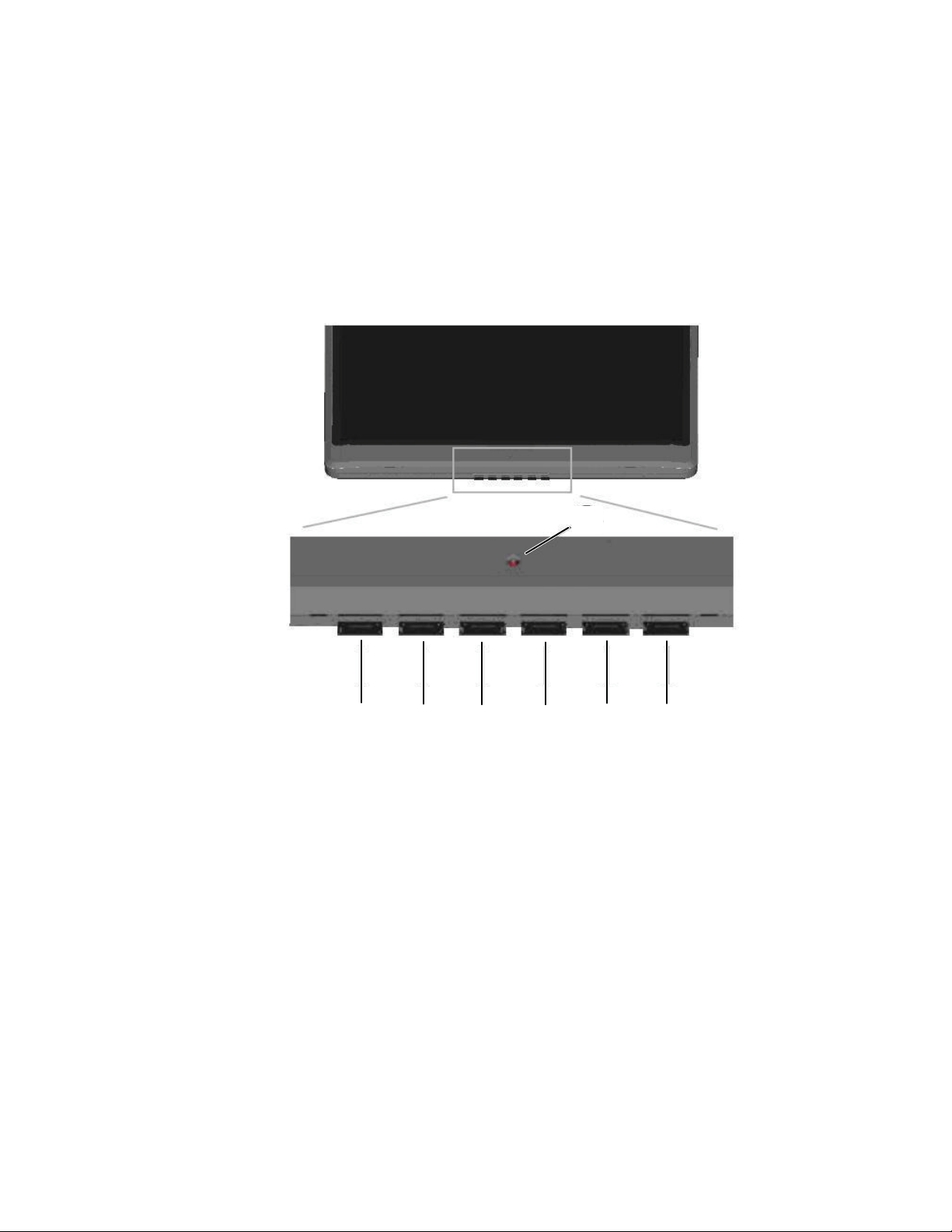

Monitorbuttons

This monitor features an on-screen display (OSD) that lets you adjust contrast, brightness, and

other settings for the monitor. The monitor saves changes you make to the settings, even if you

turn off the monitor. (The appearance of your monitor may vary from that shown.)

•– (Minus) button

OSD active: Press to move to the next menu and decrease setting levels.

OSD inactive: Press to activate the Audio menu.

•+ (Plus) button

OSD active: Press to move to the previous menu and increase setting levels.

OSD inactive: Press to activate the Audio menu.

•Menu button

Press to open a menu, select an item, or close the menu.

•Mute button

Press to mute the sound. Press again to restore the sound.

•Auto button

Press to automatically fine-tune the image quality.

•Power button

Press to turn the monitor on or off.

•Power LED

Powered on = Green

Power saving mode = Orange

button Auto

button Power

button

Power LED

– (Minus)

button + (Plus)

button Mute

button

Using Your eMachines Flat-Panel Monitor

On-screendisplayoptions

AdjustingOSDsettings

To adjust the OSD settings:

1Press the Auto button. The display image is automatically adjusted to the ideal settings for

your current screen resolution.

2Press the Menu button. The OSD opens.

3Press the +or –button to highlight a setting, then press the Menu button to open the

selected menu or setting.

4Press the +or –button to adjust the setting or change the option.

5Select the EXIT icon, then press the Menu button to return to a top level menu.

6Select the EXIT icon, then press the Menu button to exit the OSD.

OSDmenus

OSD Menu Description

Mainmenu

Auto—Automatically adjusts your monitor to its

optimum settings.

Management—Opens the Management menu,

where you can adjust brightness, contrast,

horizontal position, and vertical position.

Clock/Phase—Opens the Clock/Phase menu,

where you can adjust the clock and phase

settings of the monitor.

Color—Opens the Color menu, where you can

adjust color temperature, the sRGB, and custom

color.

OSD—Opens the OSD menu, where you can set

the horizontal and vertical position of the

OSD menus.

Factory Recall—Resets the monitor to its factory

settings.

Language—Opens the Language menu, where

you can select the language of the OSD menus.

Settings take effect immediately.

EXIT—Exits the submenu to a top level menu.

Exits the OSD menu system.

Managementmenu

Brightness—Adjusts the amount of light in the

darkest portion of the picture. Use the lowest

brightness setting you are comfortable with to

maximize the life of the monitor backlights.

You may need to readjust brightness after the

monitor warms up.

Contrast—Adjusts the level of white between the

lightest and darkest portions of an image.

H.Position—Adjusts the horizontal position of the

display on the monitor.

V.Position—Adjusts the vertical position of the

display on the monitor.

Customer Scaling—Adjusts the aspect ratio of the

display.SelectFill to Screen orFill to Aspect Ratio.

EXIT—Returns to top level menu.
