OWNER'S MANUAL

JUMBO DISPLAY

AM / FM CLOCK RADIO

WITH DUAL ALARMS

CK5238

Visit our web site at www.emersonradio.com

IMPORTANT

Call toll-free 1-800-210-2281 for exciting information

and special discounts on Extended Service Plans.

Thank you for purchasing this Emerson Jumbo Display AM/FM Clock Radio

with Dual Alarms.

The extra large 1.8” green display is designed to be highly visible and easily

readable from anywhere in your room. And in spite of the extra large size display

we have managed to minimize the cabinet size so that the radio won’t take up too

much space on your night table.

The dual alarms can be set and used independently. And since there are two

separate Radio/Buzzer selector switches, you can set one alarm to wake you to

buzzer and the other to wake you to radio if your wish. All of the controls are easy

to see and easy to use. The radio dial has a lighted dial pointer for easy night time

tuning. The clock has fast and slow, forward or backward setting controls for

quick and easy adjustments.

The Sure-Alarm battery back up system will remember the time and alarm settings

of course, but it can do more than that. As long as there is a fresh 9-volt battery

installed, the Sure-Alarm system will operate the radio or buzzer alarm to wake

you up even if the power is off at your normal wake up time.

We have taken great care to make sure that your radio was in perfect working

order when it left our factory. It has been designed to give you many years of

enjoyment and trouble free operation. Should you experience any problems with

the operation or performance of this product please refer to the service and

warranty information at the end of this instruction manual.

Once again, from all of us at Emerson Radio Corp., thanks for your purchase.

For future reference, record the serial number in the space provided.

Serial Number:

WARNING: TO PREVENT FIRE OR SHOCK HAZARD,

DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,

DO NOT REMOVE COVER (OR BACK). NO USER

SERVICEABLE PARTS INSIDE. REFER SERVICING TO

QUALIFIED SERVICE PERSONNEL.

This device complies with part 15 of the FCC rules. Operation is subject to the

condition that this device does not cause harmful interference.

Avoid installing the unit in locations described below:

• Places exposed to direct sunlight or close heat radiating appliances such as electric

heaters.

• Dusty places.

• Places subject to constant vibration.

• Humid or moist places.

IMPORTANT NOTES

ATTENTION

The Owner's Manual contains important operating and

maintenance instructions.

For your safety, it is necessary to refer to the manual.

DANGEROUS VOLTAGE

Uninsulated Dangerous Voltage, that may be of sufficient

magnitude to constitute a risk of electric shock to persons is

present within this product's enclosure.

PREPARATION FOR USE

UNPACKING AND SET UP

•Remove the radio from the carton and remove all packing material from the

radio. We suggest that you save the packing material, if possible, in the unlikely

event that your radio ever needs to be returned for service. The original carton

and packing material is the only safe way to pack your radio to protect it from

damage in transit.

•Remove any descriptive labels or stickers on the front or top of the cabinet. Do

not remove any labels or stickers from the back or bottom of the cabinet.

•Note the serial number on the bottom of your radio and write this number in the

space provided on Page 1 of this manual.

•Place your radio on a level surface such as a table, desk or shelf, convenient to

an AC outlet, out of direct sunlight, and away from sources of excess heat, dirt,

dust, moisture, humidity, or vibration.

•Unwind the AC power cord and extend it to its full length. The FM antenna is

built in to this cord. It must be fully extended to provide the best FM reception.

SURE-ALARM BATTERY BACK UP SYSTEM

The Sure-Alarm battery back up system in this radio will maintain the time and

alarm settings in the event of a temporary power interruption. When the power is

restored the time and alarm settings will be correct. If the power is off at your wake

up time, the Sure-Alarm system will use the battery power to turn on the radio or

buzzer alarm as usual, as long as the back up battery is installed and has sufficient

power remaining.

The Sure-Alarm battery back up system requires one 9-volt battery, not included.

We recommend that you install an alkaline battery for longest life and best

performance.

To install the battery:

•Open the battery compartment cover on the bottom

of the radio by pressing the tab in the direction of

the arrow.

•Connect the 9-volt battery to the battery terminal.

It can only be connected one way.

•Push the battery into the battery compartment and

replace the cover.

POWER FAILURE INDICATOR

If no battery is installed in the radio, or if the battery in the compartment is weak

or dead, the time and alarm settings will be lost if the power is interrupted. When

the power is restored the clock display will begin flashing. This is your indication

that the time display is incorrect and needs to be reset. Important: After you reset

the time, be sure to reset your alarm settings as well.

POWER SOURCE

This radio is designed to operate on normal 110V-120V 60Hz AC power only. Do

not attempt to operate the radio on any other power source. You could cause

damage to the radio that is not covered by your warranty.

This radio should be connected to an AC outlet that is always ‘live’. Do not connect

it to an outlet that is controlled by a wall switch. When the power to the radio is

interrupted, the Sure Alarm battery back up system takes over to maintain the

time and alarm settings. To maximize the life of the back up battery, keep the

radio connected to a ‘live’ AC outlet at all times.

This radio uses a polarized AC plug which has

one blade wider than the other. This plug will

only fit into a polarized AC outlet. This is a

safety feature. If the plug will not fit, you may

have an older non-polarized AC outlet. Do not

defeat the safety feature by trying to file the

wider blade, or replacing the plug. Contact an

electrician to replace your outdated outlet.

9VOLT

Press

LOCATION OF CONTROLS AND INDICATORS

Top Panel

1. Sleep On switch (sleep to music timer).

2. Alarm 1 setting button.

(Alarm 1/2 Reset)

3. Fast Reverse button.

4. Slow Reverse button.

5. Clock setting button.

6. Slow Forward button.

7. Fast Forward button.

8. Alarm 2 setting button..

9. Radio ‘On’ button.

10. Snooze (Sleep ‘Off’ / Radio ‘Off’) button.

Left Side

11. Display Dimmer switch (HIGH/LOW).

12. Alarm 2 selector switch (OFF/RAD/BUZ).

13. Alarm 1 selector switch (OFF/RAD/BUZ).

Right Side

14. Tuning control.

15. Band switch (AM/FM).

16. Volume control.

Front Panel

17. AM indicator.

18. Alarm 1 ‘On’ indicator.

19. Time display.

20. Alarm 2 ‘On’ indicator.

21. Tuning Dial.

22. Lighted Dial Pointer.

Bottom Panel

23. Back up battery

compartment.

24. AC power cord.

12:382:38

2:382:38

2:38

OPERATING INSTRUCTIONS

SETTING THE CLOCK

When you connect the radio to your AC outlet for the first time the clock display

will begin flashing “12:00” (AM). The flashing will stop when you set the time.

1. Depress the Clock button and either the Fast Forward or Fast Reverse

buttons to rapidly move the time display forward or back.

2. As the display approaches the correct time release fast setting buttons and

depress the Slow Forward or Slow Reverse buttons until the correct time

appears, then release all buttons.

Note: Be sure to observe the AM indicator to make sure that the time is set

correctly for AM or PM. If the AM indicator is ‘on’, the time displayed is “AM”. If

the AM indicator is ‘off’, the time displayed is “PM”.

SETTING THE WAKE UP TIMES

This clock radio has two separate alarms that can be set and used independently.

You may use the alarms to wake two people at different times, or you may use

one alarm for weekdays and the other for weekend wake up times. The procedure

for adjusting the wake up time is the same for both Alarm 1 and Alarm 2.

1. Depress and hold either the Alarm 1 or Alarm 2 setting button. The display

will change from the correct time to the Alarm 1 or Alarm 2 wake up time.

2. While holding the Alarm 1 or Alarm 2 setting button, depress either the Fast

Forward or Fast Reverse button to move the display rapidly ahead or

back.

3. As the display approaches your desired wake up time, release fast setting

buttons and depress the Slow Forward or Slow Reverse buttons until the

desired wake up time appears, then release all buttons.

Note: Be sure that you have set the wake up time correctly by observing the AM

indicator. If the AM indicator is ‘on’ the wake up time is “AM”. If the AM indicator

is ‘off’, the wake up time is “PM”.

AM indicator

ALM 1(ALARM 1)

indicator ALM 2(ALARM 2)

indicator

CHECKING THE WAKE UP TIMES

Whenever you want to check the wake up times, simply press either the Alarm 1

or Alarm 2 setting buttons. The display will change from correct time to wake up

time. Release the Alarm 1 or Alarm 2 setting buttons to return to correct time.

LISTENING TO THE RADIO

1. Set the Band selector to the desired band, AM or FM.

2. Set the Volume control to a low setting.

3. Press the Radio On button to turn the radio ‘On’. The radio dial pointer will

light.

4. Select your desired station with the Tuning control.

5. Adjust the Volume control to the desired setting.

6. When you are finished listening, press the Snooze/Radio Off button to turn

the radio ‘Off’. The radio dial pointer light goes off.

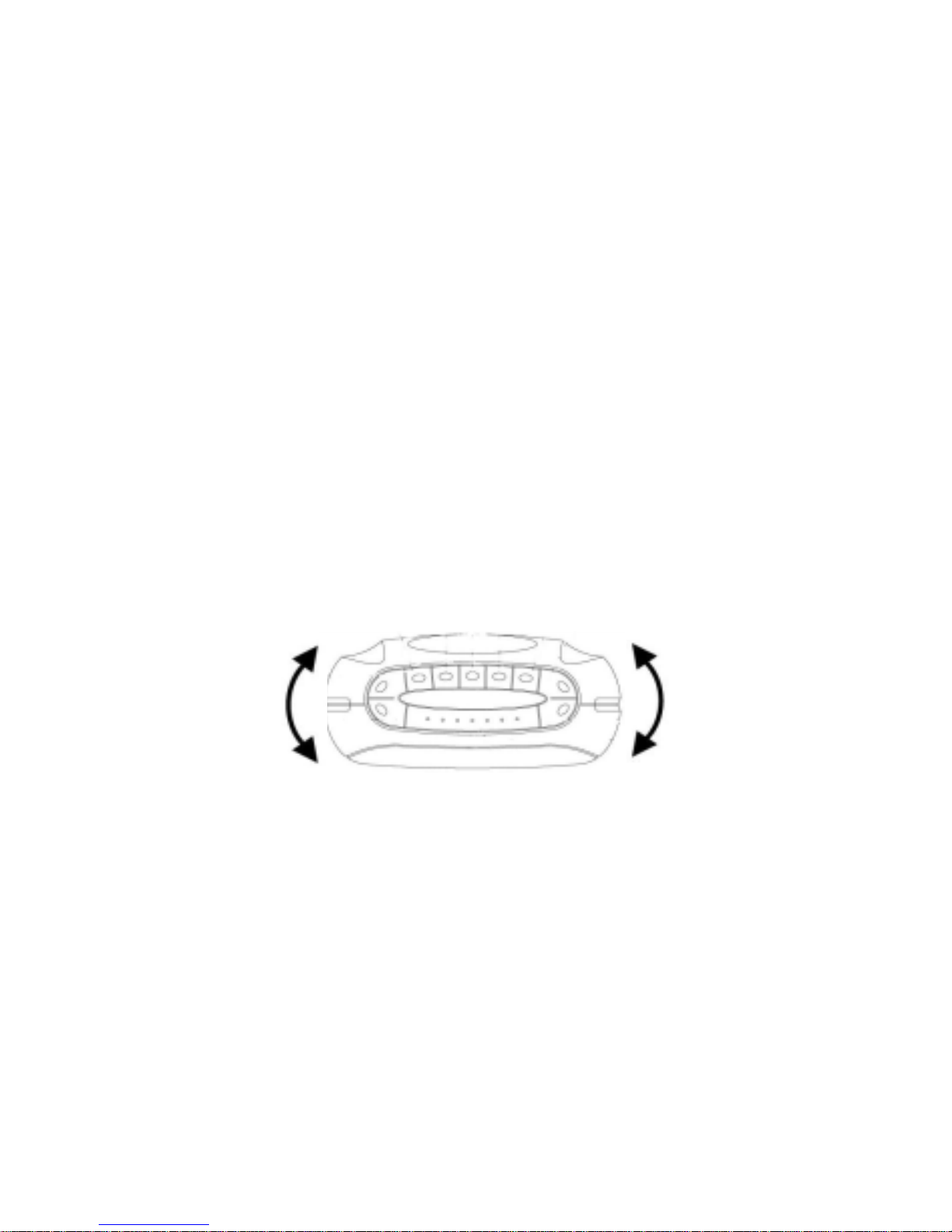

ANTENNA INFORMATION

AM – The AM bar antenna is inside the cabinet. If AM reception is weak, change

the position of cabinet until the internal antenna picks up the strongest

signal.

FM – The FM antenna is built in to the AC power cord. If FM reception is weak try

varying the position and direction of the power cord until you find the

strongest signal.

WAKE TO RADIO

1. Turn the radio ‘On’ and select the band, station, and volume level that you

wish to hear when the alarm comes on, then turn the radio ‘Off’ again.

2. Reconfirm the wake up time settings for the alarm you are using, Alarm 1,

Alarm 2, or both alarms.

3. Set the Alarm selector switch for one or both alarms to the ‘Radio’ position.

The appropriate Alarm 1 and/or Alarm 2 indicators will light up to confirm that

the alarms are set.

4. At the selected wake up time the radio will turn ‘On’. It will play for one hour

and then shut off automatically.

5. To stop the radio sooner, press the Alarm 1 (Alarm 1/2 Reset) button. The

radio will stop but the alarm remains set and will turn the radio on again at the

same time on the following day.

6. If you do not want the alarm to turn the radio on the following day, set the

appropriate Alarm selector to the ‘Off’ position.

WAKE TO BUZZER

1. Reconfirm the wake up time settings for the alarm you are using, Alarm 1,

Alarm 2, or both alarms.

2. SettheAlarmselectorswitchforoneorbothalarmstotheBuzzer(Buz)position.

The appropriate Alarm 1 and/or Alarm 2 indicators will light up to confirm that

the alarms are set.

3. At the selected wake up time the buzzer will sound. It will continue for one

hour and then shut off automatically.

4. To stop the buzzer sooner, press the Alarm 1 (Alarm 1/2 Reset) button. The

buzzer will stop but the alarm remains set and will turn the buzzer on again at

the same time on the following day.

5. If you do not want the alarm to turn the buzzer on the following day, set the

appropriate Alarm selector to the ‘Off’ position.

RADIO AND BUZZER OPERATION

You may also set one alarm for wake to radio and the other for wake to buzzer.

Just set the Alarm 1 and Alarm 2 selector switches to the desired positions.

SNOOZE ALARM

After the radio or buzzer alarm sounds in the morning you may press the Snooze

Bar for a few more minutes sleep. The alarm will stop for approximately 9 minutes

and then turn on again. You may repeat the Snooze operation up to seven times

if desired, but after the seventh time the alarm will not turn on again.

Note: Whenever the Snooze Bar is depressed the display changes from normal

time to a “minutes and seconds” display. The minute will be the last digit that

appeared in the time display, and the seconds will continue to advance. When

the Snooze Bar is released the display returns to the correct time.

SLEEP TO MUSIC TIMER

You can program the sleep timer to play the radio for up to 59 minutes and then

shut off automatically.

1. Press the Sleep On button. The display will briefly show “0:59” and the radio

will begin to play. After 59 minutes the radio will shut off automatically.

2. To adjust the amount of time that the radio will play before shutting off, hold

the Sleep On button. The radio will begin counting down from “0:59”. When

the desired amount of sleep time appears on the display, release the Sleep

On button.

3. To cancel the sleep timer before it counts down to “00” and shut the radio ‘Off’

immediately, press the Snooze Bar.

Important: Remember that the station and volume settings you choose for the

Sleep To Music operation are the same settings you will hear if you set the alarm

for wake to radio the following morning.

DIMMER CONTROL

The Dimmer control was set to the ‘High’ position at our factory. If you find the

clock display is too bright in a darkened room, set the Dimmer control to the ‘Low’

position.

Inhaltsverzeichnis

Andere Emerson Radiowecker Handbücher

Emerson

Emerson GirlPower GP816 Bedienungsanleitung

Emerson

Emerson SmartSet CKS1500 Bedienungsanleitung

Emerson

Emerson CKS1521 Bedienungsanleitung

Emerson

Emerson Research AC100 Bedienungsanleitung

Emerson

Emerson CKS9031 Bedienungsanleitung

Emerson

Emerson RP6251 Bedienungsanleitung

Emerson

Emerson Research SmartSet iC172 Bedienungsanleitung

Emerson

Emerson RET66TQ Bedienungsanleitung

Emerson

Emerson SmartSet CKS1702 Bedienungsanleitung

Emerson

Emerson CKS1800 Bedienungsanleitung

Emerson

Emerson CKD2020 Bedienungsanleitung

Emerson

Emerson CKD9908 Bedienungsanleitung

Emerson

Emerson GirlPower GP815 Bedienungsanleitung

Emerson

Emerson SMARTSET CKS1850C Bedienungsanleitung

Emerson

Emerson CK5029 Bedienungsanleitung

Emerson

Emerson cK5027 Bedienungsanleitung

Emerson

Emerson CKD2328 Bedienungsanleitung

Emerson

Emerson Dora the Explorer DTE810 Bedienungsanleitung

Emerson

Emerson CKS5060B Bedienungsanleitung

Emerson

Emerson RET23 Bedienungsanleitung

Emerson

Emerson CK5888 Bedienungsanleitung

Emerson

Emerson Barbie Story Teller BAR805 Bedienungsanleitung

Emerson

Emerson CK5048 Bedienungsanleitung

Emerson

Emerson CKS2288 Bedienungsanleitung

Beliebte Radiowecker Handbücher anderer Marken

Denver

Denver CRQ-105 Bedienungsanleitung

Audiovox

Audiovox CE90 Bedienungsanleitung

Sony

Sony Dream Machine ICF-C763L Bedienungsanleitung

Sanyo

Sanyo DMP-P6 Bedienungsanleitung

RCA

RCA RPC100 Bedienungsanleitung

Yamaha

Yamaha ISX-80 Bedienungsanleitung

Pyle

Pyle PLMR20W Bedienungsanleitung

Blaupunkt

Blaupunkt CR7BK Bedienungsanleitung

Philips

Philips AJ3180 Bedienungsanleitung

HoMedics

HoMedics SS-5500-2EU Bedienungsanleitung

RCA

RCA RC66i Bedienungsanleitung

Versaudio

Versaudio Vers Bedienungsanleitung

SOUNDMASTER

SOUNDMASTER UR8100 Bedienungsanleitung

Audiovox

Audiovox CE90 Bedienungsanleitung

Jensen Audio

Jensen Audio JCR-222 - AM/FM Projection Alarm Clock Radio Bedienungsanleitung

Roberts

Roberts ChronoDAB Bedienungsanleitung

AEG

AEG MRC 4132 BT Bedienungsanleitung

Tokai

Tokai TC-155 Bedienungsanleitung
