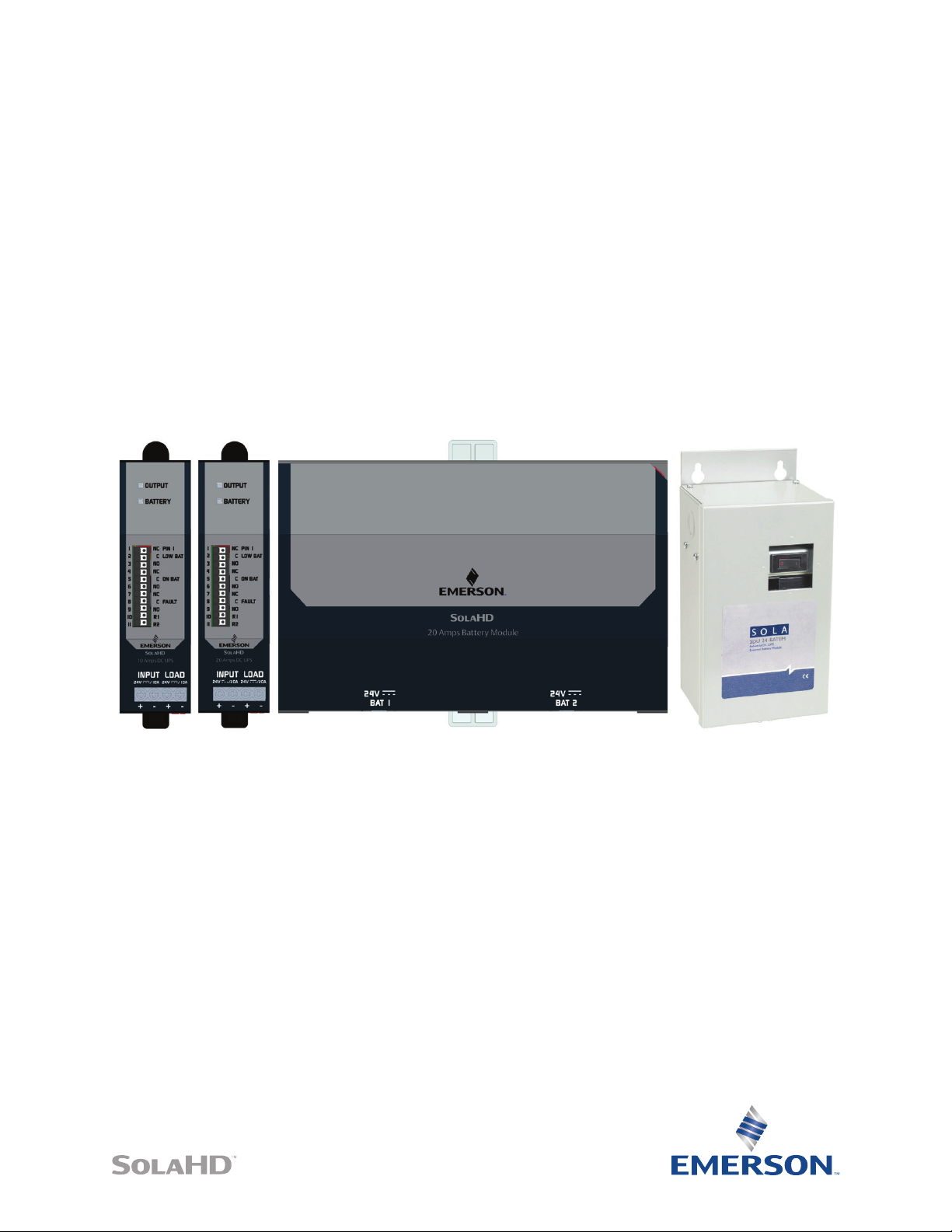

Emerson SolaHD SDU DC UPS B Series Bedienungsanleitung

Uninterruptible Power Supply

User Manual

SDU DC UPS B-Series

Contents

Safety Instructions ...................................... 1

Introduction................................................ 2

Preinstallation............................................. 2

Receiving......................................................... 2

What’s Included............................................... 2

Battery Options ............................................... 2

Optional Accessories ....................................... 2

Product Description..................................... 3

Installation.................................................. 4

Location .......................................................... 4

DIN Rail Mounting ........................................... 4

Removing the Unit from the DIN Rail ............... 4

Optional Chassis Mounting .............................. 5

Connecting the Unit - Wiring Diagrams ........... 8

SDU DC UPS B-Series with SDU 24-BATB .......... 8

SDU DC UPS B-Series with SDU 24-BATEM ....... 9

Operation.................................................. 10

Turning ON the UPS (Normal Mode) .............. 10

Turning OFF the UPS ...................................... 10

Remote ON/OFF ............................................ 10

Self-Testing.................................................... 10

LED Status ................................................. 11

Contact Relay Truth Table .......................... 12

UPS Battery ............................................... 13

Battery Types................................................. 13

Batteries for SDU-24 BATB ............................. 13

Batteries for SDU-24 BATEM .......................... 13

Charging/Recharging the Battery .................. 13

Battery Backup Times (Minutes [min.])...... 14

SDU 10-24B with SDU 24-BATB...................... 14

SDU 20-24B with SDU 24-BATB...................... 14

SDU 10-24B with SDU 24-BATEM................... 14

SDU 20-24B with SDU 24-BATEM................... 14

Specifications ............................................ 15

Power Module Specications ......................... 15

Battery Module Specications ....................... 18

Troubleshooting........................................ 19

Troubleshooting ............................................ 19

SOLAHD Technical Support............................ 19

Storage ..................................................... 20

Extended Storage ......................................... 20

Technical Support...................................... 21

Warranty................................................... 21

Warranty Information.................................... 21

Product Literature ......................................... 21

Page: 1

Safety Instructions

IMPORTANT - READ AND FOLLOW THE SAFETY INSTRUCTION SHEET THAT IS PROVIDED WITH THE

SDU 10-24B, SDU 20-24B, SDU 24-BATB OR SDU 24BATEM MODULES. THESE INSTRUCTIONS MUST BE

FOLLOWED DURING INSTALLATION, OPERATION, MAINTENANCE AND DISPOSAL OF THE UNIT.

WARNING - Explosion Hazard, Risk of Electric Shock, Fire

and Personal Injury

Follow all warnings on the product, in the Safety Instruction Sheets and in this manual. Failure to do so

may result in serious injury or death.

Document Part No.

Safety Instruction Sheet – SDU 10-24B, SDU 20-24B DC Uninterruptible

Power Supplies

A272-367

Safety Instruction Sheet – SDU 24-BATB DC Uninterruptible Power Supply

Battery Module

A272-368

Safety Instruction Sheet – SDU-BATEM DC Uninterruptible Power Supply

Battery Module

A272-369

Page: 2

Introduction

Congratulations on your choice of the SDU DC B Series Uninterruptible Power System (UPS). The SDU DC is

an advanced 24 Vdc UPS that combines an industry leading design, unique installation options, and a wide

operational temperature range (see “Specications”).

The SDU DC is a powerful microprocessor-controlled UPS which provides protection from power interruptions

and is the ideal power backup solution for your critically connected loads.

Preinstallation

Receiving

Inspect the UPS upon receipt. Damage that may have occurred in transit is not covered under the warranty. If

shipping damage is present, contact your local carrier and SolaHD distributor immediately.

What’s Included

• SDU 10-24B or SDU 20-24B

• Safety Instruction Sheet

• Remote On/Off Bypass Jumper

Battery Options

Two battery modules are available:

• SDU 24-BATB: 24 V DIN rail/panel mount battery module (cable and Safety Instruction Sheet included).

NOTE: Up to 4 SDU 24-BATB modules can be connected to the UPS.

• SDU 24-BATEM: 24 V external mount battery module (cable and Safety Instruction Sheet included).

NOTE: Only 1 SDU 24-BATEM module can be connected to the UPS.

NOTE: A combination of both modules cannot be used with the UPS.

Optional Accessories

• SDU 24EXTBC1B: 1ft (30.5cm) battery module cable.

• SDU 24-DB9: Interface kit to convert relay contact signals to DB9 signals.

• SDU-PMBRK: Chassis mounting brackets to secure the UPS to the wall, back of the panel, or enclosure.

• SDU 24EXTBC6B: 6ft (182.9 cm) external battery module cable.

Page: 3

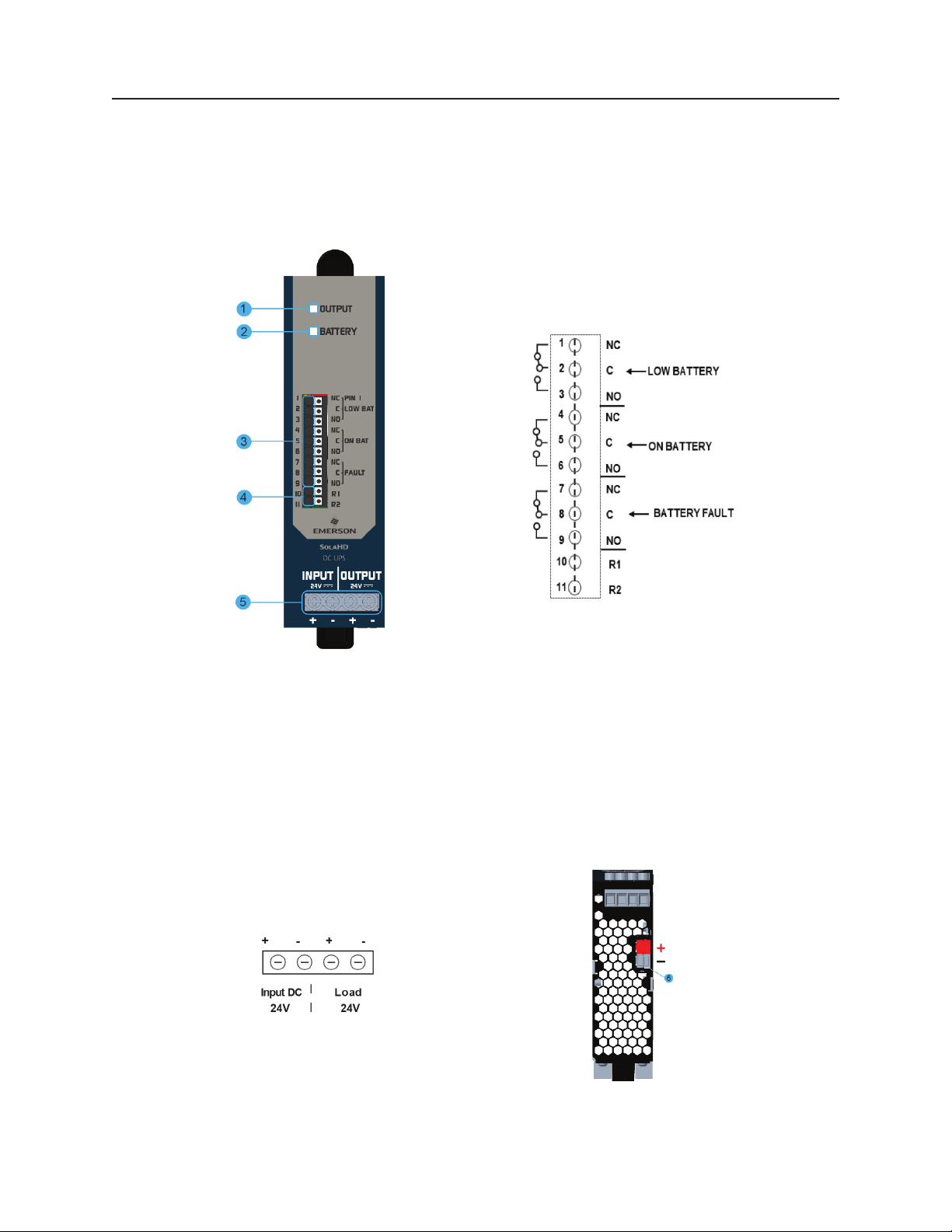

Product Description

Figure 1 Figure 2

1. Output LED: Indicates the output status of the DC UPS. See Table 1.

2. Battery LED: Indicates the status of the battery module connected to the DC UPS. See Table 1.

3. Contact Relay Terminals: The control module incorporates dry relay contacts for remote signaling of the

UPS and battery module status.

4. Remote ON/OFF Terminals (R1 and R2): Turns the unit ON/OFF.

5. DC Input/Output Screw Terminal Connections: IP20 rated input and output screw terminals.

Figure 3 Figure 4

6. Polarized Terminal Connections for the Battery (+ Red color; - Black color).

Page: 4

Installation

Location

Install the power module and battery module in a protected area with adequate airﬂow and free of excessive

dust. Do not operate the UPS outdoors.

DIN Rail Mounting

1. Tilt and place the unit onto the DIN rail.

2. Push the unit downward until it stops.

3. Push at the lower front edge to lock. Ensure that the retainer has locked.

Removing the Unit from the DIN Rail

Push the button and swing the bottom out and up.

Figure 5

Page: 5

Optional Chassis Mounting

Optional chassis mounting brackets (P/N: SDU-PMBRK) are sold separately. Please refer to the installation

instructions supplied with the brackets.

NOTE: If you will be shipping the UPS already mounted, we recommend using the chassis mounting brackets

(P/N: SDU-PMBRK) to secure the UPS.

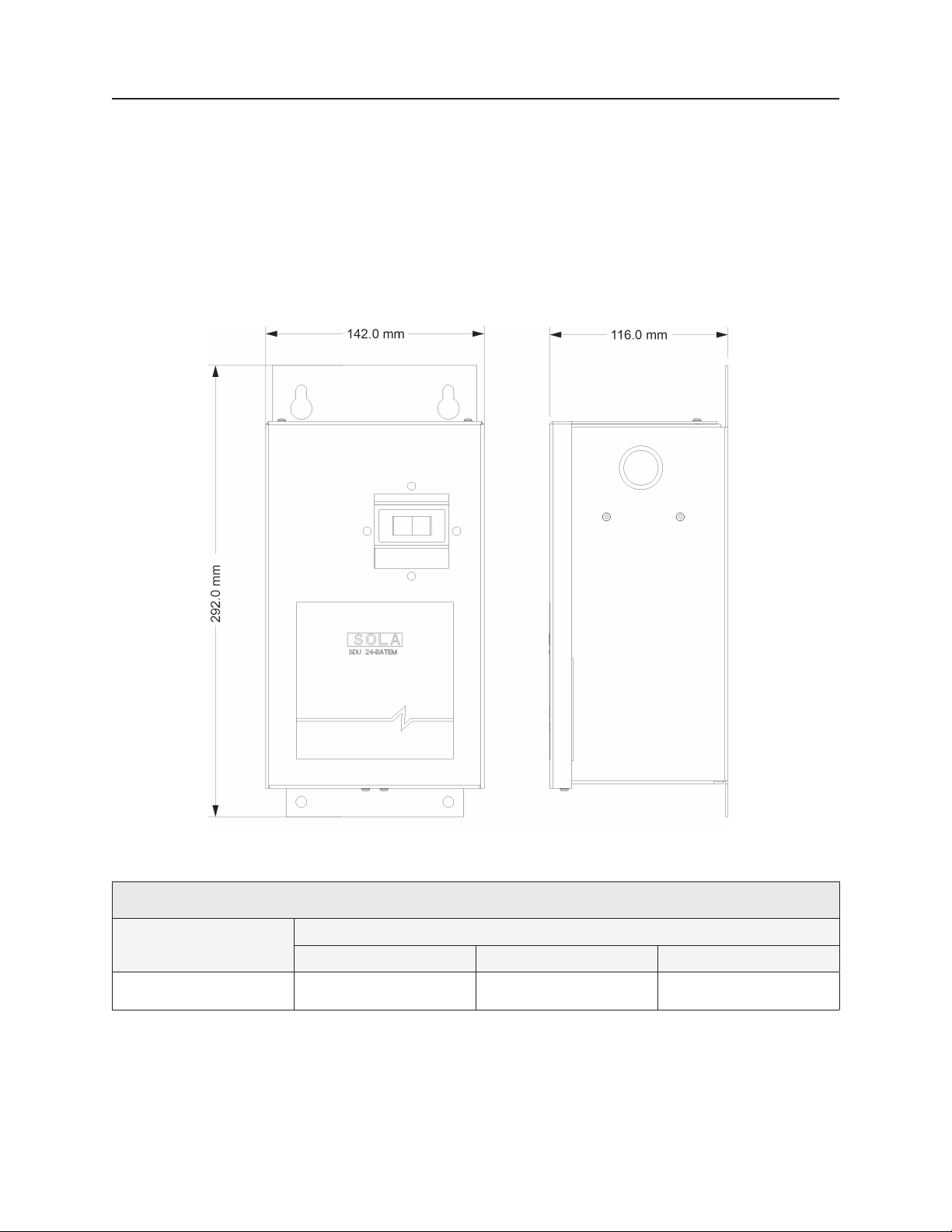

Figure 6

Table 1

Catalog Number Dimensions - Inches (mm)

H W D

SDU 24-BATEM 11.50 (292.0) 5.60 (142.0) 4.60 (116.0)

Page: 6

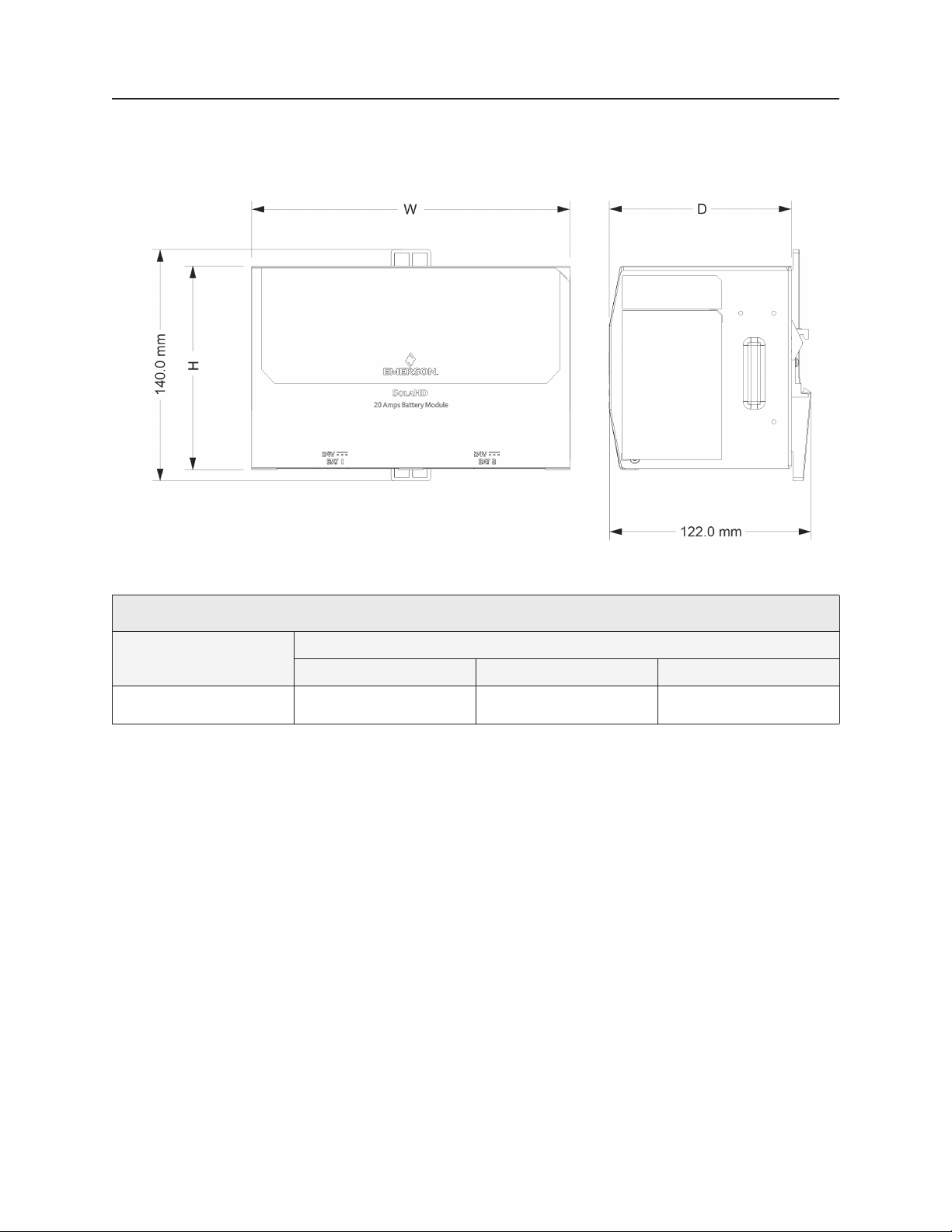

Figure 7

Table 2

Catalog Number Dimensions - Inches (mm)

H W D

SDU 24BAT-B 4.88 (124.0) 7.60 (192.4) 4.33 (110.0)

Page: 7

Figure 8

Table 3

Catalog Number Dimensions - Inches (mm)

H W D

SDU 10-24-B /

SDU 20-24B 4.88 (124.0) 1.37 (35.0) 4.36 (111.0)

Figure 9

Page: 8

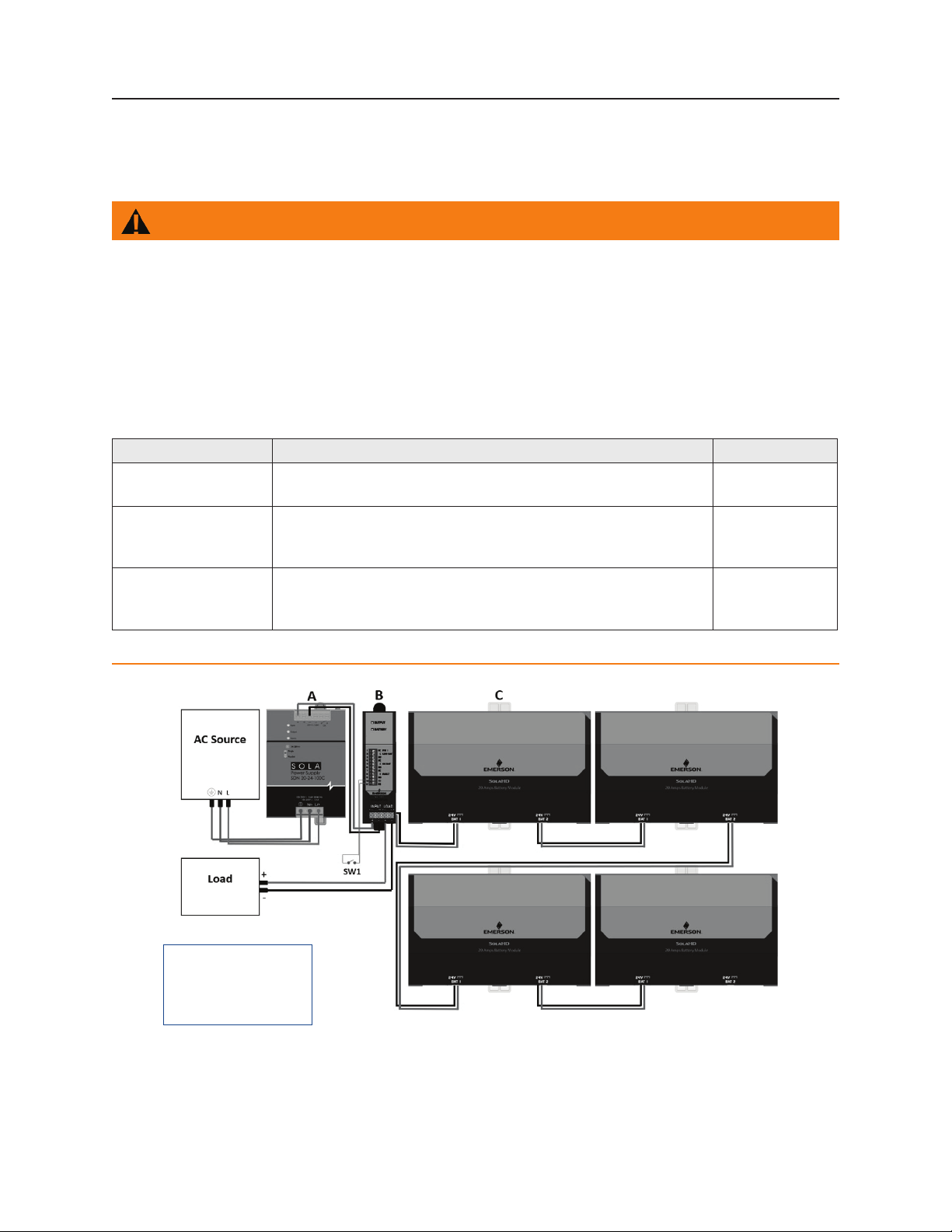

Connecting the Unit - Wiring Diagrams - SDU DC UPS B-Series with SDU 24-BATB

WARNING - Risk of electric shock and energy hazard!

Refer to the Safety Instruction Sheet provided with the products.

This device receives input power from multiple sources. Disconnect the DC UPS input from the AC to

DC power supply connection and the DC Battery Modules before wiring.

Follow all local, National Electrical Code®(NEC®) and CEC wiring and installation codes.

Operate the UPS only from a properly grounded (earthed) DC supply.

To reduce the risk of electric shock, do not remove the cover. For service, contact a

qualified technician.

Wiring/Torque Specification: Use only 90degreeC rated copper wire

Note: Use a Phillips head screwdriver to release the wire from the terminal. Other tools may damage the push terminal.

Legend

A - DC Power Supply

B - DC UPS Power Module

C - DC UPS Battery Module

Figure 10

Connections:

1. Use the polarized cable to connect the power module to the battery module.

2. Connect the power module dc input connector to the 24 Vdc input power source.

3. Hardwire the load to the power module output terminal connector.

Terminals Gauge Size Torque

Input/Output 10-14 AWG (5.3-2.1mm²) for solid and stranded conductors 4.4-6.5lb-inch

(50-73 N-cm)

Contact Terminal

Connections (1-9)

16-24 AWG (1.3-0.2mm²) for solid and stranded conductors for

solid and stranded conductors. 18-24 AWG (0.75-0.2mm²) wire

gauge for conductors with ferrule

N/A

Contact Terminal

Connections (10-11)

Use attached R1/R2 jumper. In lieu of jumper use 16-24 AWG

(1.3-0.2mm²) for solid and stranded conductors. 18-24 AWG

(0.75-0.2mm²) wire gauge for conductors with ferrule

N/A
