EPOC X
User Manual
19/02/2020
EMOTIV EPOC X User Manual - Release 19/02/2020
Introduction
EMOTIV designs consumer Brainwear headsets which allow researchers, commercial
companies or quantified selfers learn more about their brains. EPOC X is the latest iteration of
the award winning EPOC brand. It is a 14 channel headset with saline soaked felt electrode
designed to replace the current EPOC+ and address issues faced by our customers. EPOC X
has a rotating headband, new electrode design and updated radio to improve connectivity. The
electrode placement has not changed but now you are able to refill the sensors without
removing the headset.
Product Highlights

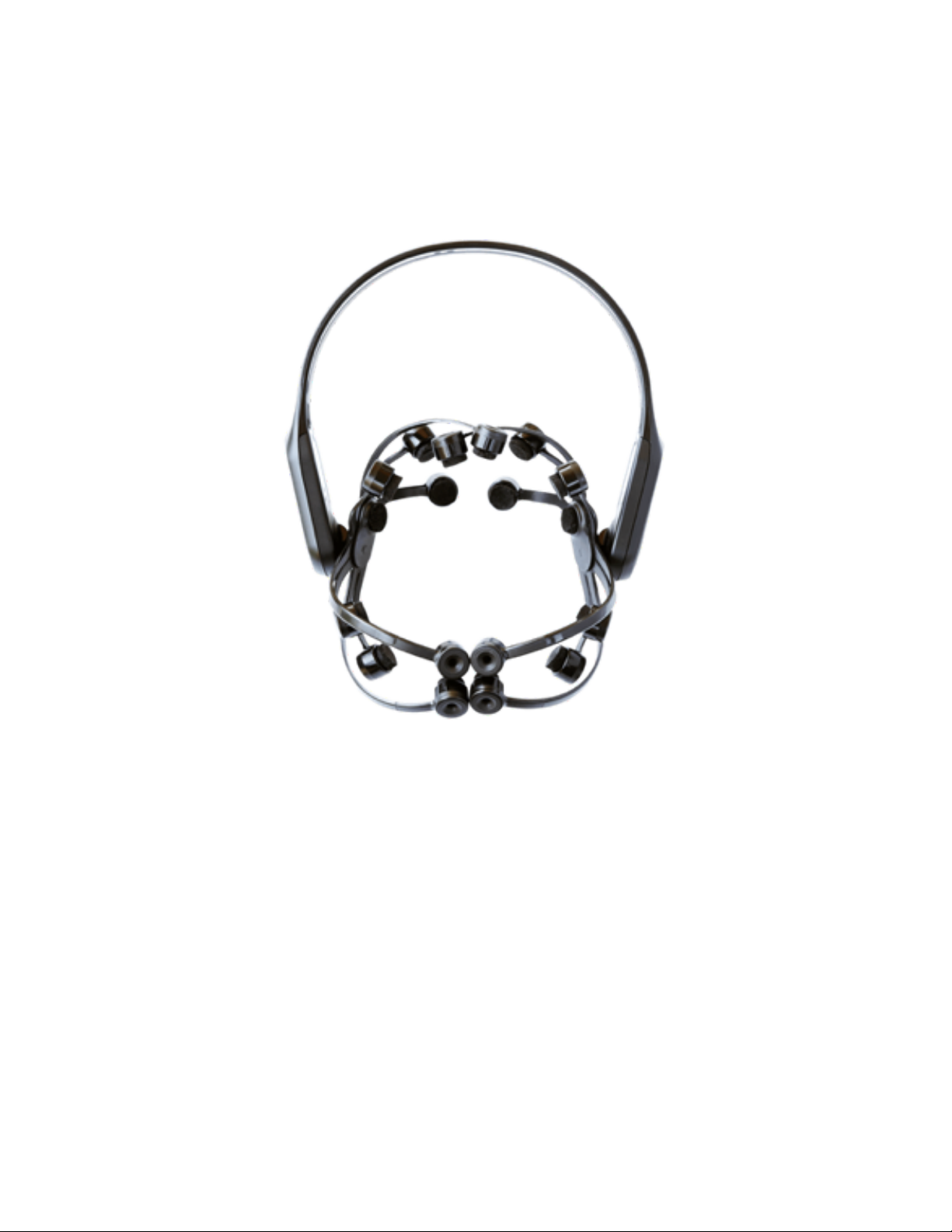

Rotating Headband <IMAGE>
New Electrode Design <IMAGE>
3
4
Contents
1. Travel case + Sleeve
a. Protect your headset when travelling and store all the accessories in the case.
2. EPOC X Headset
3. USB Dongle
4. Saline fluid sample 60ml
a. The sample is contact lens solution
5. USB-C Charge Cable
a. Reversible charge cable
6. Felt Pack - 80pcs
a. EMOTIV has replaced the existing hydrator packs with standard a standard felt
pack which contains 80pcs of felts that fit EPOC X and EPOC Flex. These are
presented in a custom ziplock bag.
5
Technical Specification
Number of Channels
14 (plus CMS/DRL references, P3/P4
locations
10-20 positions
AF3, F7, F3, FC5, T7, P7, O1, O2, P8, T8,
FC6, F4, F8, AF4
Sampling Method
Sequential sampling. Single ADC
Sampling Rate
128 SPS / 256 SPS (2048 Hz internal)
EEG Resolution
14 bits 1 LSB = 0.51μV (16 bit ADC, 2 bits
instrumental noise floor is discarded), settings
can be changed to 16-bit
Bandwidth
0.2 - 45Hz, digital notch filters at 50Hz and
60Hz
Filtering
Built-in digital 5th order Sinc filter
Dynamic Range (input referred)
8400 uV(pp)
Coupling Mode
AC coupled
Connectivity
Proprietary 2.4GHz wireless, BLE and USB
(Extender only)
Battery Life
Upto 9 hours (LiPo)
Impedance Measurement
Real-time contact quality using patented
system
Motion Sensor
ICM-20948
Accelerometer
3-axis +/-4g
Magnetometer
3-axis +/- 4900 uTesla
Motion Sampling
32 / 64 Hz
Motion Resolution
14 / 16-bit (User Defined)
Quanterion
Yes
Sensor Material
Ag/AgCl + Felt + Saline
6
Safety Precautions
● EPOC X is a consumer product; it is not intended to use for in-patient healthcare or in
hazardous environments.
● EPOC X is designed for use at room temperature; rapid changes in temperature will
affect the performance of the amplifiers and increase the noise floor.
● EPOC X uses saline based sensors and every effort has been made to protect the
electronics from water ingress, however it is not waterproof. Please do not submerge
your headset.
●WARNING
: EPOC X is powered by a Lithium-Polymer battery that is rated for operation
in <45C environments. It is not user replaceable, please contact support if you suspect a
fault or have any questions.
●WARNING
: Do not open the enclosure. Doing so will void the warranty and can damage
the headset.
●WARNING
: Do not charge EPOC X while wearing the device.
7
Regulatory compliance
EMOTIV products are intended to be used for research applications and personal use
only. Our products are not sold as Medical Devices as defined in EU directive 93/42/EEC.
Our products are not designed or intended to be used for diagnosis or treatment of
disease.
FCC ID Number 2ADIH-EPOC03 and IC ID Number: 12769A-EPOC03.
EMOTIV has tested EPOC X and confirms:
This device complies with the radio equipment directive (2014/53/EU).
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one or
more of the following measures: - Reorient or relocate the receiving antenna. - Increase the
separation between the equipment and receiver. - Connect the equipment into an outlet on a
circuit different from that to which the receiver is connected. - Consult the dealer or experienced
person for help.
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.
This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation,
Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to
the following two conditions:
1. This device may not cause interference.
2. This device must accept any interference, including interference that may cause
undesired operation of the device.
8
L’émetteur/récepteur exempt de licence contenu dans le présent appareil est conforme aux
CNR d’Innovation, Sciences et Développement économique Canada applicables aux appareils
radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes :
1. L’appareil ne doit pas produire de brouillage;
2. L’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est
susceptible d’en compromettre le fonctionnement.
Please Note: Changes or modifications not expressly approved by the party responsible
for compliance could void the user's authority to operate the equipment.
Tested for safety and EMC/RF by Bay Area Compliance Laboratories (BACL) a registered
NRTL.
EPOC X is fully compliant with the relevant standards for Europe / North America and
Australia and has been tested to the following standards:
● SAFETY
○ UL/CSA/EN/IEC 62368-1 and has a CB certificate.
● EMC
○ FCC 15B / ICES-003 Class B
○ AS/NZ CISPR32:2015 Class B
○ EN301 489-1, EN301 489-17, EN55032:2012/AC:2013, EN55035:2017,
EN61000-3-2, EN61000-3-3.
● RF
○ FCC 15.247 / ISED RSS-247 / EN300 328 V2.1.1
○ EN62479 RF Exposure Evaluation
○ AS/NZ 4268
Reports and certificates are here.
