EC-IMX8MP
NXP i.MX 8M Plus
Quad Core Cortex-A53 1.8GHZ/1.6GHZ
Overview:
EC-8MP Edge Computer is composed of SOM-IMX8MP, Carrier Board and the steel &
aluminum enclosure.
Engineered for industrial applications, it has wide operating temperature range from -20℃to
70℃, and guarantees more than 50000 hours of MTBF.
It's a compact box pc that has strong connections, comes with dual Gigabit network, 2.4GHz
& 5GHz Wi-Fi/ Bluetooth 5.1 ,1xM.2 B key (USB3.0) for 4G 2242 module/5G 3052 Modul,
1xM.2 key M (PCIE3.0) for 2242 SSD expansion
1x USB3.0, 2x USB2.0, 1x HDMI, 1x Audio in, 1x Audio out, 2x DI,2x DO, 1x RS485, 1x CANFD,
1x Debug, 1x ON&OFF button
Main Features
SoM Unit:
CPU
2x or 4x Cortex A53 up to 1.8GHz
1x Cortex M7 up to 800MHz
375 Mpixel/s HDR ISP
GC7000UL with OpenCL and Vulkan support
Video Decode and Encode
Optional 2.3 TOP/s NPU
Memory: Up to 8GB LPDDR4 RAM (2GB default)
Storage: 4~64GB eMMC (16GB default)
Support boot from eMMC, Micro SD;
Including dual Gigabit network, 2.4GHz & 5GHz Wi-Fi, Bluetooth 5.1;
Support Yocto LINUX-5.15.32,Provide Uboot/kernel/filesystem/Driver source code;

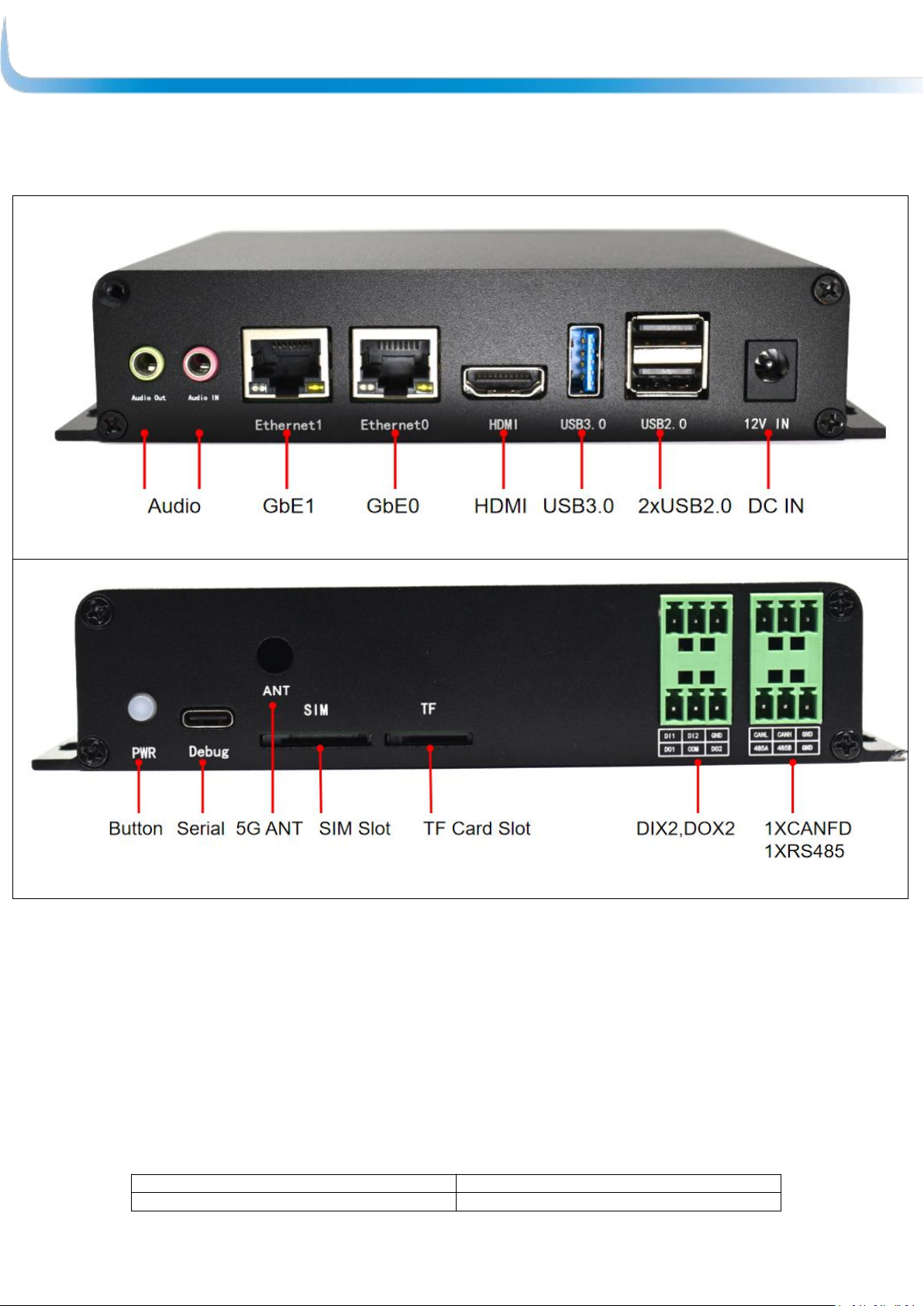

Rich External I/O
1x USB3.0, 2x USB2.0,1x RS485, 1x Debug, 1x CANFD, 2x DI, 2x DO
1x HDMI, 1x Audio IN, 1XAudio Out
1x SIM Card Slot, 1x TF Card Slot, 1x ANT
2x Gigabit network, 1x ON/OFF Button
Rich Internal I/O
1x M.2 B Key (USB3.0) for 5G module/4G Module/network card
1x M.2 M Key (PCIE) For 2242 SSD;
2x TTL, 14x PIN GPIOs, 1x LVDS, 3xUSB2.0, 1xIIC, 1x RTC, 2x button
