Encore ENHWI-SG Kurzanleitung
Encore Electronics Inc 2005
Wireless Configuration 1
Wireless Configuration
The setup of the Wireless Broadband Router can be performed properly using the following
methods:
•The power outlet should be within 1.82 meters (6 feet) of the Broadband Router.
•Visually inspect the DC power jack and make sure that it is fully secured to the power
adapter.
•Make sure that there is proper heat dissipation from and adequate ventilation around the
Broadband Router. Do not place heavy objects on the Broadband Router.
•Fix the direction of the antennas. Try to place the Wireless Router in a position that can
best cover your wireless network. Normally, the higher you place the antenna, the better
the performance will be. The antenna’s position enhances the receiving sensitivity
Connect the Router on a Wired LAN environment
*Before you begin, insure that your have a stable internet connection
1. Plug in one end of the network cable to the WAN port of the Wireless Internet Broadband
Router.
2. Plug in the other end of the network cable to the Ethernet port of the xDSL or Cable
modem.
3. Use another network cable to connect to the Ethernet card on the computer system; the
other end of the cable connects to the LAN port of the Internet Broadband Router. Since
the Wireless Broadband Router has four ports, you can connect up to four computers
directly to the unit. There you do not have to buy a switch to connect these computers
Encore Electronics Inc 2005
Wireless Configuration 2
since one Internet Broadband Router functions both as a connection-sharing unit and as
a switch
Connect the router on a Wireless LAN environment
*Before you begin, insure that your have a stable internet connection
1. Plug in one end of the RJ45 network cable to the xDSL/Cable Modem.
2. Plug in the other end of the RJ45 network cable to the Wireless Internet Broadband
Router WAN port.
Check the installation
The control LEDs of the Wireless Internet Broadband Router are clearly visible and the status of
the network link can be seen instantly:
1. With the power source on, once the device is connected to the broadband modem, the
Power, CPU, LAN, WLAN and WAN port link LEDs of the Internet Broadband Router will
light up indicating a normal status.
2. While the WAN is link up to the ADSL/Cable modem, the WAN port’s Link/ACT LED will
light up.
3. While the LAN is link up to the computer system, the LAN port’s Link/ACT LED will light
up.
4. If you are having difficulties with the router. You may want to reset the router by pressing
the “reset” button the other back while the power is on. Hold the button for 30 seconds
Encore Electronics Inc 2005
Wireless Configuration 3
and release it. Wait 30 seconds then unplug the power and wait 30 seconds and plug the
power back in.
*Resetting the router will return the router to the default factory settings
Setting up the Network Connection on the computer
*Based on Windows XP. All other Windows based operating systems should follow a similar
process.
*It is highly recommended that you configure the router using a computer connected directly to
the router through the LAN port using an Ethernet cable.
Point the cursor and click the right button on the “My Network Place” icon. Select “Properties”
to enter the TCP/IP setting window.
1. Set “IP address” to “Obtain an IP address automatically.”
2. Set “DNS” to “Obtain DNS server address automatically.”
1. Open Internet Explorer (or some type of internet browser)
Encore Electronics Inc 2005
Wireless Configuration 4
2. Enter address http://192.168.1.1 (the factory-default IP address setting) to the URL web
address location.
3. When the following dialog box appears, enter the user name and password to login to the
main configuration window, the default username is “admin” and default password is
“admin”
Quick Setup
Setup wizard is provided as the part of the web configuration utility. User can simply follow the
step-by-step process to get the wireless router configuration ready to run in 6 easy steps by
clicking on the “Wizard” button on the function menu. The following screen will appear. Please
click “Next” to continue

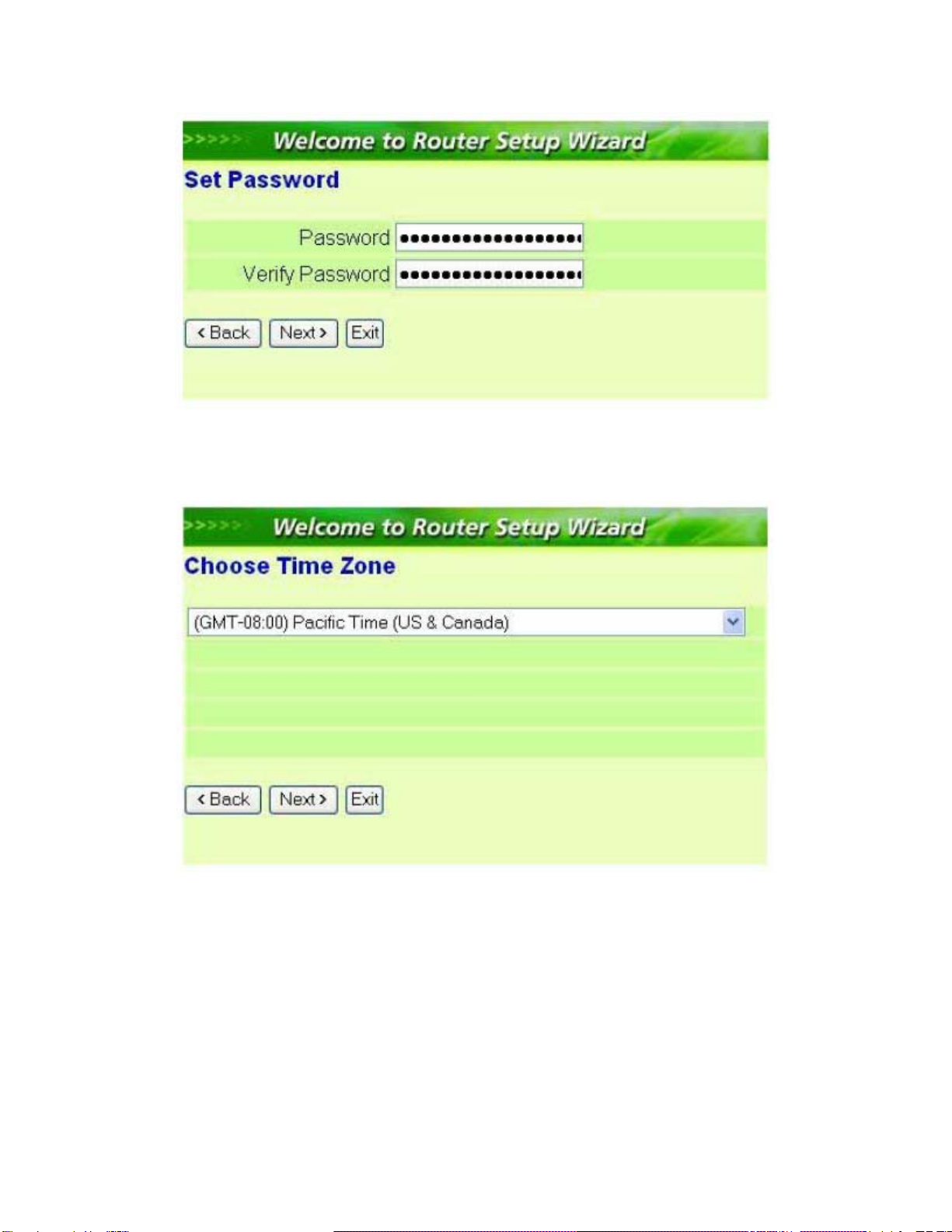

Step 1: Set up new Password
User can change the password and then click “Next” to continue.
Encore Electronics Inc 2005
Wireless Configuration 5
Step 2: Choose time zone
Select the time zone from the drop down list. Please click “Next” to continue.

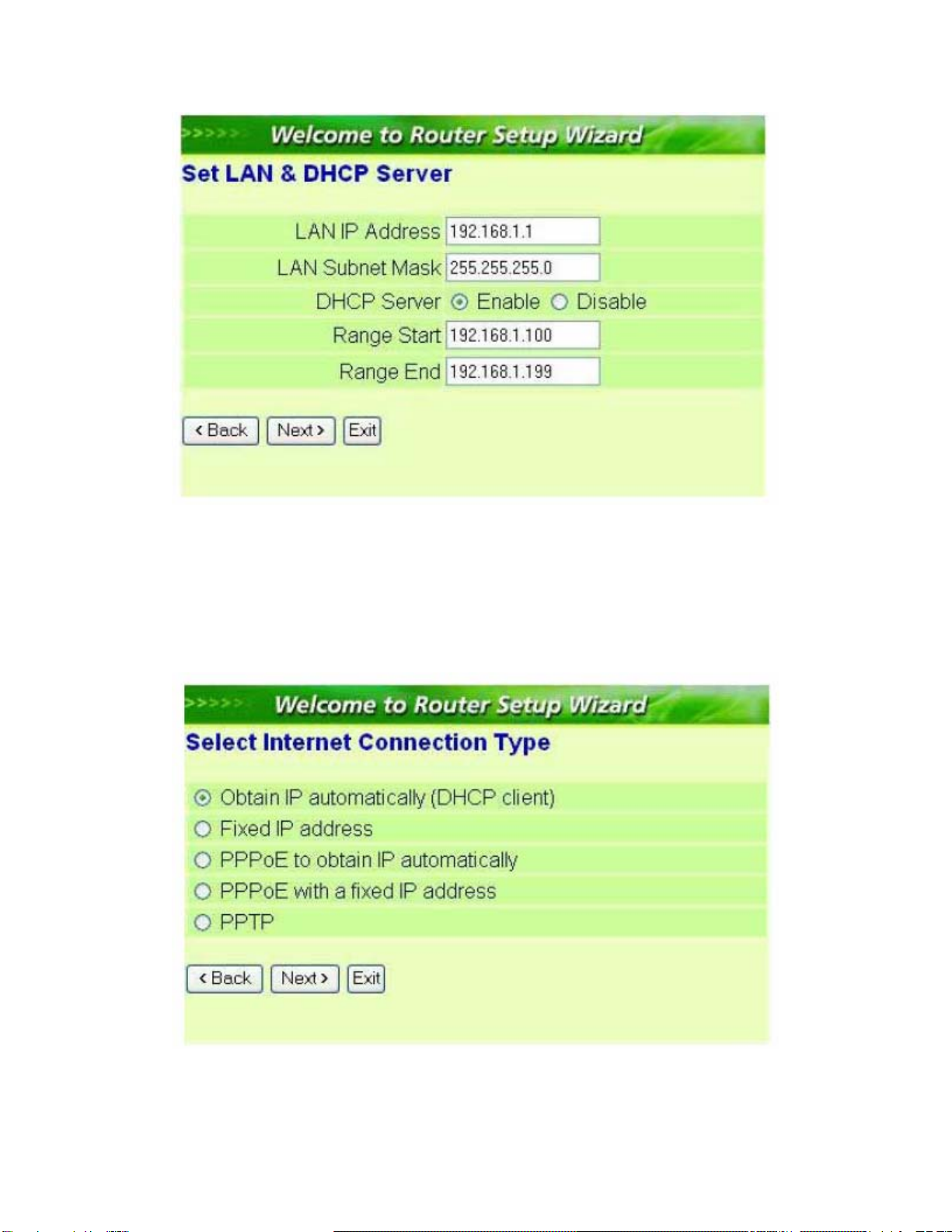

Step 3: Set LAN connection and DHCP server
Set user’s IP address and mask. The default IP is 192.168.1.1. If user likes to enable DHCP,
please click “Enabled”. DHCP enabled is able to automatically assign IP addresses. Please
assign the range of IP addresses in the fields of “Range start” and “Range end”. Please click
“Next” to continue.
Encore Electronics Inc 2005
Wireless Configuration 6
Step 4: Set Internet connection
Select how the router will set up the Internet connection: Obtained IP automatically; Fixed IP
address; PPPoE to obtain IP automatically; PPPoE with a fixed IP address; PPTP.
Obtain IP automatically (DHCP client): If user has enabled DHCP server, choose "Obtain IP
automatically (DHCP client)" to have the router assign IP addresses automatically
Fixed IP Address
Encore Electronics Inc 2005
Wireless Configuration 7
If the Internet Service Providers assign a fixed IP address, choose this option and enter the
assigned IP address, subnet mask, gateway IP and DNS IP addresses for your Broadband
Router.
PPPoE to obtain IP automatically:
Encore Electronics Inc 2005
Wireless Configuration 8
If connected to the Internet using a PPPoE (Dial-up xDSL) Modem, the ISP will provide a
Password and User Name, and then the ISP uses PPPoE. Choose this option and enter the
required information.
PPTP
If connected to the Internet using a (PPTP) xDSL Modem, enter the your IP Address, Subnet
Mask, Gateway, Server IP, PPTP Account and PPTP Password, Your Subnet Mask required by
your ISP in the appropriate fields. If your ISP has provided you with a Connection ID, enter it in
the Connection ID field, otherwise, leave it zero.
Encore Electronics Inc 2005
Wireless Configuration 9
Step 5: Set Wireless LAN connection
Click “Enable” to enable wireless LAN. If user enables the wireless LAN, type the SSID in the text
box and select a communications channel. The SSID and channel must be the same as wireless
devices attempting communication to the router. The SSID will be broadcasted to other wireless
devices.
Encore Electronics Inc 2005
Wireless Configuration 10
Step 6: Restart
The Setup wizard is now completed. The new settings will be effective after the Wireless router
restarted. Please click “Restart” to reboot the router. If user does not want to make any changes,
please click “Exit” to quit without any changes. User also can go back to modify the setting by
clicking “Back”.
Advance Setup
LAN Settings
The screen enables users to configure the LAN & DHCP Server, set WAN parameters, create
Administrator and User passwords, and set the local time, time zone, and dynamic DNS
LAN & DHCP Server This page leads to set LAN and DHCP properties, such as the host name,
IP address, subnet mask, and domain name. LAN and DHCP profiles are listed in the DHCP
table at the bottom of the screen
