Installation Manual
Waypole
ENGLISH
2
Sommario
1. Purpose 3
2. Field of application 3
3. Denitions/Abbreviations 3
4. Equipment 4
5. Material supplied by the manufacturer 5
6. Unpacking 6
7. The Plinth 8
8. Installation 9
8.1. Warnings 9
8.2. Exploded diagram 10
8.3. Preparing the Waypole 11
8.4. Placing the Waypole in position 14
8.5 Wiring the power supply and eah 16
8.6. Concluding steps 19
9. Final steps 20
10. Waypole specications 21
Appendix A 23
Appendix B 24
Appendix C 25
3
1. Purpose
The purpose of this document is to describe how to install the equipment named “Enel X
Way Waypole™”.
2. Field of application
It is used to document installation activities for such equipment as pa of an Electric Vehicle
Charging System.
CAUTION: The safety of the equipment is only guaranteed if the instructions below
are used correctly. It is therefore necessary to keep them. Only qualied personnel
can carry out installation or any other work on stations in operation, and only in
accordance with the safety requirements in force.
PI INSTALLATION REQUIREMENTS (This document)
RCCB RESIDUAL CURRENT CIRCUIT BREAKER
TMCB THERMAL-MAGNETIC CIRCUIT BREAKER
4
4. Equipment
Anyone who secures the pole to the ground and connects it electrically to the mains power
must have at least the following tools:
TOOL SIZE USE
Long socket wrench for
hexagon head screws 13 mm Power terminals, 400 Vac + PE
Socket wrench for
hexagon head screws 17 mm Nuts for securing anchors
Hexagon key 3 mm Doors
Hexagon key 4 mm Lexan guard
Hexagon key 5 mm Fastening metal cable clamp
Open-end wrench 22 mm Small cable glands
Open-end wrench 55 mm Large cable glands
5

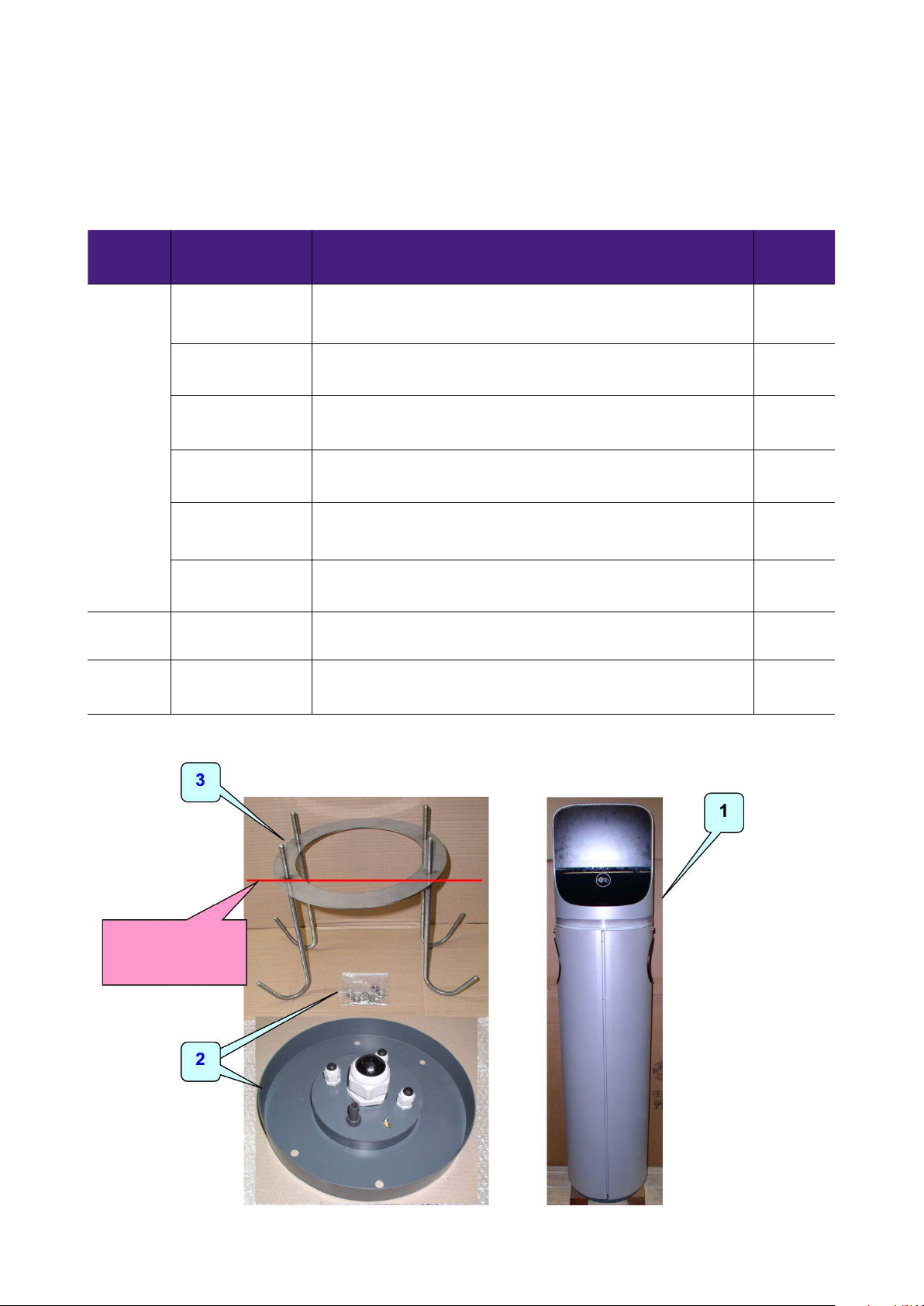

5. Material supplied by the manufacturer
The table below lists the materials that the manufacturer supplies for each Waypole to be
used for installation.
POSITION THE
“LONG SIDE”
AT THE FRONT
REF. CODE DESCRIPTION QT Y.
1
467015221 P. S. 4G Enel Three-phase Three-phase 1
467015231 P. S. 4G Enel Single-phase Three-phase 1
467015371 P. S. 4G Enel Three-phase Three-phase Siemens 1
467015381 P. S. 4G Enel Single-phase Three-phase Siemens 1
467015391 P. S. 4G Enel Single-phase Single-phase Siemens 1
467015401 P. S. 4G Enel Single-phase Three-phase 1
2161192211 P. S. 4G Cap Unit 1
3161107391 Plate with anchors 1
6
6. Unpacking

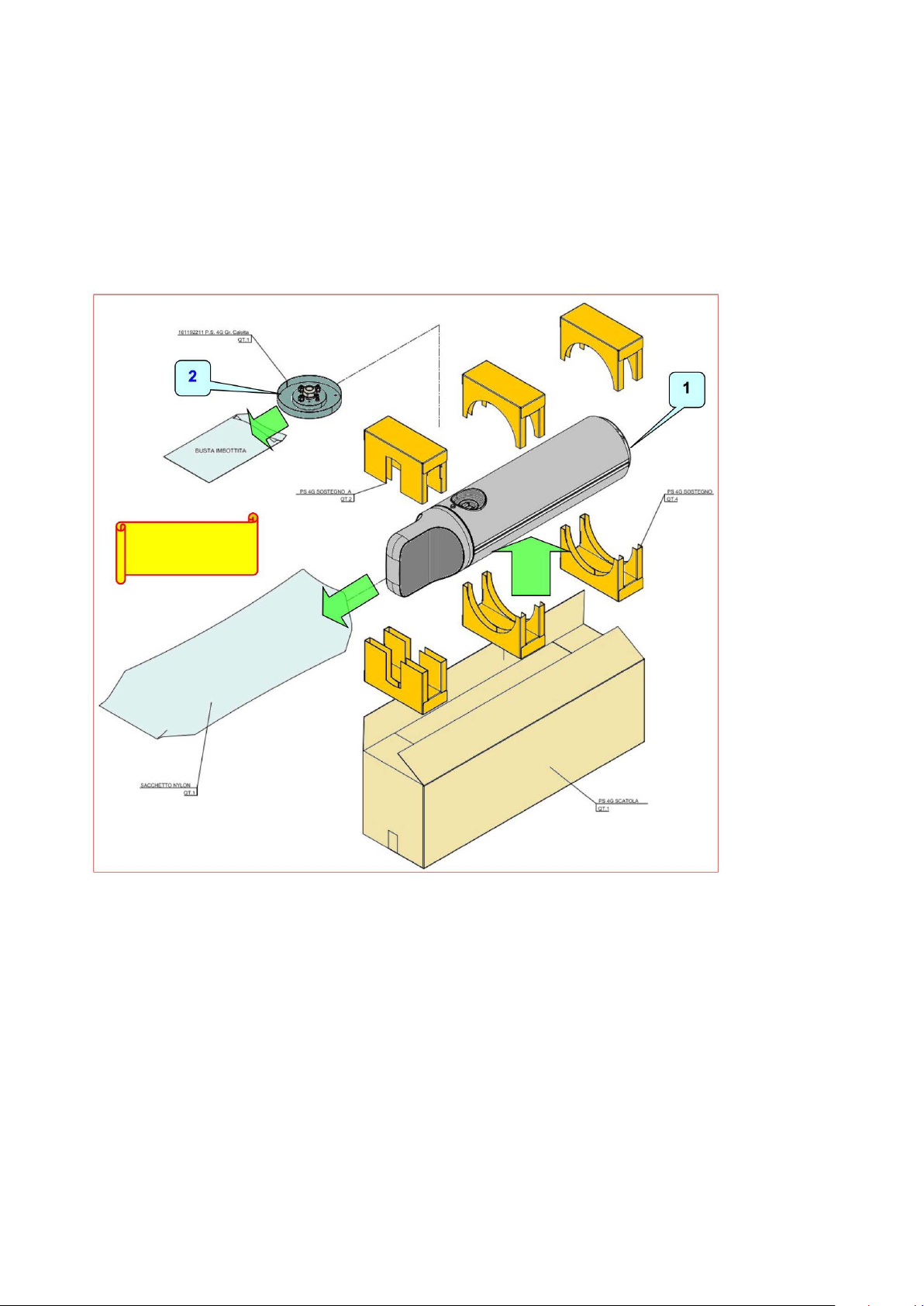

Remove the pole from its packaging (cardboard box) by sliding out the cardboard protection
pieces, and then place it veically on the paving, taking care not to damage it.
Also take out the accessory material need to install the pole, and keep it carefully on-site
until it is used.
Main package
EXAMPLE
7

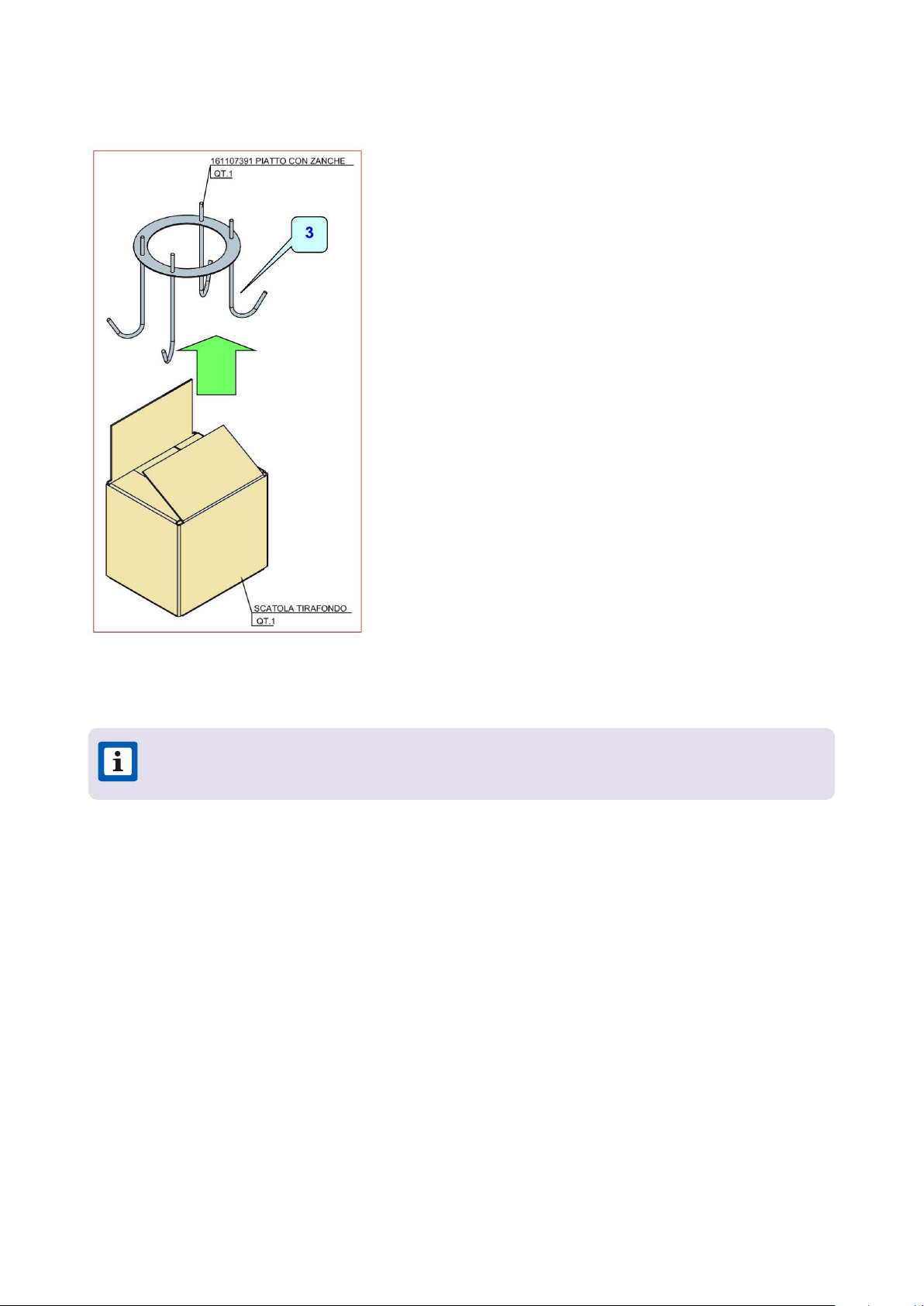

Take the plate with anchors out of the packaging.
The plate with anchors
NOTE: Obviously, this will be done a reasonably long time before unpacking the
Waypole, when the civil works are carried out.
8

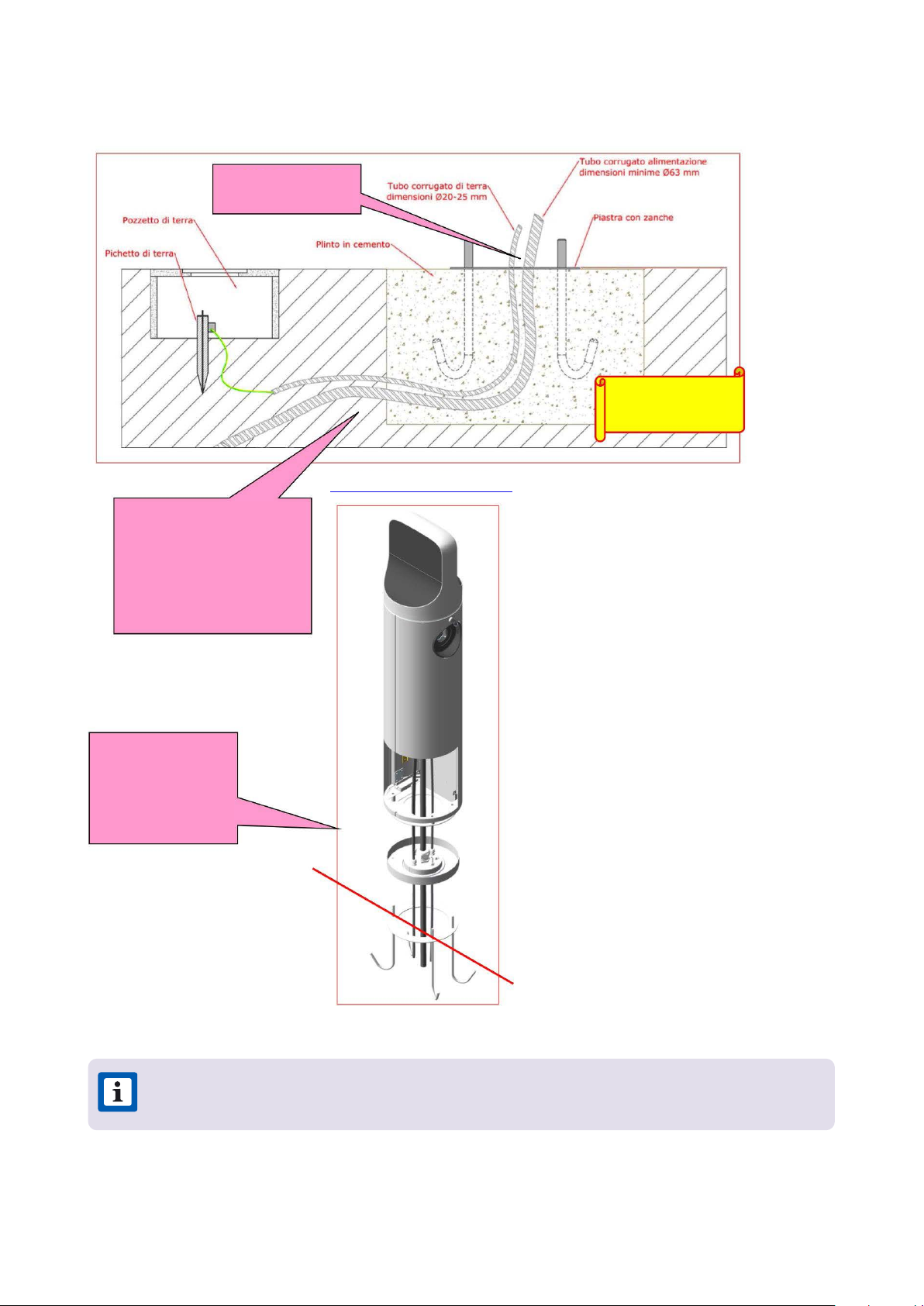

7. The Plinth
EXAMPLE
Cables protruding
at least 100 cm
Position the plinth where
it ensures at least one
metre from walls and
obstacles to the sides of
the pole (sides with the
sockets on them).
Section of the plinth area
Place the pole on
the anchors with
the “long side”
towards the front
NOTE: See also Appendix A.
9
8. Installation
8.1. Warnings
CAUTION: All of the activities described in this manual must be carried out with no
power connected, which must be veried in accordance with the procedures set
out in the regulations in force.
10

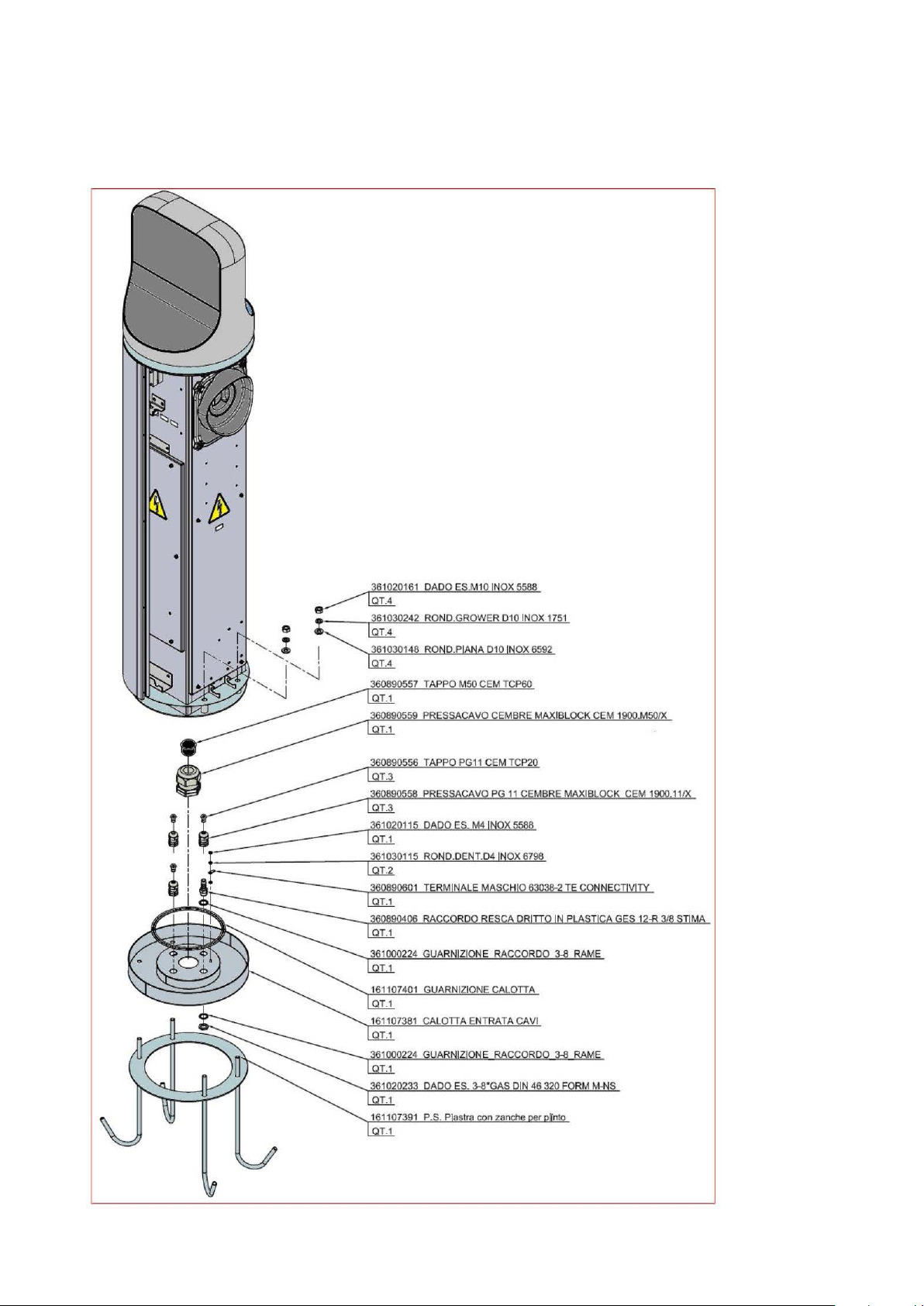

8.2. Exploded diagram
Below there is an exploded diagram of the installation.
