Eneo VMC-27LEDM Benutzerhandbuch

Installation and User's Guide

All contents of this document may change without prior notice, and actual product appearance may differ from that depicted herein

Installation and Operating Instructions

TFT LCD MONITOR

VMC-27LEDM

VMC-32LEDM

TABLE OF CONTENTS

Installation and User's Guide

No ITEM Page

1 SAFETY INSTRUCTION 3

- WARNING

- CAUTION

2 FCC STATEMENT 7

3 INSTALLATION 8

- PARTS

- HOW TO INSTALL

4 OSD MENU SETTING 13

- MENU STRUCTURE

- PICTURE MENU

- OPTION MENU

- INPUT SOURCE

- AUDIO VOLUME

5 FEATURES 19

6 TROUBLESHOOTING 21

Installation and User's Guide

1.SAFETY INSTRUCTION

* Follow this safety instruction to use the monitor properly and prevent the damage.

* Keep this user’s guide book for later use.

* This safety instruction has “Warning” & “Caution” as below

Warning - If the user does not follow this instruction,

it may cause the serious damage to the user.

Caution - If the user does not follow this instruction, it may cause the slight

damage to the user or cause some damages to the monitor.

Warning

Never remove the back cover and

touch the inside of the monitor.

If you need a service, please

contact the service center.

Keep away the monitor from the

direct sunlight and a heating appliance.

Never put objects of any kind into

this product as they may result in a

risk of fire or electric shock.

Connect the power cord to the wall

outlet tightly. If the power cord or

plug are defective and the wall outlet

is not tight, please do not use them.

Installation and User's Guide

1.SAFETY INSTRUCTIN

Warning

Do not install this monitor on the

outside and near water. It may cause

damage to the product, electric shock

and fire.

For cleaning do not use liquid

cleaners. Never touch the power plug

with wet-hands.

When lightning and thundering,

unplug the monitor from the wall

outlet and never touch it.

Unplug this product from the wall

outlet, when it does not operate for

a long time.

When smoking and noising from the

monitor, unplug the product from the

wall outlet and contact a service

center.

Warning : How to fix

Do not open this product as it contains high voltage inside.

It may create an electric shock.

If the user disassembles and remove the back cover, it does not make sure

to make up for the damage and do a service and exchange the monitor.

Installation and User's Guide

1.SAFETY INSTRUCTIN

Cautions

Install this monitor some distance

from the wall and do not install unless

proper ventilation is provided.

Place this product on a stable place.

If not, it may fall, causing serious

damages to the monitor and people.

The openings must not be blocked by

curtain, rug or other similar surface.

When carrying this monitor, be careful

not to damage the panel and drop it

It may cause some trouble.

Before carrying the monitor, turn it off

and unplug the signal cables and the

power cord from the wall outlet.

Take the power plug out from the

wall outlet. Do not pull the cable. It

may snap the inner-wires and cause

overheating and fire.

Installation and User's Guide

1.SAFETY INSTRUCTIN

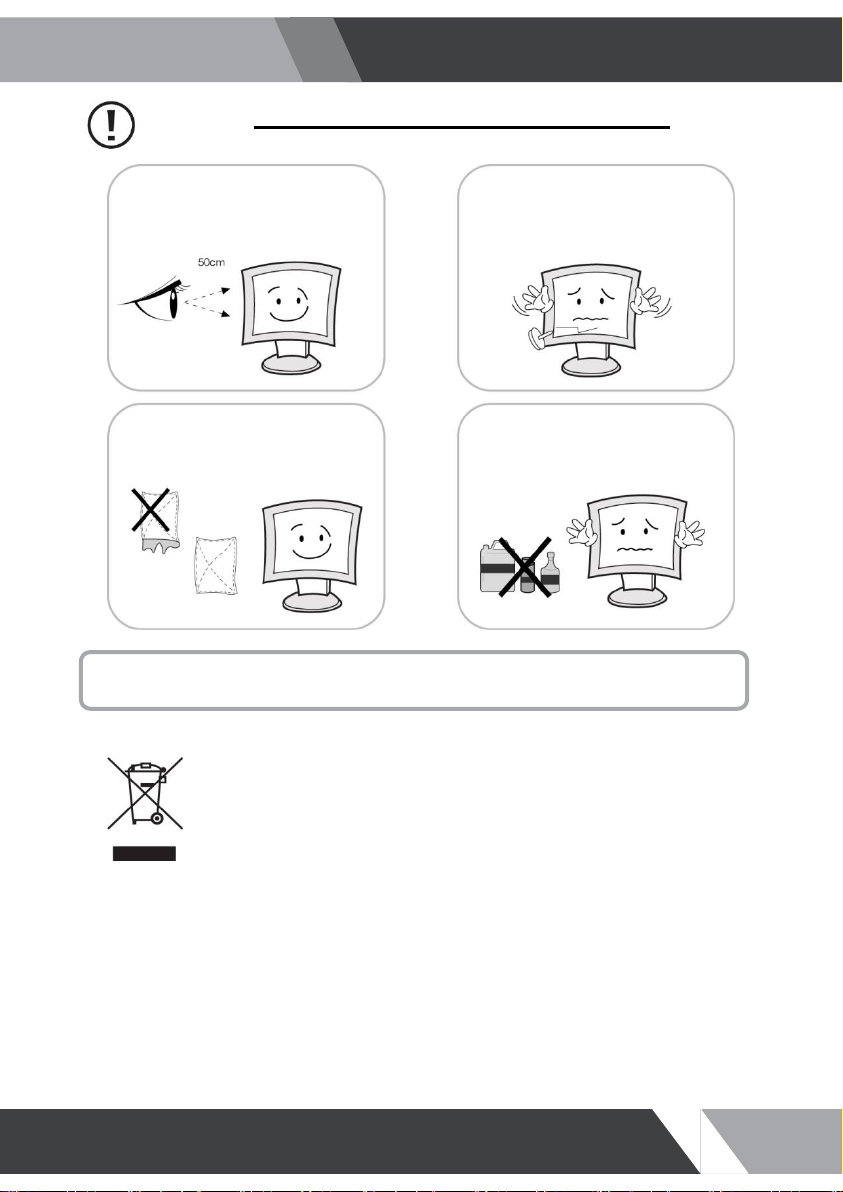

Cautions

Install this monitor about 50cm far

from the eyes and an angle of 0~15

degrees below eyes. Too close

installation may cause having weak

sight.

Do not press the LCD panel with

hands or the sharpened material

hardly.

For cleaning, unplug the monitor from

the wall outlet. Do net use the liquid

cloth. Use the soft cloth.

Do not use the chemical liquid for

cleaning. It may cause fading and

breakage.

WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT

EXPOSE THIS EQUIPMENT TO RAIN OR WATER.

Instructions for Disposal of Electrical and Electronic Equipment in Private

Households

Disposal of used Electrical and Electronic Equipment

(Applicable in the European Union and other European

countries with garbage separate disposal and collection methods)

This symbol on the product, or in the related documents in the package, indicates that

this product shall not be treated as normal household waste. Instead, it should be

taken to a proper applicable collection point or depot for the recycling of electrical

and electronic equipment. By ensuring this product is disposed of correctly, you will

help prevent possible negative consequences for the environment and human health,

which could otherwise be caused by inappropriate waste handling of this product. The

recycling of materials will help to conserve natural resources. For more detailed

information about recycling of this product, please contact your local city authority,

your household waste disposal service or the place where you purchased the product.

Installation and User's Guide

2. FCC RF INTERFERENCE STATEMENT

NOTE

This equipment has been tested and found to comply with the limits for a Class A digital device,

pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection

against harmful interference in a residential installation. This equipment generates, uses and can

radiate radio frequency energy and, if not installed and used in accordance with the instructions,

may cause harmful interference to radio communications. However, there is no guarantee that

interference will not occur in a particular installation.

If this equipment does cause harmful interference to radio or television reception which can be

determined by turning the equipment off and on, the user is encouraged to try to correct the

interference by one or more of the following measures.

●Reorient or relocate the receiving antenna.

●Increase the separation between the equipment and receiver.

●Connect the equipment into an outlet on a circuit different from that to which the receiver is

connected.

●Consult the dealer or an experienced radio, TV technician for help.

●Only shielded interface cable should be used.

Finally, any changes or modifications to the equipment by the user not expressly approved by the

grantee or manufacturer could void

the users authority to operate such equipment.

DOC COMPLIANCE NOTICE

This digital apparatus does not exceed the Class A limits for radio noise emissions from digital

apparatus set out in the radio

interference regulation of Canadian Department of communications.

Installation and User's Guide

3. INSTALLATION

PARTS

User Manual

Power Cable

Adapter

(Only VMC-27LEDM)

LCD Monitor

Remote Controller

VGA Cable

Battery

Installation and User's Guide

HOW TO INSTALL

1) KEY BUTTON

SHORT KEY FUNCTION

OSD Key Function

MENU Activate the menu function / Exit from the menu

SOURCE / ▼Input source menu / Source selection(move down from OSD menu)

AUTO / ▲Auto-fit screen with PC-RGB input / move up from OSD menu

◀(VOL) Decrease the level of volume and move the previous menu

(VOL)▶Increase the level of volume and select the OSD menu

Power On / Off

LED

Red : Power Off state

Green : Power On and available input signal state

Orange : When DPMS "ON" state, no input signal

▲+◀Press “▲ , ◀” Key 10 seconds simultaneously to lock /

unlock OSD Key

Installation and User's Guide

2) CONNECTION

<VMC-27LEDM>

①HDMI 1

HDMI signal 1 input

②HDMI 2

HDMI signal 2 input

③VGA

VGA (PC RGB) signal input

④AUDIO (PC)

Stereo audio input for VGA

⑤For FW Update

①②③④⑤⑥⑦⑧⑨⑩

⑥DC12V

DC adapter input

⑦AUDIO(VIDEO-1)

Stereo audio input for VIDEO-1

⑧AUDIO(VIDEO-2)

Stereo audio input for VIDEO-2

⑨VIDEO-1 IN/OUT

VIDEO-1 signal input/looping out

⑩VIDEO-2 IN/OUT

VIDEO-2 signal input/looping out
