OPERATING MANUAL
HIGH-FREQUENCY BATTERY CHARGER
NG1 – NG3 – NG5 – NG7 – NG9
2/36
© 07-2021. Energic Plus is a trademark of TVH Parts Holding NV, Brabantstraat 15, B-8790 Waregem. All rights reserved. No part of this publication may be
reproduced or communicated in any form or by any means, electronic or mechanical, including copying, recording or use in an information storage or
retrieval system, without prior and explicit permission of TVH Parts Holding NV. Printing errors reserved. Photographs and illustrations are included for
reference purposes only.
Responsible editor: TVH Parts Holding NV, Brabantstraat 15, BE-8790Waregem
TVH is a supplier of after-market spare parts and accessories that are suitable for the maintenance and repair of OEM equipment.
3/36
www.tvh.com/highfrequencycharger_RV01
BG Bulgarian Можете да намерите това ръководство на Вашия език чрез линка, посочен по – долу.
CS Czech Tento návod najdete ve svém jazyce prostřednictvím odkazu níže.
DA Danish Du kan finde denne vejledning på dit sprog via nedenstående link.
DE German Sie finden diese Bedienungsanleitung in Ihrer Sprache unter folgendem Link.
EL Greek Μπορείτε να βρείτε αυτό το εγχειρίδιο στη γλώσσα σας μέσω του παρακάτω συνδέσμου.
EN English You can find this manual in your language via below link.
ES Spanish Encontrarás este manual en su propio idioma a través del siguiente enlace.
ET Estonian Oma emakeelse juhendi leiate allolevalt lingilt.
FI Finnish Löydät tämän manuaalin omalla kielelläsi alla olevan linkin takaa.
FR French Vous trouverez ce manuel dans votre langue via le lien ci-dessous.
GA Irish Tá an lámhleabhar seo ar fáil i do theanga tríd an nasc thíos.
HR Croatian Ovaj prirucnik mozete pronaci na svom jeziku putem donjeg linka.
HU Hungarian Ez a kézikönyv az Ön nyelvén az alábbi link alatt található.
IS Icelandic Hægt er að finna þessa handbók á þínu tungumáli á tenglinum hér að neðan.
IT Italian Cliccando sul link sottostante troverai il manuale nella tua lingua.
LT Lithuanian Šį vadovlėlį savo kalba rasite spustelėję žemiau esančią nuorodą.
LV Latvian Rokasgrāmatu latviešu valodā Jūs varat atrast izmantojot zemāk esošo saiti.
MT Maltese Tista’ssib dan il-manwal bil-lingwa tiegħek permezz tal-link ta’hawn taħt.
NL Dutch Je vindt deze handleiding in jouw taal via onderstaande link.
NO Norwegian Du finner denne håndboken på ditt språk via linken nedenfor.
PL Polish Niniejsza instrukcja obsługi dostępna jest wTwoim języku za pośrednictwem poniższego linku.
PT Portuguese Pode encontrar este manual no seu idioma através do link abaixo.
RO Romanian Puteți găsi acest manual în limba dvs. prin link-ul de mai jos.
SK Slovak Manuál vo vašom jazyku môžete nájst v priloženom vysvietenom riadku.
SL Slovenian Ta priročnik najdete v svojem jeziku preko spodnje povezave.
SV Swedish Du kan hitta denna manual på ditt språk via länken nedan.
TR Turkish Bu kılavuzu aşağıdaki bağlantıdan kendi dilinizde bulabilirsiniz.
4/36
Thank you for using our product. For your safety and to ensure a correct operation, we would like to
bring to your attention some aspects of this manual:
• This booklet supplies useful instructions for the correct operation and maintenance of the product.
It is therefore necessary to pay the utmost attention to all of the paragraphs that illustrate the most
simple and secure way to operate and use this product.
• This booklet must be considered an integral part of the machine and must be included with the
deed of sale.
• Neither this publication, nor part of it, can be reproduced without written authorisation on the part
of the manufacturer.
• All of the information reported herein is based on data available at the moment of printing;
the manufacturer reserves the right to carry out modifications to its own products at any moment,
without notice and without incurring in any sanction. It is therefore suggested to always check for
possible updates.
The person responsible for the use of the product must make sure that all of the safety rules in force in
the country of its use are applied, to guarantee that the equipment is used conform with the use for
which it is destined and to avoid any dangerous situation for the user.
The following warning signs are used in this manual to warn you for dangers and risks:
Informative, be careful.
Warning, can lead to injury and damage if instructions aren’t followed.
Danger, can lead to serious or fatal injury and serious damage if instructions aren’t
followed.
The following conventions are used in this manual:
For the charger without air pump:
1
6
5
4
2
3
1Top
2 Back
3Left
4 Bottom
5 Front
6 Right
5/36
TABLE OF CONTENTS
1. INTRODUCTION...............................................................................................6
2. DESCRIPTION..................................................................................................7
2.1. Technical data......................................................................................................................7
2.2. Main components of the product .......................................................................................10
2.3. Placement of the decals. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
2.4. Type plate..........................................................................................................................11
3. SAFETY INSTRUCTIONS.................................................................................. 12
3.1. Explanation of the safety decals ..........................................................................................12
3.2. General safety instructions..................................................................................................12
4. TRANSPORT AND STORAGE............................................................................ 14
5. ASSEMBLY AND INSTALLATION....................................................................... 15
5.1. Packing list.........................................................................................................................15
5.2. Safety instructions..............................................................................................................15
5.3. Required material for assembling........................................................................................16
5.4. Installation of the charger...................................................................................................16
6. OPERATION................................................................................................... 17
6.1. Safety instructions for operating the product.......................................................................17
6.2. Operating instructions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
7. MAINTENANCE.............................................................................................. 22
7.1. Safety instructions for the repair of the product ...................................................................22
7.2. Maintenance schedule .......................................................................................................22
7.3. Maintenance instructions ...................................................................................................22
8. TROUBLESHOOTING ...................................................................................... 24
9. TEMPORARILY OUT OF ORDER ........................................................................ 27
10. FINAL DECOMMISSIONING AND DISPOSAL...................................................... 28
11. ANNEXES ...................................................................................................... 29
11.1. CE-certificate .....................................................................................................................29
11.2. Spare parts lists ..................................................................................................................31
11.3. Medical and first-aid treatment...........................................................................................32
6/36
1. INTRODUCTION
This manual gives information about the commencement of operation, use and maintenance of
your newly purchased high frequency charger. Also included in this manual are a number of safety
instructions to create a safe working environment.
The high-frequency battery charger is an electronic device for professional use only, designed to
charge different types of batteries, depending on the firmware installed. This depends in part on the
application and the programmed software and may also be used as a power supply.
The difference with a traditional charger is that the high-frequency charger has extra parts with which
the mains voltage is first converted to a much higher frequency.
This is followed by a‘traditional’transformation, but at this frequency the transformer is much
smaller. This makes the high frequency charger much more compact and lighter than its traditional
counterpart.
Please read the manual thoroughly and observe the safety procedures before putting the unit into
operation. The operator and all persons who come into contact with the equipment should read it
carefully and regularly and have access to it at all times.
Keep this manual near the equipment and in a safe place for future reference!
Contact your dealer for any further questions or concerns you may have.
We hope you will enjoy working with your high frequency charger.
If you wish to use this high frequency charger in extreme conditions such as extreme heat,
extreme cold, extreme drought, etc. Please contact your dealer to discuss whether this
product is suitable for the activities you wish to undertake with the high frequency charger.
The high frequency charger may be unsafe if adequate maintenance is neglected. Therefore,
adequate maintenance facilities, trained personnel and procedures should be provided.
Maintenance and inspection shall conform to the following practices:
1. A scheduled planned maintenance, lubrication and inspection system should be followed
(see maintenance instructions chapter 7).
2. Only qualified and authorised personnel shall be permitted to maintain, repair, adjust and
inspect the high frequency charger.
3. Modifications and additions which affect capacity and safe operation shall not be
performed by the customer or user without the manufacturer’s prior written approval.
Capacity, operation and maintenance plates or decals shall be changed accordingly.
4. If modifications are made without written approval of the manufacturer, warranty will no
longer apply.
Any person in charge of putting the machine into operation, the operation itself or the
maintenance of the machine is urged to carefully read and observe the following instructions.
Make sure that the operators of this product are familiar with the safety instructions and follow
all the procedures. Neglecting these instructions can risk injury or death.
We guarantee a long period of trouble free operation if the unit is operated and maintained
correctly.
7/36
2. DESCRIPTION

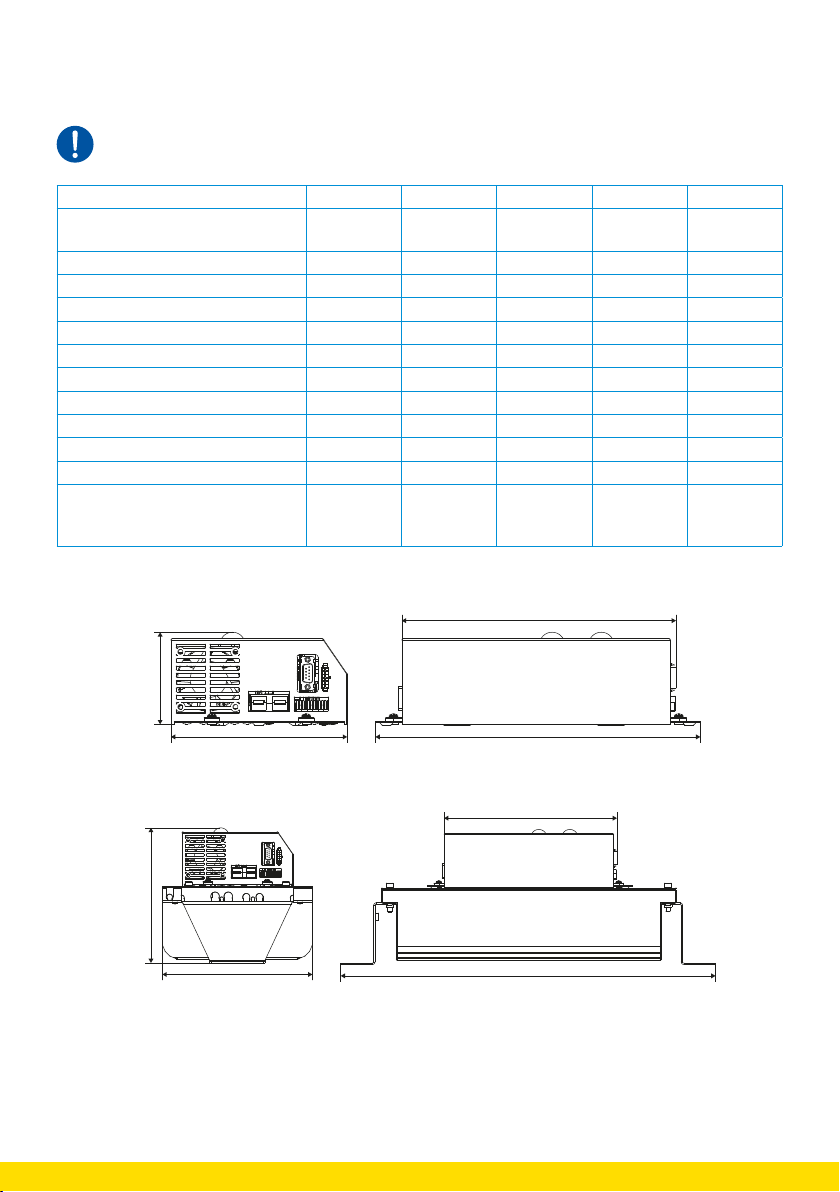

2.1. Technical data
Always check the type plate for the correct information.
Type NG1 NG3 NG5 NG7 NG9
Operating range of temperature From −20 to
50 °C
From −20 to
50 °C
From −20 to
50 °C
From −20 to
50 °C
From −20 to
50 °C
Maximum relative humidity 90% 90% 90% 90% 90%
Switching frequency (kHz) 50 ± 5% 50 ± 5% 20 ± 5% 20 ± 5% 20 ± 5%
Frequency (Hz) 50 ÷ 60 50 ÷ 60 50 ÷ 60 50 ÷ 60 50 ÷ 60
Supply voltage (Veff) 230 ± 10% 230 ± 10% 400 ± 15% 400 ± 15% 400 ± 15%
Absorbed maximum current (Aeff) 10 22 10 14 18
Inrush current (A) <2.7 <1.35 <2.35 <2.35 <2.35
Absorbed minimum power (W) <5 <5 <10 <10 <10
Absorbed maximum power (kW) 1.7 3 5 7 9
Enclosure class IP20 IP20 IP20 IP20 IP20
Weight (kg) 2.2 5.5 9 9 9
Applicable on Lead-acid –
AGM – gel –
lithium-ion
Lead-acid –
AGM – gel –
lithium-ion
Lead-acid –
AGM – gel –
lithium-ion
Lead-acid –
AGM – gel –
lithium-ion
Lead-acid –
AGM – gel –
lithium-ion
NG1 without air pump
NG1 with air pump
160
8
4
249
295
1
95
216
249
540
8/36
NG3 without air pump
NG3 without air pump
NG5 without air pump
NG5 with air pump
95
1
00
220
7
430
368
220
2
10
445
540
550
470
270
104
1
63
657
565
268
210
2
71
9/36
NG7 without air pump
NG7 with air pump
NG9 without air pump
NG9 with air pump
550
470
270
104
1
63
657
565
268
210
2
71
550
470
270
104
1
63
657
565
268
210
2
71
10/36
2.2. Main components of the product
With air pump
1
2
3
4
6
5
8
9
7
6
10
N° Component
1Sticker that indicates battery
percentage
2 Typeplate
3Decal with safety warnings
4 Brand
5Drilling hole
6Output cable
7Indication table with the indicated
amperes and charging time
8 Ventilation
9Air pump
10 Plug
Without air pump
1
2
3
4
5
6
7
8
10
7
1
6
9
8
N° Component
1Input cable
2Screen with push buttons
3Type plate
4Decal with safety warnings
5 Brand
6On and off switch
7Drilling holes
8Output cable
9Indication table with the indicated
amperes and charging time
10 Ventilation
2.3. Placement of the decals
The safety and warning labels should be placed as indicated in the pictures below. See chapter 3 for
the explanation of the safety warnings. If the decals are damaged or missing, replace them.
4
2
5
3
1
Dieses Handbuch passt für folgende Modelle
4
Inhaltsverzeichnis
Andere Energic Plus Akkuladegerät Handbücher
Energic Plus
Energic Plus AR-D Bedienungsanleitung
Energic Plus
Energic Plus NG3 Bedienungsanleitung
Energic Plus
Energic Plus RE Series Bedienungsanleitung
Energic Plus
Energic Plus TSS-D Bedienungsanleitung
Energic Plus
Energic Plus MVM Bedienungsanleitung
Energic Plus
Energic Plus RX Bedienungsanleitung
Energic Plus
Energic Plus 124TA1705 Bedienungsanleitung
Energic Plus
Energic Plus BC1 Bedienungsanleitung
Energic Plus
Energic Plus RX Bedienungsanleitung
Energic Plus
Energic Plus SMC Bedienungsanleitung
