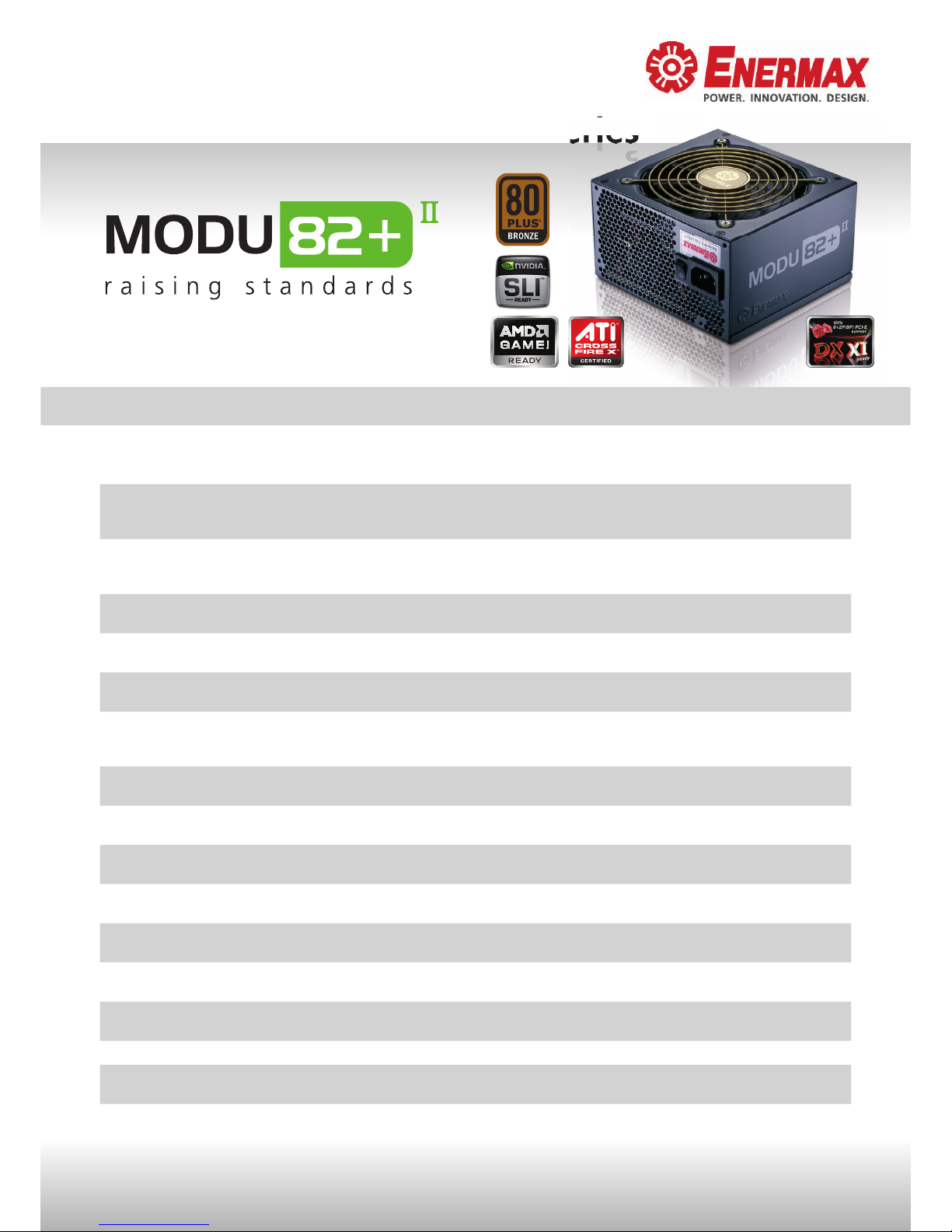

MODU82+ II Power supply series

www.enermax.co.uk

425W/525W/625W

erie

eries

80PLUS® Bronze efﬁciency

84-88% efﬁciency at 230V and 20-100% load. 80PLUS® Bronze certiﬁed.

Intel ATX12V v2.3

Compliant with the latest desktop power supply design guide. Full support of most current CPU: Intel® Core 2 Duo™/

Quad™/ Extreme™ / i7™ / i5™ / i3™ und AMD® Athlon™ 64X2/X4 oder Phenom™ X3/X4.

Future ready and ﬂexible

All-round modular cable management. 10/12P sockets for possible connector changes of upcoming high-performance

CPU and graphics card generations.

Stable and reliable

Three high performance and massive 12V rails.

New: DXXI ready!

Full support of most current DX11 graphics cards due to 6+2P (8P) connectors.

Full graphics power

Supports SLI™ systems (MODU82+II 525/625W) and CrossFireX™ systems.

New: HeatGuard

Keeping PSU fan running for 30-60 seconds after shut down to dissipate the remaining system heat and prolonging

system lifetime.

SpeedGuard

Patented fuzzy logic 12cm fan speed control for optimal cooling and minimum noise.

AirGuard

Patented air-intake with optimal aero-dynamical design reduces noisy air turbulences.

SafeGuard

Industry-leading octuple protection circuitry of OCP, OVP, AC UVP, DC UVP, OPP, OTP, SCP & SIP.

New: CordGuard

Fixing the AC cord tightly to avoid accidental shutdowns of your PC.

Non-Stop @ 40°C

Non-stop industrial class performance at 40°C/104°F ambient.

EMC ready!

Full-scale electromagnetic ﬁltering protects against radiation interferences (CE EMC EN61204 compliance).

Worldwide compatibility

100-240V AC input with automatic adjustment and up to 99% active Power Factor Correction (PFC) for global usage.

Dimensions (W x H x D) 150 mm x 85 mm x 140 mm.

Warranty

3 years manufacturer warranty.

Features

外框線

www.enermax.co.uk

Cables & Connectors

Speciﬁcations

Certiﬁcations & Standards

EMD425AWTII EMD525AWTII EMD625AWTII

AC Input Rating

Input Voltage 100-240VAC, 50-60Hz, Active PFC

Input Current 6.7-3A 7.5-3.5A 9.5-4A

DC Output Rating

+3.3V 0.1–20A 120W 0.1–24A 140W 0.1–24A 140W

+5V 0.1–20A 0.1–24A 0.1–24A

+12V1 0.1–22A

396W

(33A)

0.1–25A

480W

(40A)

0.1–25A

600W

(50A)

+12V2 0.5–22A 0.5–25A 0.5–25A

+12V3 0–22A 0–25A 0–25A

-12V 0–0.6A 7.2W 0–0.6A 7.2W 0–0.6A 7.2W

+5Vsb 0–3A 15W 0–3A 15W 0–3A 15W

Total Power 425W 525W 625W

Peak Power 470W 580W 690W

Modular

cable management

82Plus Efﬁciency

Up to 88% at 230V SpeedGuard SafeGuardAirGuard

PSU Loading

FAN RPM (±10%)

25% 50% 75% 100%

500

450 450 450 450 600

800

1000

1500

2000

2500

1200

1500

PSU Loading

20% 50% 100%

PSU Efficiency

230VAC

115VAC

Leading technology for highest efﬁciency. Patented fuzzy logic 12cm fan speed

control for optimal cooling and minimum

noise.

Patented air-intake with

optimal aero-dynamical design

reduces noisy air turbulences.

Sextuple protection circuitry of OCP, OVP,

UVP, OPP, OTP and SCP.

Native cables Modular cables

Mainboard +12V

CPU

EMC011

3x SATA

45/55/65cm

EMC012

3x 4P Molex

45/55/65cm

EMC013

3x 4P Molex

+1x FDD

45/55/65/75cm

EMC014

2x 6+2P(8P)

PCI-E 2.0

50cm

EMC015

1x 6+2P(8P)

PCI-E 2.0

50cm

EMD625AWTII 24P, 55cm 8P & 4P, 60cm 3x 1x 1x 2x -

EMD525AWTII 24P, 55cm 8P & 4P, 60cm 2x 1x 1x 1x 1x

EMD425AWTII 24P, 45cm 4+4P (8P), 60cm 1x 1x 1x 1x -
