EnGenius Repeater
Setup Guide
(ECB1221R / ESR-1221EXT)
By Daniel Allin, Technician
(DipCN, MTCNA)
2
Go Wireless NZ Ltd
Step 1:
Locate your Network Settings and note down your IP Address, Subnet Mask, and
default-gateway:
Step 2:
Note down the wireless SSID your wish to repeat (Mine will be www.gowifi.co.nz):
3
Go Wireless NZ Ltd

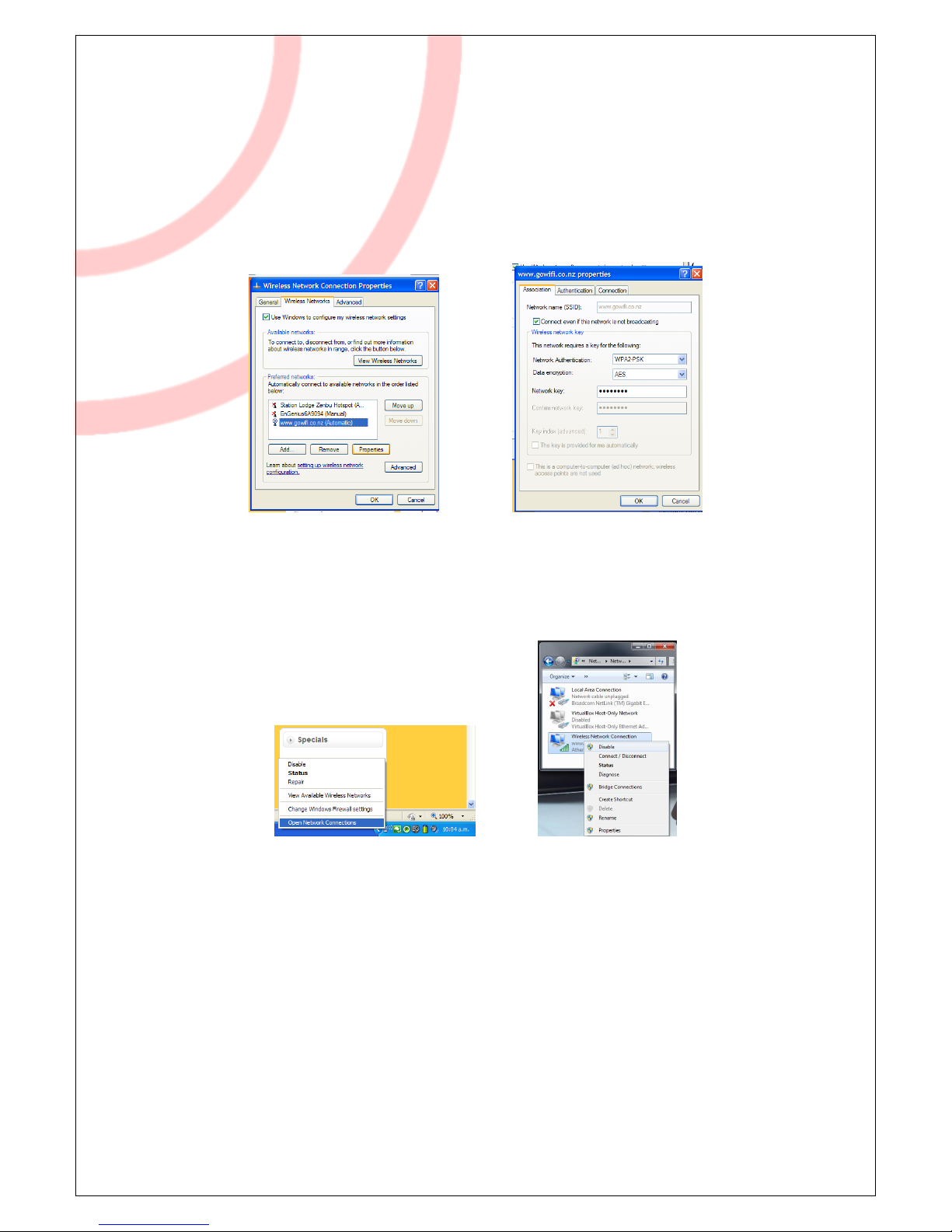

Step 3:
Click on the Change advanced settings option (left) and select the Wireless
Networks tab. Select you network from the list and click properties.
Note down your security details (Network Authentication, Data Encryption and your
Security Key which you should already know).
Step 4:
Open your network connections and disable the wireless connection:
Step 5:
Depending on the EnGenius Router Model you have you may or may not need to
assign a static IP address to your computer to access and configure it for the first
time. If you are unsure, please read our “IP Address Basics” Guide on how to do this.
4
Go Wireless NZ Ltd

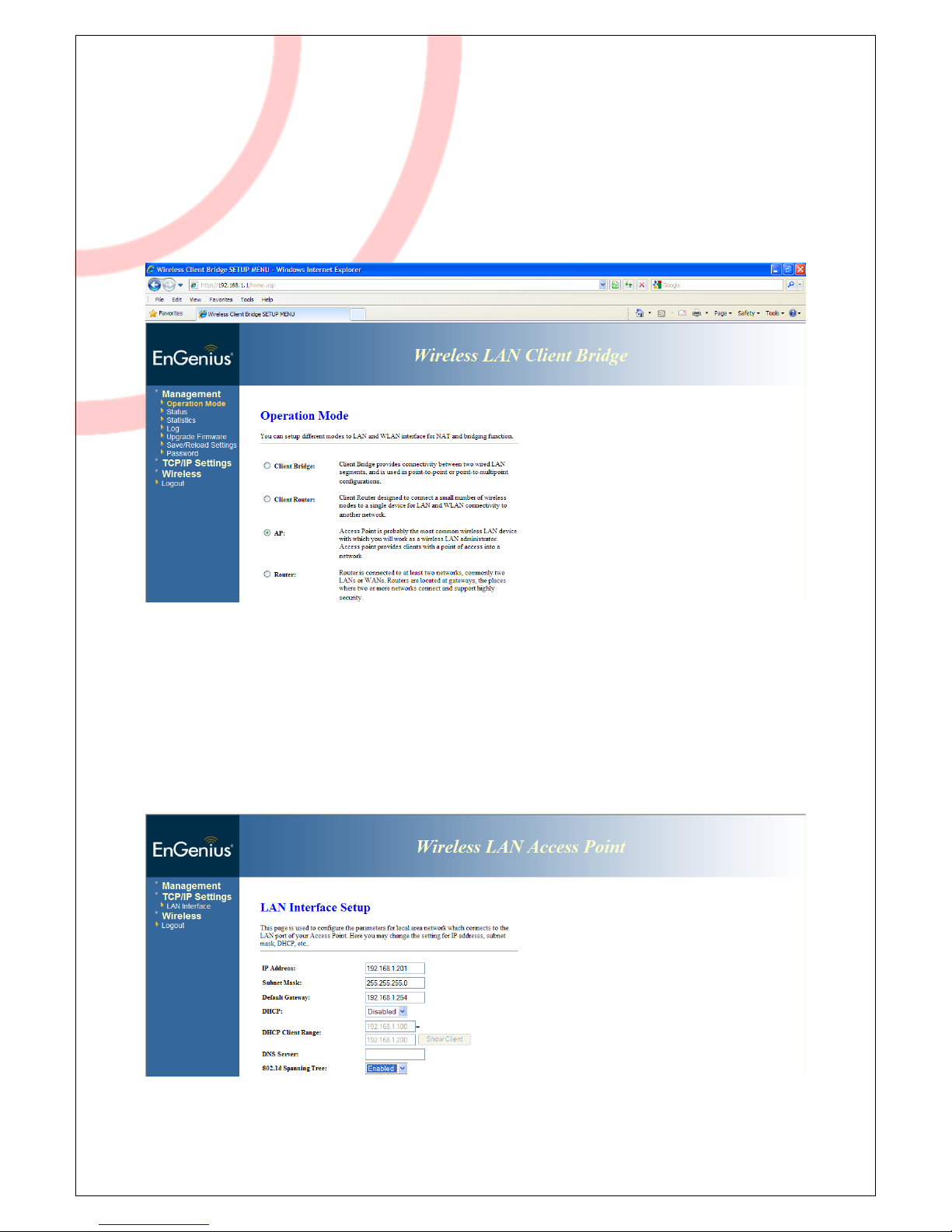

Step 6:
Plug your EnGenius Router into your computer and power it on. (It takes about 30sec
to boot). Connect to the EnGenius Router (Open Internet Explorer and type
192.168.1.1 into the address bar):
ESR-1221 EXT: Skip to Step 8, your router is already in AP Mode!
Step 7:
Assign the EnGenius Router an IP Address, Subnet Mask and default-gateway:
(Make sure the IP Address you enter is not being used by any other devices on your
network, the subnet mask and gateway will need to be the same as recorded in
Step 1).
5
Go Wireless NZ Ltd

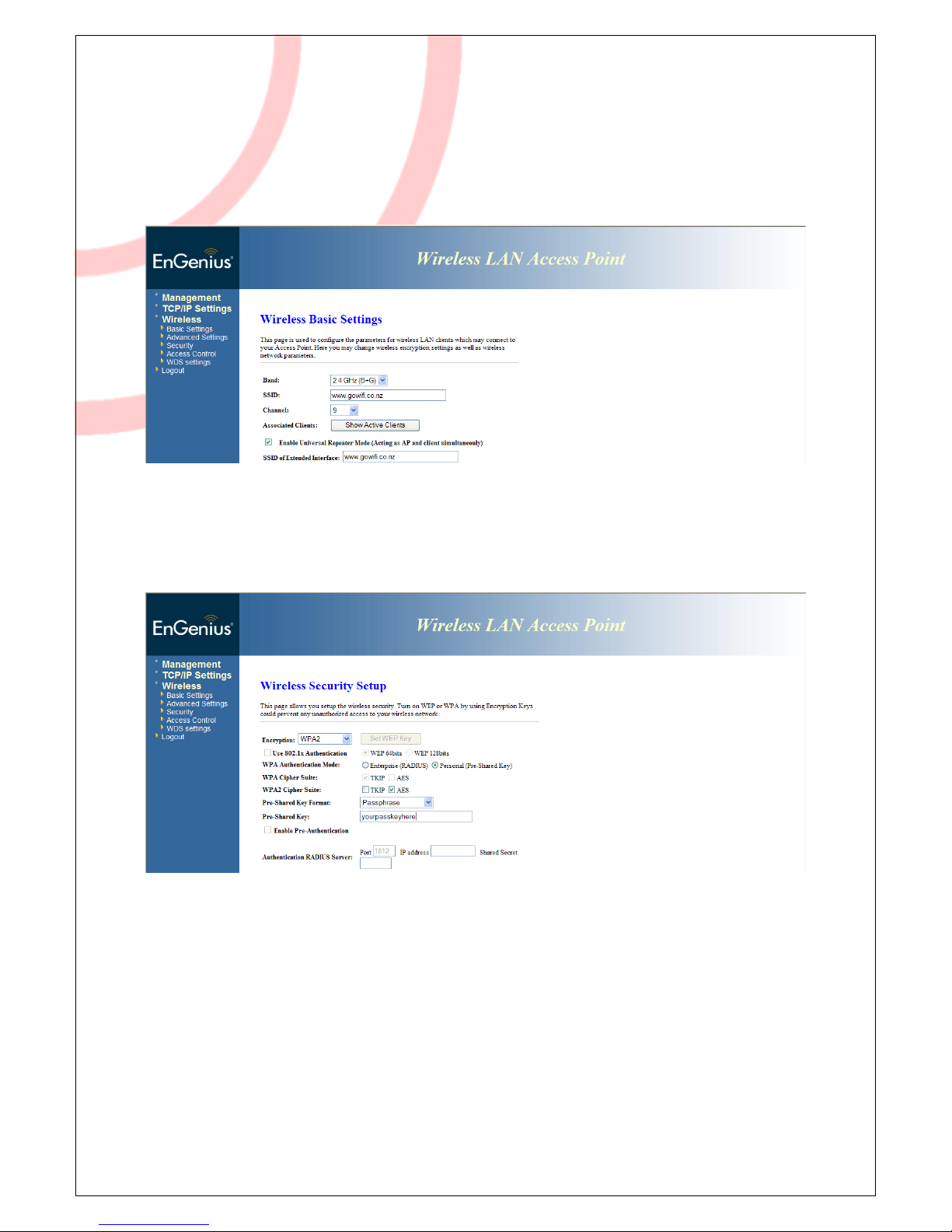

Step 8:
Go to the Wireless basics page put your Wireless SSID that you recorded in step 2
(You will need to make sure you select the same channel that your main Wireless AP
is on:
Step 9:
Enter your Wireless Security details recorded in Step 3:
(yourpasskeyhere = your current Wireless Password you use to connect to your
Wireless Network)
6
Go Wireless NZ Ltd
Step 10:
Check that the EnGenius Router is connected and repeating:
Under the Wireless Repeater Interface Configuration (above) you should see the
State as Connected. This means The EnGenius router is now connected to your main
Wireless Router and Repeating!
Once finished, open your network connections again and set your “Local Area
Connection”back to Obtain IP Address Automatically.
Re-Enable your Wireless Adapter that you disabled in Step 4.
