EnGenius EWS7952P-FIT Bedienungsanleitung

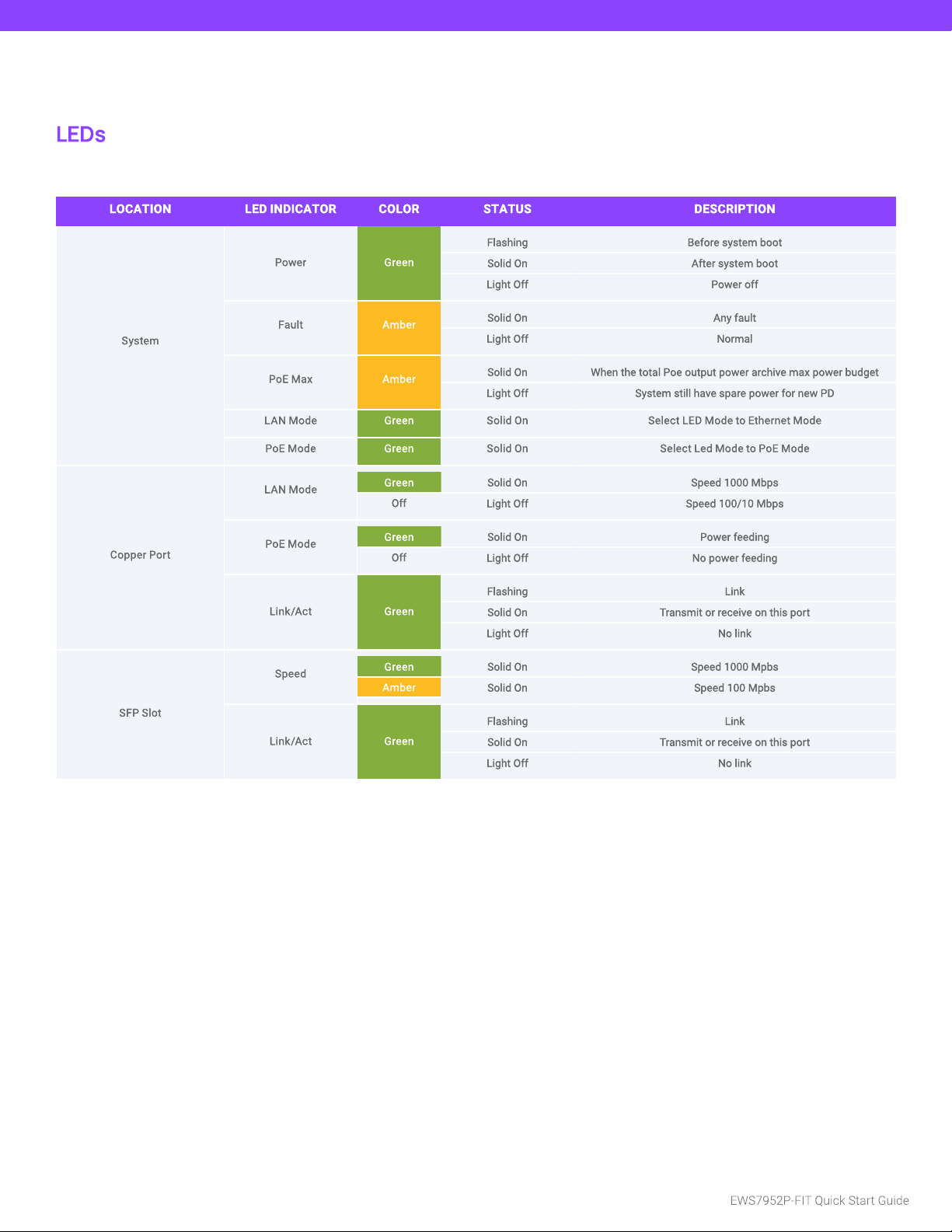

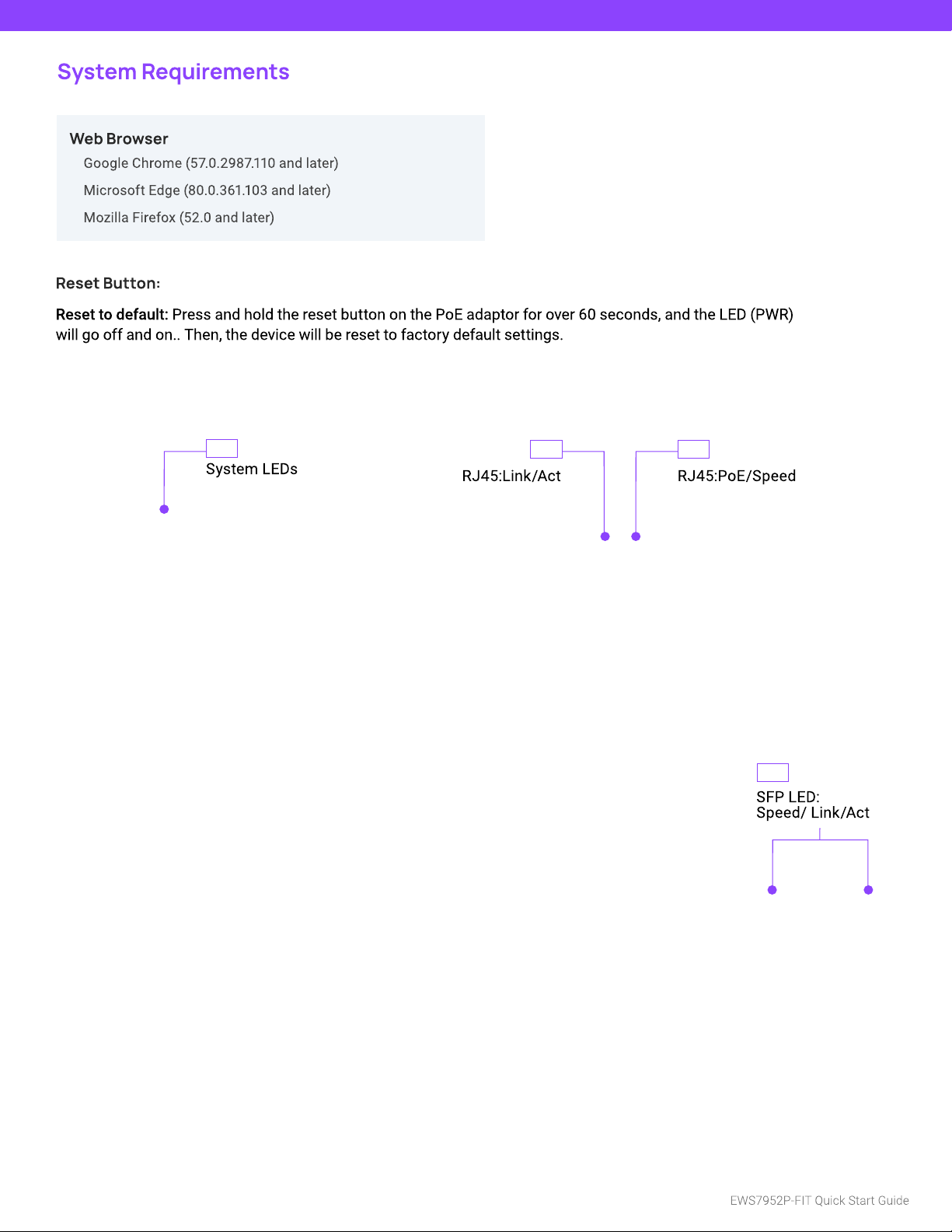

LED
LED LED LED
LOCATION LED INDICATOR COLOR STATUS DESCRIPTION
System
Power Green
Flashing
Solid On
Light Off
Before system boot
After system boot
Power off
Fault Amber Solid On
Light Off
Any fault
Normal
PoE Max Amber Solid On
Light Off
When the total Poe output power archive max power budget
System still have spare power for new PD
LAN Mode Green Solid On Select LED Mode to Ethernet Mode
PoE Mode Green Solid On Select Led Mode to PoE Mode
Copper Port
LAN Mode Green
Off
Solid On
Light Off
Speed 1000 Mbps
Speed 100/10 Mbps
PoE Mode Green
Off
Solid On
Light Off
Power feeding
No power feeding
Link/Act Green
Flashing
Solid On
Light Off
Link
Transmit or receive on this port
No link
SFP Slot
Speed Green
Amber
Solid On
Solid On
Speed 1000 Mpbs
Speed 100 Mpbs
Link/Act Green
Flashing
Solid On
Light Off
Link
Transmit or receive on this port
No link
2. Secure the Mounting Brackets to the rack using the mounting screws.
1. Attach the Mounting Brackets as below and fasten the brackets using the eight Bracket Screws.
Hardware Mounting
Rack Mount
The access point can be mounted on the Wall and Pole, and please perform the steps for the appropriate installation.
Mounting Screws
EnGenius Fit Switch can be powered by following:
• Power Cord
Powering EnGenius Fit Switch

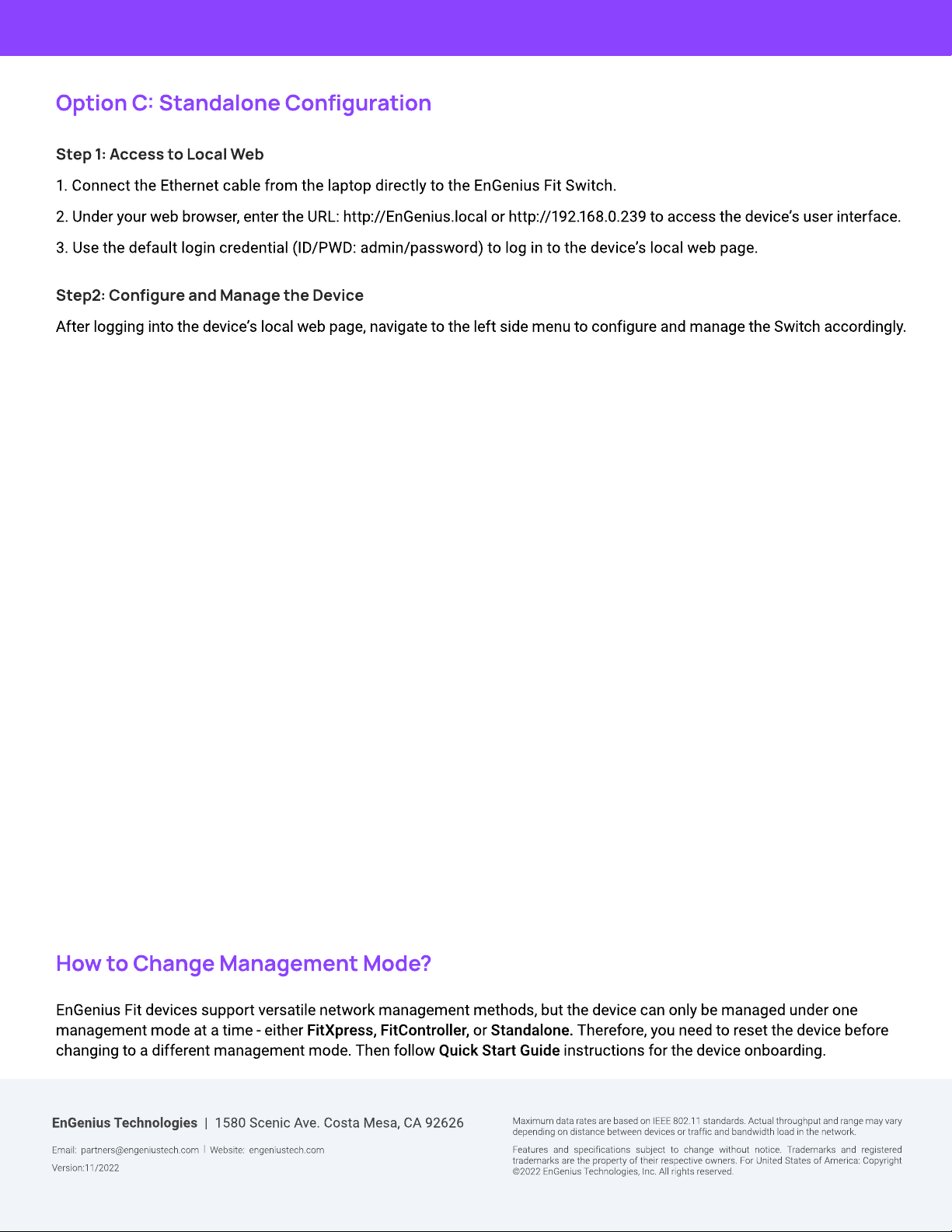

EnGenius Fit PoE Switch
