Enlogic EN2101 Bedienungsanleitung

For more informaon, go to www.enlogic.com.

LT-00015-B5 April 2014

EN Series Power Distribuon Unit

& EZ Series Energy Meter

Installaon and Operaon Manual

www.enlogic.com

Table of Contents

PDU Safety Guidelines .................................................................................................................... 5

Section 1: Introduction

Enlogic Product Series .................................................................................................................... 6

Product Components...................................................................................................................... 6

Input Power Cord ............................................................................................................. 6

Outlets ............................................................................................................................. 8

Connection Ports .............................................................................................................. 8

OLED Display ..................................................................................................................... 9

Menu, Reset, and Unit Status Button .............................................................................. 11

Circuit Breakers ............................................................................................................... 11

Section 2: Installation

Before Installaon.........................................................................................................................13

Mounng ......................................................................................................................................13

Mounting the PDU in the Server Cabinet ......................................................................... 13

Connecng to a Power Source .......................................................................................................13

Connecng the PDU to a Network ................................................................................................14

Connecting Using DHCP ................................................................................................... 14

Connecting with a Serial Connection ............................................................................... 14

Connecng Environmental Sensors (Oponal) ................................................................................... 15

Section 3: Enlogic Web User Interface (Web UI)

Supported Browsers .....................................................................................................................16

Logging In to the Enlogic Web UI ...................................................................................................16

Logging In ....................................................................................................................... 16

Changing User Password ................................................................................................. 16

Logging Out .................................................................................................................... 16

Overview of the Enlogic Web UI ....................................................................................................16

Action Menus .................................................................................................................. 17

PDU Explorer................................................................................................................... 17

Status Bar ....................................................................................................................... 17

Logout button ................................................................................................................. 17

Data Panel ...................................................................................................................... 17

Dashboard ...................................................................................................................... 17

Renaming the PDU .......................................................................................................... 17

Navigang the Acon Menus.........................................................................................................17

User Administration ........................................................................................................ 17

Device Configuration ....................................................................................................... 19

System Administration .................................................................................................... 25

Help ................................................................................................................................ 26

Navigang the PDU Explorer .........................................................................................................26

The Critical Component

EN Series User Manual

Section 4: SNMP

SNMP Conguraon .....................................................................................................................30

Conguring Users for Encrypted SNMP v3 .....................................................................................30

Conguring SNMP Traps ................................................................................................................31

Configuring SNMP Trap Settings ...................................................................................... 31

Configuring SNMP Traps .................................................................................................. 32

Downloading the SNMP MIB .........................................................................................................32

Downloading the SNMP MIB: .......................................................................................... 32

Section 5: The Command Line Interface

Logging in with HyperTerminal ......................................................................................................33

Logging in with SSH or Telnet.........................................................................................................33

CLI Commands and Prompts..........................................................................................................34

CLI Options ..................................................................................................................... 34

‘E Code’ Messages .......................................................................................................... 35

CLI Commands Table ....................................................................................................... 35

Section 6: Environmental Sensors

Sensor Overview ...........................................................................................................................40

Adding Environmental Sensors ......................................................................................................41

Alarm Beacon Sensor Installation Instructions ................................................................. 41

Temperature & Humidity Sensor Installation Instructions ................................................ 42

Sensor Input Hub Installation Instructions ...................................................................... 42

Door Switch Sensor Installation Instructions ................................................................... 42

Dry Contact Cable Installation Instructions ...................................................................... 44

Spot Fluid Leak Sensor Installation Instructions ...............................................................44

Rope Fluid Leak Sensor Installation Instructions .............................................................. 44

Detecng Environmental Sensors ..................................................................................................45

Conguring Environmental Sensors ...............................................................................................46

Viewing and Managing Environmental Sensor Informaon............................................................46

Editing the External Sensor Details .................................................................................. 46

Monitoring the External Sensor ....................................................................................... 47

Section 7: Daisy Chain & DNA–Dual Network Access

Daisy Chain Funconality ..............................................................................................................48

Daisy Chain Setup..........................................................................................................................48

DNA Funconality .........................................................................................................................48

DNA Setup.....................................................................................................................................49

www.enlogic.com

Configure DNA in the CLI ................................................................................................. 49

Configure DNA in the PCT ................................................................................................ 49

Connect the PDUs for DNA .............................................................................................. 49

Daisy Chain & DNA Commands in CLI .............................................................................. 50

Appendices

Appendix A: EN Series Bracket Mounng Info................................................................................52

Appendix B: EN Series Product Range for EMEA ............................................................................53

Appendix C: EN Series Product Range For North America ..............................................................54

The Critical Component

EN Series User Manual

PDU Safety Guidelines

This document is intended for installers, maintenance professionals, and qualied users of Enlogic power distribuon units

(PDUs). Keep this safety informaon for operaon, installaon, and maintenance of the PDU and accessory equipment. This

product complies with the latest safety requirements for equipment and accessories for use in a rack mounng environment.

Read and follow all safety informaon. Failure to do so may result in death or serious injury.

• Electrical Hazard: this PDU contains high voltages. Repairs and service to this PDU should only be performed by

authorized service providers. This includes installation, testing, and maintenance of internal and external parts.

• There is a risk of electrical shock from ground conductor leakage. If the total leakage current exceeds 3.5 mA or

if leakage current of the connected load is unknown, connect the ground terminal of the PDU to a dependable

ground/earth connection. The ground terminal on the PDU is an M5 screw hole with a maximum depth of 9mm.

• This equipment must be connected to an electrical supply with protected ground outlets and a branch circuit

breaker with the same current rating as the equipment. Test all outlets for proper polarity and grounding.

Failure to comply with this requirement may result in serious injury.

• This power distribution unit is intended for providing power to ITE equipment only. Do not connect secondary

power units to the outlets of the PDU.

• Make sure the utility power outlet is in good condition.

• Make sure the PDU power cord and plug are in good condition.

• Make sure the power input is disconnected before physically mounting or moving the location of this product. If

the PDU has detachable input power cords, only use power cords supplied by Enlogic.

• Internal parts of the PDU may get extremely hot during operation. Use care before handling.

• Changes and modifications to this equipment could void the warranty. Enlogic is not responsible for damage to

this product resulting from accident, disaster, or misuse. Note: If the product is a switched model, power may

be present at a receptacle even when it is switched off.

Follow all local and naonal codes when installing the PDU. The PDU should be connected to a dedicated circuit protected by a

branch circuit breaker matching the PDU input plug type for your region:

Regions PDU Input Plug Type Branch Circuit Breaker Required

Europe, International

IEC60320 C20 Inlet (Removable Power Cord) 16A single-pole

CEE 7/4, CEE 7/5, CEE 7/7 Plugs 16A single-pole

IEC60309 316P6 or 316P6W 16A single-pole

IEC60309 332P6 or 332P6W 32A single-pole

IEC60309 363P6 or 363P6W 63A single-pole

IEC60309 516P6 or 516P6W 16A three-pole

IEC60309 532P6 or 532P6W 32A three-pole

IEC60309 563P6 or 563P6W 63A single-pole

Australia

3-pin (2P+G) 20A single-pole

3-pin (2P+G) 32A single-pole

5-pin (3P+N+G) 20A three-poles

5-pin (3P+N+G) 32A three-poles

North America/Japan

IEC60320 C20 Inlet (Removable Power Cord) 20A single-pole

NEMA 5-20P or NEMA L5-20P 20A single-pole

NEMA 6-20P or NEMA L6-20P 20A double-pole

NEMA 6-30P or NEMA L6-30P 30A double-pole

NEMA 5-30P or NEMA L5-30P 30A single-pole

IEC60309 330P9 or 330P9W 30A double-pole

NEMA L21-20P or NEMA L15-20P 20A three-pole

NEMA L21-30P or NEMA L15-30P 30A three-pole

CS8365 50A three-pole

IEC60309 460P9 or 460P9W 60A three-pole

IEC60309 520P6 or 520P6W 20A three-pole

IEC60309 530P6 or 530P6W or NEMA L22-30 30A three-pole

CAUTION

DANGER

www.enlogic.com

Section 1: Introduction

This manual is intended to assist in the installaon and setup the EN Series PDU. Refer to this manual to properly install and

operate the EN Series PDU. It is recommended that the user follows the procedures as outlined in this manual to assist in proper

installaon and prevent damage to the PDU and associated equipment.

The Enlogic family of enterprise-grade rack PDUs includes comprehensive power management, wa-hour energy metering, and

environmental monitoring; all within the industry’s slimmest space-saving design. A large selecon of standard and congurable

PDU opons are available to meet your specic rack management applicaon.

Enlogic Product Series

Product Series Type Description

EN1000 Series Metered Metered PDUs with real time metering and network monitoring of power loads for

overload avoidance, capacity & load balancing, and energy use optimization.

EN2000 Series Metered and Outlet

Switched

Remote outlet on/off switching for power-up sequencing, remote power cycling, and

outlet use management combined with all features of the EN1000 Series.

EN5000 Series Outlet Metered These outlet metered PDUs combine Individual outlet power and energy metering

with all features of the EN1000 Series.

EN6000 Series Outlet Metered and

Outlet Switched

Comprehensive management solution includes switching features of the EN2000

Series and outlet metering features of the EN5000 Series.

EZ1000 Series Inline Energy Meters This energy metering device adds the Enlogic EN1000 series capabilities to any exist-

ing basic PDU or stand-alone equipment.

Product Components

Enlogic PDUs include the following components in various conguraons:

• Input power cord

• Outlets

• Connection ports

• OLED display

• Reset button

• Circuit Breakers (some models)

Input Power Cord

Most PDUs come with a power cord installed and ready to be plugged into an appropriate receptacle. Connect

the PDU to an appropriately rated branch circuit. Refer to the label on the PDU for appropriate input ratings and

ranges.

Input Power Cord Orientation

The Input Power Cord is factory set at the top of the PDU. This can be rewired to allow for a front-oriented power

cord.

DANGER

When rewiring the Input Power Cord, only use the wires

provided with Enlogic PDUs. Use of other wires is prohibited.

Rewiring must be completed by authorized service providers.

The Critical Component

EN Series User Manual

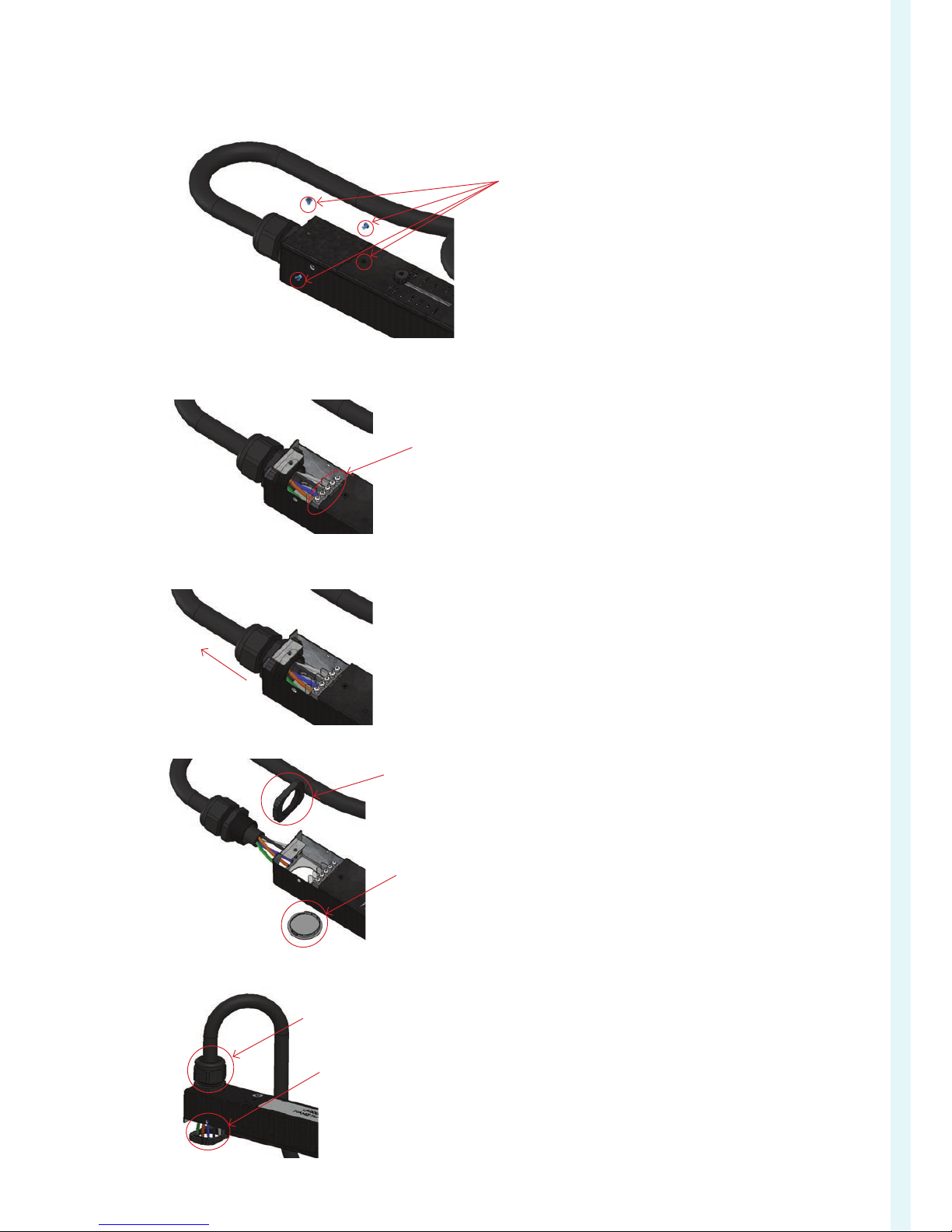

1. Remove the back cover of the PDU (located near the top power cord) by removing the four (4) screws as shown.

2. Loosen the Terminal Block screws. Remove the power cords from the terminal block.

Note: In 1-phase units, there are 3 wires. In 3-phase units, there are 5 wires.

3. Unscrew and remove the power cord.

Note: It may be necessary to use spanners to loosen the power cord.

4. Remove power cord cover and straight relief nut.

5. Insert the power cord in the front of the PDU. Reassemble the straight relief nut.

Note: the distance between the power cord and PDU chassis must be at least 20mm.

Remove 4 Screws

& Back Cover

Straight Relief Nut

Input Power Cord

Power Cord Cover

Strain relief nut

Terminal Block Screws

Remove Input Power

Cord

www.enlogic.com

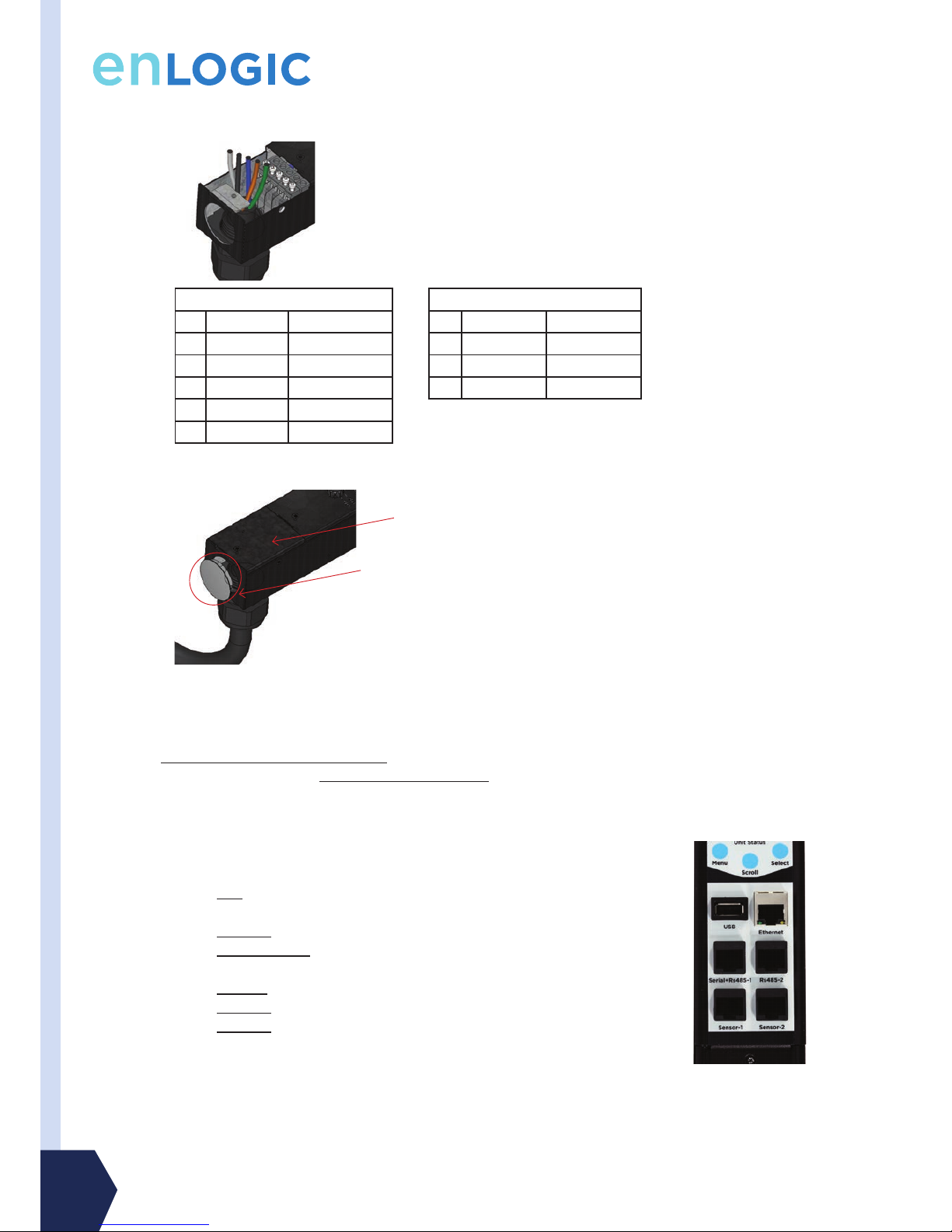

6. Reassemble the power cords to the terminal block as shown below:

3-Phase Wiring 1-Phase Wiring

Pin Description Wire Color Pin Description Wire Color

L3 Line 3 Gray NNeutral Blue

L2 Line 2 Black L1 Line 1 Brown

NNeutral Blue GGround Green/Yellow

L1 Line 1 Brown

GGround Green/Yellow

7. Reassemble the back cover and ghten four (4) screws. Reassemble the power cord cover.

The PDU is now rewired for front orientaon and ready for use.

Outlets

The number and type of outlets, outlet switching ability, and dimensions vary by model as shown Appendix B: EN

Series Product Range tables. Some PDU models have outlet-switching features to manage individual outlets:

The EN1000, EZ1000, and EN5000 Series do NOT have outlet switching features. Outlets are always On and there

are no outlet LED indicators. EN2000 and EN6000 Series PDUs are equipped with the outlet switching feature and

have a small LED for each outlet. When an outlet LED is lit, that the particular outlet is On. When an outlet LED is

not lit, the particular outlet is Off.

Connection Ports

There are 6 ports on all standard EN Series models, as shown below.

• USB: to connect the EN Series PDU to a USB flash drive to upload

firmware or download log files.

• Ethernet: to connect the EN Series PDU to a computer network

• Serial+Rs485-1: to connect EN and EZ models via RS232 protocol and

reserved for future upgrade (i.e. Daisy Chain function)

• Rs485-2: reserved for future upgrades

• Sensor-1: to connect to environmental sensors

• Sensor-2: to connect to environmental sensors

Power Cord Cover

Back Cover

The Critical Component

EN Series User Manual

OLED Display

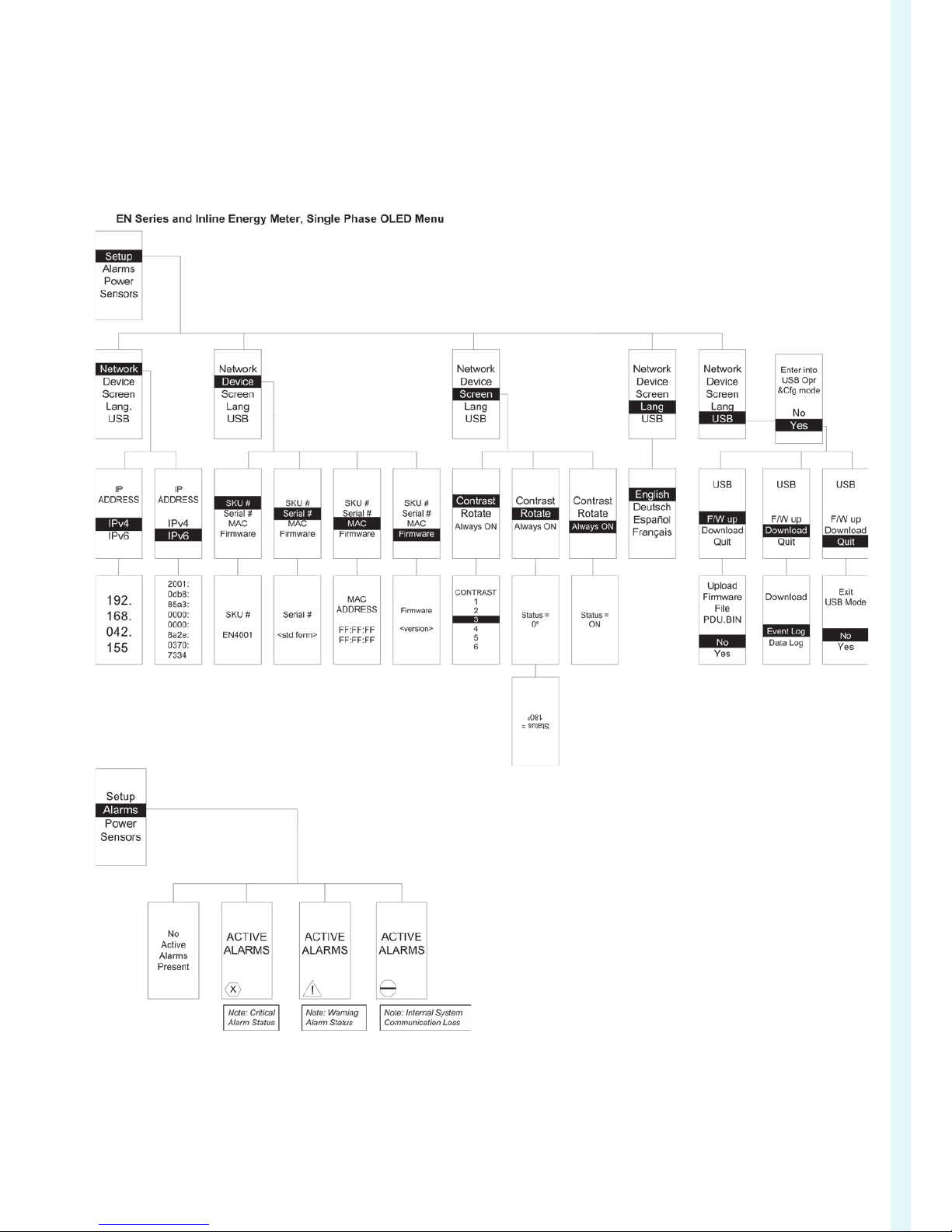

The OLED Display is located on the front of the EN Series PDU above the connection ports. When a device powers

up, it takes a few minutes to fully load the software. When the software has completed loading, the OLED display

will show the Startup Menu. The menu buttons just below the OLED Display allow you to scroll through the display

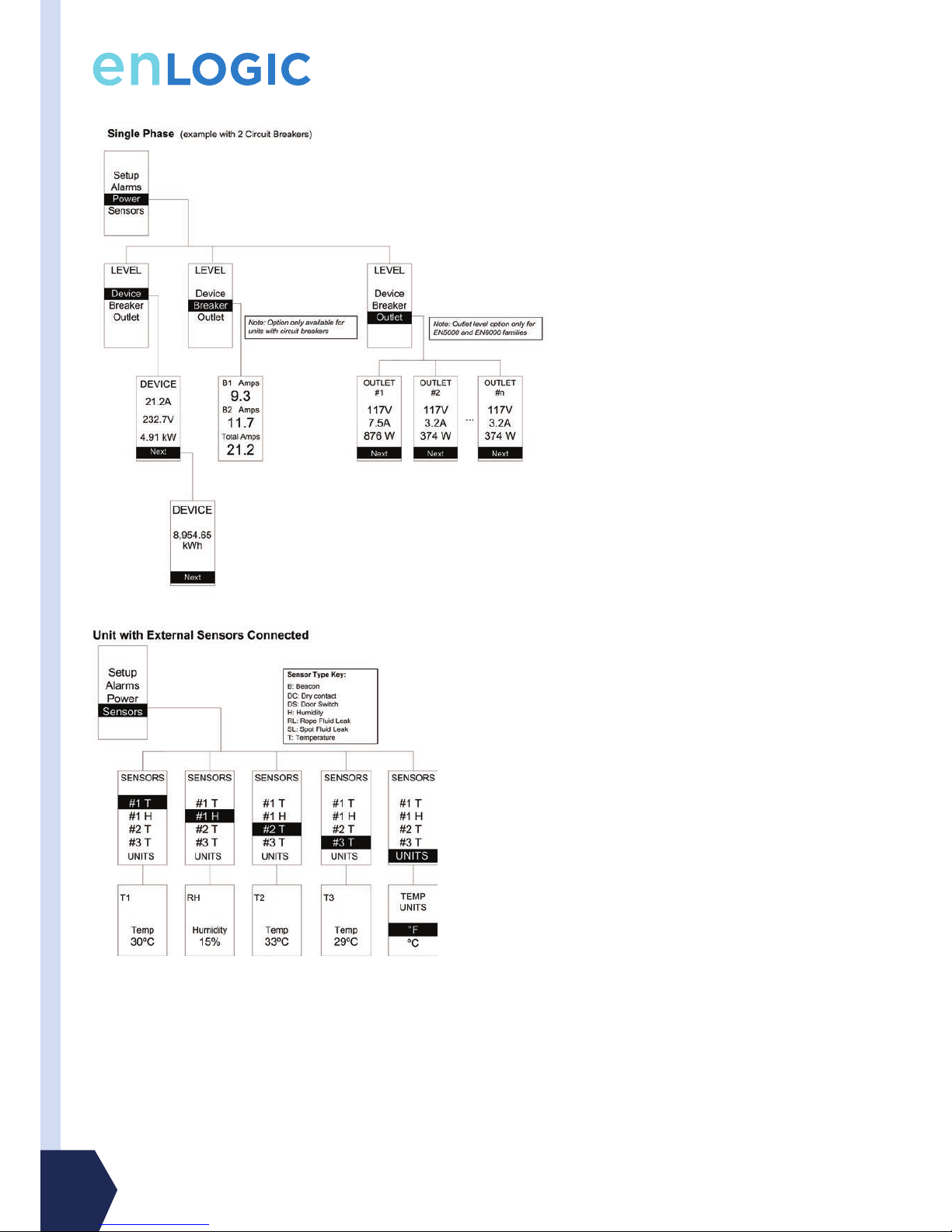

and select the desired information item. The following is an example of the Single Phase OLED Menu:

www.enlogic.com

Andere Handbücher für EN2101

Dieses Handbuch passt für folgende Modelle

101

Inhaltsverzeichnis

Andere Enlogic Stromverteilungseinheit Handbücher

Enlogic

Enlogic EN2101 Bedienungsanleitung

Beliebte Stromverteilungseinheit Handbücher anderer Marken

hager

hager SP 015 Bedienungsanleitung

Pakedge

Pakedge PowerPak 9 Bedienungsanleitung

Pts

Pts 9042 Series Bedienungsanleitung

Shure

Shure WA405 Bedienungsanleitung

CORNING

CORNING CCH 4U Bedienungsanleitung

Panamax

Panamax M4LT-EX Bedienungsanleitung

PANCONNECT

PANCONNECT FLAT 3M Bedienungsanleitung

Raytheon

Raytheon 138-118 Bedienungsanleitung

D&R ELECTRONICS

D&R ELECTRONICS PDU-6SS Bedienungsanleitung

Botex

Botex PSA 322-6 DL Bedienungsanleitung

GE QuiXtra 4000 Kurzanleitung

RDL

RDL EZ Series Bedienungsanleitung

StarTech.com

StarTech.com RKPW161915 Systemhandbuch

Vertiv

Vertiv Knürr DI-Strip Rack PDU Bedienungsanleitung

ABB

ABB PSBS0065 Handbuch

Baumuller

Baumuller BFN 3-1-0007-001 Handbuch

Eaton

Eaton StructuredWiringSolutions ESWT41600 Handbuch

GE GEK-45404F Bedienungsanleitung
