EnviroTech Alarms Leak-Stop Bedienungsanleitung
DO’s
Do follow the installation instructions provided with
the water leak detection system.
Do clean the floor and adjacent area throughly.
Do use the floor clips provided.
Do ensure that the sensor tape remains clean and
free from dust and debris following the completion
of the installation.
Do check that all the connections are sound and
the polarity of the connections are correct.
DON’T’s
Don’t fix the sensor tape to any conductive surface
such as a steel floor or copper pipe.
Don’t fix the sensor tape to any type of conductive
supporting structure such as pedestal support legs
under floors.
Don’t run the sensor tape or connection cable
adjacent to a mains supply cable or other type of
cable that could cause electrical/signal interference.
Don’t coil the tape up on it’s self under any
circumstances.
Don’t bend the sensor tape excessively, try to use
gentle curves.
Don’t use adhesive tapes, sealants or solutions to
fix the sensor tape down.
Don’t install in front of any type of louvre or grill that
is exposed to the outside. Don’t install under outlets
from A/C units.
Don’t tie wrap the sensor tape too tightly or directly
to pipes or lagging.
Don’t seal the sensor tape under floors or behind
walls, always leave points of access.
DO NOT PULL ON THE TAPE OR CONNECTION
CABLE WHEN INSTALLING.
SENSOR TAPE INSTALLATION GUIDE
NOTE:
As with any type of alarm panel using electronic
components, installation must never be adjacent to a
device with a high inductive current. Equipment such as
water heaters and pumps could effect the operation of
the alarm panel by causing interference on the
electronics used. In addition to this, the supply to the
alarm panel should be separate to the supply to other
equipment in order to avoid voltage spikes and volt drop
caused by high in-rush currents. These can also cause
interference on the electronics used in the alarm panel
and may result in false triggering.
Helpline Telephone: 0330 1595933 Installation and Operation manual - LeakStop System Further information is available on our website
The Leak-Stop detects the presence of water in environments where
it shouldn’t be. Perfect for use in tea points, WC areas, smaller
Comms rooms and plant rooms. If waters detected the alarm panel
will trigger an internal buzzer and an LED will start to flash. There is
also valve switching as standard and a second volt free relay that will
switch when water has been detected.
AVAILABLE OUTPUTS:
Ÿ 1 x dedicated relay for connection to solenoid shut-off valve.
Ÿ 1 x 8 amp Volt free changeover common alarm relay, ideal
for connection to a BMS.
Ÿ Dedicated connection for an external beacon.
FEATURES:
Ÿ Mute button silences the panel after an alarm has been
triggered as well as used to reboot the panel should a fault
occur.
Ÿ Onboard LED output for Power On and Water Leak Detected.
Ÿ Test button, simulates an alarm condition (HOLD DOWN FOR
Ÿ A MINIMUM OF 5 SECONDS.
Alarm Test Button
(press to ensure that the
panel is functioning
correctly)
Mute Button
(press to silence the audio alarm)
HOLD DOWN FOR A MINIMUM OF
5 SECONDS TO RESET THE PANEL
LEAKSTOP WATER LEAK DETECTION ALARM PANEL INSTALLATION AND OPERATION MANUAL
Alarm status light
Green - Power On/All OK
Red - Leak Detected
Mains 230VAC
N. .EL
Additional relay
230volt 8 amp
Sensor Connections
+ / -
Sensitivity Adjustment
more less
sensitive
PCB Guide
Valve relay 230VAC
N. .EL
Wire Colours
- N / A
- N / A
T - B l u e
T - G r e e n
A - R e d
0 v - B l a c k
P - Yellow
M - Brown
- White
Beacon
Connection
+ / -
Fuses
2amp
quick blow
Use a dedicated 2A fused spur to
connect to the mains supply
Area 1
Alarm Panel
Connection
Cable
Start of Line
Junction
Box
Sensor Tape
End Connector
End of Line
Junction
Box
Connection
Cable
Connection
Cable
Start of Line
Junction
Box
End of Line
Junction
Box
Start of Line
Junction
Box
Installing the sensor tape
Zone 1
Alarm Panel Connection Cable
Start of line
Junction Box
Sensor Tape End Connector
+
-
DIN
Connector Tea Point Configuration
Connection Cable
Installing the sensor tape in parallel
Area 2
Area 3
Sensor Tape
Sensor Tape
Connection Cable
Sensor Probe
Alarm Panel

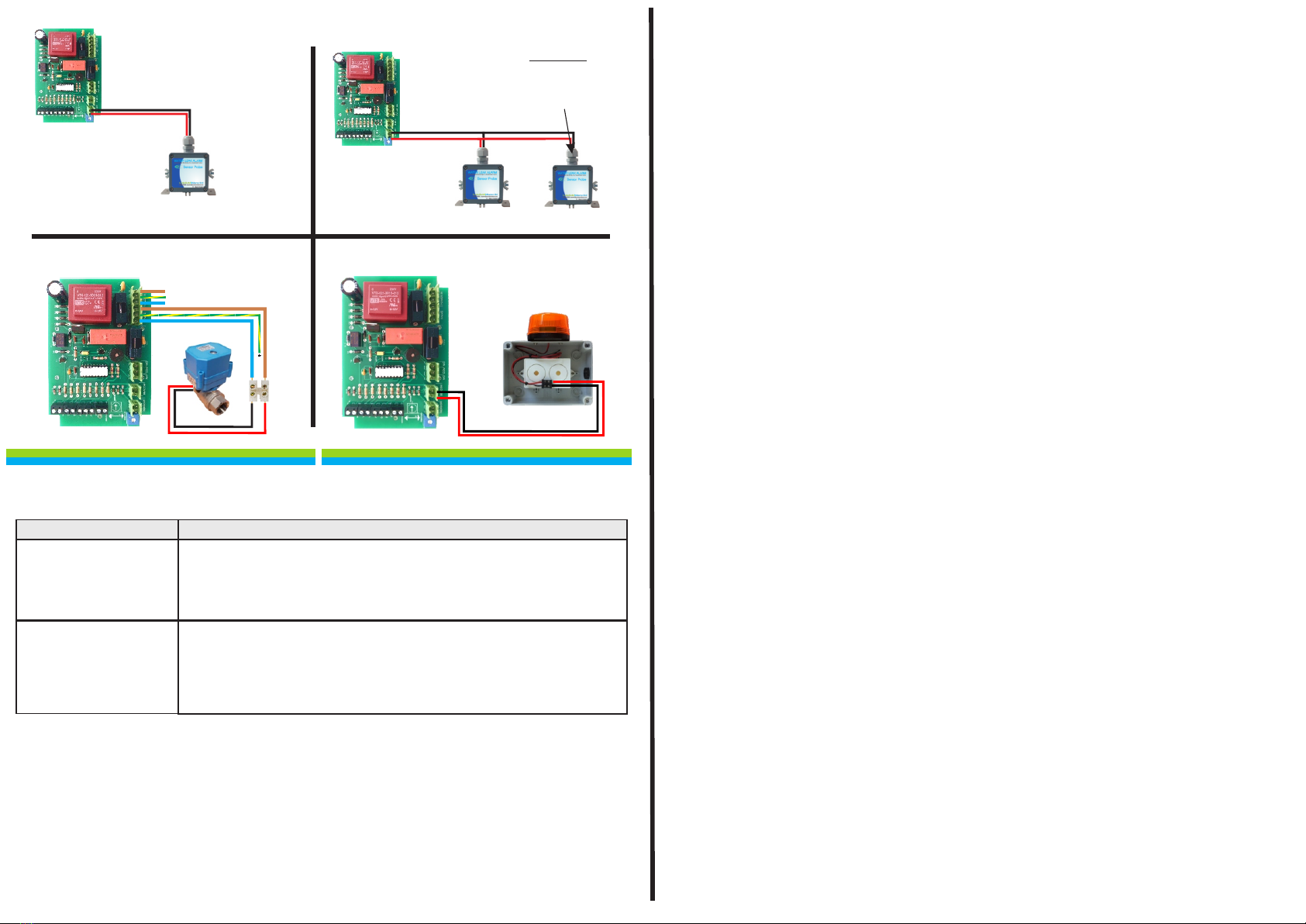

Installing the sensor probe/pad
Connection Cable
Sensor Probes
Alarm Panel
LeakStop+ only
Requires a diode across
the connection cable
input. Thin black band on
diode towards the +
Installing valves
E
L
N
E
L
N
230VAC
Supply
Actuated Ball Valve
Earth
Not
Used
Black
NOTE: These valves are double insulated and do not
require an earth connection.
Installing a beacon
+-
Trouble Shooting Guide
System shows a leak detected, but no
water leak is present:
ŸIs the sensor tape/probe used touching anything conductive.
ŸIs the sensor tape being used coiled up with the conductor making contact with itself
ŸIs the combined tape and connection cable length more than 100m.
ŸIs there any contamination or debris on the cable/probe.
ŸCheck the Do’s and Don’ts page.
System shows no power: ŸIs there an appropriate supply to the panel.
ŸIs the wiring to the panel sound and secure.
ŸIs the L/N/E connected to the correct terminals.
ŸCheck the fuse
PROBLEM SOLUTION
Notes:
