Demonstration Board EPC9104

Quick Start Guide

15 W, 6.78 MHz Class D Wireless Power System

using the EPC2014 eGaN® FET

DESCRIPTION

The EPC9104 Wireless power demonstration system is a

class D power system capable of delivering up to 15 W into

a load operating at 6.78 MHz (Lowest ISM band). The purpose

of this demonstration system is to simplify the evaluation pro-

cess of the wireless power technology using eGaN® FETs by in-

cluding all the critical components on a single board that can

be easily connected into any existing converter. The EPC9104

wireless power system comprises four boards namely:

1) A Source Board (Transmitter or Power Amplier)

2) A Source Coil (Transmit Coil)

3) A Device Coil (Receive Coil)

4) A Device Board (Load or Receiver)

The Source board features the EPC2014 (40 V rated) enhance-

ment mode (eGaN®) eld eect transistors (FETs) in a half

bridge topology, and includes the gate driver and feedback

based phase controller that ensures operation of the system

at 6.78 MHz. The source board can also be operated using an

external oscillator or direct gate driver signals.

The Source and Device Coils are provided by WiTricity Corpo-

ration and have been pre-tuned to operate at 6.78 MHz.

The device board includes a high frequency Schottky di-

ode based full bridge rectier and output lter to deliver a

ltered unregulated DC voltage. The device board comes

equipped with various load resistances that can be manually

Manufacturer Part #

Murata GRM188R71H104KA93D

Murata GRM32DF51H106ZA01L

Diodes Inc. PD3S140-7

Linx CONREVSMA013.062

Tyco 4-103185-0-02

Stackpole CSRN2512FKR300

----

TE Connectivity 5-1622820-3

Rohm Semiconductor MCR100JZHF4220

Rohm Semiconductor MCR100JZHF2740

Rohm Semiconductor MCR100JZHF2870

Rohm Semiconductor MCR100JZHF1400

Tektronix 131-5031-00

Keystone 5015

WiTricity 190-00038-01

Figure 10: EPC9104-D Device Board Schematic

47E Load Bank

CAUTION - HOT

Output

R815

274E 1W

GND2

R816

274E 1W

GND2

R817

287E 1W

GND2

R818

287E 1W

GND2

R819

287E 1W

GND2

R820

287E 1W

GND2

R821

140E 1W

GND2

R822

140E 1W

GND2

R823

140E 1W

GND2

R803

560E 1W R804

560E 1W R805

560E 1W R806

560E 1W R807

560E 1W R808

560E 1W R809

560E 1W R810

560E 1W R811

560E 1W

J82

.1” Male Vert.

Vout

J801

.1” Male Vert.

Vout

J802

.1” Male Vert.

Vout

J803

.1” Male Vert.

Vout

J804

.1” Male Vert.

Vout

J805

.1” Male Vert.

+Z 137E Load Bank

Load Bank #2

‹

+Z 144E Load Bank

Load Bank #3

‹

+Z 144E Load Bank

Load Bank #4

‹

+Z 140E Load Bank

Load Bank #5

‹

+Z 70E Load Bank

Load Bank #6

‹

Table 4 : Bill of Materials - Device Board

Item Qty Reference Part Description

1 1 C84 100nF, 50V

2 1 C85 10uF 50V

34D80,D81,D82,D83 Schottky 40V 1A

4 1 J80 SMA vertical Socket

5 8 J81, J82, J800, J801, J802, J803, J804, J805 .1" Male Vert.

6 1 R80 300mE 1W

7 12 R800, R801, R802, R803, R804, R805, R806,

R807, R808, R809, R810, R811 560E 1W

8 3 R812, R813, R814 422E 1W

9 2 R815, R816 274E 1W

10 4 R817, R818, R819, R820 287E 1W

11 3 R821, R822, R823 140E 1W

12 1 SJ81 5mm Scope Jack

14 4 TP1, TP2, TP3, TP4 SMD probe loop

15 1 Cl2 Device Coil

Board Standos

Output Current - AmpMeter

+Z 140E Load Bank

Load Bank #1

RX Coil Connection

Kelvin Output Current

Kelvin Output Voltage

Receiver Circuit

D80

40V 1A

D81

40V 1A C85

10uf, 50V

C84

100nf, 50V

D82

40V 1A

D83

40V 1A

R80

300mE 1W

TP4

SMD Probe Loop

J80

SMA

Vertical Socket

TP3

SMD Probe Loop

R800

560E 1W

Vout

Vrect

Vrect Vrect

GND2

R812

422E 1W

GND2

R813

422E 1W

GND2

R814

422E 1W

GND2

GND2 GND2

GND2

GND2 GND2

GND2

R801

560E 1W R802

560E 1W

SJ81

5mm Scope Jack

TP1

SMD Probe Loop

TP2

SMD Probe Loop

J81

.1” Male Vert.

J800

.1” Male Vert.

‹

www.epc-co.com

programmed to specic values to determine the impact of load

resistance on the performance of the system.

Both the source and device boards come equipped with various

probe points to facilitate simple waveform measurement and ef-

ciency calculations. A complete block diagram of the system is

given in Figure 1.

For more information on the EPC2014 eGaN FET please refer to

the datasheet available from EPC at www.epc-co.com. The data-

sheet should be read in conjunction with this quick start guide.

Reverse Engineering of the Source and Device coils is prohibited

and protected by copyright law. For additional information

contact WiTricity Corp. direct or EPC for contact information.

Source Board

Source

Coil

Device

Coil

Un-Regulated

DC Output

Device

Board

Load

WiTricity

Coils

24VDC

Matching

Impedance

Network

Matching

Impedance

Network

Feedback and

Basic Control

Gate

Driver

Gate

Driver

PSU

Figure 1: Block Diagram of EPC9104 Demonstration System

ASSEMBLY PROCEDURE

Although the EPC9104 demonstration unit comes mostly pre-

assembled, the standos need to be attached to the system

prior to testing. The standos raise the boards 2 inches above

the work surface to ensure that metal work surfaces do not

interfere with the magnetic elds of the coils. Figure 2 shows

the location and allocation of the standos for the system. It

is recommended to tighten the nuts by hand to prevent over

tightening them.

If the Voltage feedback cable needs to be attached, use cau-

tion when installing as the Source Coil PCB is thin and can eas-

ily break.

When attaching the heat-sink, observe that it lies at (paral-

lel) with respect to the PCB to ensure proper contact to both

FETs and the gate driver IC. Do not over tighten the screws as

this can damage the screws, thermal interface material, and/

or the FETs.

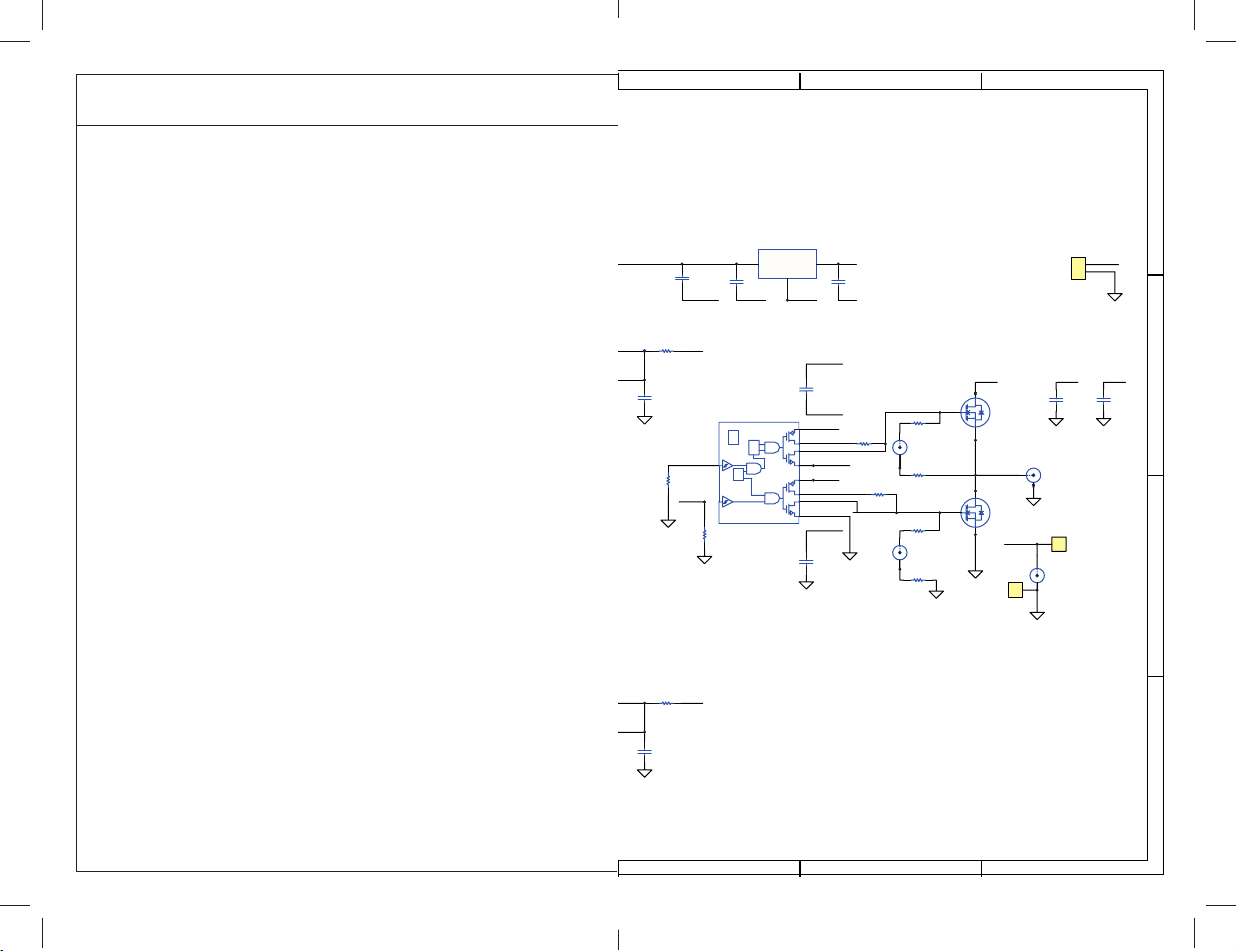

Figure 9: EPC9104-S Source Board Schematic
