USER MANUAL

Longitudinal Label Slitter

for EPSON C831

this product is certified:

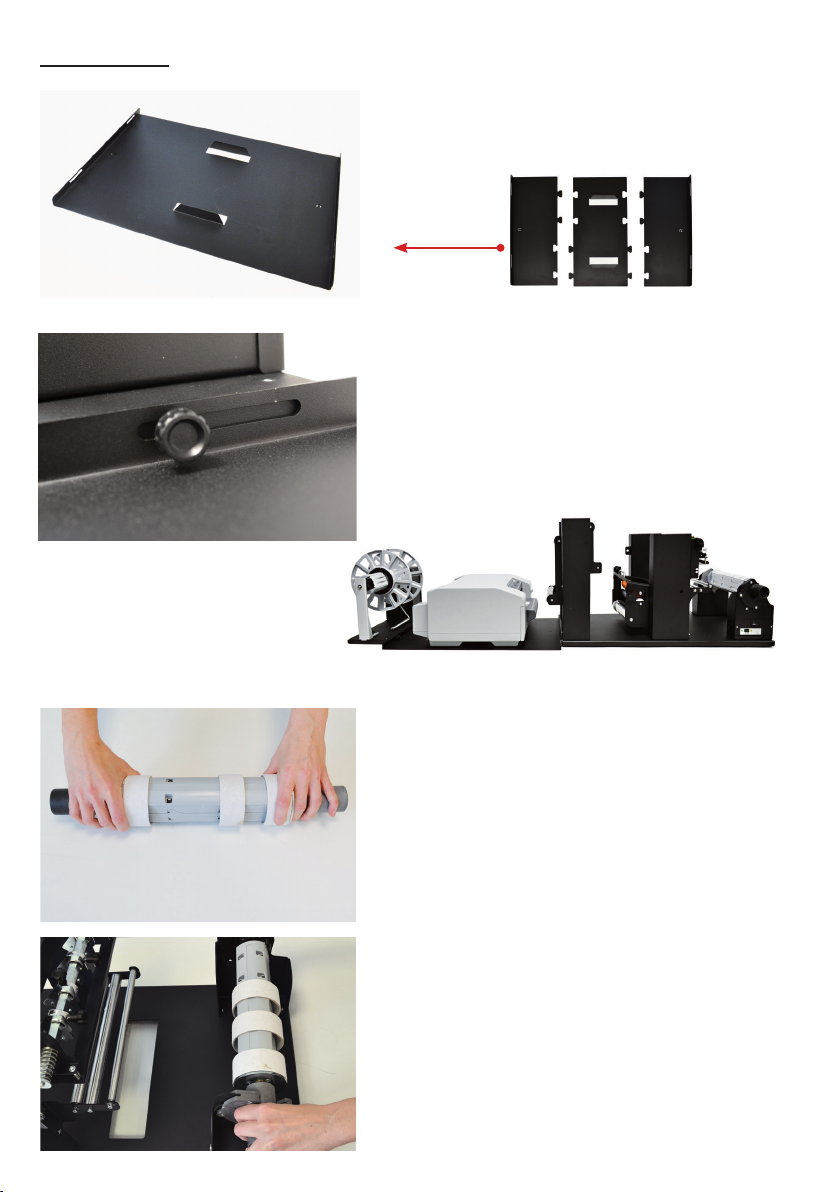

INSTALLATION

STEP 1

Assemble the printer plate.

STEP 2

Connect the slitter to the printer plate.

STEP 3

Load the cardboard cores onto the core

holder.

STEP 4

Place the core holder in position. The

grey handle must match with the grey

holder.

Label Unwinder

(optional)

Paper Path

Waste

from

printer

Finished roll

STEP 5

Attach the labels to the cores.

This will provide the necessary tension

in order start the slitting process.

STEP 6

Align the blades with the edges and the

center of the labels, tighten the thumb

screw once the blade is in position.

You can alternate the position of the

thumb screws for easier access.

WARNING: The slitter blades are exposed and are VERY

sharp when the slitter station is in the “up” position. Use

extreme caution!

Label face out

Label face in

Slitter module has 3 positions:

- Upper position (A), the blades are closed to allow the media loading;

- Middle position (B), align the blades with the edges and the center of the labels, tighten the

thumb screw once the blade is in position;

- Lower position (C), the blade cut the media.

OPEN CLOSE

B C

The black knobs lock the slitter module

in the requested position.

Screw the thumb knobs to move the

blades to the right or to the left.

STEP 7

Switch on the Slitter.

Slowly turn the speed knob. Run the

slitter until the labels reach the bottom

of the take-up core holder.

Remove the labels that have rewinded

onto the take-up core holder.

STEP 8

Attach the labels to the core using a

waste label or tape.

Switch on the slitter and slowly turn to

increase the speed.

Now you can start to print.

HOW TO ADD OR REMOVE A BLADE HOLDER

Keep out the iron slide bar unscrewing the

thumb screw.

Slide in or out the blade holder.

Relocate the slide iron bar in its position

and rescrew the thumb screw.

REPLACING SLITTER BLADES

Loosen the two screws holding the blade in

place.

Replace the blade.

Fix back the screw to holding the blade in

place.

REWINDER GUIDES ALIGNMENT

Metal glides adjustable to obtain rolls of

labels perfectly aligned.

ULTRASONIC SENSOR CALIBRATION

WARNING: Before proceeding with the ultrasonic sensor

calibration, turn “OFF” the module that needs to be calibrated

(laminating or matrix removing).

1. Take a paper clip and insert it into the little hole located next to the OFF-ON

switch and push it down for 5 seconds. The yellow led will light up.

2. Raise the tension arm. The yellow led will stay on.

3. Once again, insert the paper clip down into the hole for 5 seconds. The led will

light o󰀨.

Ultrasonic sensor calibration complete.

LAMINATION / MATRIX REMOVER & SLITTER MODULES SPEED ROTATION

MATRIX REMOVER & SLITTER MODULE

WARNING: If what (pictured above) is not happening, please

press the button on circuit board untill the yellow led ashes.

After it ashes for 5 times release the button and perform a

new test.

ULTRASONIC TENSION CONTROLLER

smart solutions for the labeling industry

Label rewinder, label unwinder, electronic label dispenser and more...

- FOR MORE INFO CONTACT YOUR RESELLER -
